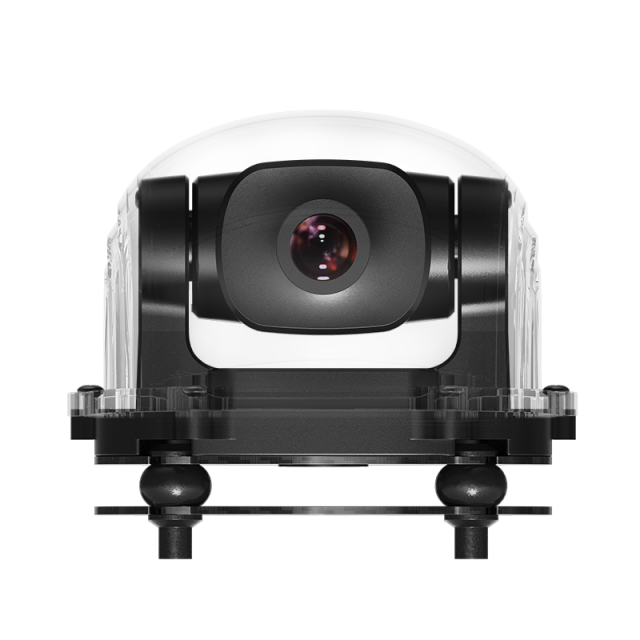

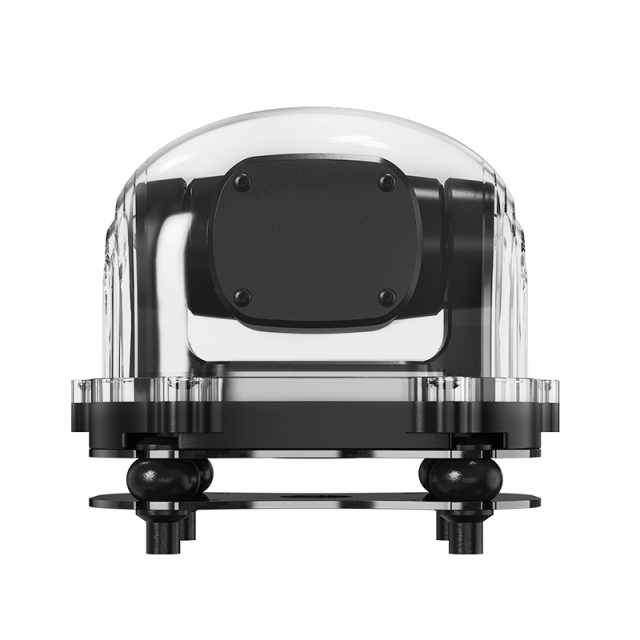

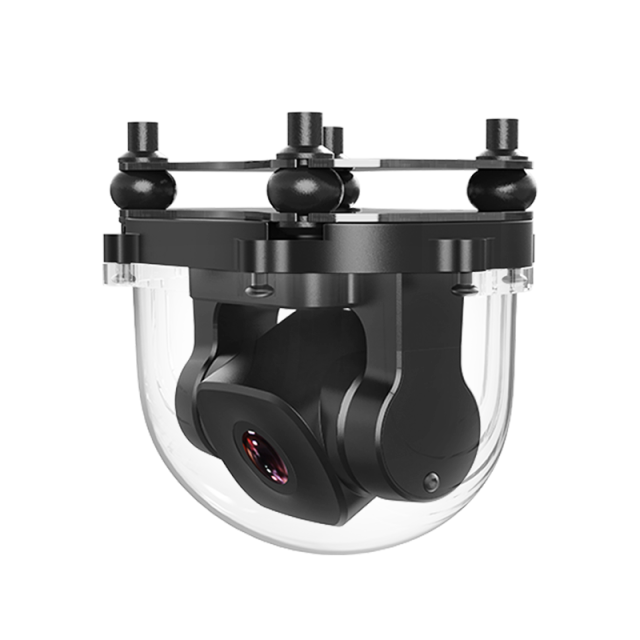

SIYI A2 MINI Ultra Wide Angle FPV Gimbal (Single Axis Tilt, 160° FOV)

SIYI A2 MINI Ultra Wide Angle FPV Gimbal (Single Axis Tilt, 160° FOV)

Availability: Pre-order – Shipped within 10-15 days
₹ 12,700.00 (Inc.GST)
₹ 12,700.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9180101

Short Description:
  • Single-axis FPV gimbal with tilt stabilization
  • 160° ultra-wide-angle camera for immersive FPV view
  • Full HD 1080P video output
  • Pitch control range: −90° to +25°
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Details
Model A2 Mini
Gimbal Type Single-Axis (Pitch/Tilt Only)
Controllable Pitch Angle −90° to +25°
Camera Resolution 1080P Full HD
Image Sensor 1/2.7-inch CMOS, 2 MP
Horizontal FOV 160° Ultra-Wide
Video Output Ethernet
Control Inputs PWM / S.Bus / Ethernet UDP
Working Voltage 12V DC
Average Power Consumption 2W
Peak Power Consumption 12W
Operating Temperature −10°C to +50°C
Dimensions 65 × 43 × 50 mm
Weight 85 g
Network Port Interface GH 1.25 mm
Mounting Modes Upright / Upside Down / Nose Mount
Distortion Correction Supported
Stabilization Mechanical Pitch Stabilization
Low-Light Capability Starlight Camera Support


The SIYI A2 Mini is a lightweight single-axis FPV gimbal camera designed for drones, UAVs, RC aircraft, and robotic systems. It features a 160° ultra-wide-angle lens, mechanical tilt stabilization, Ethernet video output, and starlight low-light capability for immersive FPV and industrial drone applications.

key Features :

  • Ultra-wide 160° FPV view with real-time 1080p HD transmission
  • Single-axis (pitch) gimbal stabilization for smooth tilt control
  • Lightweight compact design (~85 g) for UAV integration
  • Low-latency Ethernet digital video output for FPV flying
  • IP65 weather-resistant body for outdoor drone operations
  • Compatible with MK32 / HM30 / MK15 / MK32E / MK15E systems
  • Designed for drone navigation, inspection, and surveillance use cases

Packing Includes:

1 x SIYI A2 MINI FPV Gimbal

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
