| Parameter | Details |
|---|---|
| Model | SkyDroid C13 |
| Gimbal Type | 3-Axis Stabilized Gimbal |
| Camera System | Visible + Thermal + Laser Rangefinder |
| Video Output | Ethernet / Network Port |
| Control Interface | Ethernet / Network Port |
| Operating Voltage | 7.2V – 72V |
| Operating Current | 12V / 334mA |
| Weight | 176 g |
| Dimensions | 59 × 61 × 92 mm |
| Operating Temperature | −10°C to +50°C |
| Pitch Range | −90° to +10° |
| Yaw Range | −90° to +90° |
| Roll Range | −45° to +45° |
| Mounting Modes | Upright / Inverted |
| AI Tracking | Supported |
| One-Key Centering | Supported |
| Gesture Control | Supported |
| Memory Support | MicroSD up to 128GB |

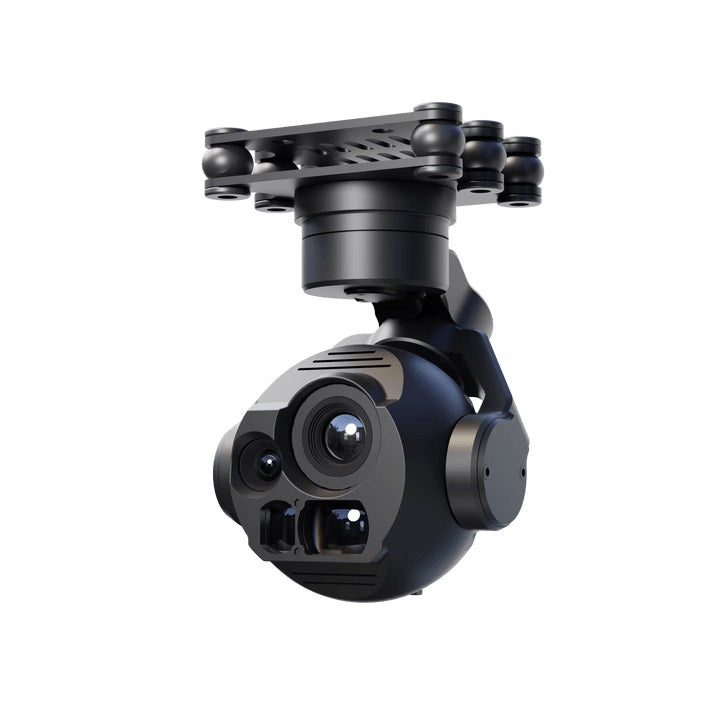

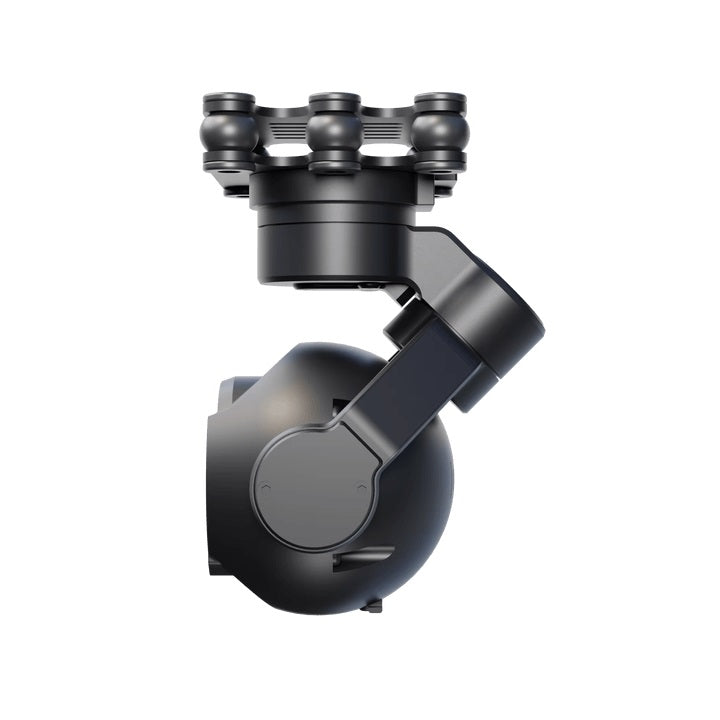

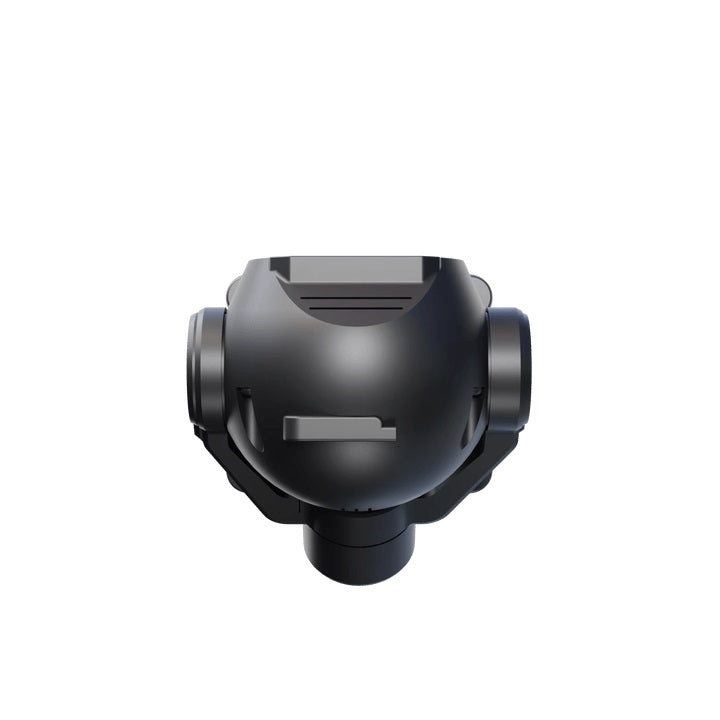

The SkyDroid C13 is an industrial-grade three-axis “three-light” UAV gimbal integrating a visible-light camera, thermal imaging camera, and laser rangefinder into one stabilized payload. It is designed for inspection drones, surveillance UAVs, mapping platforms, and autonomous aerial systems.
Key Features:
- Triple-sensor payload (visible + thermal + laser)
- 3-axis stabilized gimbal system
- AI target tracking support
- 30× digital zoom capability
- Ethernet video and control interface
- Thermal imaging with 640×512 resolution
- Laser rangefinder up to 1 km
- Supports gesture and remote control operation
- Lightweight industrial UAV payload design
- Compatible with SkyDroid ground station systems
Packing List Includes:
1 x SkyDroid C13 Three-Axis Three-Light Gimbal Camera
