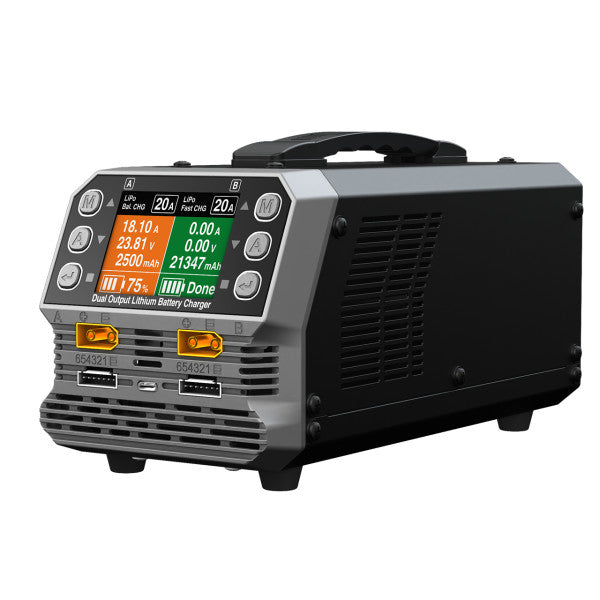

SKYRC Dual Channel PC1080neo LiPo/LiHV Battery Charger

SKYRC Dual Channel PC1080neo LiPo/LiHV Battery Charger

Availability: In stock (Shipped within 2-3 days)
₹ 23,300.00 (Inc.GST)
₹ 23,300.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

7921003

Short Description:
  • Compact 1080W dual-channel battery charger
  • Supports LiPo & LiHV (6S) batteries
  • 540W per channel for efficient charging
  • Fast, Balance & Storage modes
  • 2.8-inch color display with real-time data
  • Expandable to multi-battery charging (via hub)
  • High efficiency (~90%) with Active PFC
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Model SkyRC PC1080neo
Charger Type Dual-channel lithium battery charger
Supported Batteries LiPo / LiHV
Cell Support 6S
Output Power 1080W (540W × 2)
Charge Current 1A – 20A per channel
Balance Current 200mA – 1800mA
Channels 2
Charge Modes Fast / Balance / Storage
AC Input 100–240V, 50/60Hz
Efficiency ~90% (Active PFC)
Display 2.8-inch color screen
Dimensions 255 × 124.6 × 120 mm
Weight ~2.43 kg
Operating Temp 0°C – 40°C

The SkyRC PC1080neo is a next-generation dual-channel lithium battery charger designed for professional drone and industrial applications. With a total output of 1080W and intelligent charging control, it delivers efficient, precise, and reliable performance for 6S LiPo and LiHV batteries.

Built with an advanced ARM Cortex processor, active PFC technology, and real-time monitoring, the PC1080neo ensures safe and optimized charging while maintaining high energy efficiency. Its compact design and intuitive interface make it ideal for both field operations and workshop use.

Key Features:

🔋 Dual Channel Power

  • 1080W total output (540W × 2 channels)
  • Charge 2 batteries simultaneously

🔌 Battery Compatibility

  • Supports LiPo & LiHV batteries (6S)

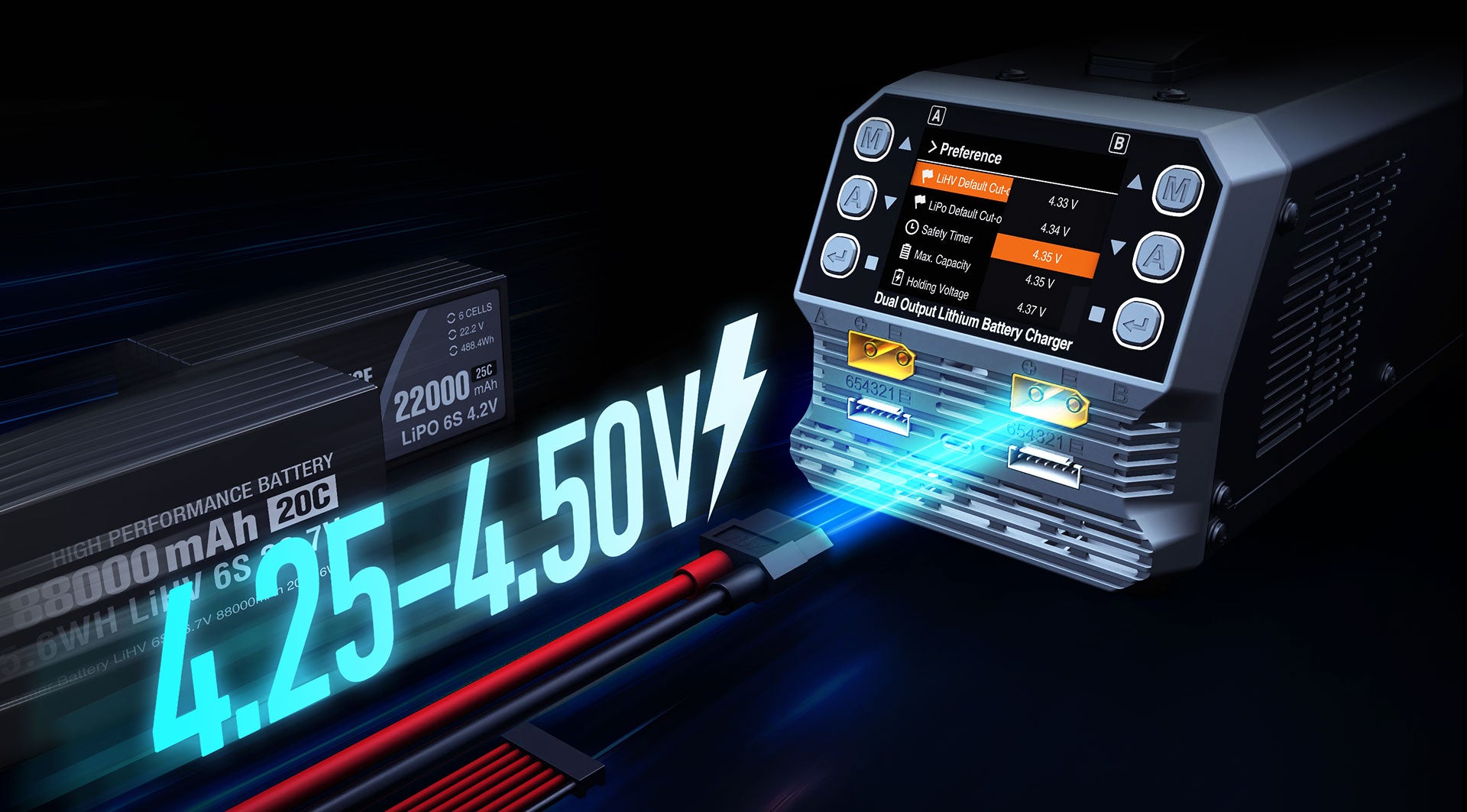

  • Adjustable voltage 4.25V – 4.50V per cell

⚡ Charging Modes

  • Fast Charge – quicker turnaround
  • Balance Charge – precise cell balancing
  • Storage Mode – battery health maintenance

🧠 Smart Charging System

  • ARM Cortex-M3 processor for accurate control
  • Real-time monitoring of:
  • Voltage
  • Current
  • Capacity
  • Battery percentage

🖥️ User Interface

  • 2.8-inch color display (320×240)
  • Easy navigation and mode selection

⚙️ Efficient & Stable Design

  • Active PFC (~90% efficiency)
  • Wide AC input: 100–240V (global use)

🔄 Expandable Charging

  • Compatible with G630neo charging hub
  • Charge up to 12 batteries (with hub)

🛡️ Safety Features

  • Short circuit protection
  • Reverse polarity protection
  • Over-temperature protection
  • Over-voltage & cut-off protection

Packing List Includes:

  • 1 × SKYRC Dual Channel PC1080neo LiPo/LiHV Battery Charger

The product has a warranty for 1 Months against manufacturing defects only.

  • However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
