T-Motor A10 Modular Propulsion System for Agricultural Drone

T-Motor A10 Modular Propulsion System for Agricultural Drone

Availability: Pre-order – Shipped within 10-15 days
₹ 21,199.00 (Inc.GST)
₹ 21,199.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360026

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model A10 KV120
Product Type UAV Modular Propulsion Kit
Configuration Motor + FOC ESC + Propeller
Recommended Battery 12–14S LiPo
Max Voltage ~61V
Rated Thrust 8–10 kg
Max Thrust Up to 28–30 kg
Efficiency ~8.5 g/W
Motor KV ~120 KV
ESC Current ~100A
Control Method PWM / CAN (Drone CAN, UAV CAN, Cube CAN)
Propeller Size 34 inch (Polymer Folding)
Weight (Full Set) ~1.5 kg
Tube Size 40 mm
Protection Rating IPX6
Operating Temp -20°C to +55°C

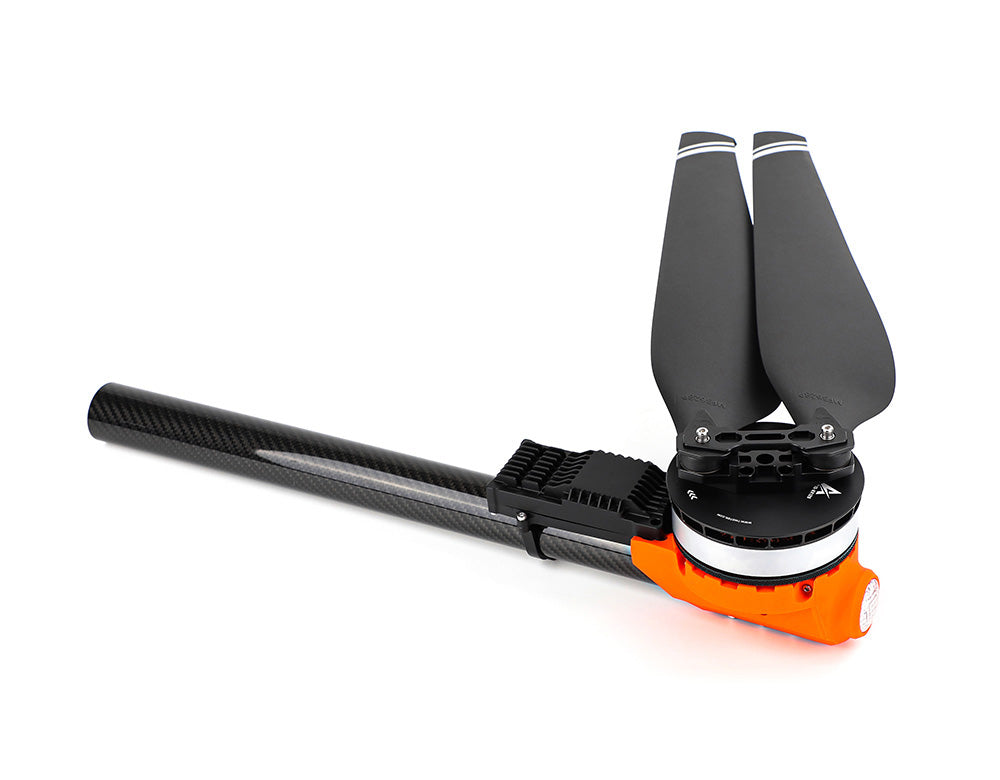

8The T-Motor A10 UAV Modular Propulsion System is a high-performance integrated propulsion solution designed for agricultural and industrial drones. It combines a motor, ESC, and propeller into one optimized system, ensuring high efficiency, reliability, and long flight endurance for heavy-lift UAV operations.

Key Features:

  • Agricultural spraying drones (16 L quadcopters, 25 L hexacopters)
  • Take-off Weight : 26-66Kg
  • Medium-lift multirotor UAVs
  • Surveying & industrial drones
  • Long-endurance flight systems needing robust propulsion

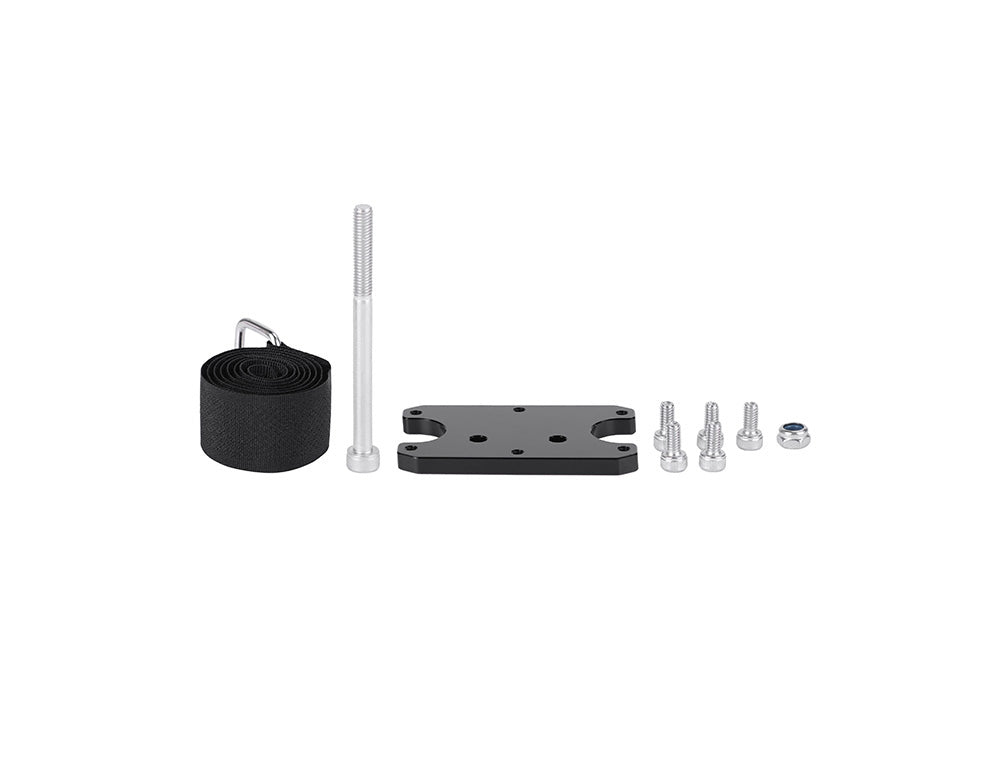

Packing List Includes:

  • 1 × A10 Modular Propulsion Arm (Motor + ESC + Propeller)
  • 1 x Folding propeller set
  • 1 x Accessories pack

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
