T-Motor A10XL Modular Propulsion System for Agricultural Drone

T-Motor A10XL Modular Propulsion System for Agricultural Drone

Availability: Pre-order – Shipped within 10-15 days
₹ 34,100.00 (Inc.GST)
₹ 34,100.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360027

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model A10XL KV130
Product Type UAV Modular Propulsion System
Configuration Motor + 14S FOC 200A ESC + Propeller
Recommended Battery 12–14S LiPo
Max Voltage ~61V
Rated Thrust 13–15 kg
Max Thrust Up to 30 kg
Efficiency (Rated) ~6.4–6.5 g/W
Motor KV 130 KV
Stator Size 99 × 24 mm
ESC Type FOC Intelligent ESC
Peak Current 200A (short duration)
Control Method PWM / CAN (Drone CAN, UAV CAN, Cube CAN)
Propeller Model MF3628P (folding)
Propeller Size 36 inch (≈914 mm)
Weight (Full Set) ~1.96 – 2.07 kg
Tube Size 40 mm
Protection Rating IPX6
Operating Temp -30°C to +50°C

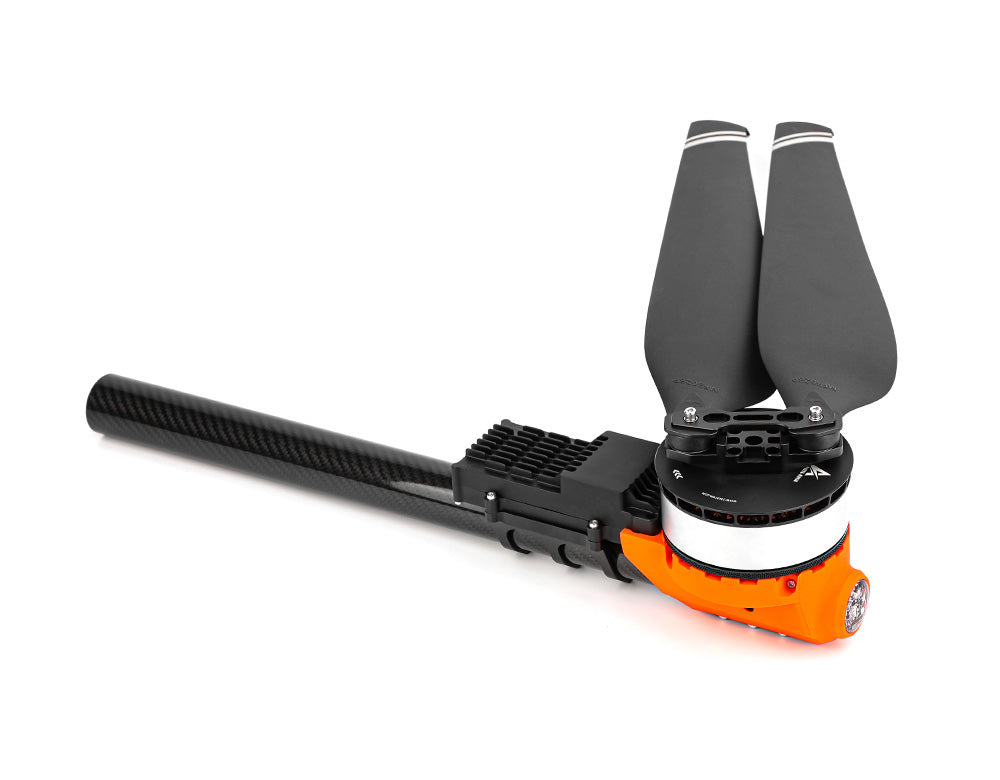

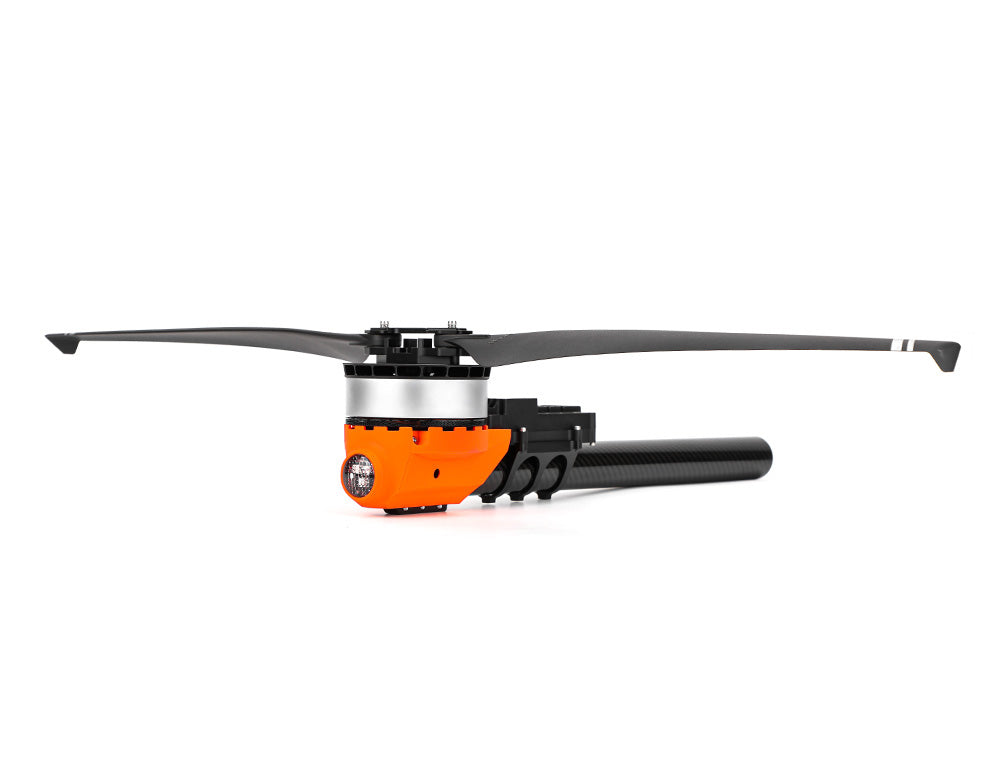

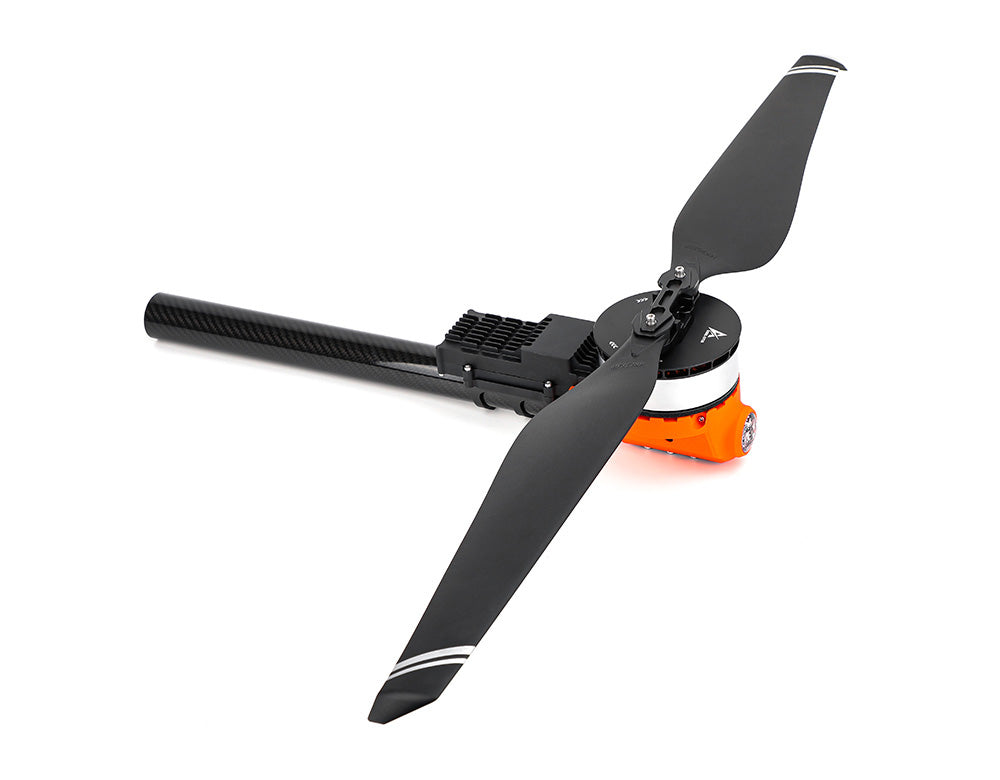

The T-Motor A10XL UAV Modular Propulsion System is a high-end heavy-lift propulsion system designed for 30L–40L agricultural drones. It integrates a high-power motor, 200A FOC ESC, and large folding propeller, delivering exceptional thrust, efficiency, and durability for large UAV operations.

Key Features:

  • Agricultural spraying drones (30 L quadcopters, 40 L hexacopters)
  • Take-off Weight : 52-90Kg
  • Medium-lift multirotor UAVs
  • Surveying & industrial drones
  • Long-endurance flight systems needing robust propulsion

Packing List Includes:

  • 1 × A10XL Modular Propulsion Arm (Motor + ESC + Propeller)
  • 1 x Folding propeller set

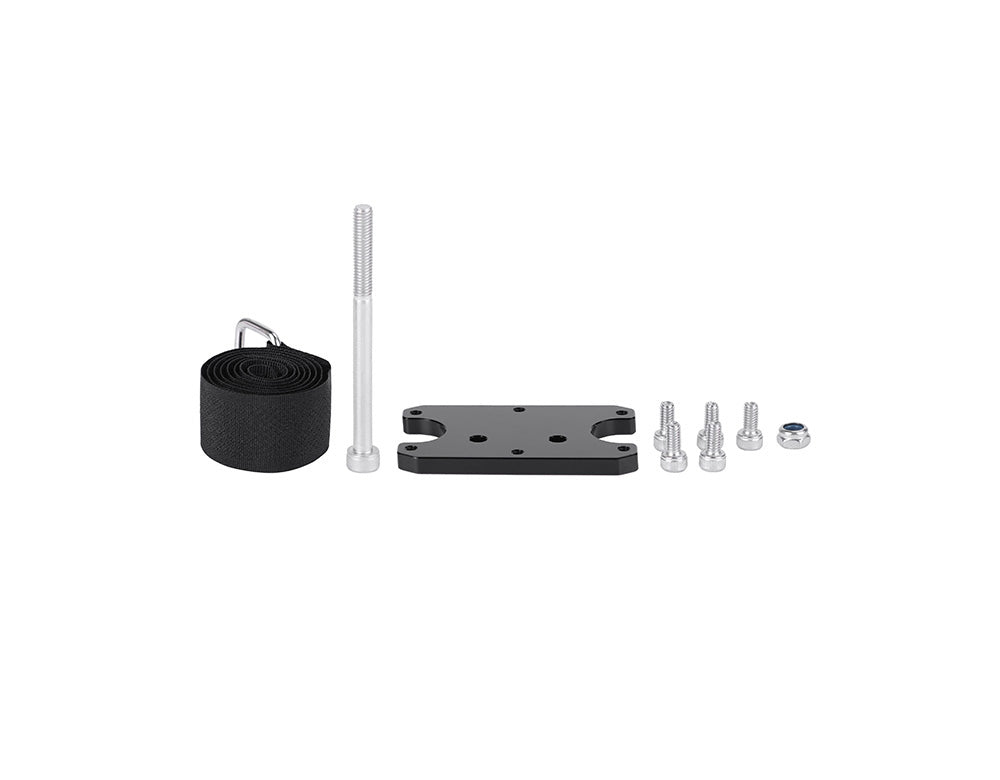

  • 1 x Accessories pack

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
