T-Motor A12XL-14S Modular Propulsion System for Agricultural Drone

T-Motor A12XL-14S Modular Propulsion System for Agricultural Drone

Availability: Pre-order – Shipped within 10-15 days
₹ 60,930.00 (Inc.GST)
₹ 60,930.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360030

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Model A12XL KV77
Product Type UAV Modular Propulsion Kit
Configuration Motor + 14S FOC ESC + Propeller
Recommended Battery 12–14S LiPo
Max Voltage ~61V
Rated Thrust 20–22 kg
Max Thrust Up to 43.6 kg
Efficiency ~6.0–6.5 g/W
Motor KV ~77 KV
ESC Type FOC Intelligent ESC
Peak Current ~200A
Control Method PWM / CAN (Drone CAN, UAV CAN, Cube CAN)
Propeller Size 40 inch (carbon fiber folding)
Weight (Full Set) ~2.85 kg
Tube Size 50 mm
Protection Rating IPX6
Operating Temp -30°C to +55°C

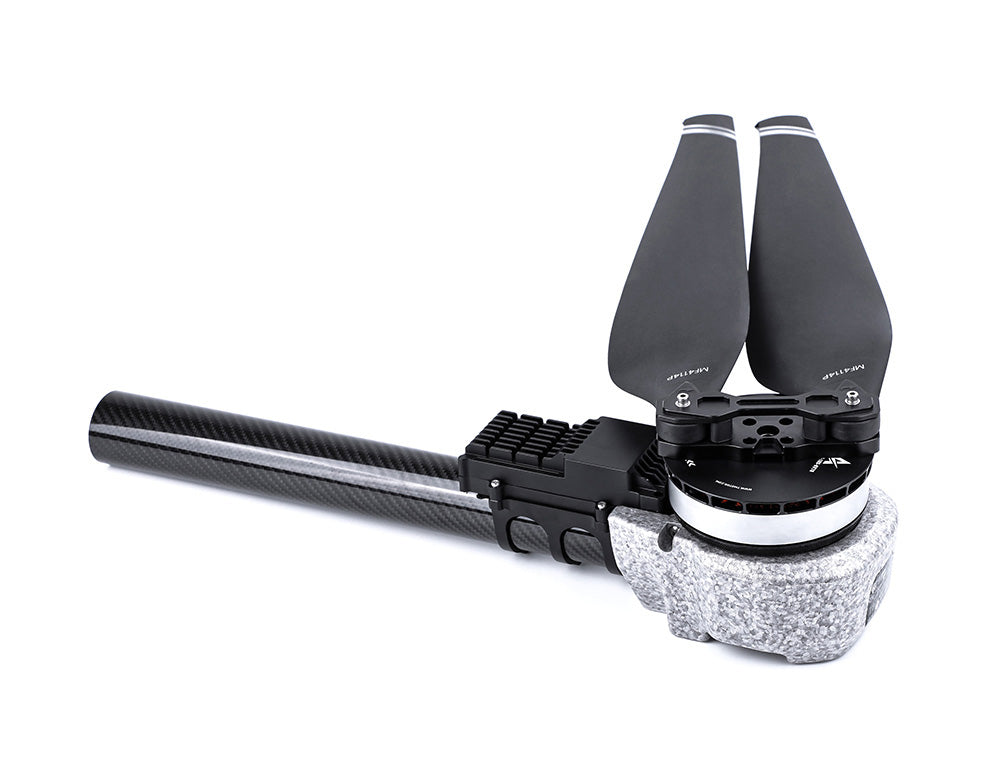

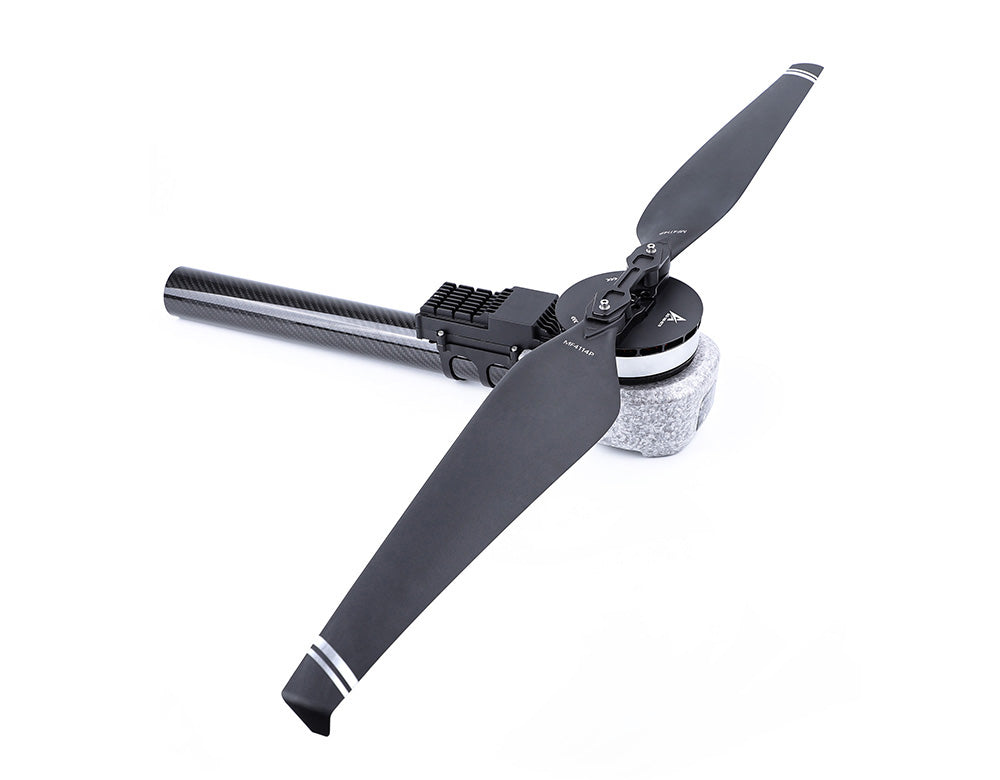

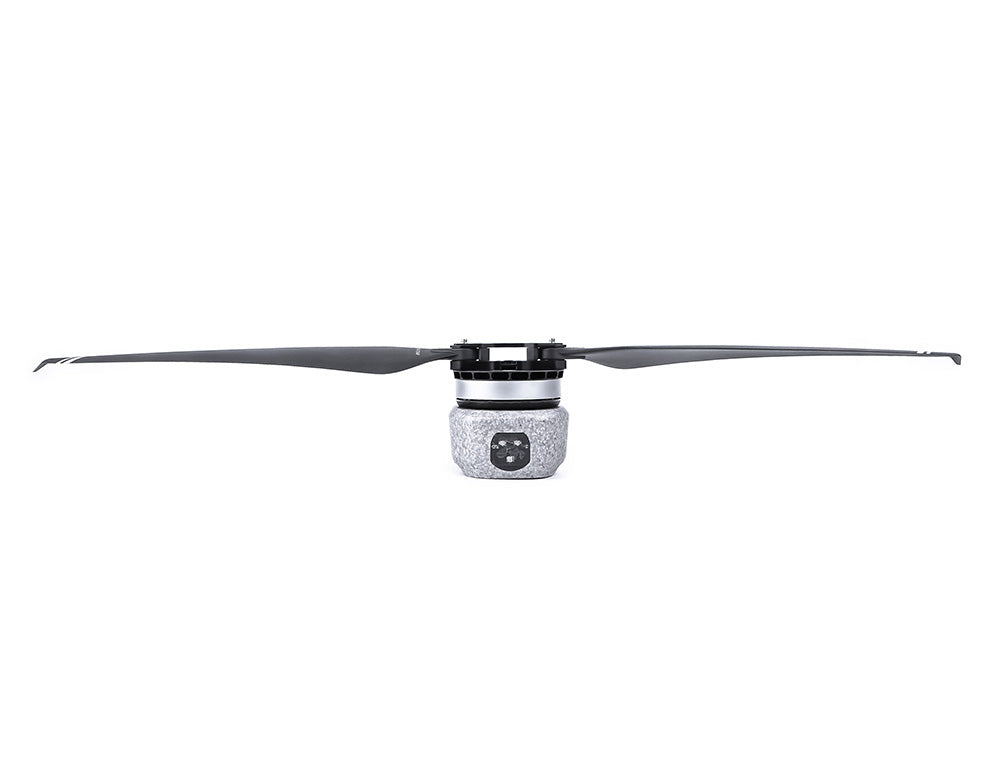

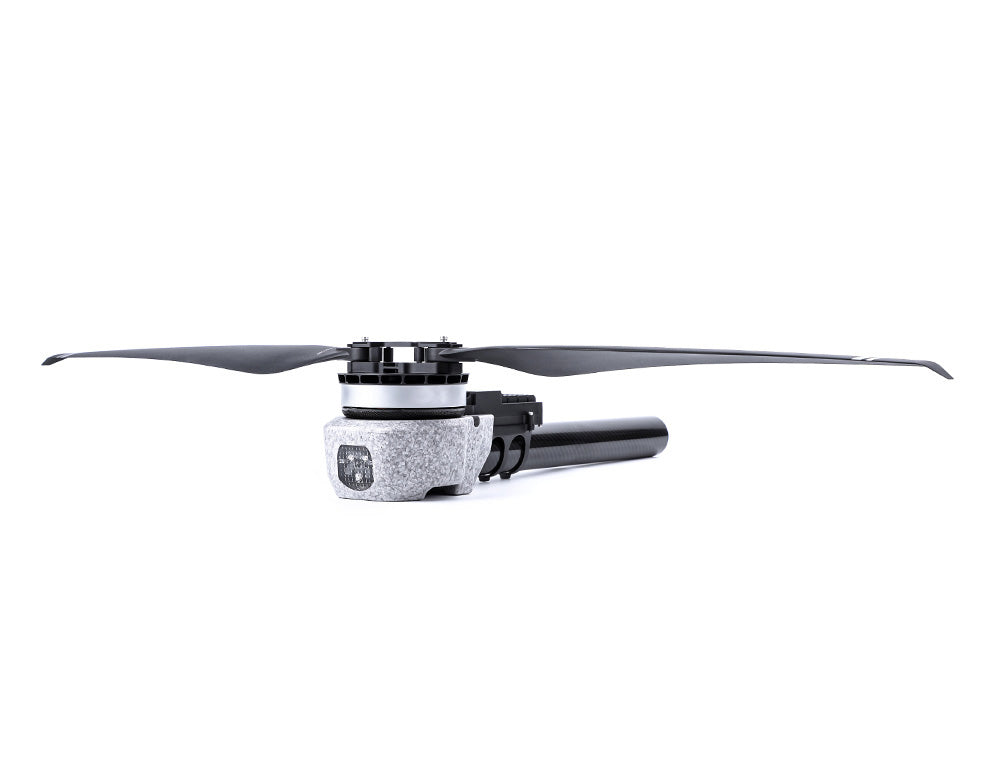

The T-Motor A12XL-14S UAV Modular Propulsion Kit is an ultra high-power propulsion system designed for 40L–50L agricultural drones and heavy industrial UAVs. It integrates a high-torque motor, 14S FOC ESC, and large folding propeller, delivering exceptional thrust and efficiency for extreme payload operations.

Key Features:

  • Agricultural spraying drones (40 L quadcopters, 50 L hexacopters)
  • Take-off Weight : 80-132Kg
  • Medium-lift multirotor UAVs
  • Surveying & industrial drones
  • Long-endurance flight systems needing robust propulsion

Packing List Includes:

  • 1 × A12XL-14S Modular Propulsion Arm (Motor + ESC + Propeller)
  • 1 x Folding propeller set

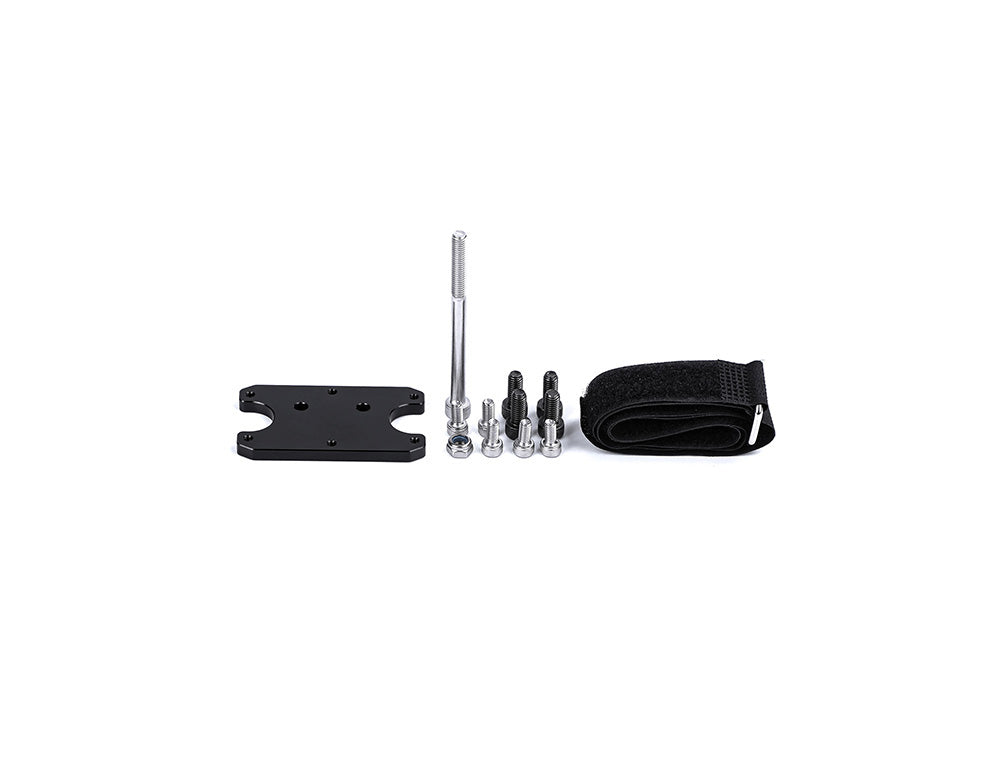

  • 1 x Accessories pack

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
