| Parameter | Specification |
|---|---|
| Product Name | A8-X Modular Propulsion System |
| System Type | Integrated propulsion unit (motor + ESC + propeller) |
| Recommended Drone Class | 10 L quadcopter, 16 L hexacopter |
| Recommended Take-Off Weight | 22 – 30 kg (quad), 30 – 42 kg (hexa) |
| Motor Type | Brushless FOC motor |
| Motor Stator Size | 81 × 20 mm |
| Motor KV Rating | 115 RPM/V |
| ESC Type | 14S FOC ESC |
| ESC Continuous Current | 80 A |
| Throttle Signal Range | 1100 – 1940 μs |
| Control Protocols | PWM, CAN |
| BEC | None |
| Propeller Model | Folding polymer propeller |
| Propeller Size | 31 inch (≈784 mm) |

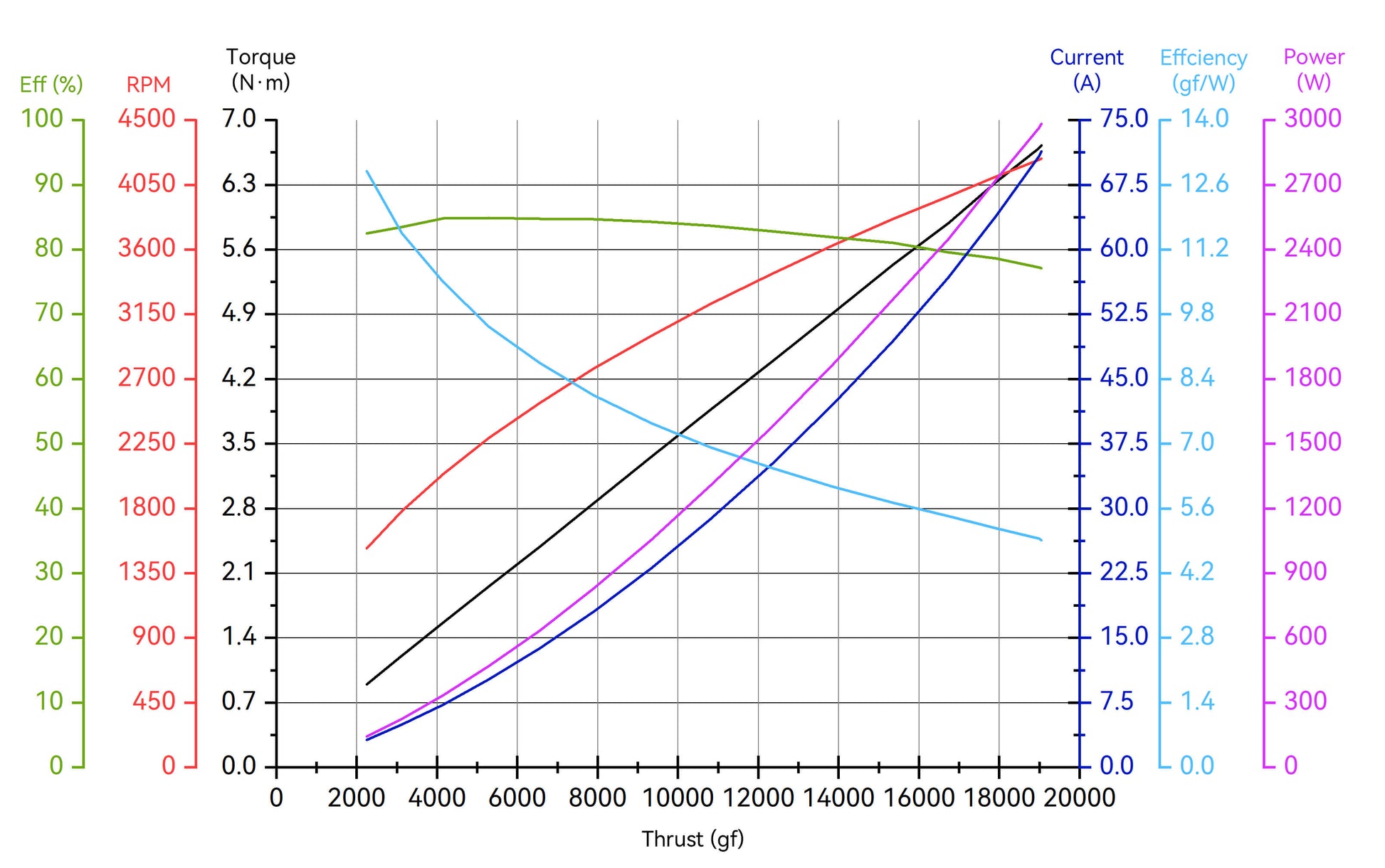

| Rated Thrust (per module) | 5 – 7 kg |
| Maximum Thrust | ~19 kg |
| Efficiency @ Rated Thrust | ~9.53 g/W @ ~5.2 kg |
| System Weight (incl. prop & wiring) | ~1180 g ±2% |
| Power Cable | 12 AWG silicone wire |
| Signal Cable | 5-core Teflon cable |
| Recommended Battery | 12S – 14S LiPo |
| Wire Length | ~1100 mm |
| Ingress Protection | IPX6 |
| Operating Temperature | −30 °C to +50 °C |

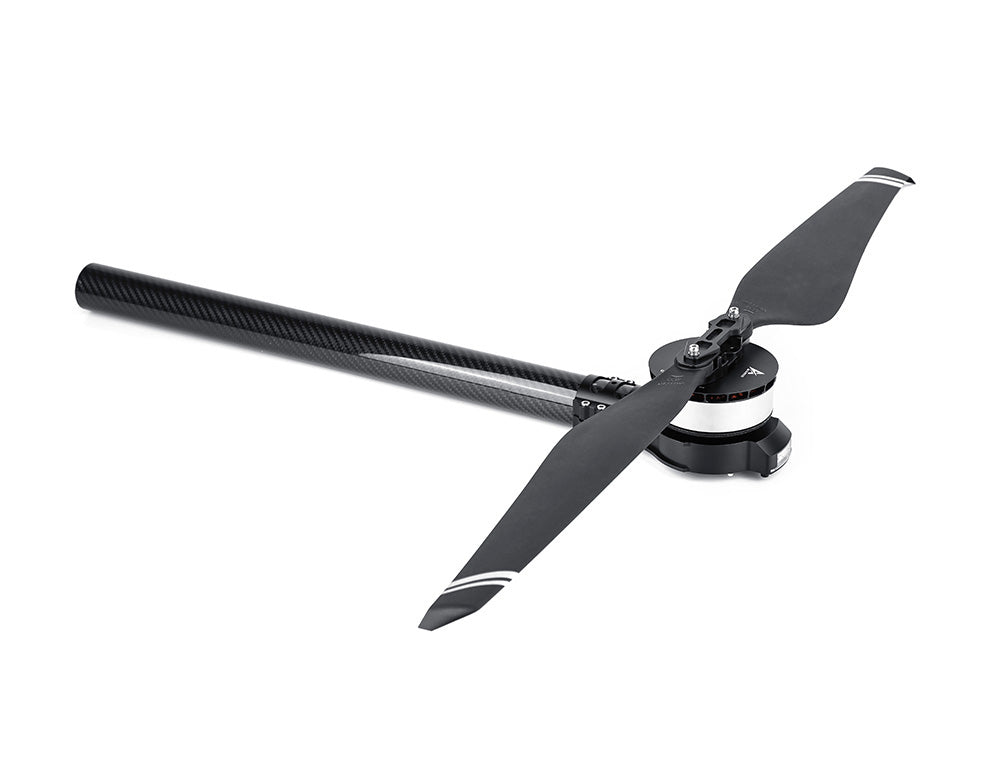

The A8-X Modular Propulsion System is a high-thrust, integrated power solution designed for heavy-lift multirotor platforms. By combining a low-KV FOC motor, high-current ESC, and large folding propeller into a single matched unit, it delivers stable thrust, high efficiency, and reliable performance for demanding industrial and agricultural drone applications.
Key Features:
- Agricultural spraying drones (10 L & 16 L platforms)
- Heavy-lift multirotor systems
- Industrial inspection drones
- Survey and mapping platforms
- Long-endurance aerial systems
Packing List Includes:

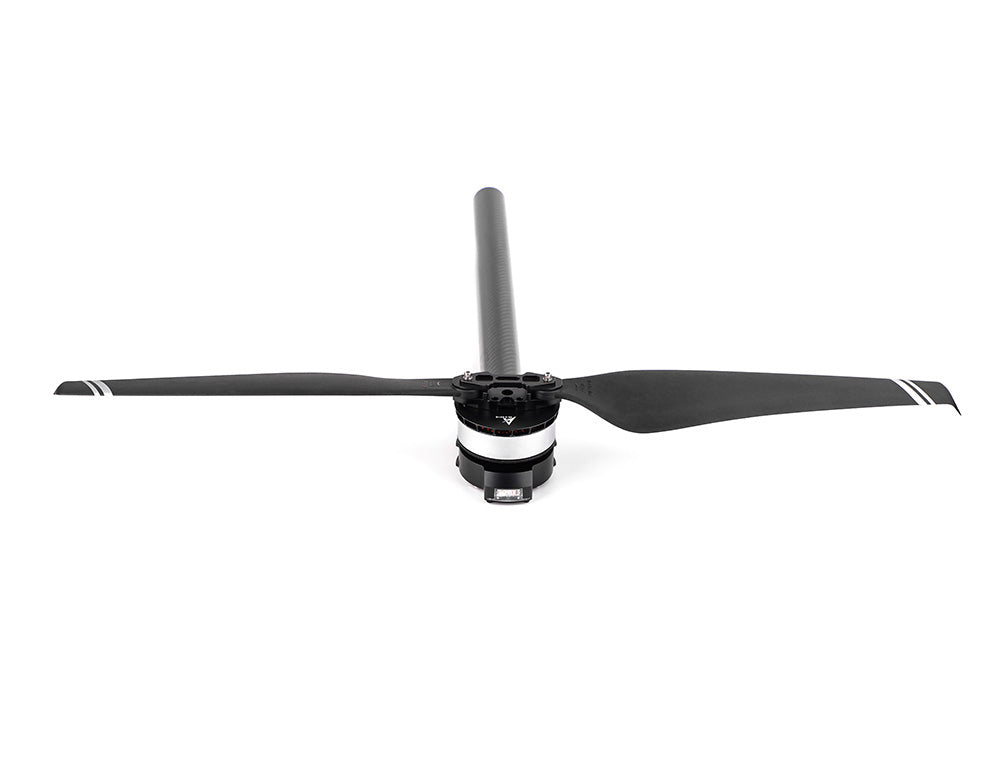

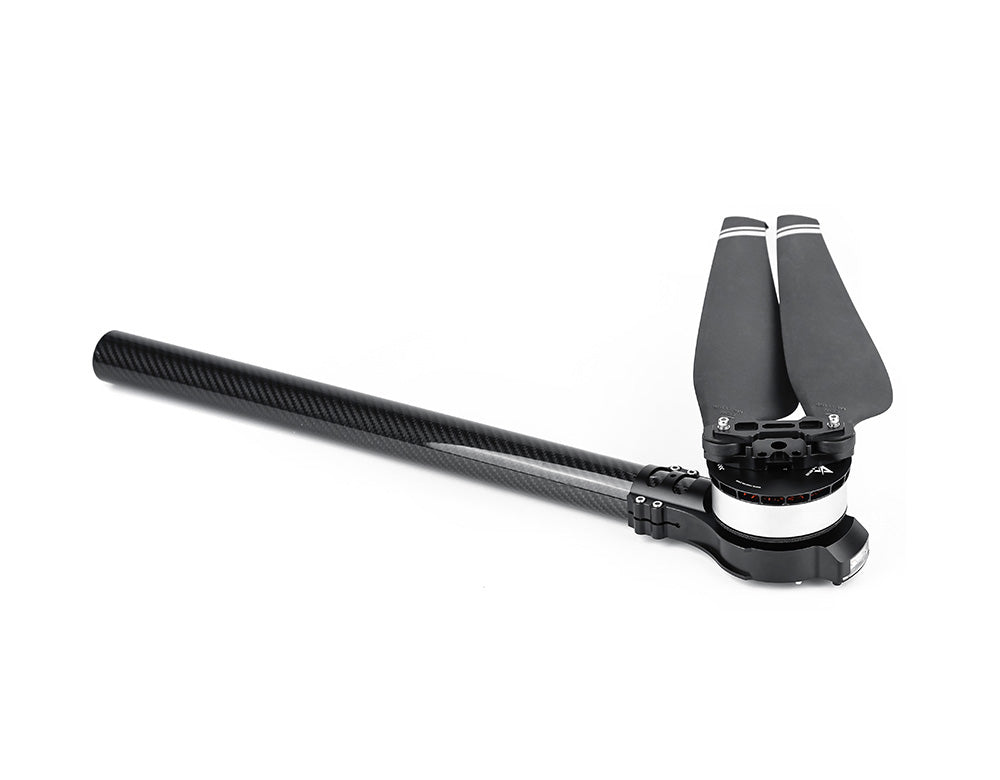

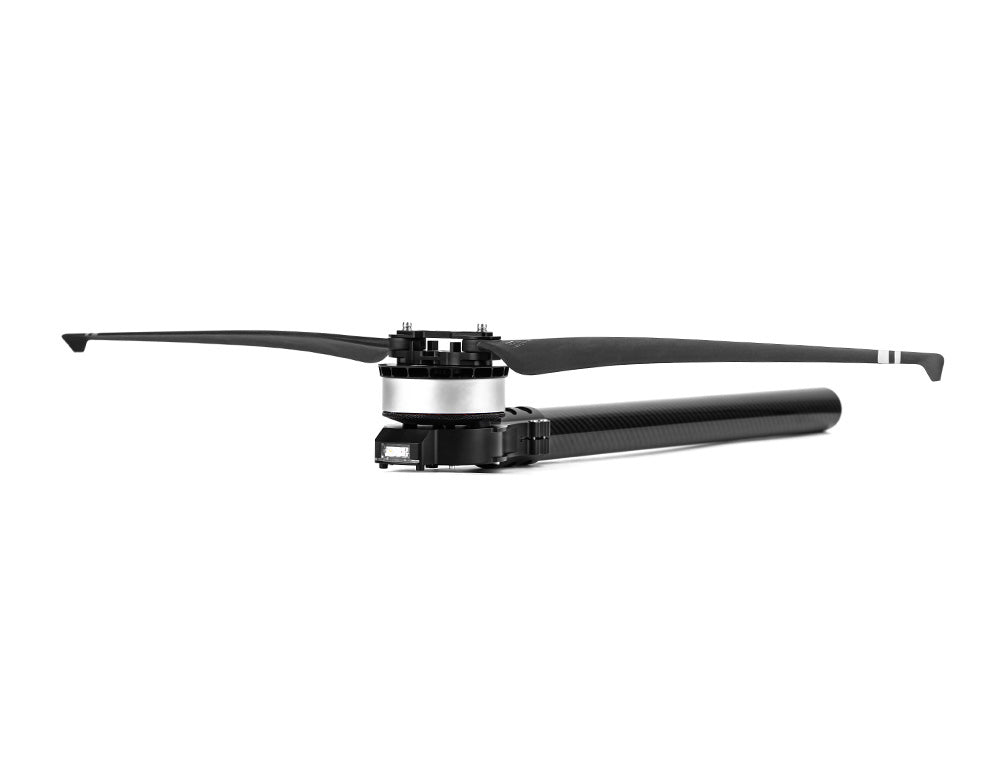

- 1 × A8-X Modular Propulsion Arm (Motor + ESC + Propeller)
- 1 x Folding propeller set

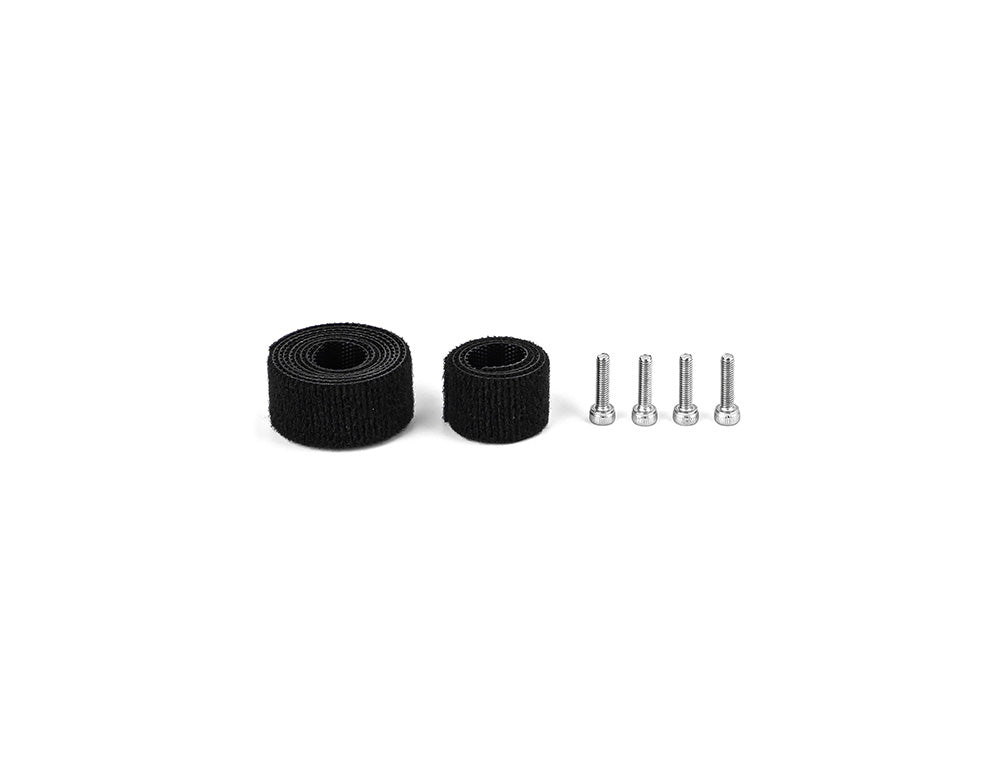

- Accessories pack
