| Parameter | Specification |
|---|---|
| Model | ALPHA 60A 6S |
| ESC Type | FOC (Field-Oriented Control) UAV ESC |
| Input Voltage | 6S LiPo (18–25.2 V) |
| Continuous Current | 40 A |
| Peak Current | 60 A (10 seconds) |
| Throttle Position Range | 1100–1940 μs |
| Throttle Refresh Frequency | 500 Hz |
| Throttle Response Speed | 50 ms |
| BEC | No |
| Standby Consumption | ≤50 mA |

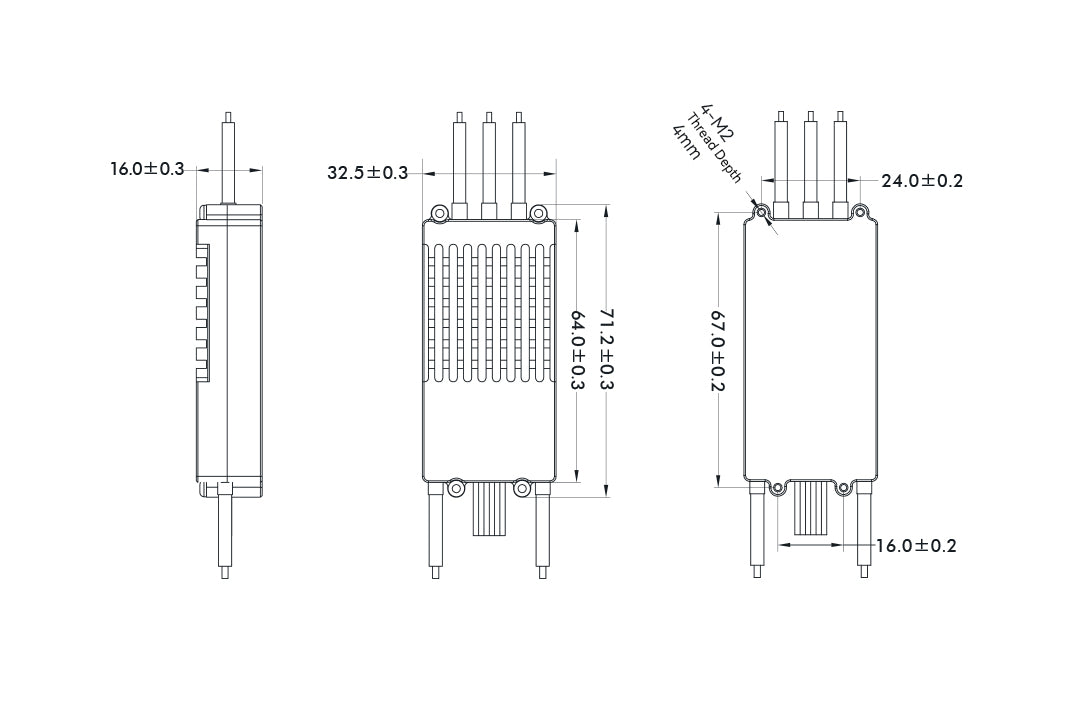

| Dimensions (L × W × H) | 71.3 × 32.5 × 15.9 mm |
| Weight (Including Cables) | 62.8 g |
| Power Cable | 14 AWG Silicone Wire, 175 mm |
| Motor Cable | 16 AWG Silicone Wire, 70 mm × 3 |
| Signal Cable | PVC Flat Cable, 355 mm |
| Programming Support | Alpha Data Link |
| Application Type | Industrial Multirotor UAVs |

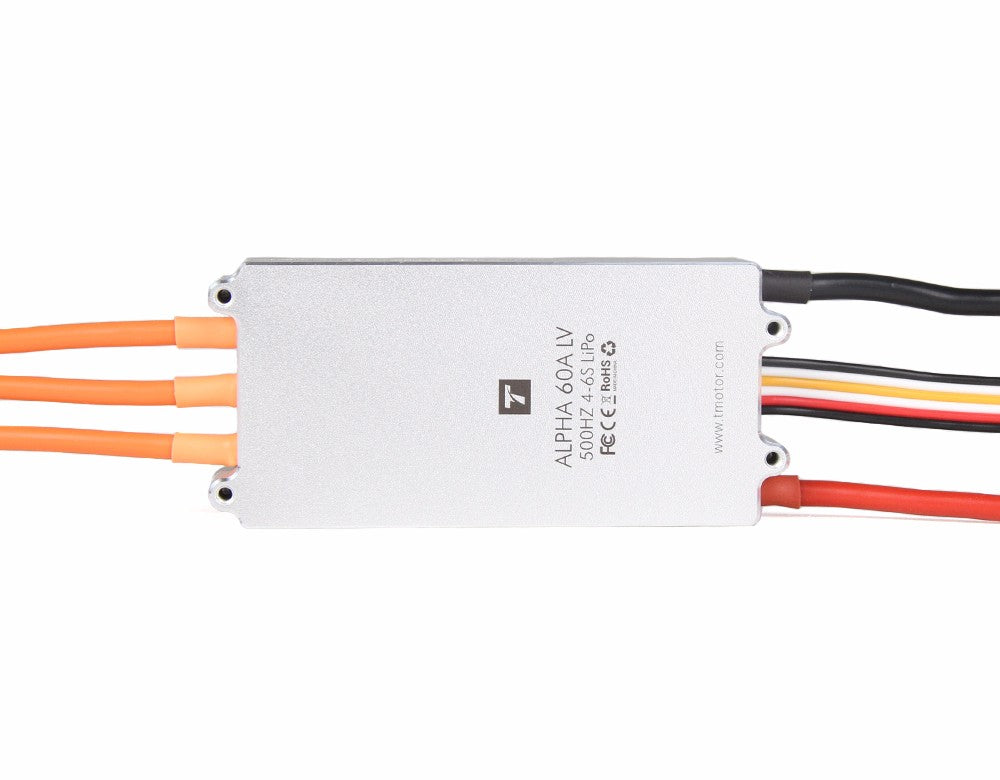

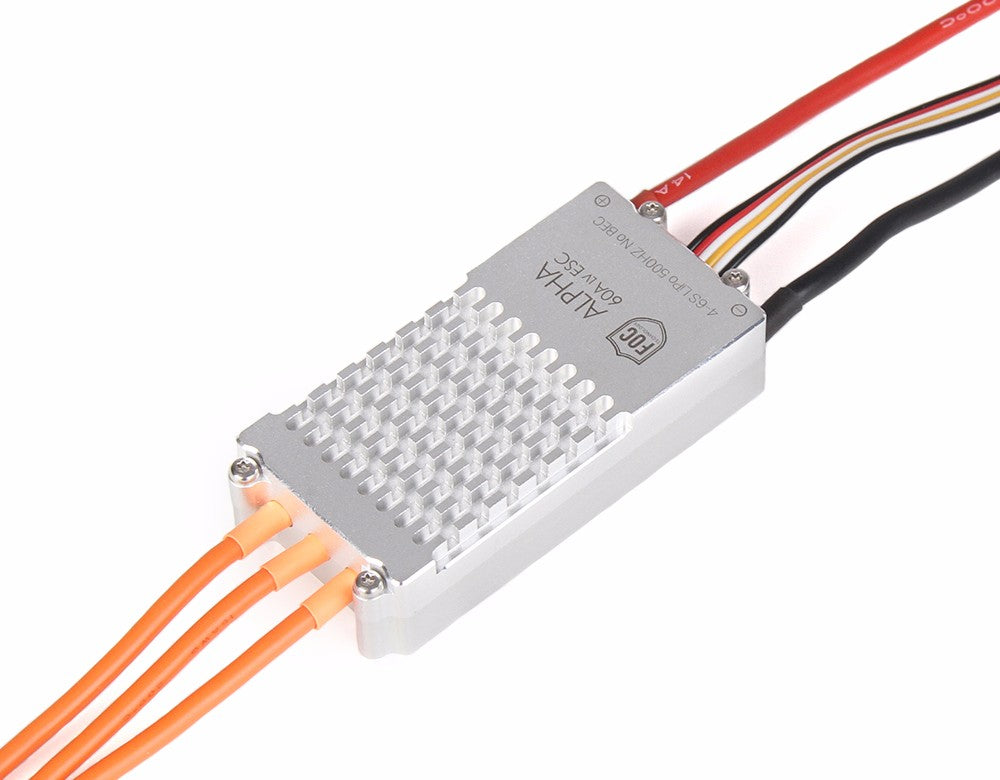

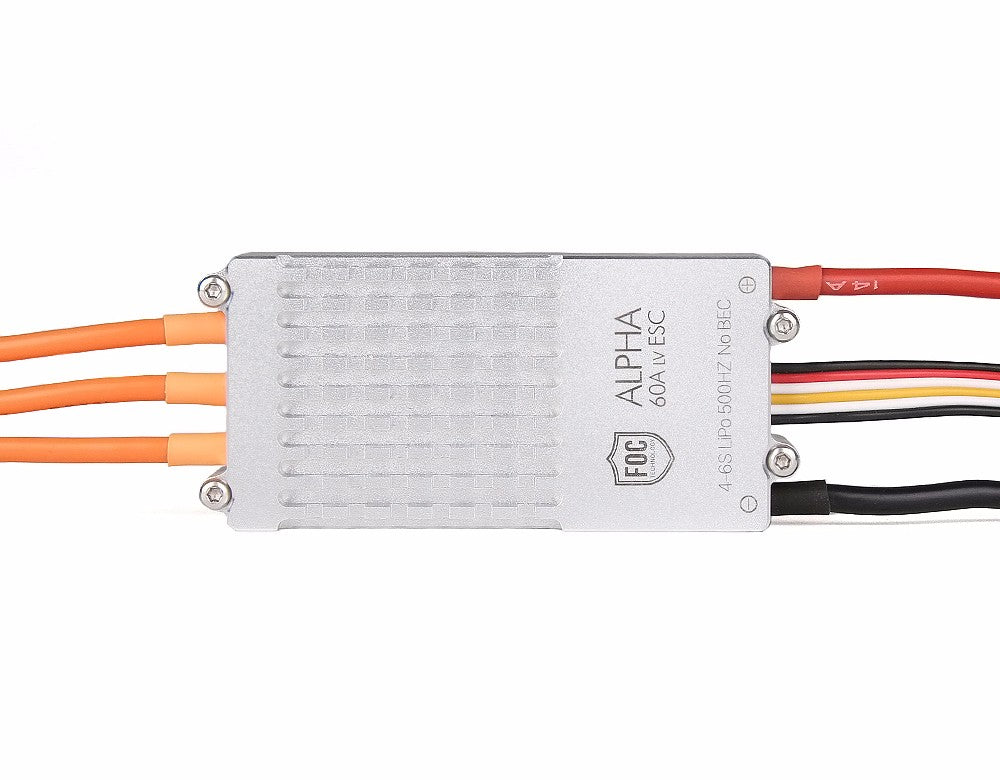

The T-MOTOR ALPHA 60A 6S FOC UAV ESC is a high-efficiency electronic speed controller designed for professional multi-rotor UAVs. Featuring advanced FOC technology, it provides smooth, low-noise, fast-response, and stable motor control with high efficiency and multiple protection functions for reliable drone propulsion systems.
ALPHA 60A 6S ESC Highlights:
- Low Noise
- Temperature and Interference
- Fast Response
- High Efficiency
- For Compatibility
- Please Leave A Note of Motor Type

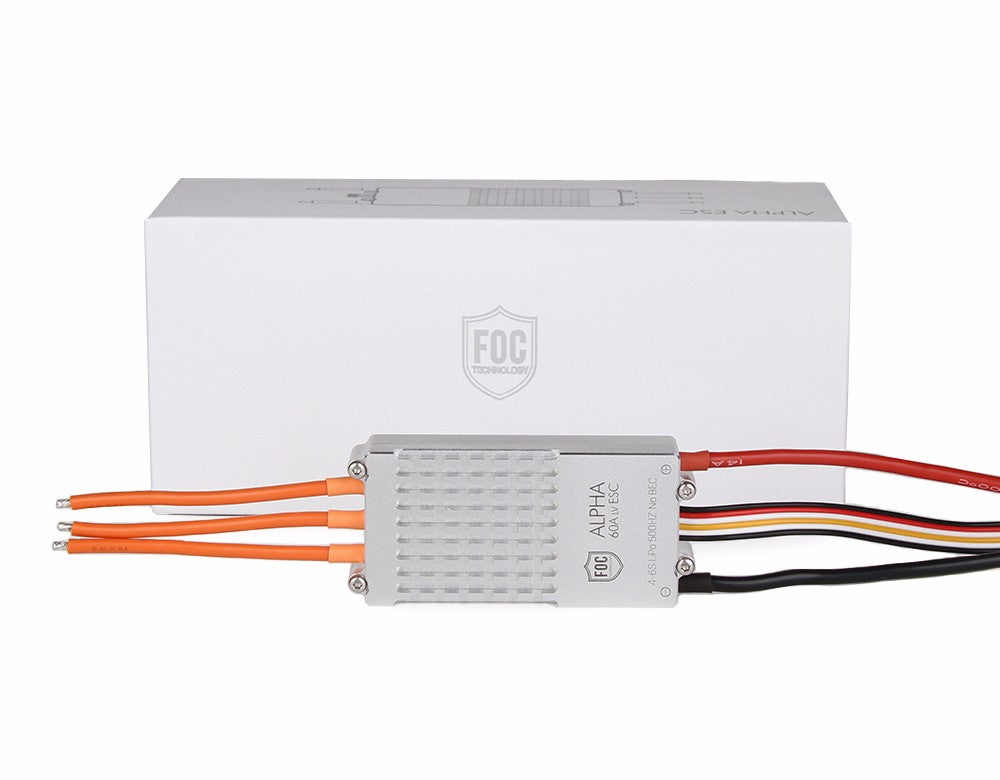

Packing List Includes:
- 1 x T-Motor ALPHA 60A 6S ESC
- 1 x Hardware Kit
