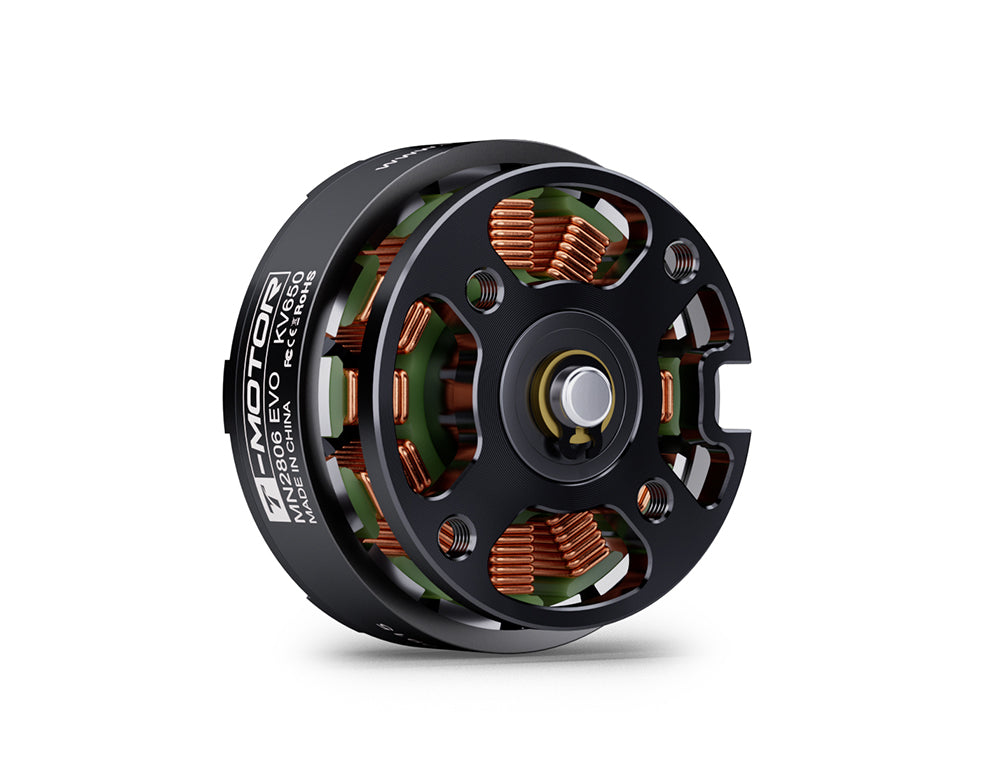

T-Motor Antigravity MN2806 EVO KV650

The T-MOTOR Antigravity MN2806 EVO KV650 is a lightweight, high-efficiency brushless outrunner motor designed for multirotor UAV applications. The EVO version features upgraded arc-shaped magnets for improved magnetic flux efficiency and 220°C high-temperature-resistant enameled wire. It delivers up to 1390g maximum thrust and weighs only 45g including cable, making it suitable for compact and performance-oriented drone platforms.

Antigravity MN2806 EVO KV650 Highlights:

•  Upgraded with arc-shaped magnets for optimal fit to the steel ring, precisely minimizing the stator air gap, optimizing magnetic flux distribution, and improving
motor efficiency.
•  High-temperature resistant enameled wire rated for 220℃, reducing the likelihood of motor failures and enhancing reliability and longevity.
•  Maximum thrust increased by 16% to 1390g.
•  Efficiency improvement of over 0.3g/W at similar thrust levels (above 400g).

Key Features:

• Upgraded design Improved version of MN2806 with better thrust and efficiency performance
• High thrust performance Up to ~1390 g maximum thrust Around 16% higher thrust than previous generation
• Improved efficiency About 0.3 g/W efficiency gain at medium load conditions (≥400 g thrust)
• Arc-shaped magnet deignReduced air gap between rotor and statorBetter magnetic flux distributionImproved torque and smoother throttle response
• High-temperature winding wire (220°C rated)Better heat resistance under high RPM and loadImproved durability and reduced failure risk
• Lightweight constructionAround 45 g motor weightSuitable for compact multirotor builds
• Optimized for 12–13 inch propellersBest efficiency with P12×4 / P13×4.4 props
• Stable flight performance Smooth throttle control for aerial mapping and cinematic drones
• Low power consumption designDesigned for long endurance UAV applications
• Durable UAV-grade buildImproved reliability for continuous field operations

Packing List Includes:

• 1 x T Motor Antigravity MN2806 EVO KV650
