| Parameter | Specification |
|---|---|
| Model | FLAME 100A 14S |
| ESC Type | Brushless Multi-Rotor UAV ESC |
| Continuous Current | 100 A |
| Peak Current (10 s) | 120 A |
| Input Voltage | 6S–14S LiPo (18.6V–58.8V) |
| BEC | No |
| PWM Signal Frequency | Up to 500–600 Hz |
| Waterproof Rating | IP55 |
| Weight | 139 g |

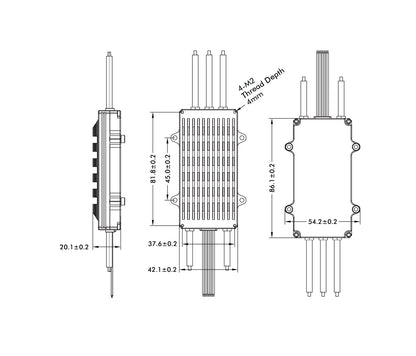

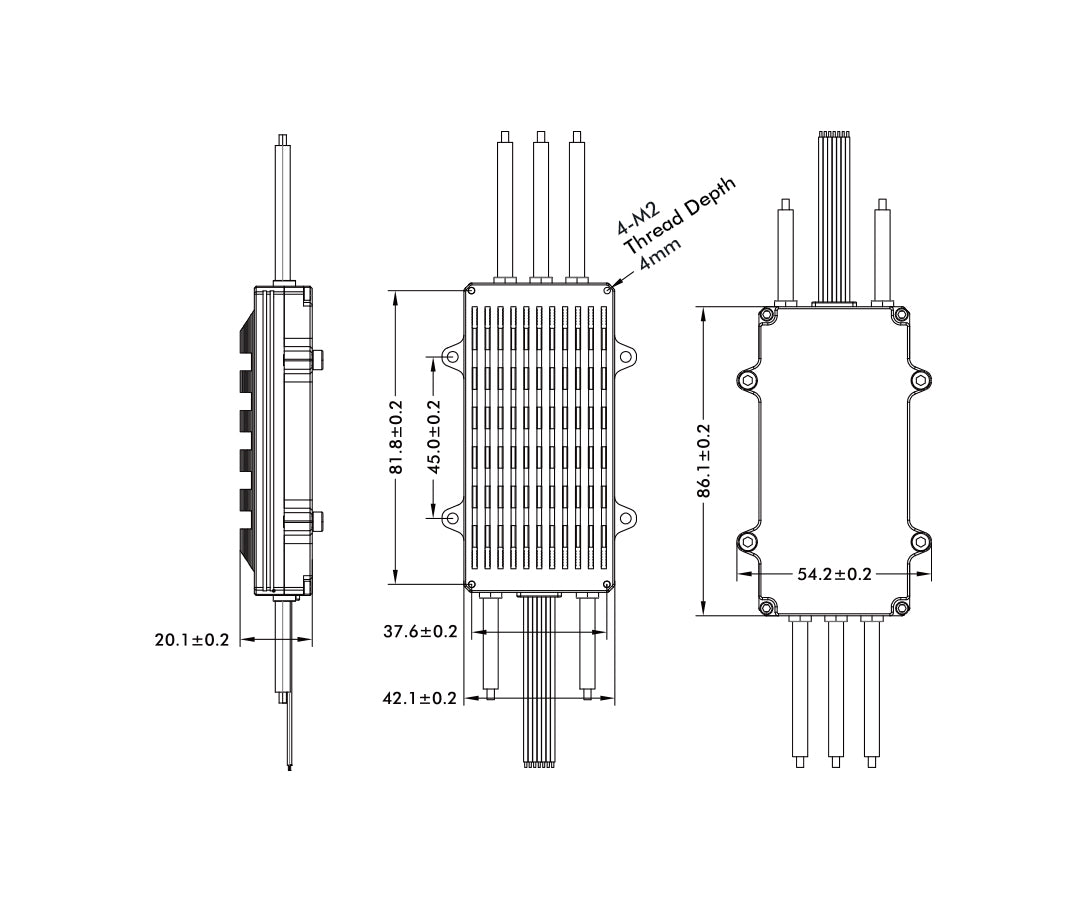

| Dimensions (L × W × H) | 86.1 × 54.1 × 24 mm |
| Cooling Method | Layered Heat Dissipation Structure |
| Housing | CNC Aluminum Alloy |
| Protection Functions | Low-Voltage, Overheat, Motor Lock-up, Throttle Signal Loss Protection |
| Application Type | Industrial & Heavy-Lift Multirotor UAVs |

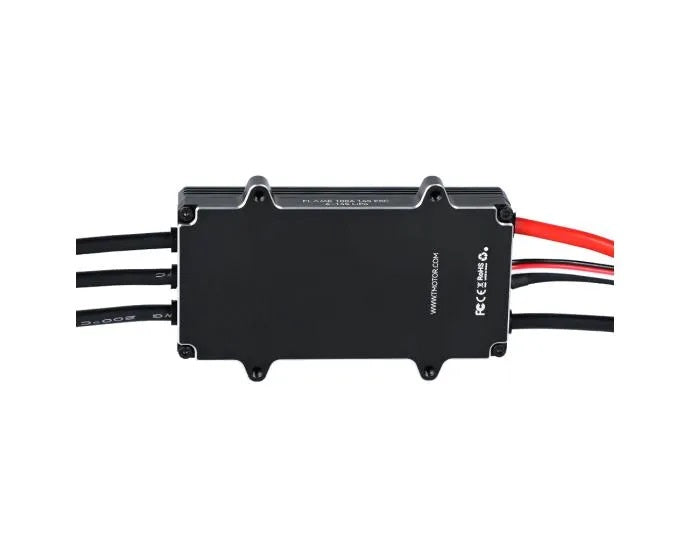

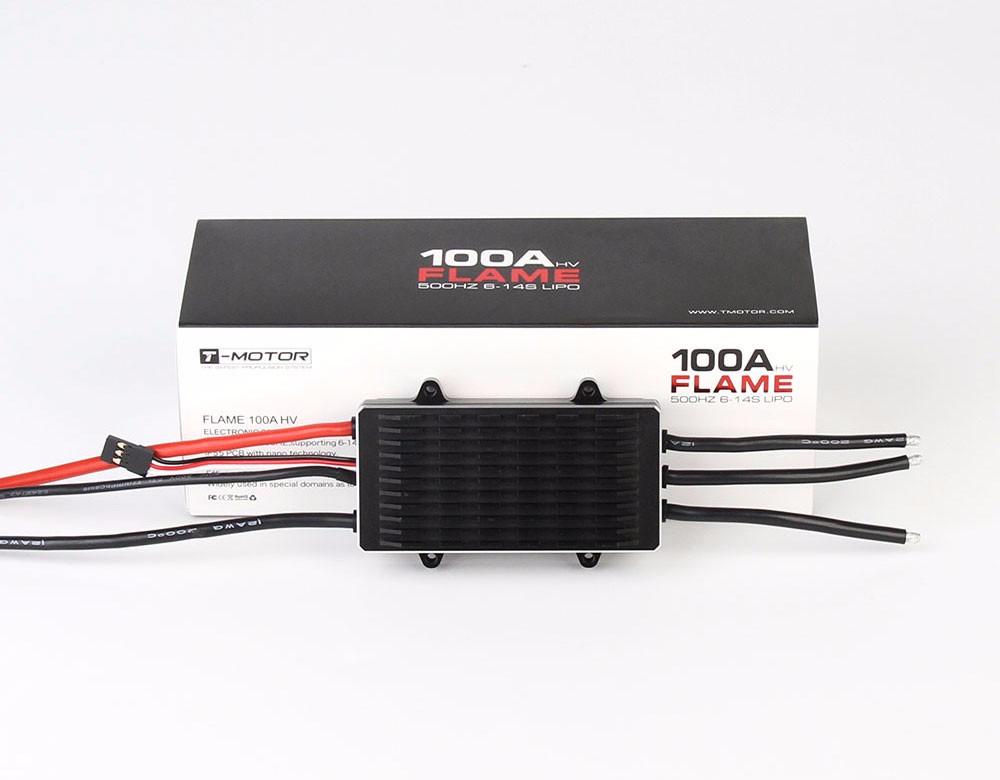

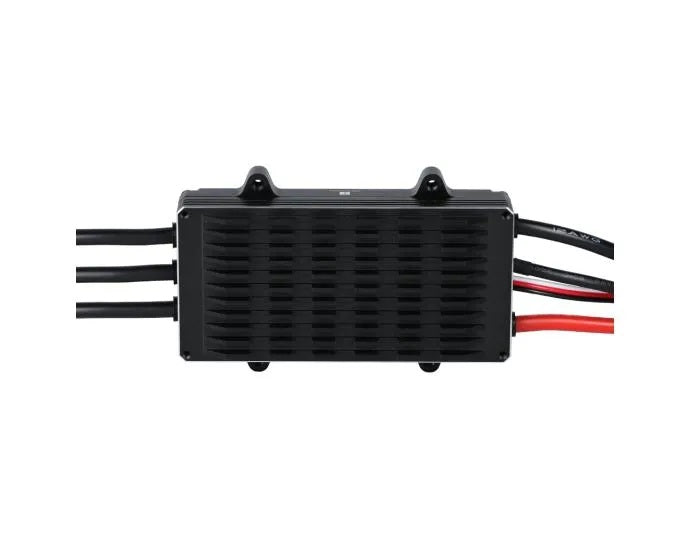

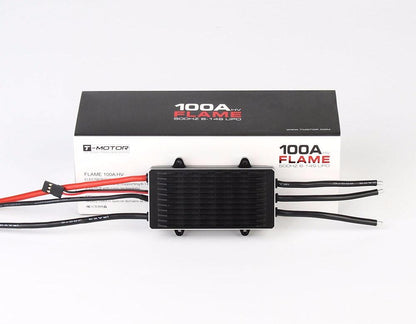

The T-Motor FLAME 100A 14S V2.0 ESC is a high-voltage industrial-grade brushless ESC designed for professional UAV applications. It delivers 100 A continuous current, supports up to 14S LiPo systems, and features advanced protection, high efficiency, and robust thermal management, making it ideal for heavy-lift and long-endurance drone platforms.
Key Features:
- Supports 6S–14S LiPo batteries
- Delivers 100 A continuous current
- Handles 120 A peak current for 10 seconds
- IP55-rated waterproof and dustproof design
- Supports control signal frequencies up to 600 Hz
- CNC aluminum alloy enclosure for improved cooling
- Efficient layered heat dissipation structure
- Optimized for multirotor and industrial UAV applications
- Excellent compatibility with disc-type motors
- Low-voltage protection
Packing List Includes:
- 1 × T-Motor FLAME 100A 14S UAV ESC
- 1 x 1 x Accessories pack
