| Parameter | Specification |
|---|---|
| Model | FLAME 100A 6S |
| ESC Type | Brushless Multi-Rotor UAV ESC |
| Continuous Current | 100 A |
| Peak Current (10 s) | 120 A |
| Input Voltage | 4S–8S LiPo (18.6V–33.6V) |
| BEC | No |
| Signal Frequency | Up to 600 Hz |
| Waterproof Rating | IP55 |
| Weight | 78.5 g |

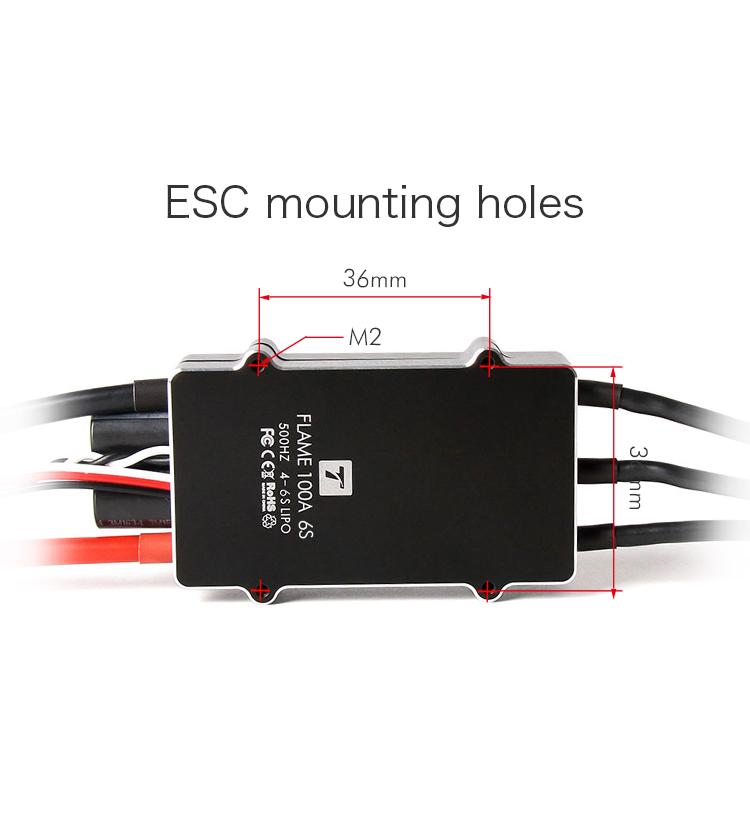

| Dimensions (L × W × H) | 72.2 × 30.6 × 17.3 mm |
| Cooling Method | Layered Heat Dissipation Structure |
| Housing | CNC Aluminum Alloy |
| Protection Functions | Low-Voltage, Overheat, Motor Lock-up, Throttle Signal Loss Protection |
| Application Type | Industrial & Multi-Rotor UAVs |

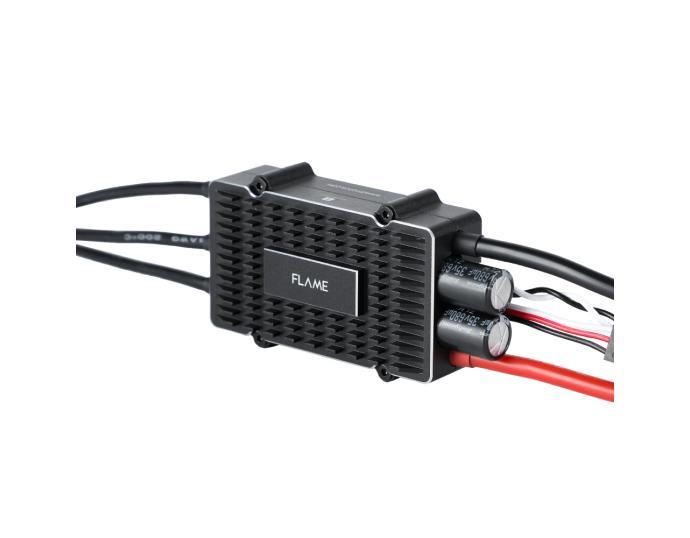

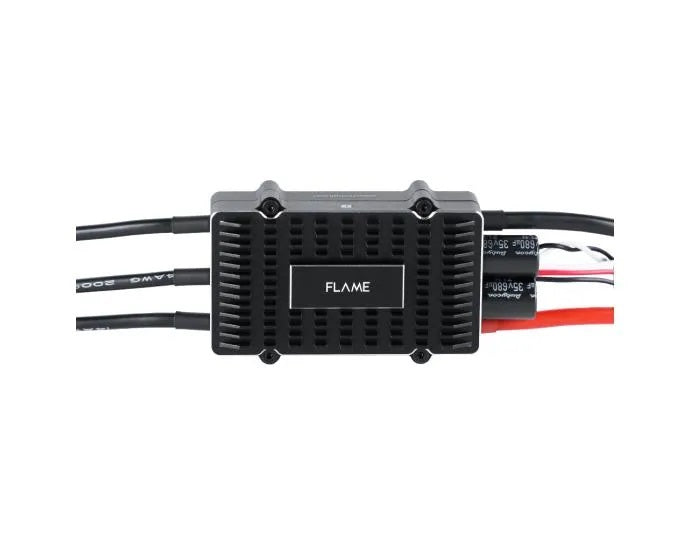

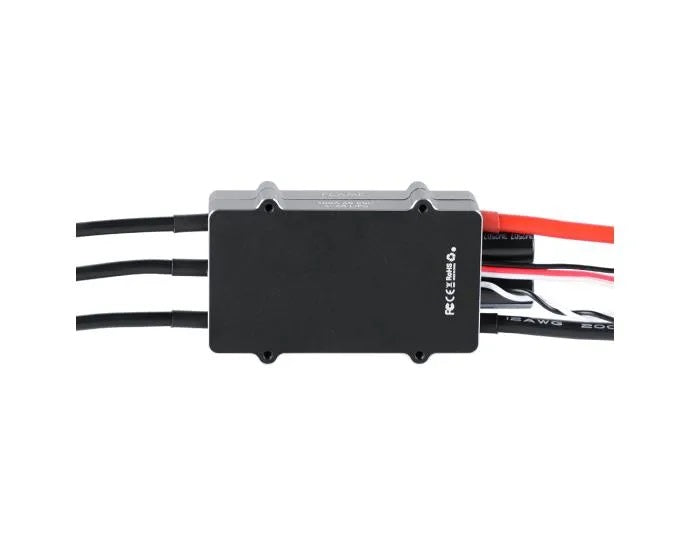

The T-Motor FLAME 100A 6S is a professional-grade high-current ESC designed for industrial multirotor UAVs. Featuring 100 A continuous current, 120 A peak current, support for 4S–8S LiPo batteries, IP55 protection, and advanced safety functions, it delivers reliable and efficient performance for demanding drone applications.
Key Features:
- Supports 4S–6S LiPo battery input
- 100A high continuous current for heavy-load UAV systems
- Designed for multi-rotor drones and industrial UAVs
- Fast and smooth throttle response for stable flight control
- Built-in protections: over-current, over-voltage, over-temperature
- Efficient heat dissipation design for reliable high-load operation
- Compatible with standard PWM flight controller signals
- Suitable for heavy-lift, agricultural, and professional UAV applications
Packing List Includes:
- 1 x FLAME 100A 6S UAVs ESC
- 1 x Accessories pack
