| Parameter | Specification |
|---|---|
| Model | FLAME 180A 12S V2.0 |
| ESC Type | Brushless Multi-Rotor UAV ESC |
| Continuous Current | 180 A |
| Peak Current | 200 A (10 seconds) |
| Input Voltage | 6S–12S LiPo (22.2–50.4 V) |
| BEC | No BEC |
| PWM Signal Frequency | 30–500 Hz |
| Throttle Range | 1100–1940 μs |
| Refresh Rate | Up to 500 Hz |
| Weight | 280 g (without cables) |

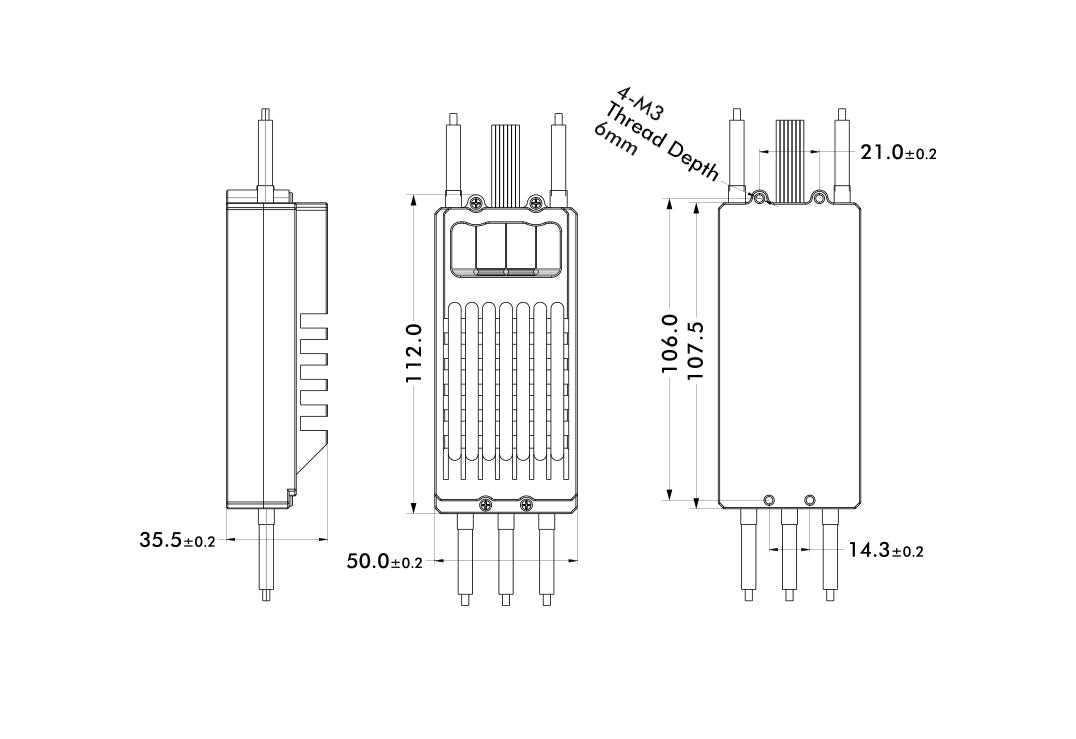

| Dimensions | 112 × 51 × 36 mm |
| Waterproof Rating | IP56 |
| Operating Temperature | -20°C to +65°C |
| Cooling Design | Layered Heat Dissipation Structure |
| Protection Functions | Start-up Protection, Signal Loss Protection, Motor Lock-up Protection, Overload Protection |

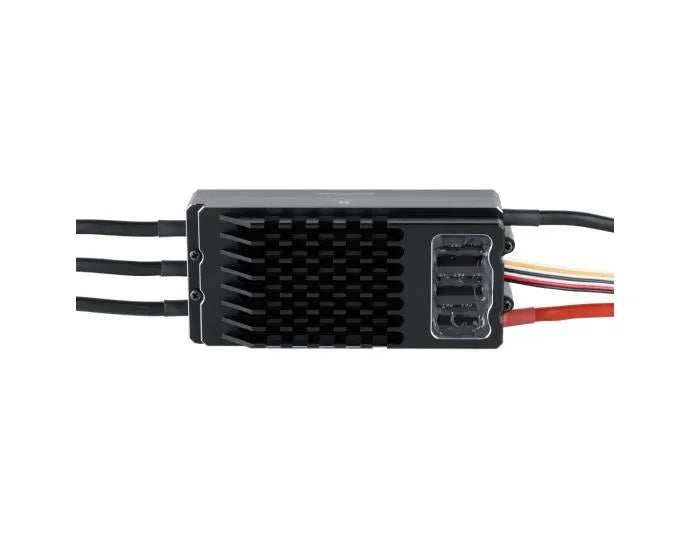

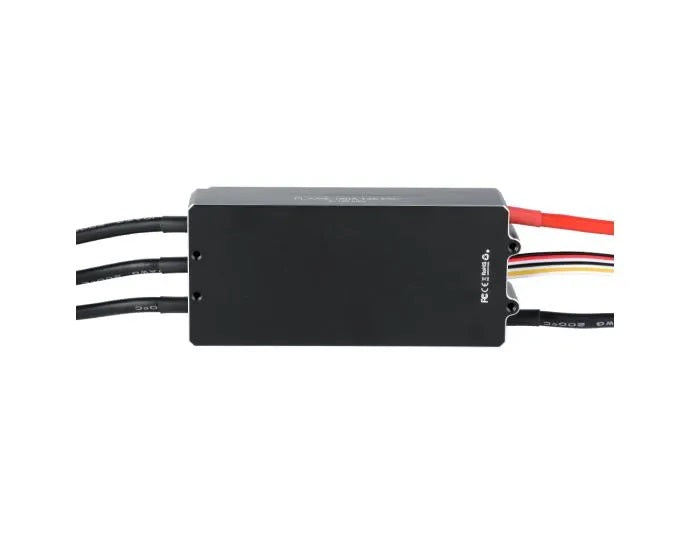

The T-Motor FLAME 180A 12S V2.0 is a professional-grade high-power ESC for heavy-lift and industrial UAV applications. Featuring 180 A continuous current, 200 A peak current, support for 6–12S LiPo batteries, IP56 protection, and advanced safety features, it delivers exceptional reliability and performance for large multirotor platforms.
Key Features:
- Supports 6S to 12S LiPo batteries
- 180 A continuous current output
- 200 A peak current for 10 seconds
- P56-rated dust and water resistance
- Layered structure for efficient heat dissipation
- Optimized for industrial and heavy-lift multirotor UAVs
- Built-in start-up protection
- Throttle signal loss protection
- Motor lock-up protection
- Overload protection
- Automatic motor shutdown if start-up fails
- High reliability for professional UAV platforms
- Compatible with professional flight controllers such as Pixhawk and Cube series
Packing List Includes:
- 1 × FLAME 180A 12S V2.0 UAV ESC
- 1 x 1 x Accessories pack
