| Parameter | Specification |
|---|---|
| Model | FLAME 200A 14S |
| ESC Type | Brushless Multi-Rotor UAV ESC |
| Continuous Current | 200 A |
| Peak Current | 240 A (10 seconds) |
| Input Voltage | 6S–14S LiPo (22.2–58.8 V) |
| BEC | No BEC |
| PWM Signal Frequency | 30–500 Hz |
| Throttle Range | 1100–1940 μs |
| Refresh Rate | Up to 500 Hz |
| Weight | 310 g (without cables) |
| Dimensions | 116 × 55 × 35 mm |
| Waterproof Rating | IP56 |
| Operating Temperature | -20°C to +65°C |
| Cooling Design | Layered Heat Dissipation Structure |
| Protection Functions | Start-up Protection, Signal Loss Protection, Motor Lock-up Protection, Overload Protection |
The FLAME 200A 14S is designed for professional heavy-lift multirotor and industrial UAV applications, providing high-current output, excellent thermal performance, and reliable operation under demanding operating conditions.
Key Features:
- Supports 6S to 14S LiPo batteries
- 200 A continuous current output
- 240 A peak current for 10 seconds
- IP55-rated dust and water resistance

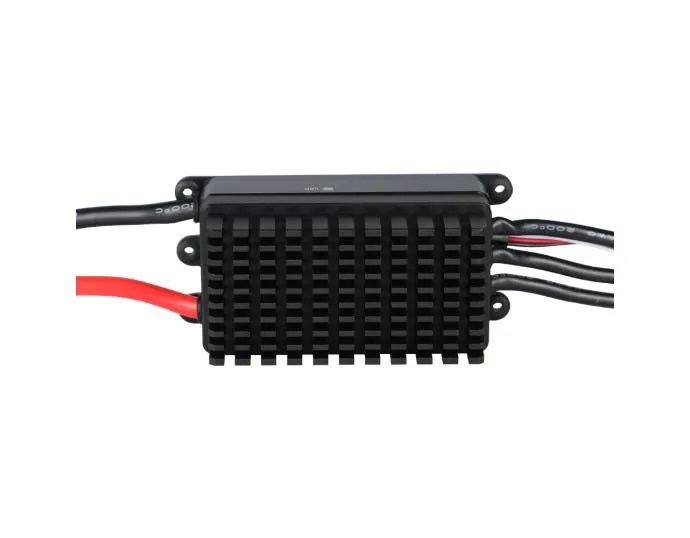

- Layered structure for efficient heat dissipation
- Optimized for industrial and heavy-lift multirotor UAVs
- Built-in start-up protection
- Throttle signal loss protection
- Motor lock-up protection
- Overload protection
- Automatic motor shutdown if start-up fails
- High reliability for demanding applications
- Compatible with professional flight controllers such as Pixhawk and Cube series
Packing List Includes:
- 1 × T-Motor FLAME 200A 14S UAV ESC
- 1 x Accessories pack
