| Parameter | Specification |
|---|---|
| Model | FLAME 70A 6S |
| ESC Type | Brushless Multi-Rotor UAV ESC |
| Continuous Current | 70 A |
| Peak Current (10 s) | 80 A |
| Input Voltage | 4S–6S LiPo (14.8V–25.2V) |
| BEC | No |
| Signal Refresh Rate | Up to 500 Hz |
| Waterproof Rating | IP55 |
| Weight | 55 g |

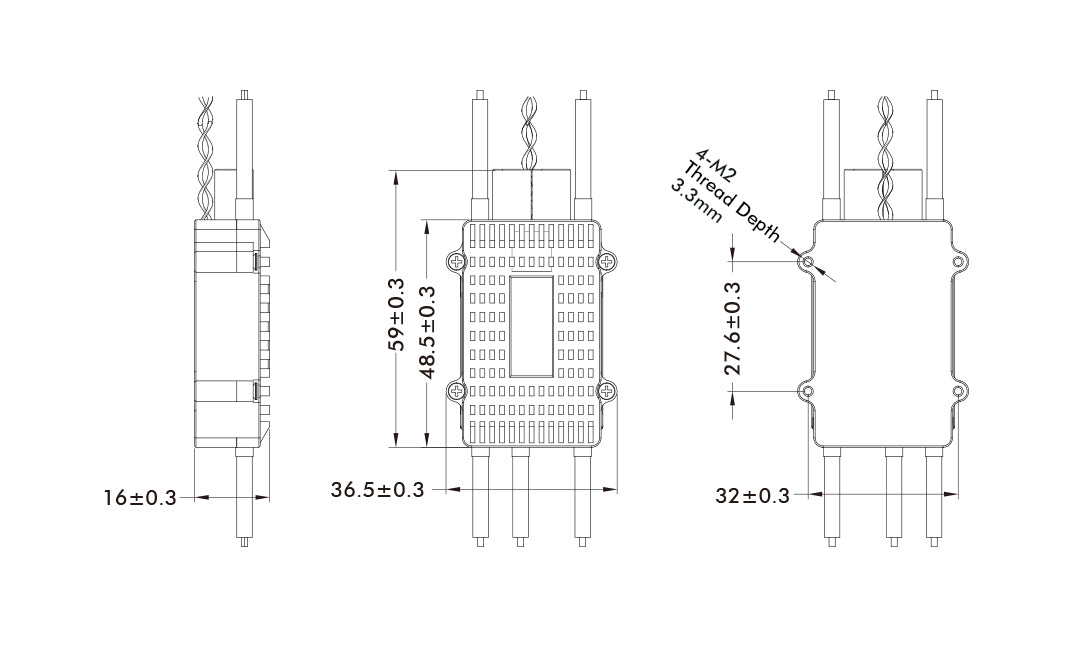

| Dimensions (L × W × H) | 56.6 × 36.4 × 16.1 mm |
| Housing | CNC Aluminum Alloy |
| Cooling Method | Layered Heat Dissipation Structure |
| Programmable | No |
| Protection Functions | Start-up, Overload, Motor Lock-up, Throttle Signal Loss Protection |
| Application Type | Industrial Multi-Rotor & VTOL UAVs |

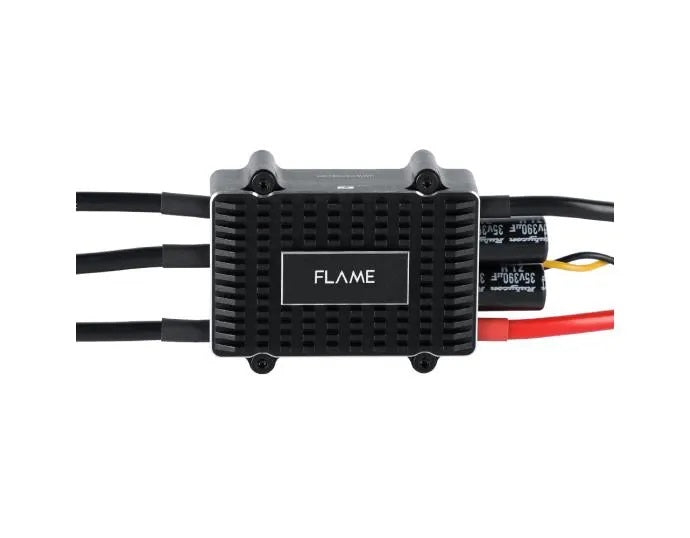

The T-Motor FLAME 70A 6S is a professional-grade brushless ESC designed for multirotor and VTOL UAV applications. Featuring 70 A continuous current, 80 A peak current, support for 4S–6S LiPo batteries, IP55 protection, and advanced safety features, it delivers reliable and efficient performance for industrial drone systems.
Key Features:
- Supports 4S–6S LiPo batteries
- Delivers 70 A continuous current
- Handles 80 A peak current for 10 seconds
- Supports control signal refresh rates up to 500 Hz
- IP55-rated dust and water resistance
- Lightweight design (55 g)
- CNC aluminum alloy enclosure
- Layered structure for efficient heat dissipation
- Nano Technology PCB design
- Low power consumption
Packing List Includes:
- 1 x FLAME 70A 6S Drone ESC
- 1 x Accessories pack
