| Parameter | Specification |
|---|---|
| Model | FLAME 80A 12S V2.0 |
| ESC Type | Brushless Multi-Rotor UAV ESC |
| Continuous Current | 80 A |
| Peak Current (10 s) | 120 A |
| Input Voltage | 6S–12S LiPo (22.2V–50.4V) |
| BEC | No |
| Signal Frequency | Up to 600 Hz |
| Waterproof Rating | IP56 |
| Weight | 104 g |

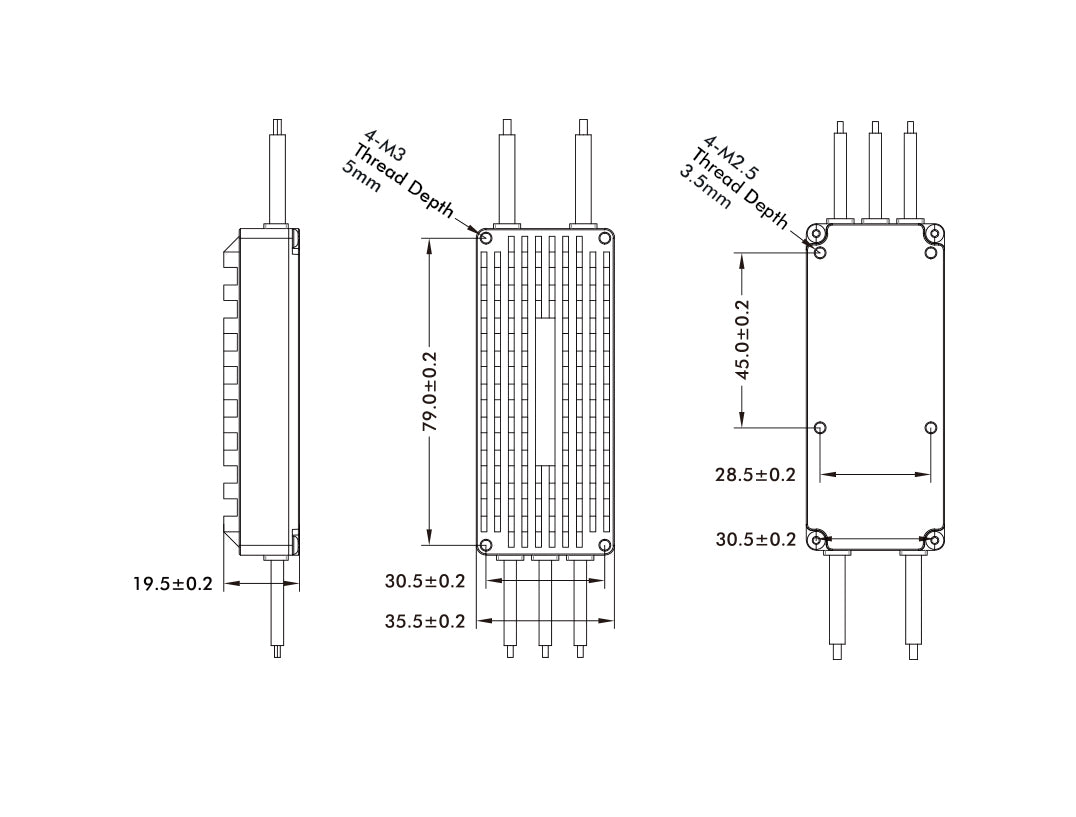

| Dimensions (L × W × H) | 81 × 39 × 21 mm |
| Cooling Method | Layered Heat Dissipation Structure |
| Housing | CNC Aluminum Alloy |
| Protection Functions | Start-up, Overload, Motor Lock-up, Throttle Signal Loss Protection |
| Application Type | Industrial & Heavy-Lift Multirotor UAVs |
The T-Motor FLAME 80A 12S V2.0 is a professional-grade high-voltage ESC designed for industrial multirotor UAVs. Featuring 80 A continuous current, 120 A peak current, support for 6–12S LiPo batteries, IP56 protection, and advanced safety features, it delivers reliable and efficient performance for demanding heavy-lift drone applications.
Key Features:
- Supports 6S–12S LiPo batteries
- Delivers 80 A continuous current
- Handles 120 A peak current for 10 seconds
- Supports control signal frequencies up to 600 Hz
- IP56-rated waterproof and dustproof design
- CNC aluminum alloy enclosure for efficient cooling
- Layered heat dissipation structure
- High reliability for industrial UAV applications
Packing List Includes:
- 1 x FLAME 80A 12S V2.0 UAV ESC
- 1 x Accessories pack
