| Parameter | Specification |
|---|---|
| Model | G22×7.2 |
| Diameter | 22 inch (558.8 mm) |
| Pitch | 7.2 inch (182.9 mm) |
| Series | Glossy (G Series) |
| Blade Type | 2-Blade Integrated |
| Material | Carbon Fiber (CF) + Epoxy |
| Weight | 56 g (per propeller) |
| Maximum Thrust | 11.5 kg |
| Optimum RPM Range | 2850 – 4800 RPM |
| Center Bore | 6 mm |
| Surface Finish | Glossy |
| Operating Temperature | -40°C to +65°C |
| Storage Temperature | -10°C to +50°C |
| Storage Humidity | < 85% |
| Package Contents | 1 Pair (CW + CCW) |

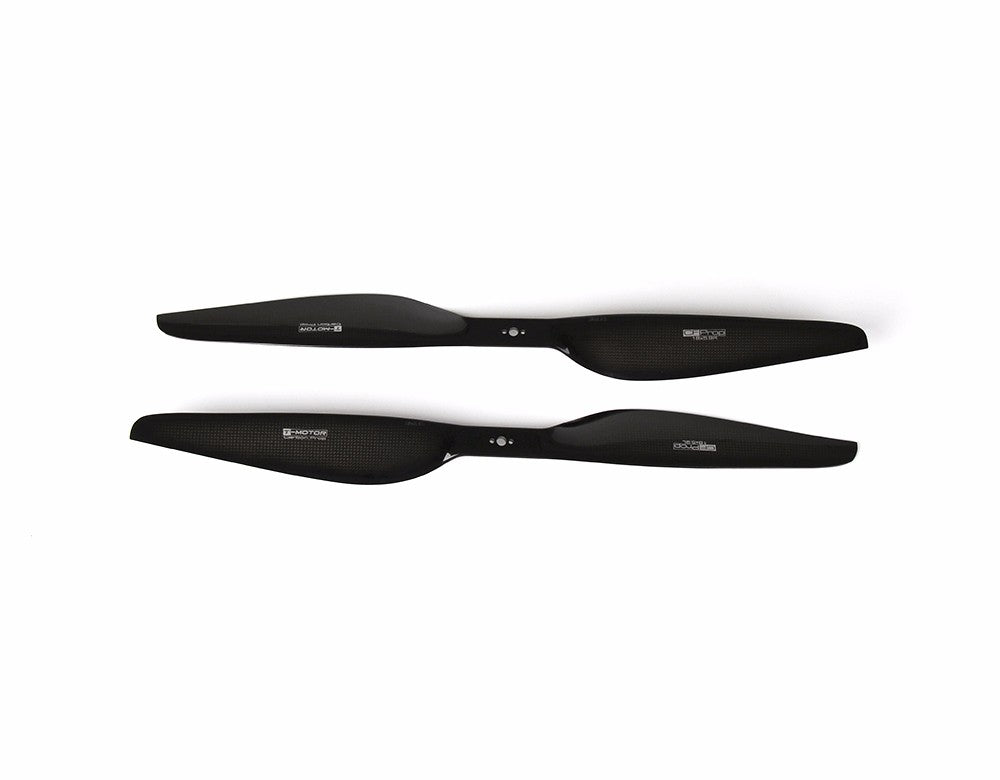

The T-Motor G22×7.2 is a professional-grade 22-inch carbon fiber propeller engineered for multirotor UAVs. Featuring lightweight carbon fiber construction, a maximum thrust of 11.5 kg, and an efficient aerodynamic design, it is ideal for heavy-lift, mapping, inspection, and long-endurance drone applications.
Key Features:
- High-strength carbon fiber + epoxy construction
- Lightweight design (56 g per blade)
- Optimized for 2850–4800 RPM operation
- Maximum thrust capability of 11.5 kg
- Glossy aerodynamic surface finish
- Excellent stiffness with minimal blade deformation
- Pre-balanced for smooth operation
- High efficiency for longer flight times
- Suitable for heavy-lift and industrial drones
- Available as CW and CCW matched pairs
Packing List Includes:
- 1 × G22×7.2 propellers Pair
- 1 x Accessories pack(CW/CCW)
