| Specification | Details |
|---|---|
| Product Name | T-MOTOR HEP-L 15×5.5 High-Performance Ultra-Light Carbon Fiber Propeller |
| Model | HEP-L 15×5.5 |
| Propeller Diameter | 13 inch / 384.3 mm |
| Pitch | 5 inch / 139.7 mm |
| Type | One-Piece Straight Propeller |
| Material | Resin-Based Carbon Fiber Composite + PMI Foam Core |
| Single Propeller Weight | Approx. 32 g |
| Surface Finish | Matte |
| Common Thrust Range | 4 kg |
| Common Speed Range | 3000–4300 RPM |
| Recommended Maximum RPM | 8400 RPM |
| Limit RPM | 9300 RPM |
| Recommended Maximum Thrust | 8 kg |
| Limit Thrust | 5 kg |
| Mounting | Flange mount |
| Center Hole | Ø6 mm |
| Bolt Circle | Ø12 mm |
| Mounting Holes | 2 × Ø3 mm |
| Application | Long-Endurance Multi-Rotor UAV |
| Recommended Motor – 6S | T-MOTOR MN4006 EVO KV380 |
| Recommended Quadcopter Takeoff Weight | 7 kg |
The HEP-L 15*5.5 is a carbon fiber propeller designed for professional heavy-lift UAVs. Weighing just 47 g, it delivers up to 4 kg of recommended maximum thrust, operates efficiently within a 3000–4300 RPM range, and is optimized for the T-Motor MN4006 EVO KV380 motor with 6S LiPo batteries, making it well suited for commercial, industrial, and long-endurance drone applications
Key Features:
- High-strength carbon fiber composite construction
- Foldable design for easy transport and storage
- Optimized aerodynamic profile for improved efficiency
- Low vibration and smooth operation
- High thrust capability for industrial UAVs
- Lightweight design (34 g per blade)
- Designed for heavy-lift multirotor platforms
- Excellent durability and fatigue resistance
- Optimized for long-endurance commercial UAV operations
- Precision balanced for stable flight performance

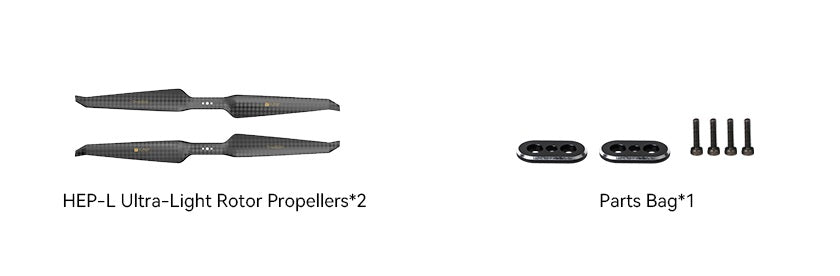

Packing List Includes:
- 1 x HEP-L 15*5.5 Folding Carbon-Fiber Propeller Blades (pair)
- 1 x Accessories pack
