| Parameter | Specification |
|---|---|
| Model | HEP-L 22×7.2 |
| Type | Foldable Multirotor Propeller |
| Diameter | 22 in (562.2 mm) |
| Pitch | 7.2 in (182.9 mm) |
| Configuration | 2 PCS / Pair |
| Average Weight | 37 g per blade |
| Material | Resin-Based Carbon Fiber Composite + PMI Core |
| Surface Finish | Matte |
| Recommended RPM Range | 2400–3500 RPM |
| Recommended Thrust Range | 1.2–2.6 kg |
| Recommended Maximum RPM | 6550 RPM |
| RPM Limit | 7350 RPM |
| Recommended Maximum Thrust | 11 kg |
| Ultimate Thrust Limit | 14 kg |

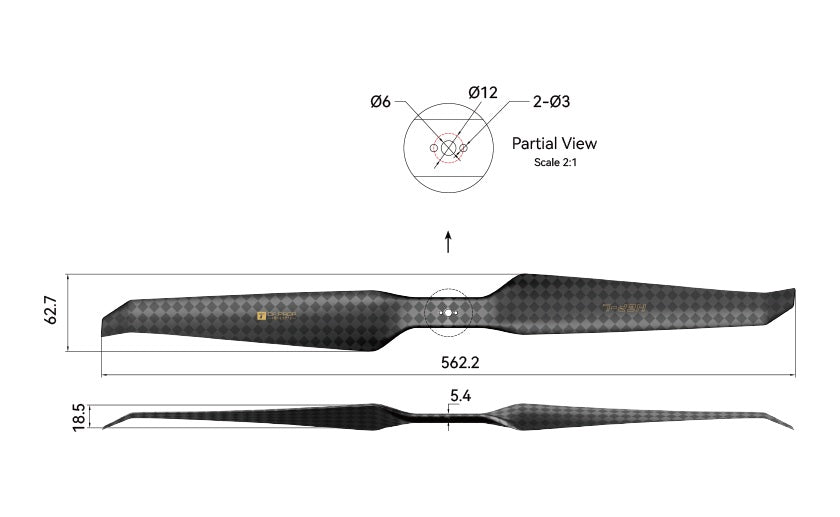

| Mounting Interface | Flange Mount, Ø6 mm Center Hole, Ø12 mm Bolt Circle, 2 × Ø3 mm Mounting Holes |
| Application | Long-Endurance Multirotor UAVs |
The T-Motor HEP-L 22×7.2 is a high-performance ultra-light carbon-fiber propeller designed for long-endurance multirotor UAVs. It is optimized for efficient hovering, stable forward flight, and compatibility with T-Motor's high-efficiency motor series.
Key Features:
- Ultra-lightweight design with only 37 g blade weight
- Aerodynamic optimization increases hover efficiency and flight endurance by up to 3%
- Improved forward-flight stability and vibration suppression
- Optimized motor-propeller matching for maximum efficiency
- High-toughness carbon-fiber composite construction
- PMI sandwich-core structure for reduced weight and enhanced stiffness
- Approximately 24% higher impact resistance compared to conventional designs
- Integrated QR-code traceability system
- Foldable design for easier transportation and storage
- Designed for 60–90 minute endurance UAV platforms

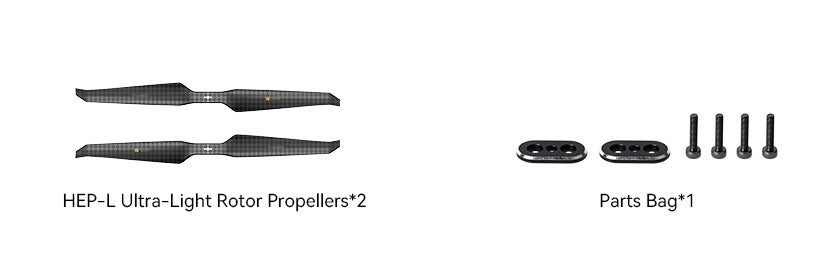

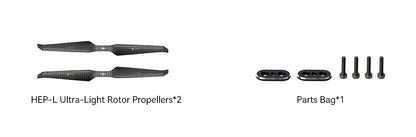

Packing List Includes:
- 1 x HEP-L 22×7.2 Folding Carbon-Fiber Propeller Blades (pair)
- 1 x Accessories pack
