| Parameter | Specification |
|---|---|
| Model | HEP-L 30×10.5 |
| Type | One-Piece Straight Propeller |
| Diameter | 30 in (762 mm) |
| Pitch | 10.5 in (266.7 mm) |
| Material | Resin-Based Carbon Fiber Composite + PMI Foam Core |
| Surface Finish | Matte |
| Average Single Blade Weight | 72 g |
| Recommended RPM Range | 1800–2400 RPM |
| Recommended Maximum RPM | 4700 RPM |
| RPM Limit | 5200 RPM |
| Recommended Thrust Range | 2.8–5.0 kg |
| Recommended Maximum Thrust | 20 kg |
| Thrust Limit | 26 kg |
| Mounting Type | Flange Mount |
| Center Hole | Ø10 mm |
| Bolt Circle Diameter | Ø23 mm |
| Mounting Holes | 4 × Ø3 mm |
| Application | Long-Endurance Multirotor UAV |
| Package Contents | 2 Propellers (1 Pair) |

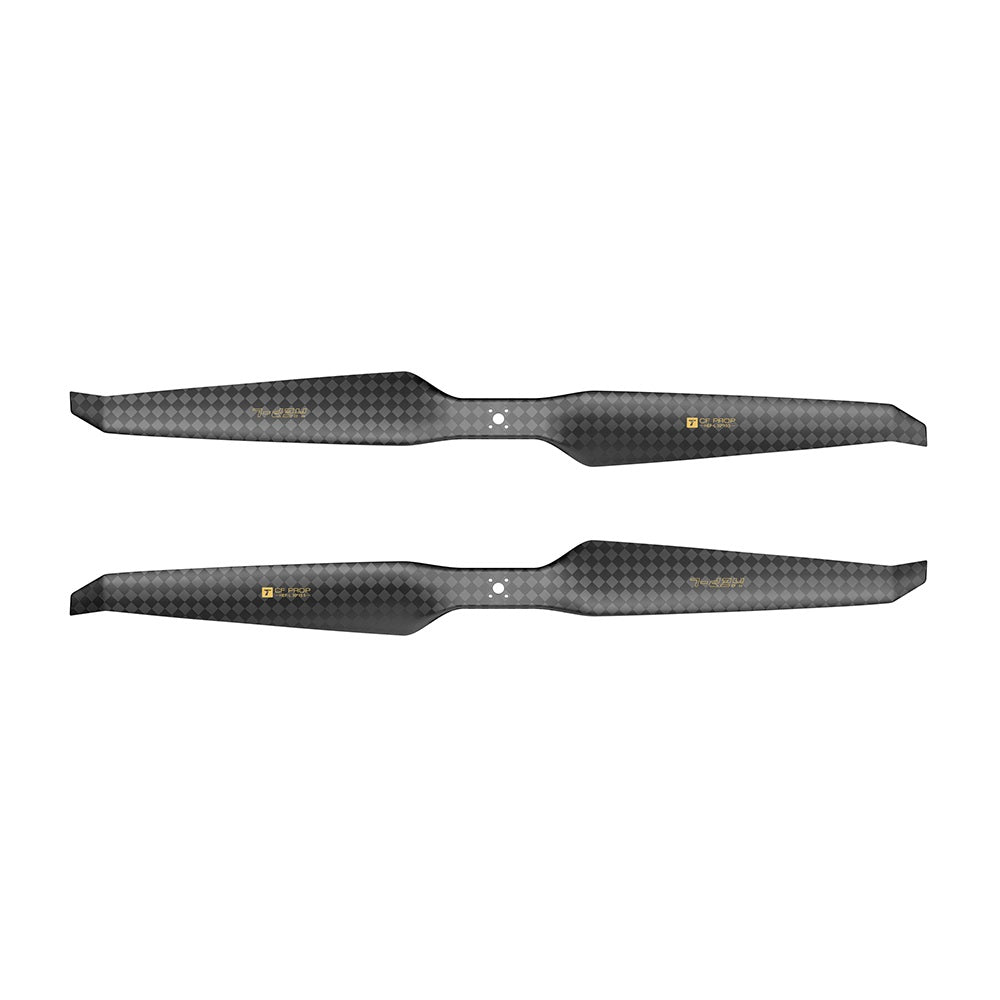

The T-Motor HEP-L 30×10.5 is an ultra-lightweight carbon-fiber propeller developed for long-endurance multirotor UAVs. Utilizing a resin-based carbon-fiber composite structure with PMI foam-core technology, it delivers high aerodynamic efficiency, reduced vibration, improved impact resistance, and extended flight endurance. The propeller is optimized for professional mapping, inspection, surveillance, and industrial UAV applications where maximum efficiency and flight time are critical.
Key Features:
- Ultra-lightweight construction at only 72 g per blade
- Carbon-fiber composite structure with PMI foam core
- Up to 3% improvement in flight endurance
- Enhanced aerodynamic efficiency for reduced power consumption
- Approximately 24% higher impact resistance
- Reduced vibration during hover and forward flight
- Improved flight stability and control response
- Optimized motor-propeller matching for endurance platforms
- QR-code traceability system for product verification
- Designed for professional industrial UAV operations

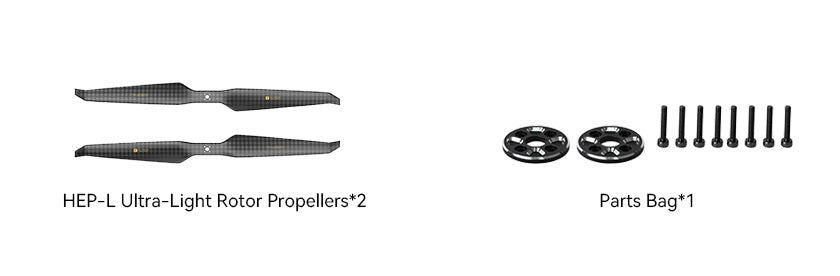

Packing List Includes:
- 1 x HEP-L 30×10.5 Carbon-Fiber Propeller Blades (pair)
- 1 x Accessories pack
