| Parameter | Specification |
|---|---|
| Model | HEP-L 32×11 |
| Type | One-Piece Straight Propeller |
| Diameter | 32 in (822.9 mm) |
| Pitch | 11 in (279.4 mm) |
| Material | Resin-Based Carbon Fiber Composite + PMI Foam Core |
| Surface Finish | Matte |
| Average Single Blade Weight | 82 g |
| Recommended RPM Range | 1750–2130 RPM |
| Recommended Maximum RPM | 4450 RPM |
| RPM Limit | 4930 RPM |
| Recommended Thrust Range | 3.6–5.5 kg |
| Recommended Maximum Thrust | 24 kg |
| Thrust Limit | 30 kg |
| Application | Long-Endurance Multirotor UAV |

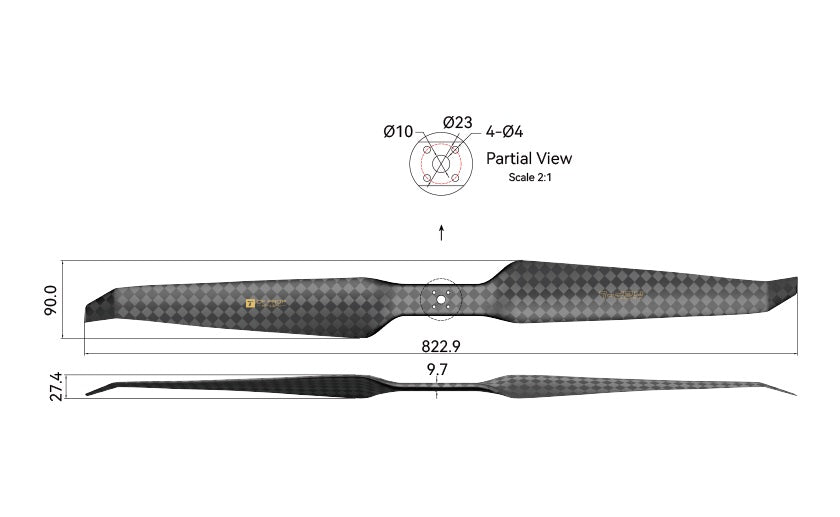

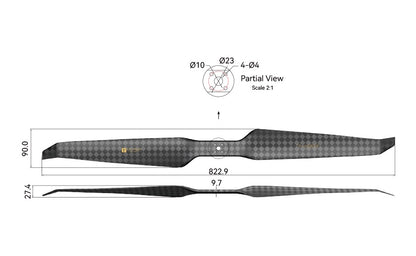

| Mounting Type | Flange Mount |
| Center Hole | Ø10 mm |
| Bolt Circle | Ø23 mm |
| Mounting Holes | 4 × Ø3 mm |

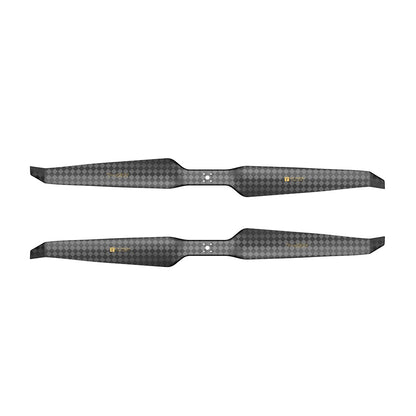

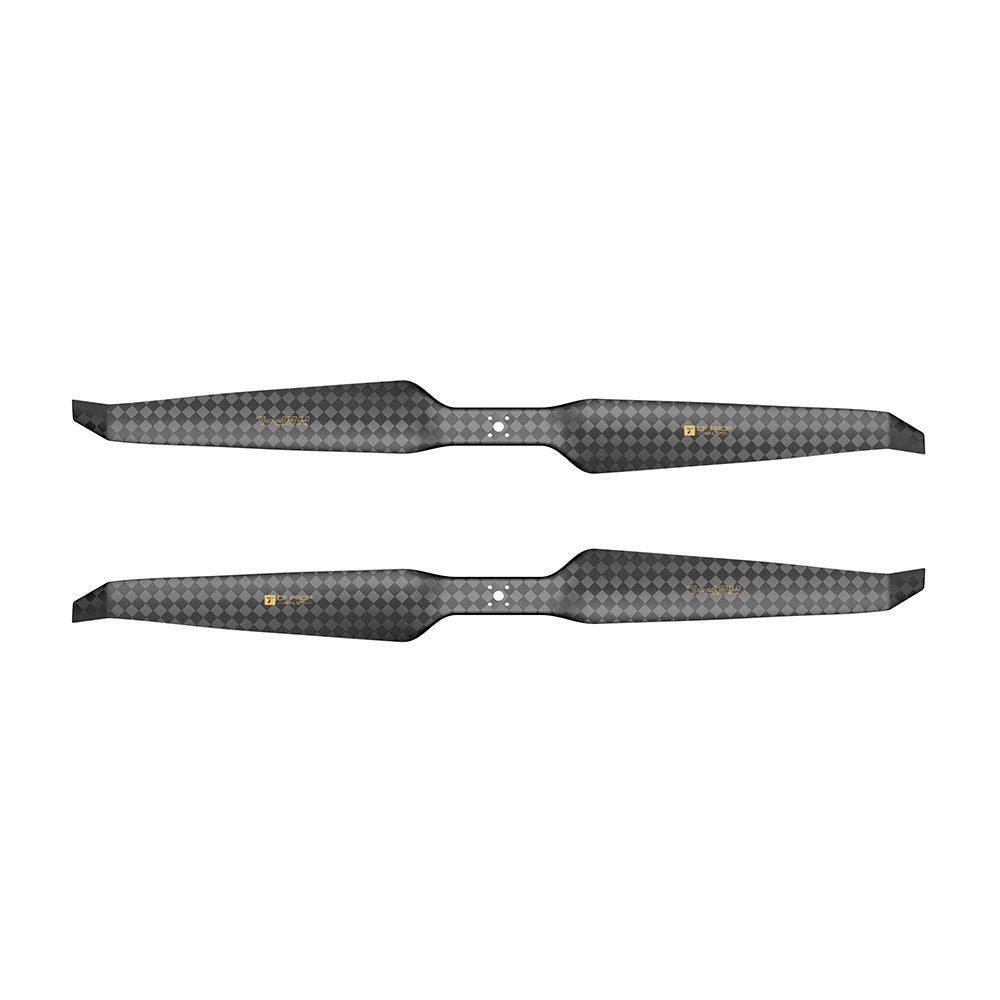

| Package Contents | 2 Propellers (1 Pair) |

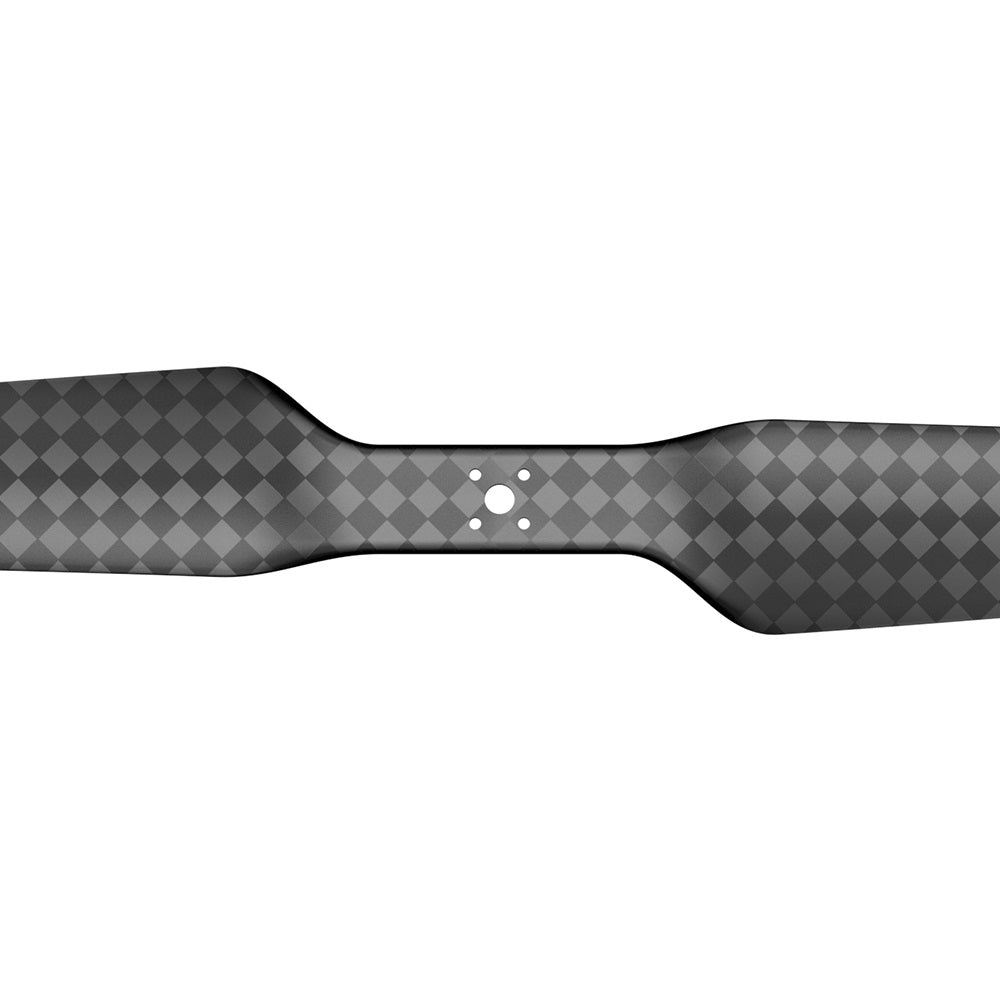

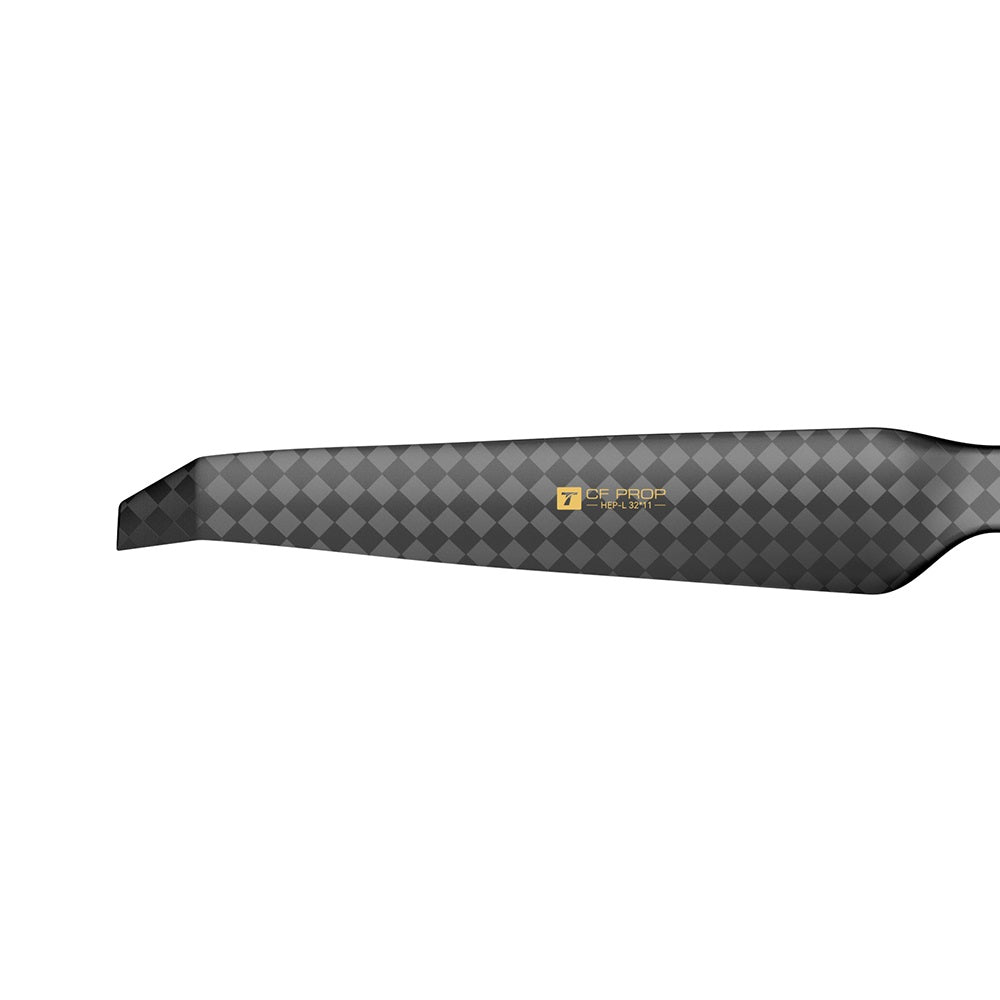

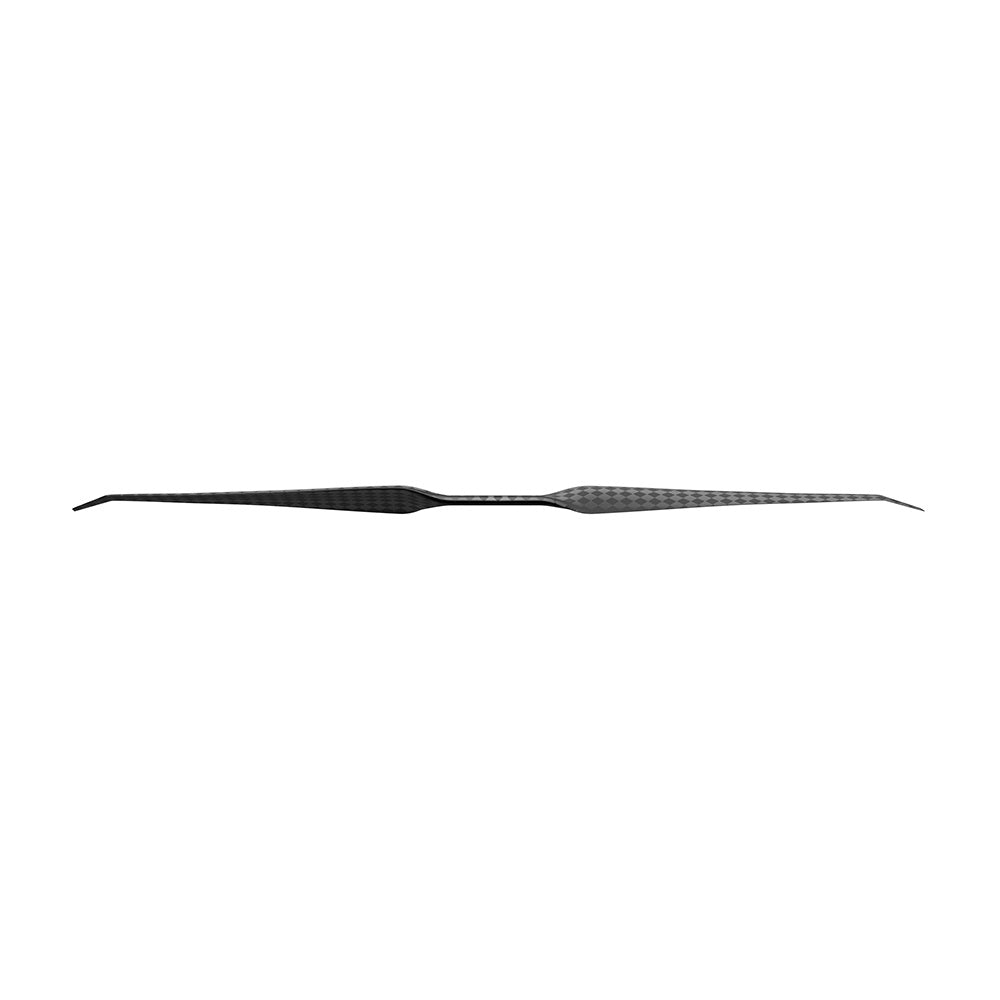

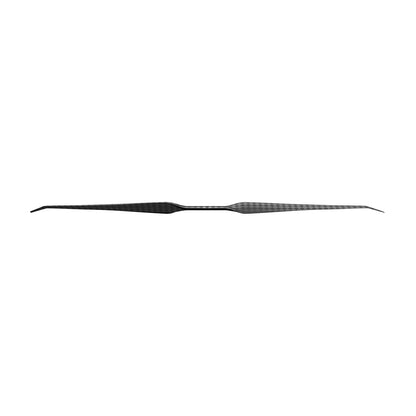

The T-Motor HEP-L 32×11 is a high-performance ultra-lightweight carbon-fiber propeller designed for long-endurance multirotor UAVs. Built with a resin-based carbon-fiber composite structure and PMI foam core technology, it offers exceptional efficiency, reduced vibration, improved durability, and extended flight time for professional mapping, inspection, surveillance, and industrial drone applications. It is optimized for use with MN1005 V2.0 KV90 and MN1005 V2.0 KV100 motors on 12S power systems.
Key Features:
- Ultra-lightweight design with only 82 g per blade
- Up to 3% increase in flight endurance
- Resin-based carbon-fiber composite construction
- PMI foam-core technology for reduced weight and increased stiffness
- Optimized motor-propeller matching for high-efficiency UAV systems
- Enhanced forward-flight stability
- Reduced vibration during cruise flight
- Approximately 24% higher impact resistance than comparable designs
- Integrated QR-code traceability system
- Suitable for professional industrial UAV applications

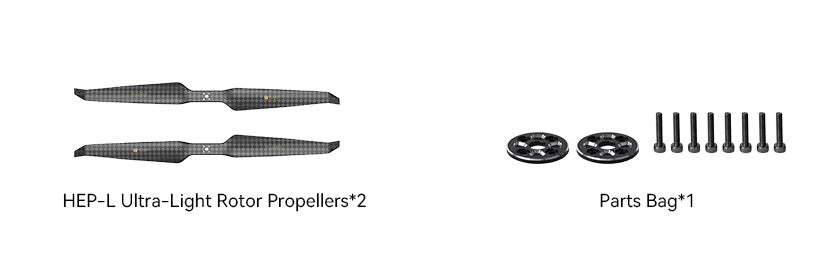

Packing List Includes:
- 1 x HEP-L 32×11 Carbon-Fiber Propeller Blades (pair)
- 1 x Accessories pack
