| Parameter | Specification |
|---|---|
| Model | HEP-L 34×11.5 |
| Type | One-Piece Straight Propeller |
| Diameter | 34 in (868.1 mm) |
| Pitch | 11.5 in (292.1 mm) |
| Material | Resin-Based Carbon Fiber Composite + PMI Foam Core |
| Surface Finish | Matte |
| Average Single Blade Weight | 93 g |
| Recommended RPM Range | 1500–2200 RPM |
| Recommended Maximum RPM | 3830 RPM |
| RPM Limit | 4300 RPM |
| Recommended Thrust Range | 3.8–6.5 kg |
| Recommended Maximum Thrust | 26 kg |
| Thrust Limit | 33 kg |
| Application | Long-Endurance Multirotor UAV |
| Mounting Type | Flange Mount |

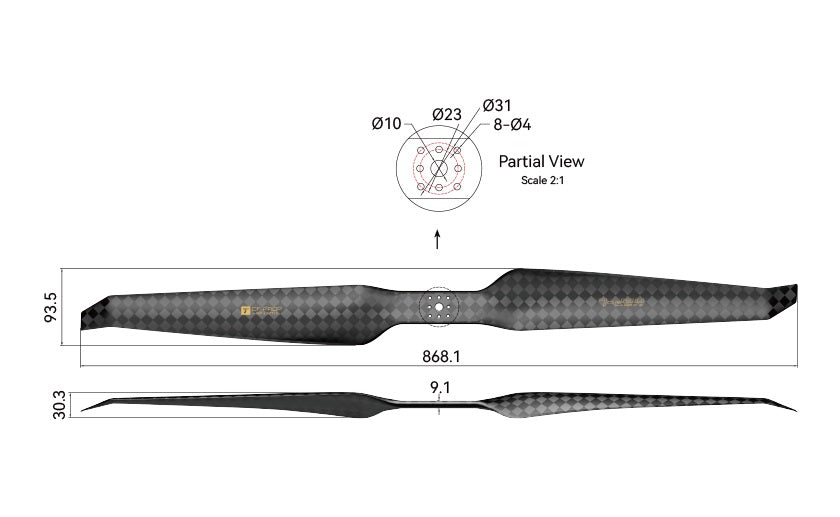

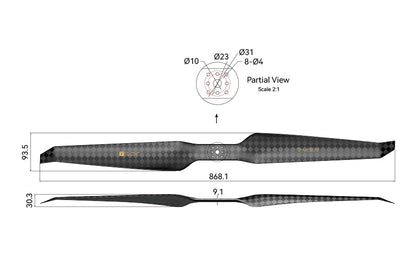

| Center Hole | Ø10 mm |
| Bolt Circle | Ø23 mm / Ø31 mm |
| Mounting Holes | 4 × Ø4 mm |
| Package Contents | 2 Propellers (1 Pair) |
The T-Motor HEP-L 34×11.5 is a high-performance ultra-lightweight carbon-fiber propeller engineered for long-endurance multirotor UAVs. Utilizing a resin-based carbon-fiber composite structure with a PMI foam core, it delivers improved aerodynamic efficiency, reduced vibration, enhanced durability, and up to 3% longer flight time when paired with compatible T-Motor efficiency motors. It is specifically optimized for use with the MN1010 KV90 motor on 12S systems
Key Features:
- Ultra-lightweight design with only 93 g per blade
- Up to 3% longer flight endurance through aerodynamic optimization
- Resin-based carbon-fiber composite construction
- PMI foam-core technology for reduced weight and increased stiffness
- Enhanced forward-flight stability
- Reduced vibration during cruise flight
- Approximately 24% higher impact resistance compared to conventional designs
- Integrated QR-code traceability system
- Optimized motor-propeller matching for maximum efficiency
- Suitable for professional industrial UAV applications

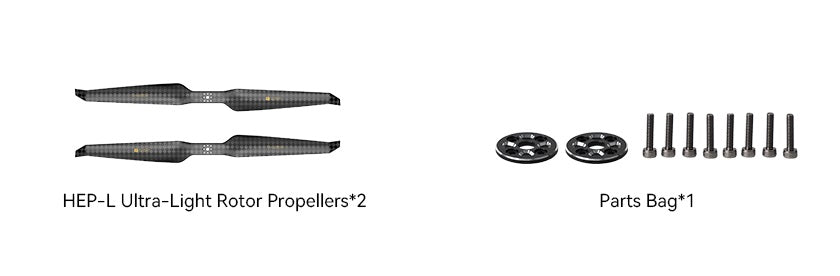

Packing List Includes:
- 1 x HEP-L 34×11.5 Carbon-Fiber Propeller Blades (pair)
- 1 x Accessories pack
