| Parameter | Specification |
|---|---|
| Model | HEP-L 36×12 |
| Type | One-Piece Straight Propeller |

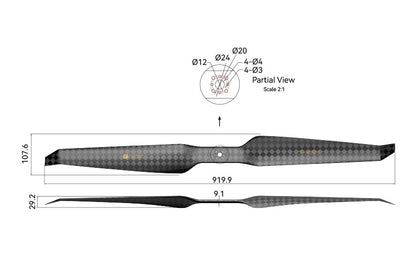

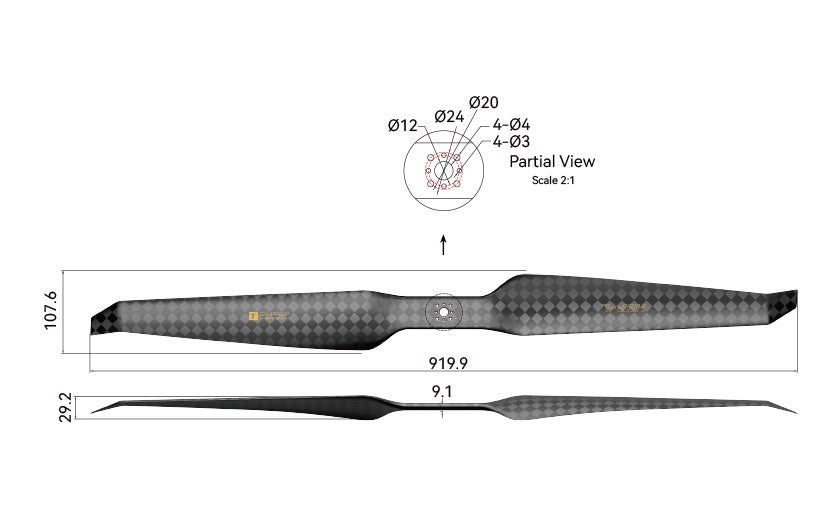

| Diameter | 36 in (919.9 mm) |
| Pitch | 12 in (304.8 mm) |
| Material | Resin-Based Carbon Fiber Composite + PMI Foam Core |
| Surface Finish | Matte |
| Average Single Blade Weight | 106 g |
| Recommended RPM Range | 1510–1980 RPM |
| Recommended Thrust Range | 4.0–7.0 kg |
| Recommended Maximum RPM | 3800 RPM |
| RPM Limit | 4220 RPM |
| Recommended Maximum Thrust | 28 kg |
| Thrust Limit | 35 kg |
| Application | Long-Endurance Multirotor UAV |
| Mounting Type | Flange Mount |

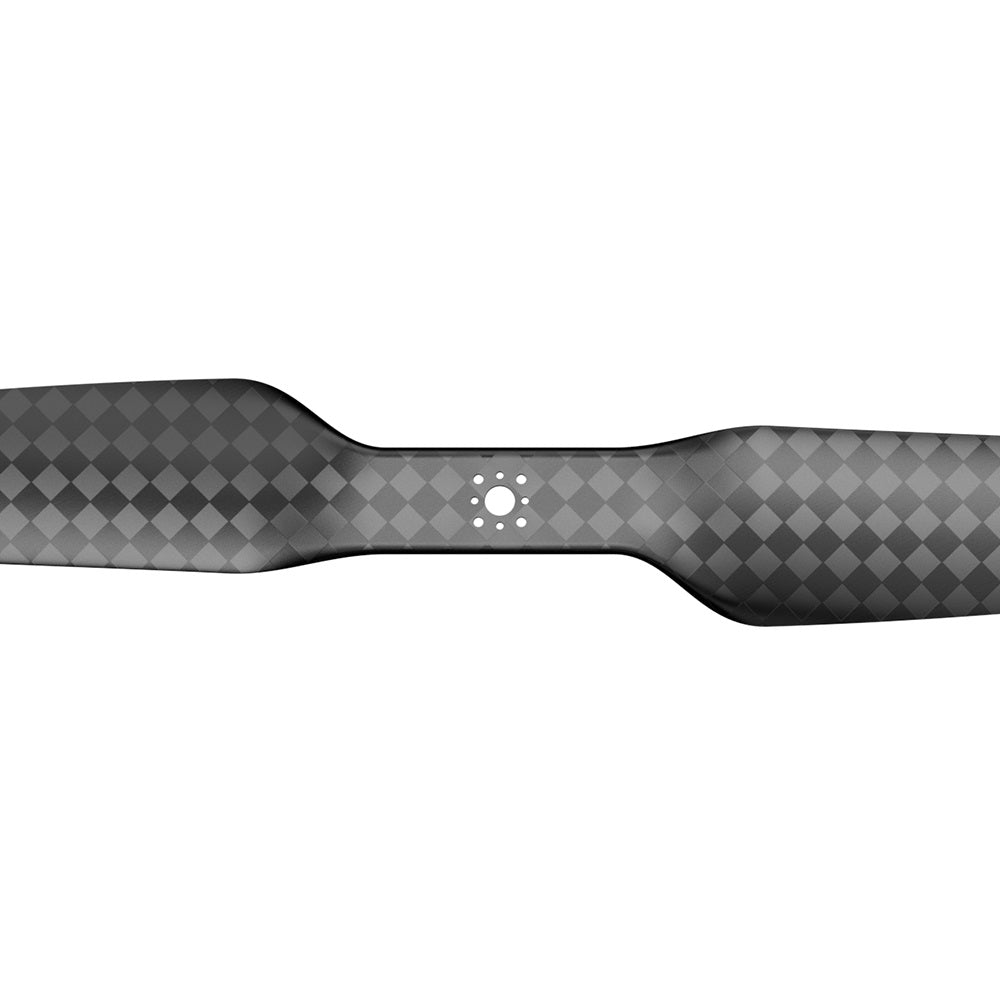

| Center Hole | Ø12 mm |
| Bolt Circle | Ø20 mm / Ø24 mm |
| Mounting Holes | 4 × Ø3 mm and 4 × Ø4 mm |

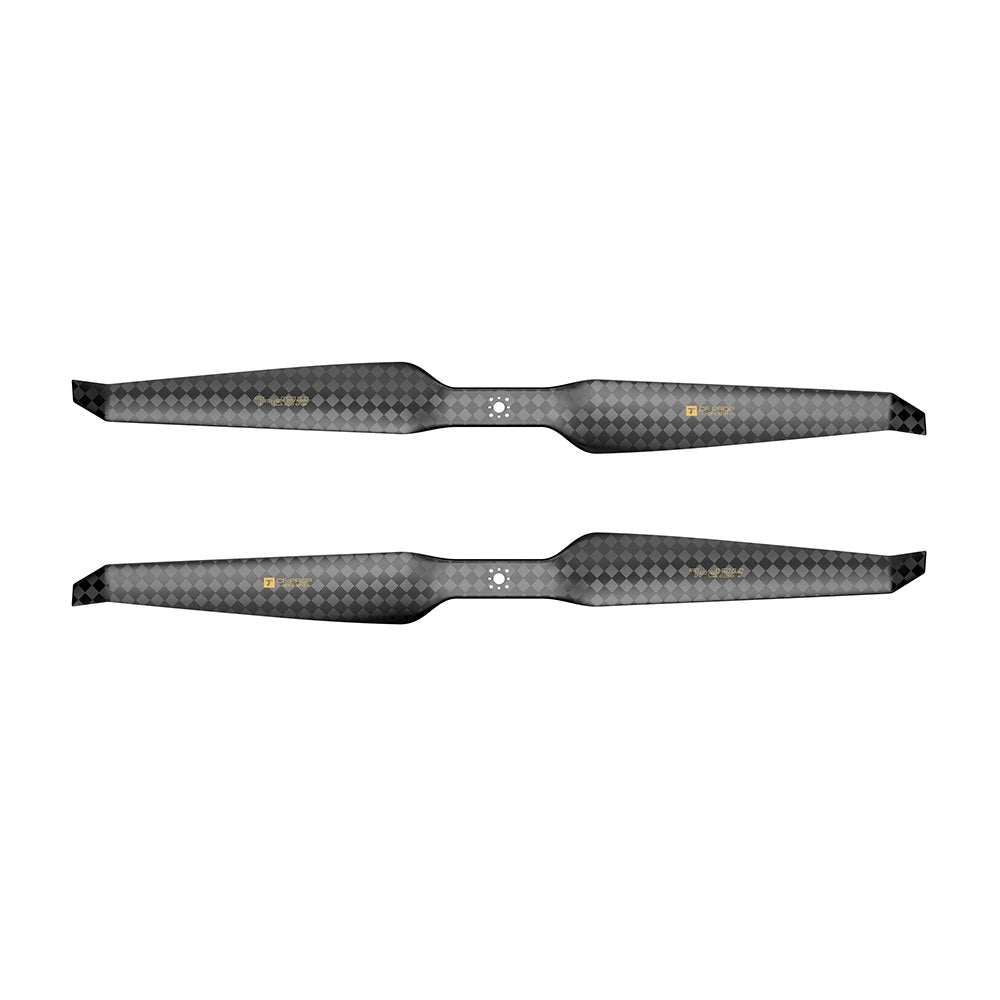

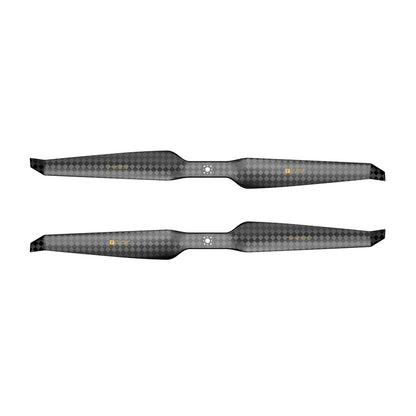

| Package Contents | 2 Propellers (1 Pair) |

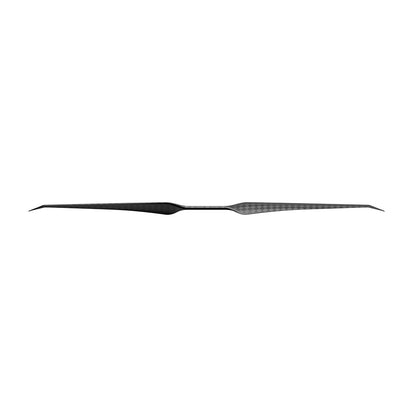

The T-Motor HEP-L 36×12 is a high-performance ultra-light carbon-fiber propeller designed for long-endurance multirotor UAVs. Featuring an advanced resin-based carbon-fiber composite construction with PMI foam core technology, it delivers improved flight efficiency, enhanced impact resistance, and optimized motor-propeller matching for professional industrial and commercial drone applications. It is particularly suited for use with the MN1010 KV90 motor and 12S power systems.
Key Features:
- Ultra-lightweight design with only 106 g per blade
- Up to 3% longer flight endurance through aerodynamic optimization
- Carbon-fiber composite construction with PMI foam core
- Optimized specifically for long-endurance UAV applications
- Improved forward-flight stability
- Enhanced impact resistance and durability
- Integrated QR-code traceability system
- Designed for optimal matching with T-Motor high-efficiency motors
- Suitable for professional mapping, inspection, surveillance, and endurance UAV platforms

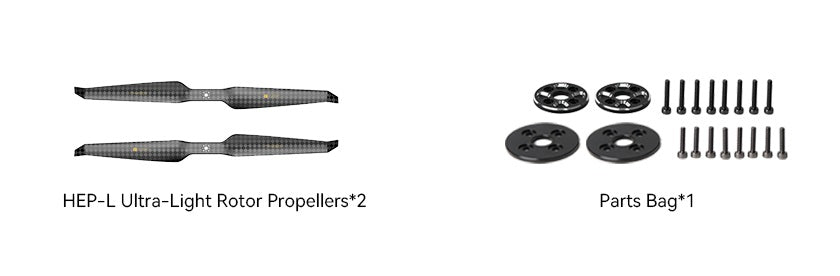

Packing List Includes:
- 1 x HEP-L 36×12 Carbon-Fiber Propeller Blades (pair)
- 1 x Accessories pack
