T-Motor P Type Agricultural UAV Motors P60 170KV

T-Motor P Type Agricultural UAV Motors P60 170KV

Availability: Pre-order – Shipped within 15-20 days
₹ 11,500.00 (Inc.GST)
₹ 11,500.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360077

Short Description:
  • High-performance T-Motor P60 Pin KV170 brushless UAV motor.
  • Designed for agricultural and heavy-lift drone applications.
  • Provides up to 8.4 kg maximum thrust.
  • Delivers up to 1800W peak power output.
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Value
Model P60 Pin KV170
Motor Type Brushless Outrunner UAV Motor
KV Rating 170 KV
Configuration 24N28P

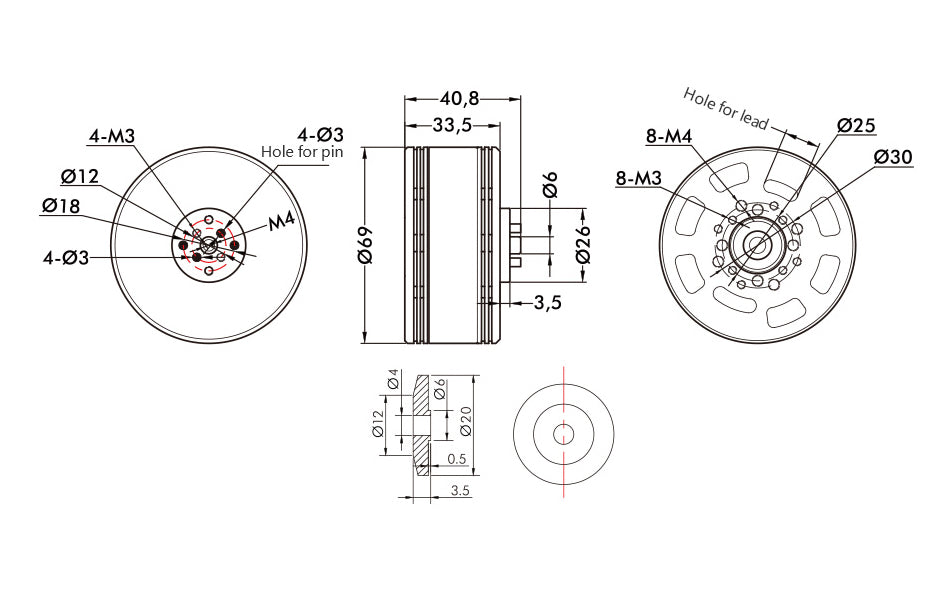

Motor Dimensions Φ69 × 37 mm
Stator Size 62 × 15 mm
Shaft Diameter 6 mm
Internal Resistance 80 mΩ
Weight (Without Cable) 345 g
Weight (With Cable) 375 g
Cable Length 600 mm
Wire Gauge 16 AWG
Supported Battery 6S–14S LiPo
Idle Current @10V 1 A
Max Continuous Current 38 A
Max Power (180s) 1800 W
Maximum Thrust 8.4 kg
Recommended ESC T-Motor FLAME 60A 12S V2.0
Recommended Propellers 20×6 CF, 22×6.6 CF

The T-Motor P60 Pin KV170 is a professional agricultural UAV brushless motor designed for plant protection drones and heavy-lift UAVs. It delivers up to 8.4 kg thrust, more than 1800W power, and features a waterproof, dustproof, and impact-resistant design for demanding outdoor environments.


Key Features:

  • High Thrust : Up to 8.4 kg thrust output
  • Lightweight Design : Optimized stator structure reduces weight
  • Low Vibration : 24N28P configuration improves smoothness
  • Impact Resistant : Enhanced structural protection against crashes
  • Waterproof & Dustproof :Sealed housing suitable for agricultural use
  • Efficient Cooling : Lattice cooling structure improves heat dissipation
  • Long Service Life : Designed for continuous commercial operation

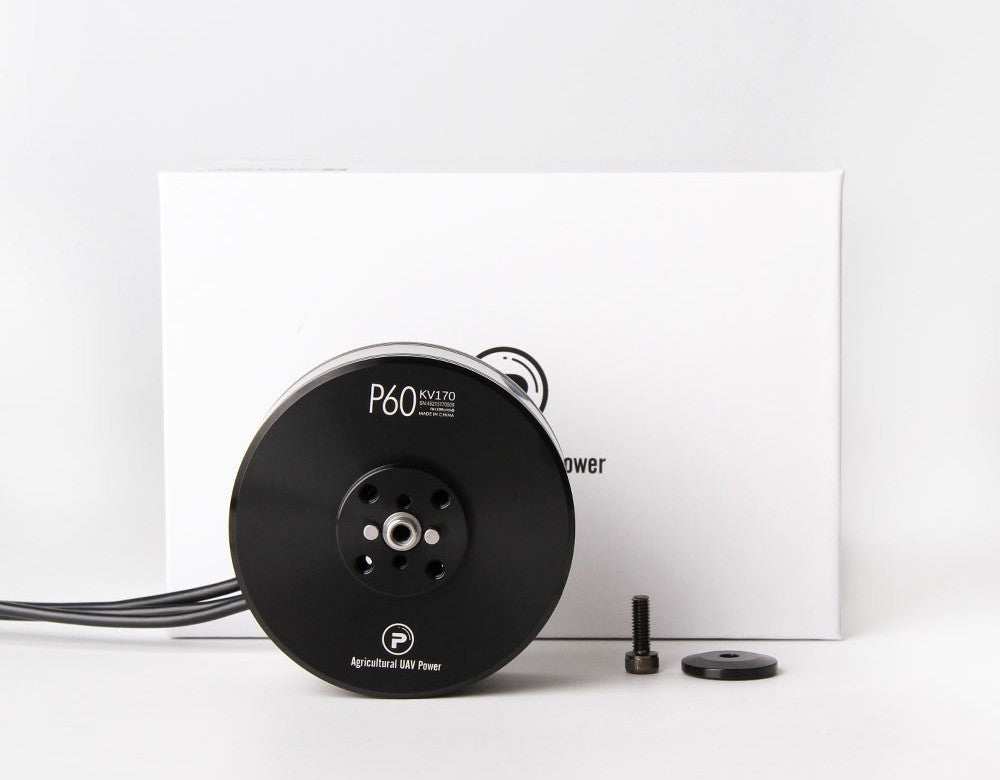

Packing List Includes:

  • 1 × P60 Without Pin Agricultural UAV Motor KV170

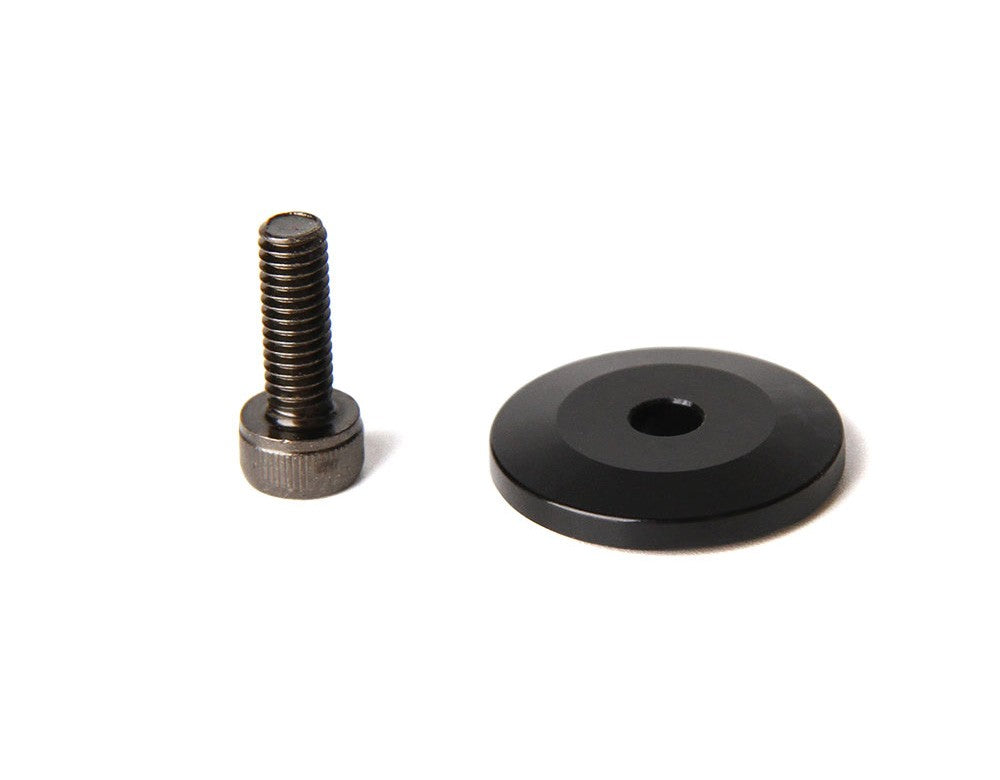

  • 1 x Accessories pack (CW/CCW)

6 months from date of supply against manufacturing defects only.
