| Category | Specification |
|---|---|
| Model | P80-X Standard |
| System Type | Integrated Propulsion System |
| Configuration | Motor + ESC + Integrated Arm |
| Supported Voltage | 12S LiPo |
| Motor KV Options | KV100 |
| ESC Type | ALPHA 80A HV FOC ESC |
| Recommended Propeller | 29–30 inch folding prop |
| Max Thrust | ~12–14 kg |
| Recommended Thrust | ~4–6 kg |
| Weight (system) | ~850–950 g |
| Arm Tube Diameter | 40 mm |
| Motor Shaft Diameter | 10 mm |
| Cooling System | Centrifugal active cooling |
| Communication | PWM / CAN |
| Protection Level | IPX6 |
| Operating Temperature | -20°C to 50°C |

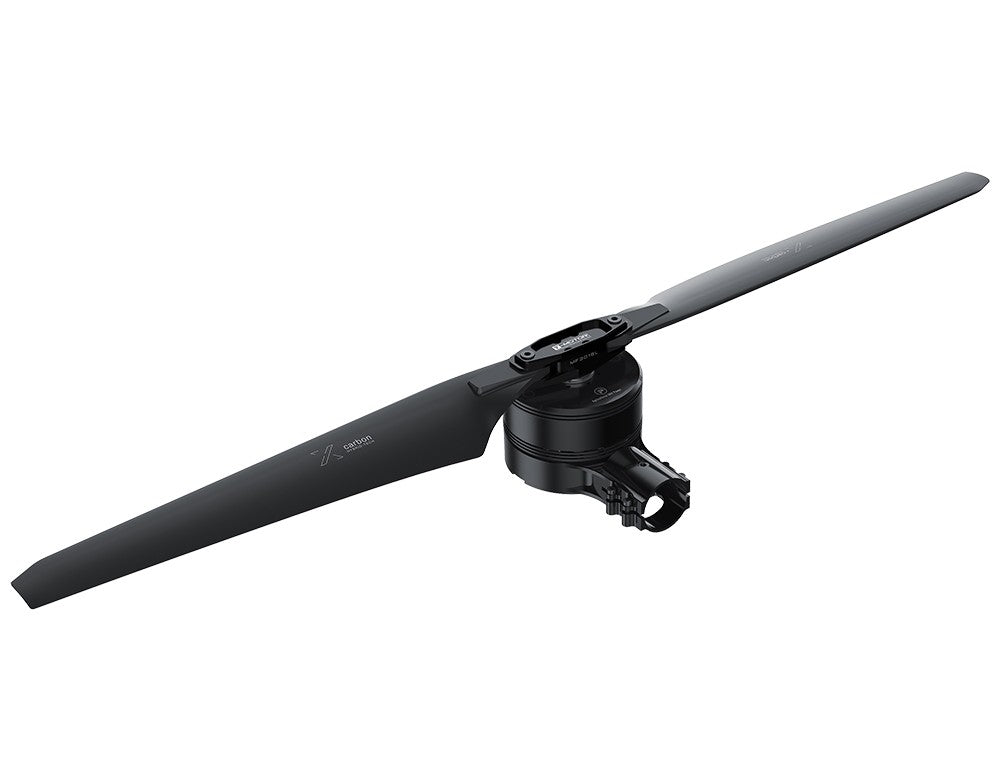

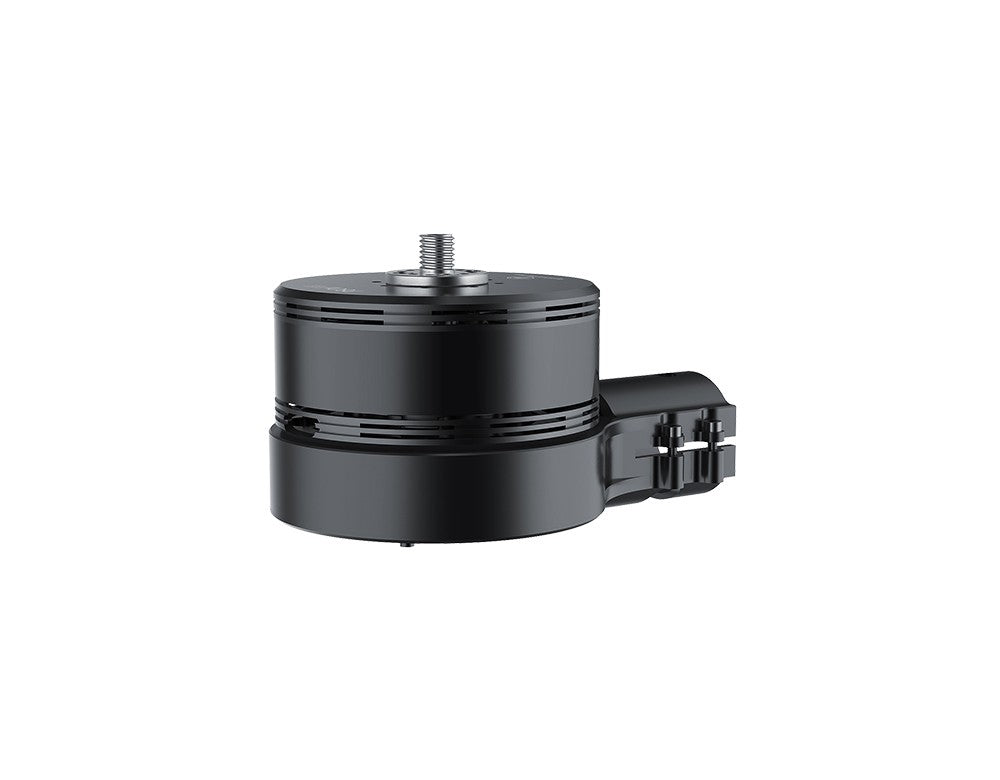

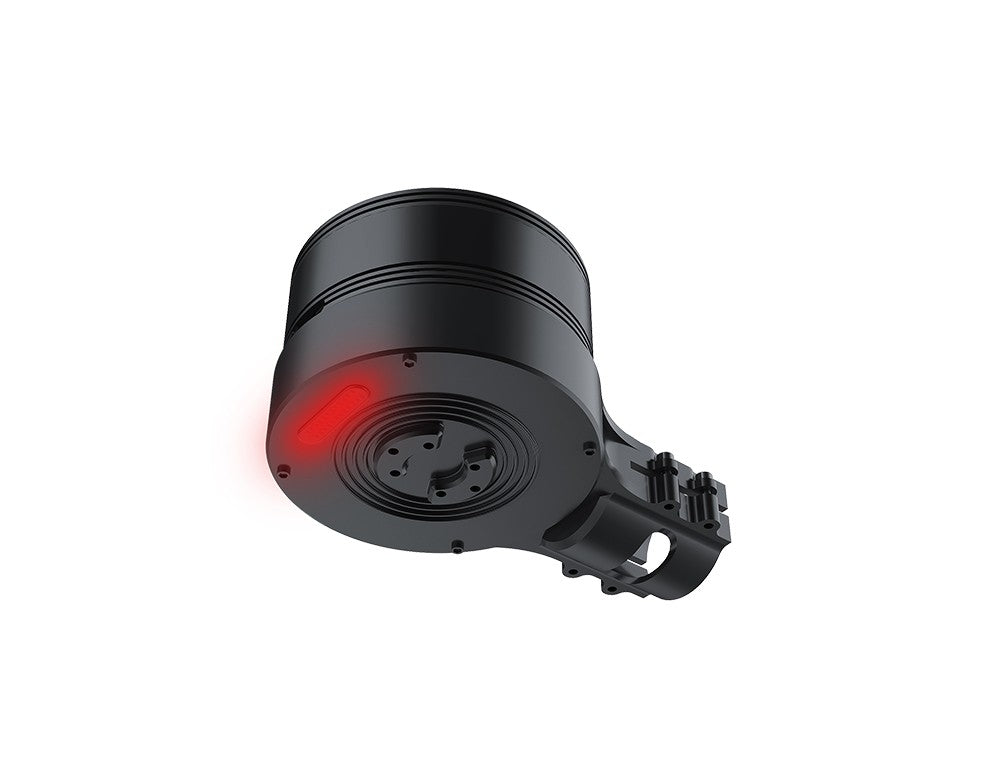

The T-Motor P80-X Standard Integrated Propulsion System is a compact integrated UAV propulsion platform designed for professional multirotor drones requiring:
- High reliability
- Lightweight structure
- Efficient cooling
- Easy maintenance
The system integrates:
- Brushless motor
- ESC
- Propeller mount
- Integrated arm module
Packing List Includes:
- 1 × P80-X Combo Pack (100Kv Motor + 80A HV ESC + MF3016 Propeller)
- 1 x Accessories pack
