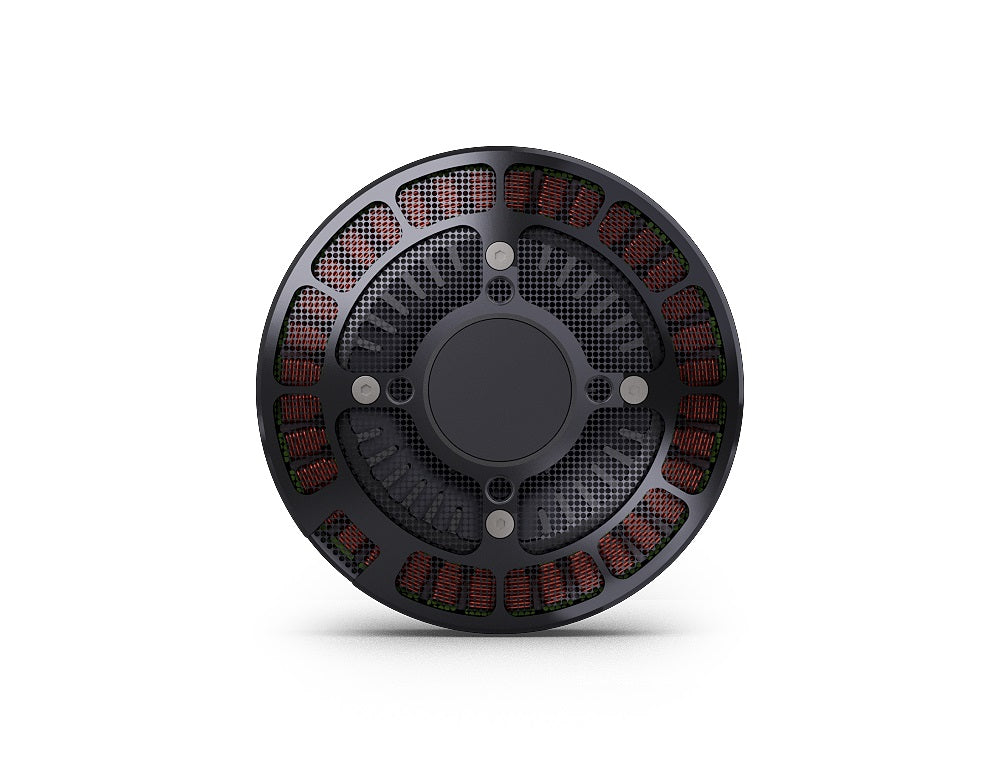

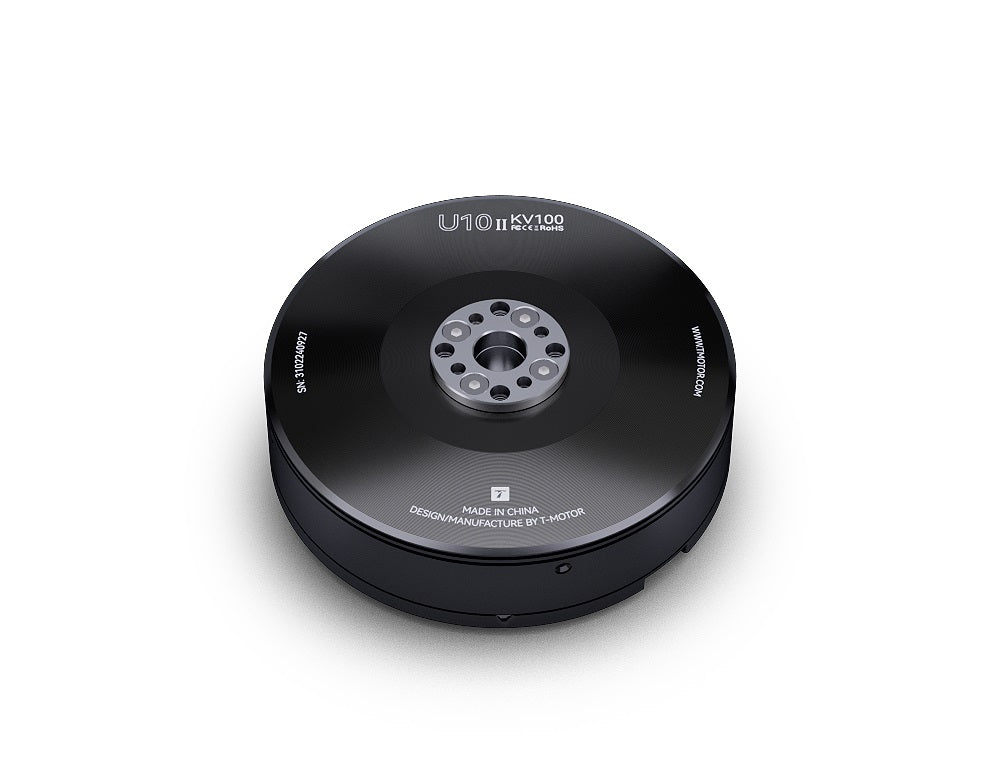

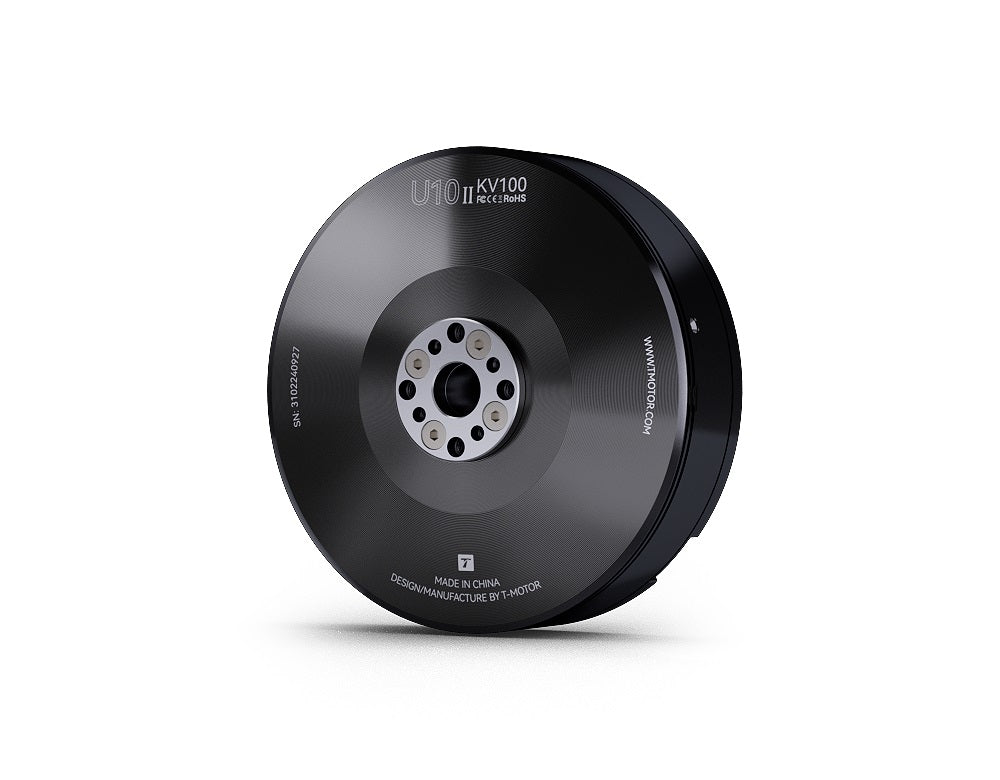

T-MOTOR U10Ⅱ Efficiency Multirotor UAV Motor KV100

T-MOTOR U10Ⅱ Efficiency Multirotor UAV Motor KV100

Availability: In stock
₹ 35,937.00 (Inc.GST)
₹ 35,937.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360117

Short Description:
  • max thrust 10.6 kg.
  • Motor work at easy in high temperature.
  • Motor protection for safe flight.
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model U10Ⅱ Efficiency KV100
Motor Type Brushless Multirotor UAV Motor
KV Rating 100 RPM/V
Recommended Battery 12S LiPo
Configuration 36N42P

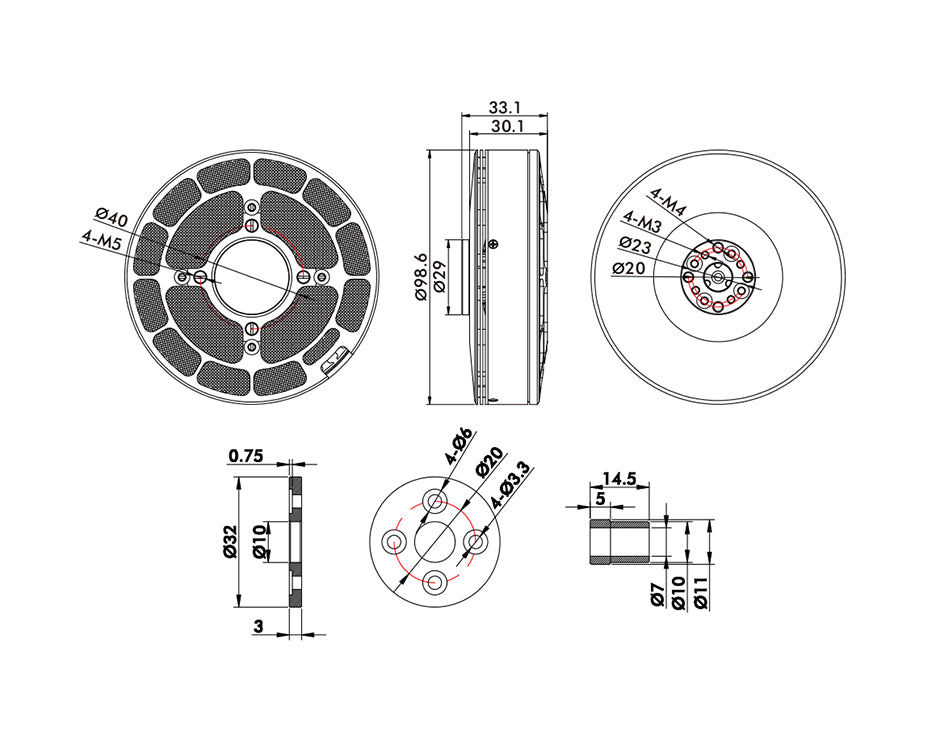

Motor Diameter 98.6 mm
Motor Height 33.1 mm
Shaft Diameter 15 mm
Motor Weight (Including Cable) 415 g
Lead Wire AWG #16 Silicone Wire, 90 mm
Idle Current (18V) 1 A
Internal Resistance 101 ± 5 mΩ
Peak Current (180 s) 32.4 A
Maximum Power (180 s) 1600 W
Protection Rating IP45
Recommended Propeller Size 28–30 inch

The T-Motor U10Ⅱ KV100 Efficiency Motor is a professional-grade 12S industrial UAV motor offering 10.6 kg maximum thrust, 1600 W power capability, IP45 environmental protection, and compatibility with 28–30 inch propellers. It is optimized for long-flight-time multirotor platforms requiring high efficiency, reliability, and payload capacity.

Key Features:

  • High efficiency design for extended flight endurance.
  • New iron-core structure for improved motor efficiency.
  • Curved magnet design with optimized magnetic circuit.
  • Industrial-grade dust and water resistance (IP45).
  • Large imported bearings for improved durability.
  • Low-noise operation.
  • High-temperature capability for demanding UAV missions.
  • Lightweight design to improve payload capacity and flight time.

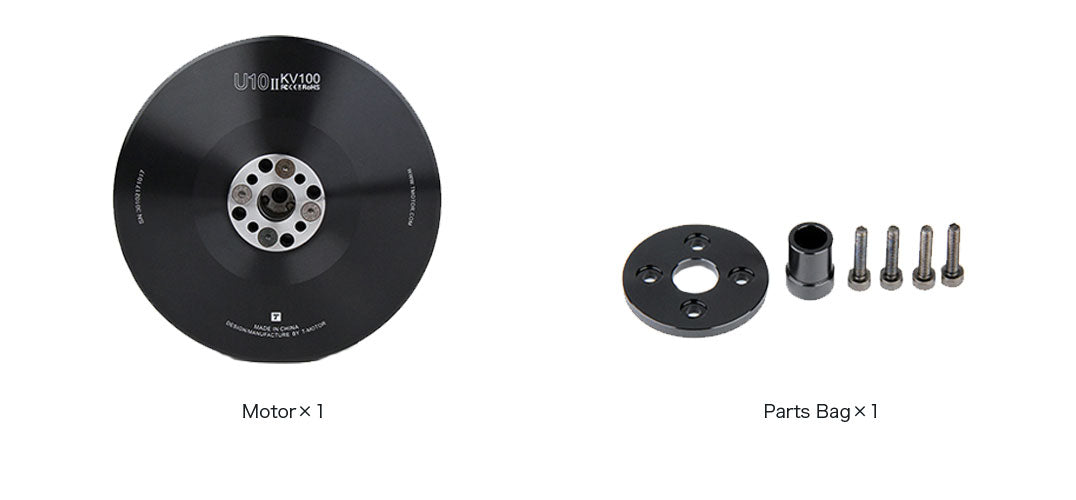

Packing List Includes:

  • 1 xT-Motor U10Ⅱ KV100 Efficiency Motor
  • 1 x Hardware pack

The product has a warranty for 6 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
