T-Motor U15L Combo Pack Manned Aircraft Type UAV Motor 43KV Thunder 300A With Propellers

T-Motor U15L Combo Pack Manned Aircraft Type UAV Motor 43KV Thunder 300A With Propellers

Availability: Pre-order – Shipped within 15-20 days
₹ 415,000.00 (Inc.GST)
₹ 415,000.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360005

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Package Name U15L Manned Aircraft Type UAV Combo Pack
Included Components Motor + ESC + Propeller
Motor KV Rating 43 KV
Recommended Battery 12S – 24S
Rated Voltage 24S
Motor Weight (with cables) ~3600 g
Motor Dimensions Ø151.5 × 86 mm
Internal Resistance 20 mΩ
Lead Wire Length ~200 mm
Motor Configuration 36N42P
Shaft Diameter 25 mm
Rated Motor Power 2800 W
Idle Current (10 V) 4.0 A
Peak Motor Current (120 s) 135 A
ESC Type High-voltage matched ESC
ESC Continuous Current 240 A
ESC Peak Current (10 s) 300 A
ESC Supported Voltage 14S – 24S
Propeller Size 47 × 18 inch
Propeller Type 2-blade carbon-fiber
Propeller Weight (single blade) ~320 ± 20 g
Application Manned aircraft, heavy-lift UAVs, industrial drone propulsion

This high-performance propulsion combo integrates a powerful brushless motor, matched high-current electronic speed controller (ESC), and a carbon-fiber propeller to deliver reliable thrust and efficiency for heavy-lift and industrial UAV applications. The combo is engineered for high-voltage operation, stable power delivery, and long-duration performance in demanding flight conditions.

.

Key Features:

  • Integrated motor + ESC + propeller for optimal performance matching
  • High-torque brushless motor suitable for heavy-lift UAV platforms
  • High-current HV ESC for smooth and precise throttle response
  • Carbon-fiber propeller for high thrust and structural strength
  • Supports high-voltage LiPo battery systems
  • Efficient thermal design for continuous operation
  • Reduced vibration and improved flight stability

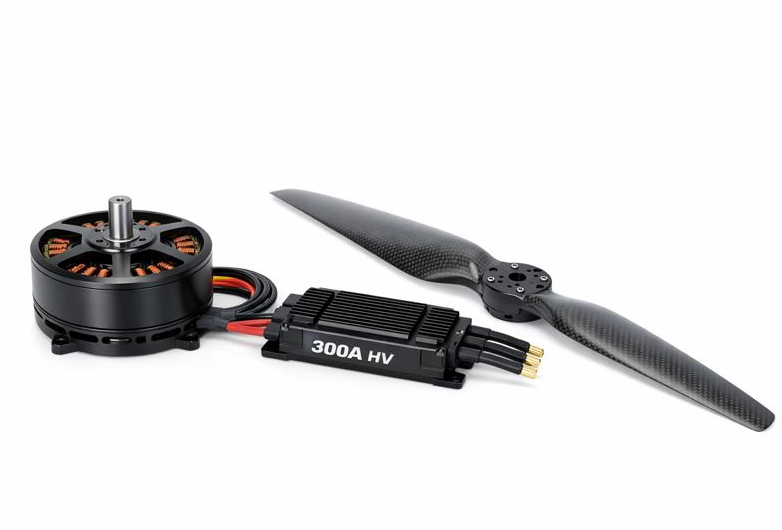

Packing List Includes:

  • 1 × MN5008 U15L Brushless Motor
  • 1 x ESC 300A
  • 1 x NS 47*18 Carbon-Fiber Propeller (set)
  • 1 x Accessories pack

1 months from date of supply against manufacturing defects only.
