| Parameter | Specification |
|---|---|
| Model | V10 KV160 |
| KV Rating | 160 KV |
| Motor Type | Brushless Outrunner UAV Motor |

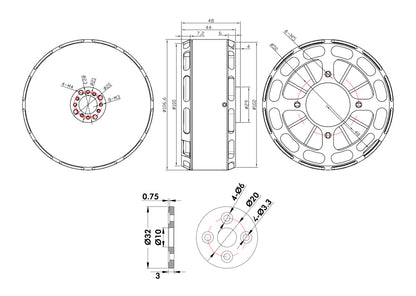

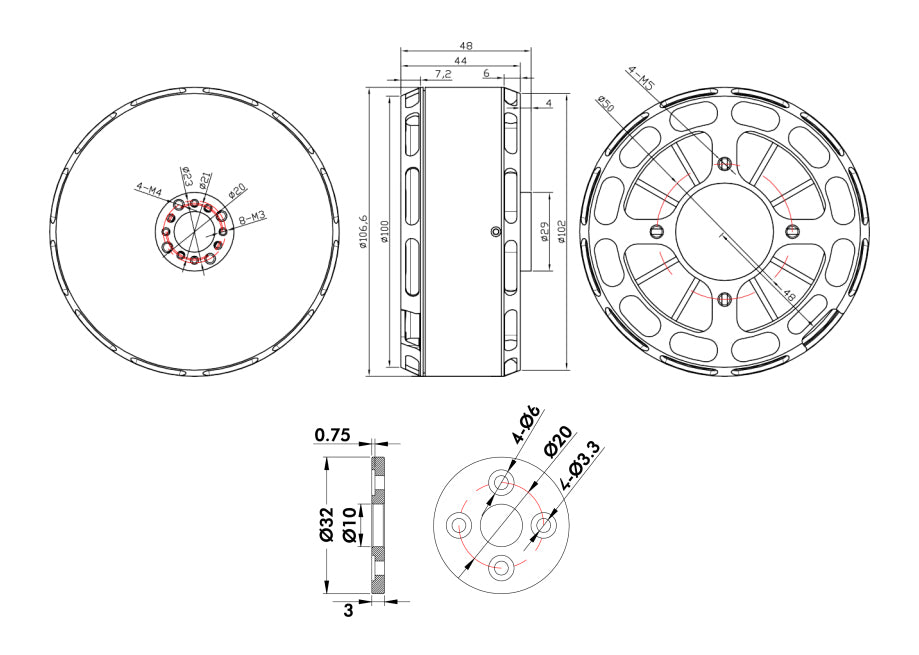

| Motor Size | Φ106.6 × 48 mm |
| Configuration | 36N42P |
| Shaft Diameter | IN: 15 mm |
| Recommended Battery | 12S LiPo (42–52 V) |
| Idle Current (18 V) | 4.4 A |
| Peak Current | 155 A (Continuous 180 s) |
| Maximum Power | 7000 W (Continuous 180 s) |
| Internal Resistance | 12 mΩ |
| Motor Weight | 865 g (including cables) |
| Lead Length | 150 mm Enameled Wire |
| Bearing Type | Imported 6202ZZ |
| IP Rating | IP35 |
| Magnet Temperature Rating | Class C 150°C |
| Enamel Wire Rating | Class C 220°C |
| Coil Withstand Voltage | 1000 V / 5 s |
| Rotor Balance Standard | ≤ 5 mg |
| Recommended ESC | FLAME 200A 14S |
| Recommended Propeller | G30×10.5 |
| Maximum Thrust | 28 kg |

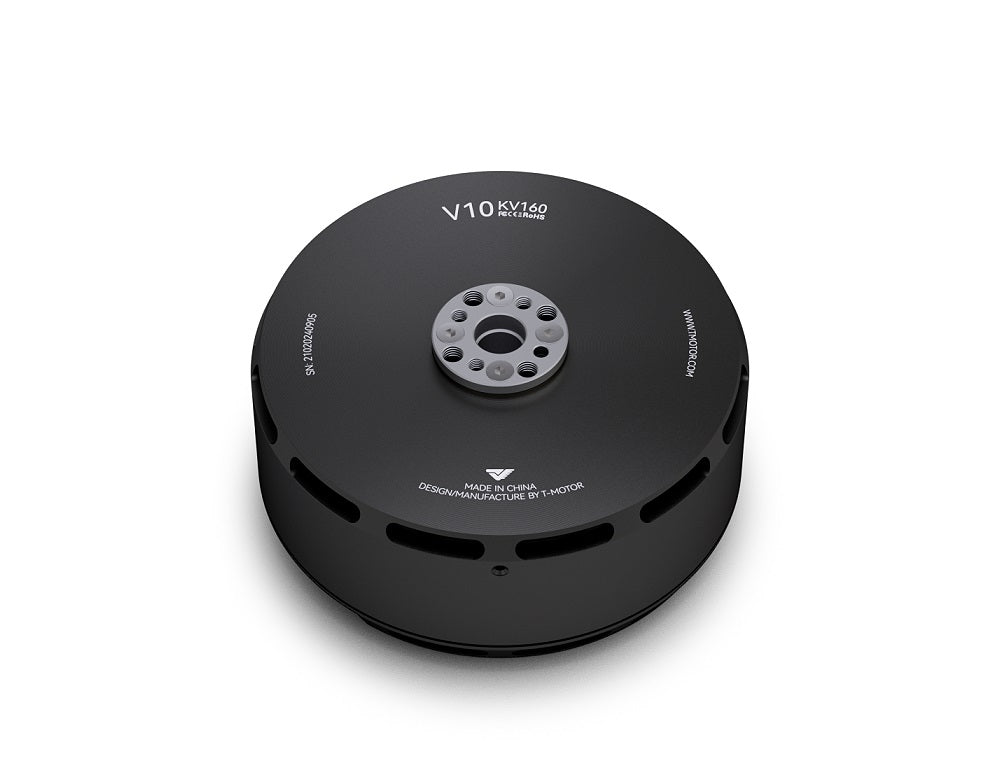

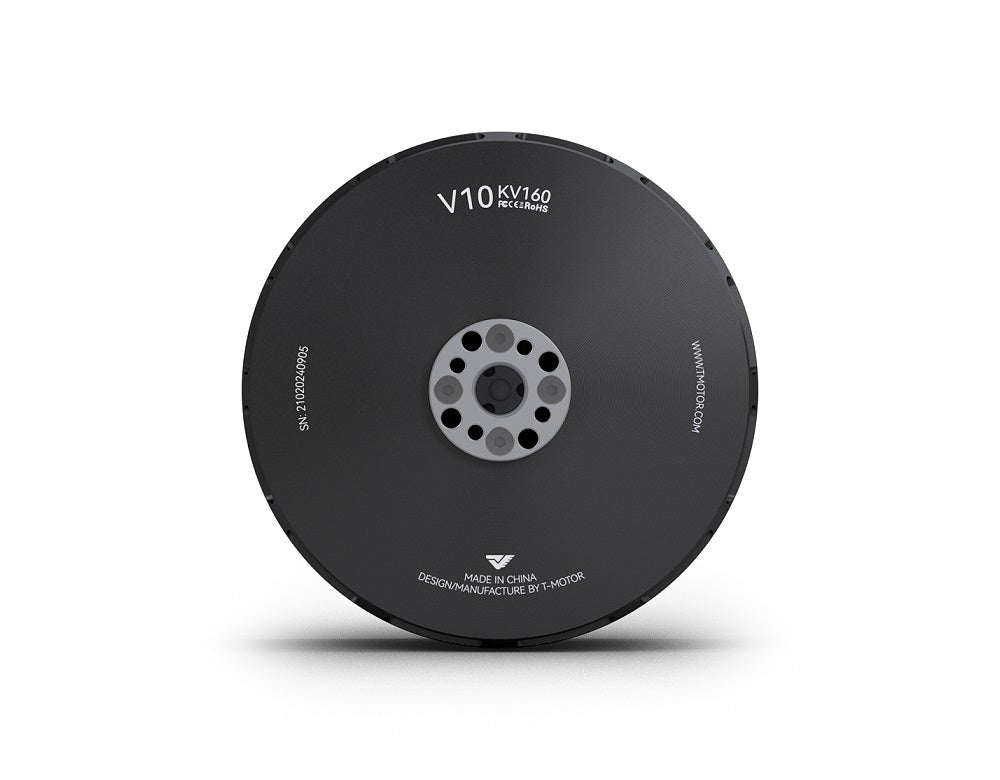

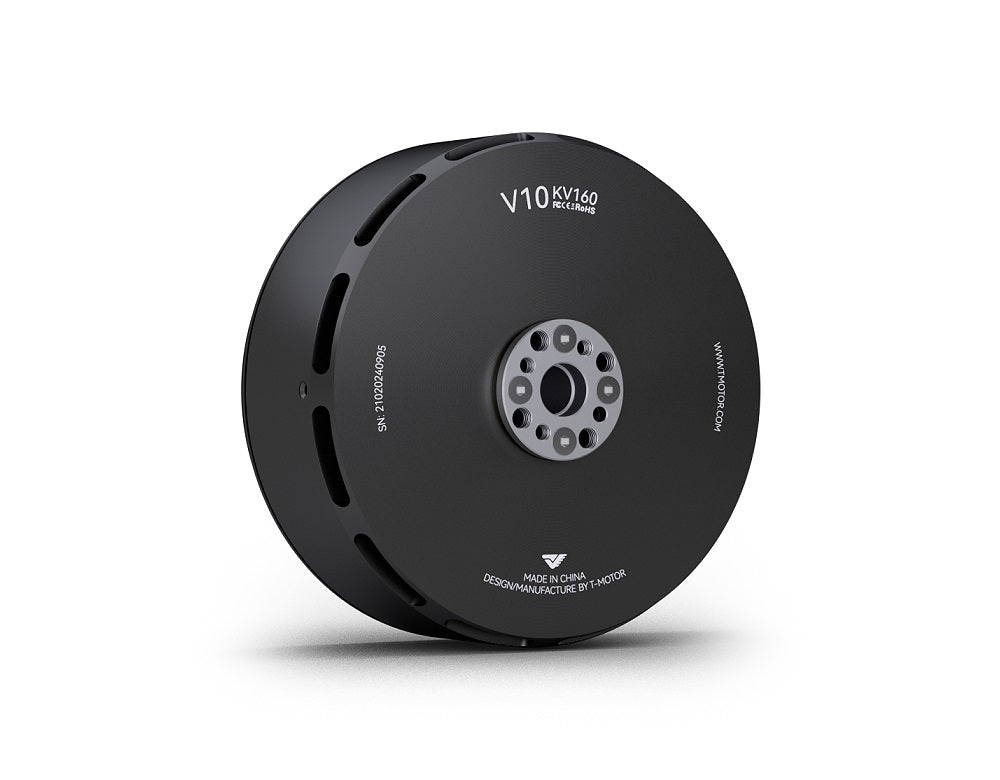

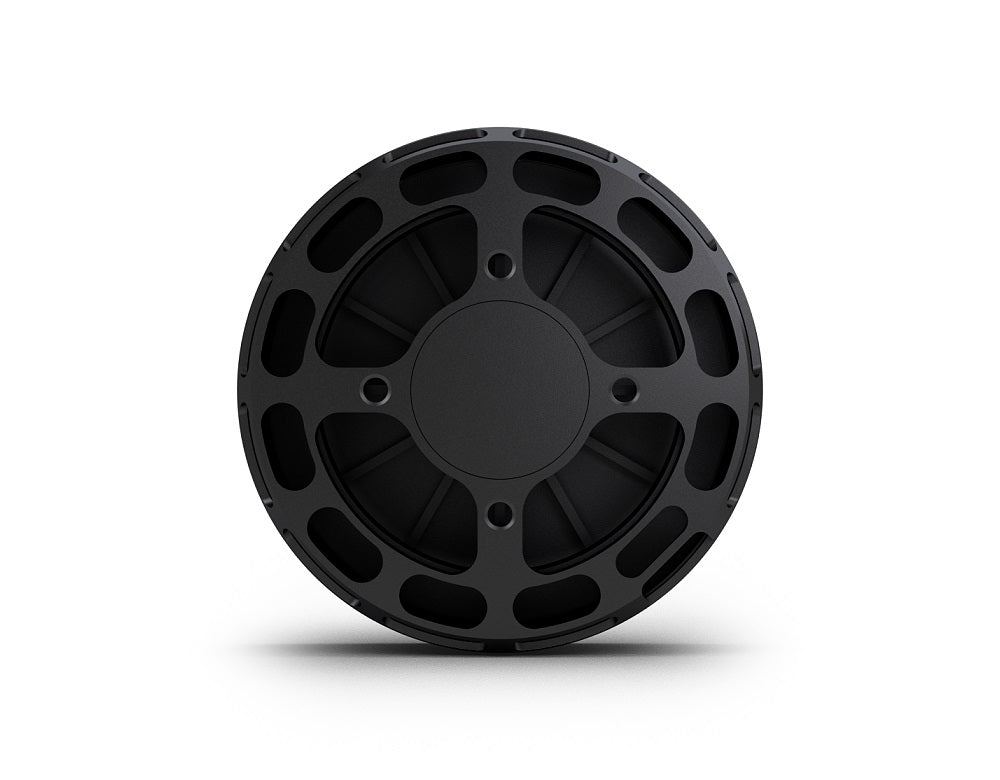

The T-Motor V10 KV160 is a high-performance industrial brushless VTOL motor designed for large UAVs and eVTOL platforms. Supporting 12S LiPo batteries, it delivers up to 28 kg of thrust and 7000 W of continuous power. Featuring centrifugal cooling, premium bearings, high-temperature insulation, and rugged construction, it offers exceptional reliability and efficiency for heavy-lift and long-endurance aerial applications.
Key Features:
- Up to 28 kg maximum thrust
- Designed for large VTOL and heavy-lift UAV platforms
- 7000 W continuous output capability
- High thrust-to-weight ratio
- Strong overload capability for demanding missions
- Centrifugal fan cooling structure for active heat dissipation
- High-temperature resistant magnets and windings
- Anti-rust stator treatment with 180°C coating
- Precision dynamic rotor balancing for smooth operation
- Excellent environmental adaptability for industrial applications.

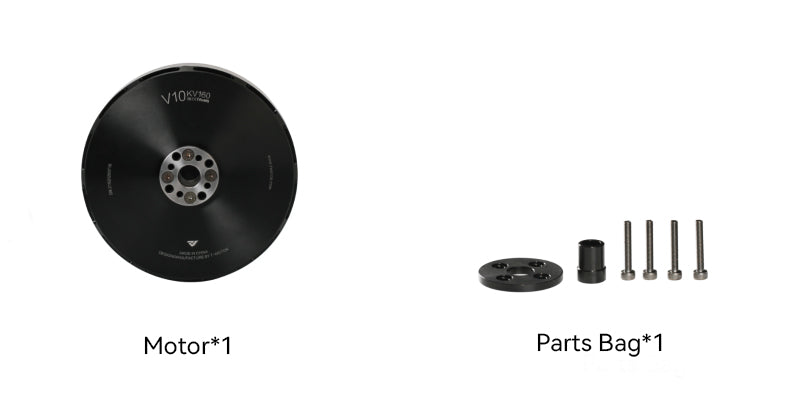

Packing List Includes:
- 1 x V10 KV160 12S Vtol Drone Motor
- 1 x Accessories pack
