| Parameter | Specification |
|---|---|
| Model | V10L KV170 |
| KV Rating | 170 KV |
| Motor Type | Brushless Outrunner VTOL UAV Motor |

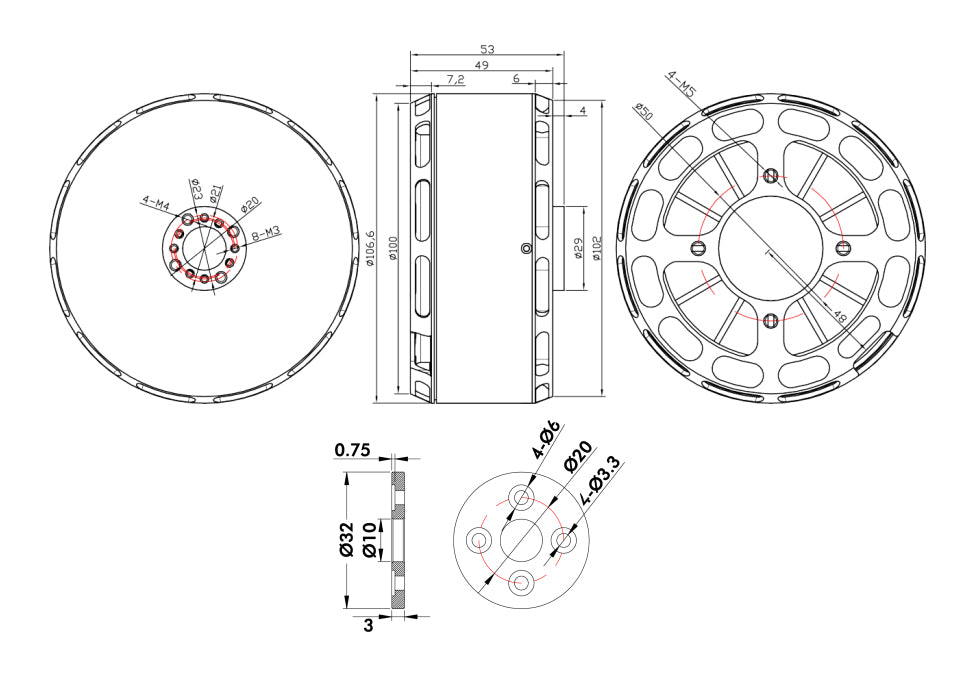

| Motor Size | Φ106.6 × 53 mm |
| Configuration | 36N42P |
| Shaft Diameter | IN: 15 mm |
| Recommended Battery | 12S LiPo (42–52 V) |
| Idle Current (18 V) | 4.4 A |
| Peak Current | 196 A (Continuous 180 s) |
| Maximum Power | 8000 W (Continuous 180 s) |
| Internal Resistance | 8 mΩ |
| Motor Weight | 980 g (including cables) |
| Lead Length | 150 mm enameled wire |
| Bearing Type | Imported 6202ZZ |
| IP Rating | IP35 |
| Magnet Temperature Rating | 180°C |
| Enamel Wire Rating | Class C 220°C |
| Coil Withstand Voltage | 1000 V / 5 s |
| Rotor Dynamic Balance | ≤ 5 mg |
| Recommended ESC | FLAME 200A 14S |
| Recommended Propeller | G30×10.5 |
| Maximum Thrust | 31 kg |
| Stator Treatment | Anti-rust treatment with 180°C high-temperature coating |

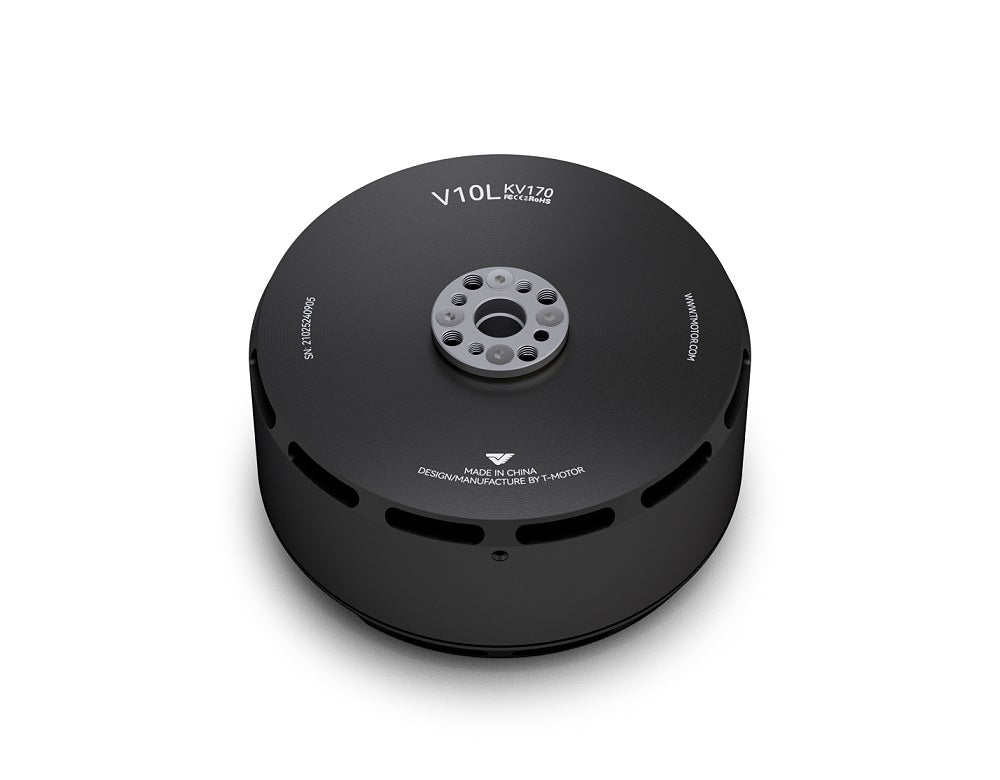

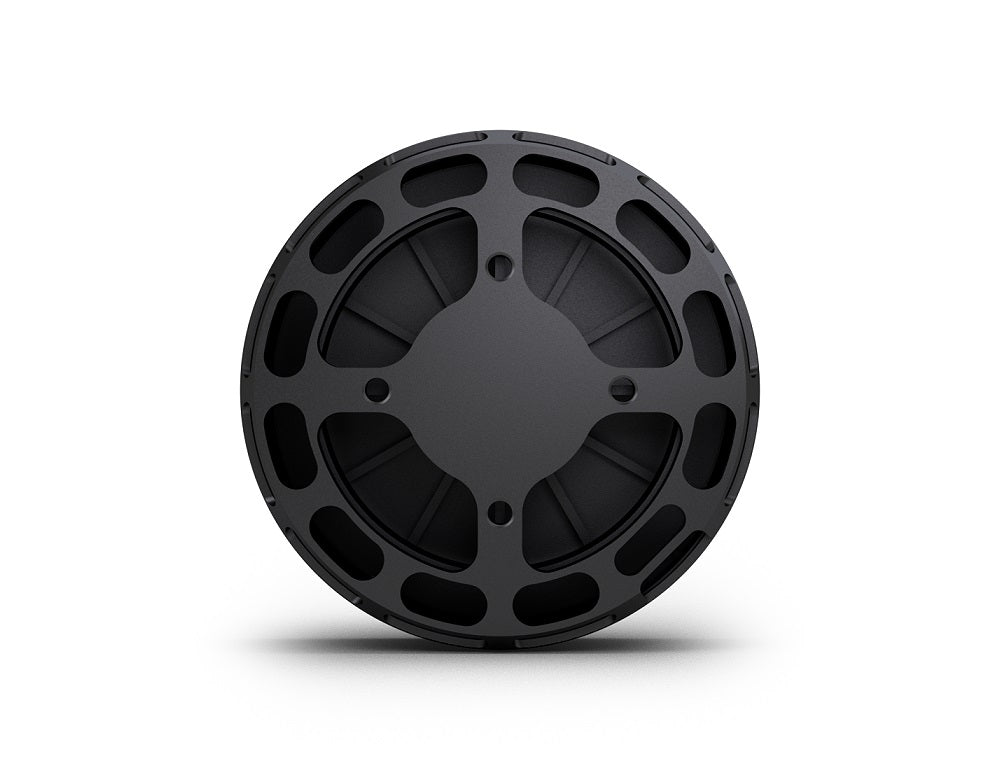

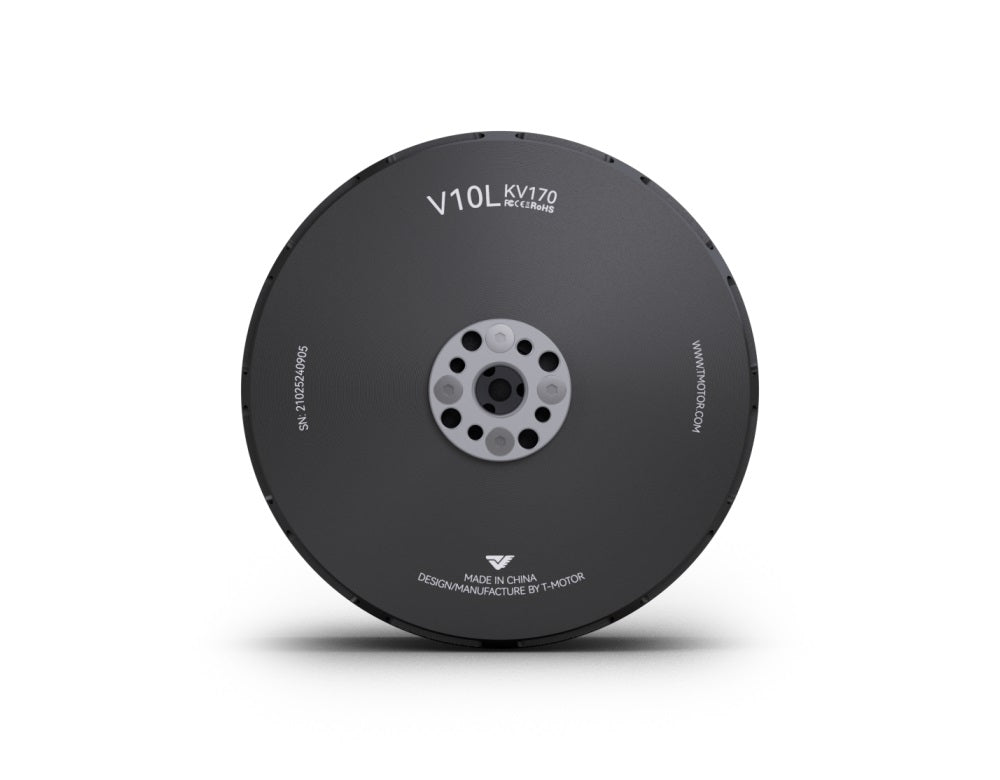

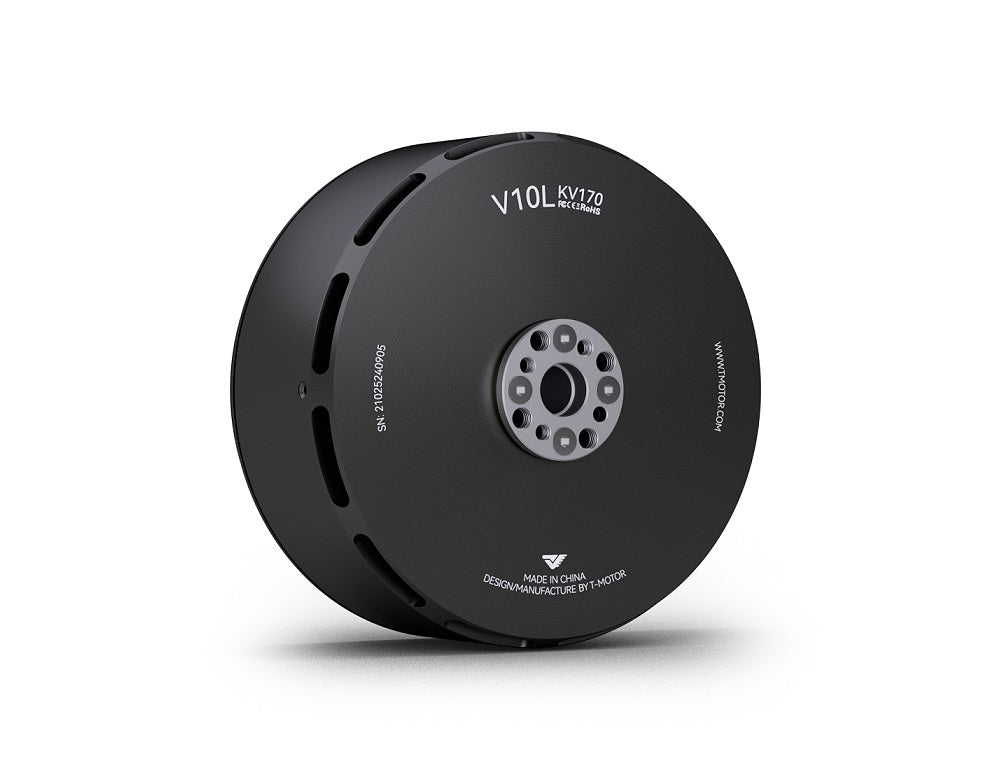

The T-Motor V10L KV170 is a professional-grade 12S VTOL brushless motor capable of producing up to 31 kg of thrust and 8000 W of continuous power. Featuring advanced cooling, high-temperature-resistant materials, precision balancing, and industrial-grade durability, it is ideal for heavy-lift VTOL UAVs, cargo drones, and long-endurance commercial aircraft.
Key Features:
- Up to 31 kg maximum thrust
- 8000 W continuous power capability
- High thrust-to-weight ratio for heavy-lift VTOL platforms
- Strong overload performance for demanding flight operations
- Centrifugal fan cooling structure for enhanced heat dissipation
- High-temperature-resistant magnets and windings
- Anti-corrosion stator treatment for long service life
- Precision rotor balancing (≤ 5 mg) for smooth operation
- Optimized for stable takeoff, hover, and landing performance

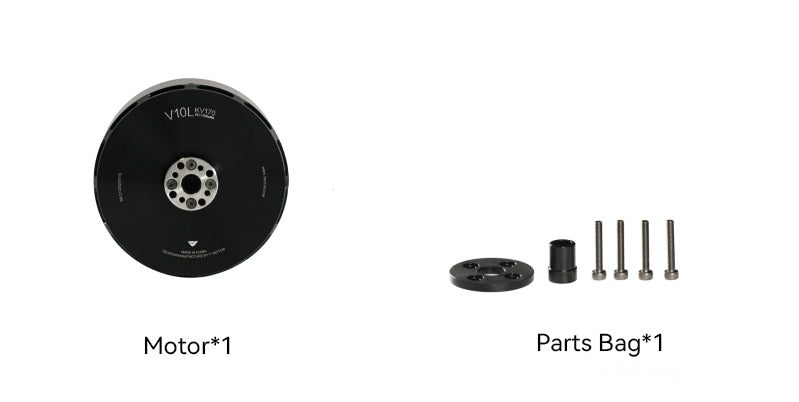

Packing List Includes:
- 1 × V10L KV170 12S Vtol Drone Motor
- 1 x Accessories pack
