| Parameter | Specification |
|---|---|
| Model | V120A 14S |
| ESC Type | Industrial BLDC FOC (Field-Oriented Control) UAV ESC |
| Support Voltage | 6S–14S LiPo (18–60 V) |
| Continuous Current | 60 A |
| Peak Current | 130 A (3 seconds) |
| Control Protocol | PWM / CAN |
| Throttle Range | 1040–1940 μs |
| Throttle Refresh Frequency | 50–500 Hz |
| BEC | No |
| Weight (Without Cables) | 130 g |
| Weight (With Cables) | 170 g |

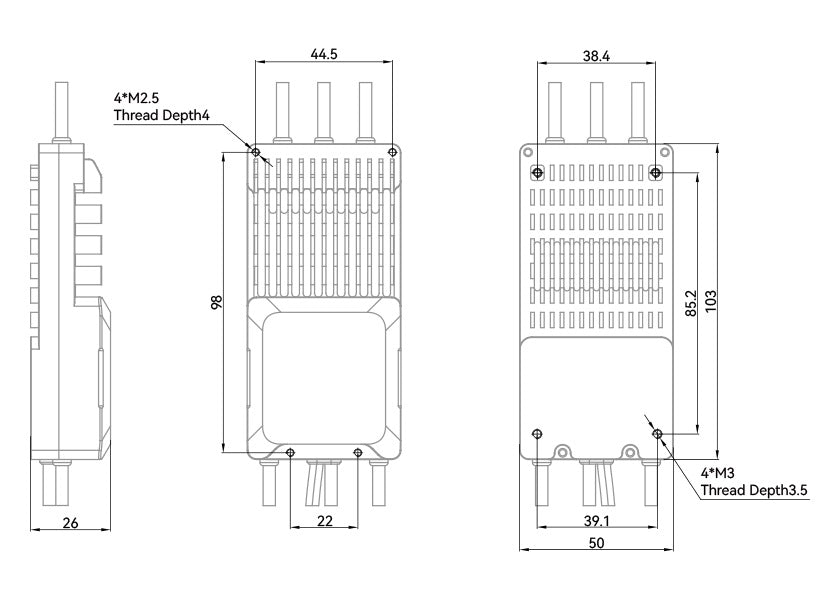

| Dimensions | 103 × 50 × 26 mm |
| Input Cable | Silicone Wire, 12 AWG |
| Output Cable | Silicone Wire, 12 AWG |
| Encoder Interface | M6 Aviation Connector |
| Operating Temperature | -20°C to +65°C |
| Application Type | Heavy-Lift UAVs, Industrial Drones, VTOL Aircraft |

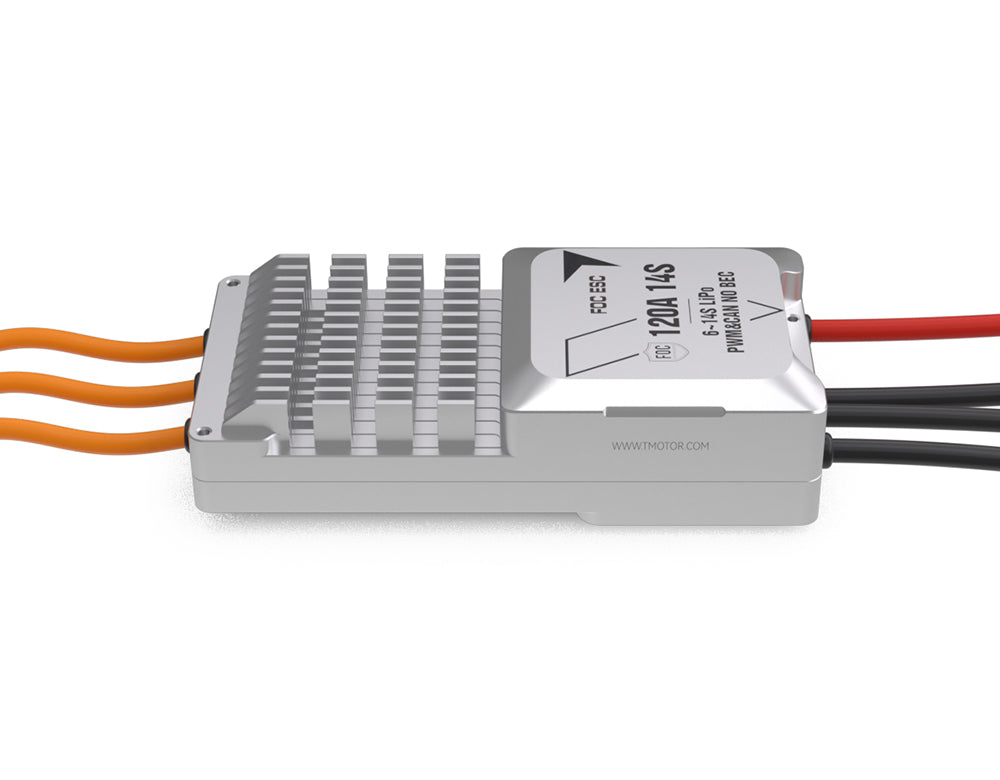

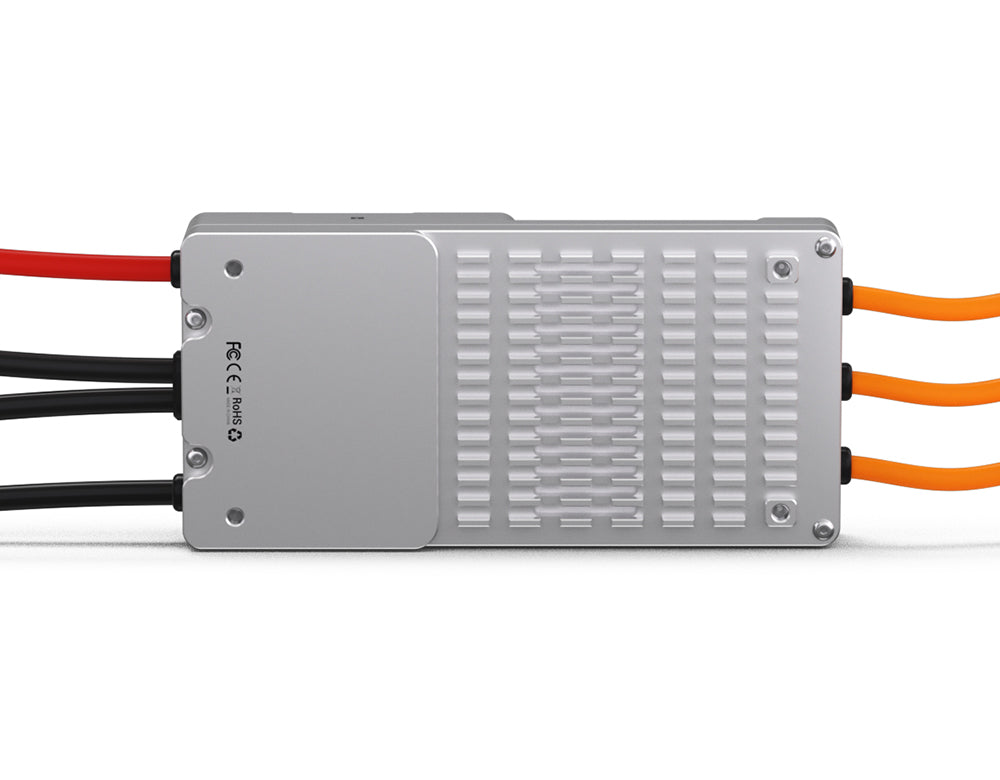

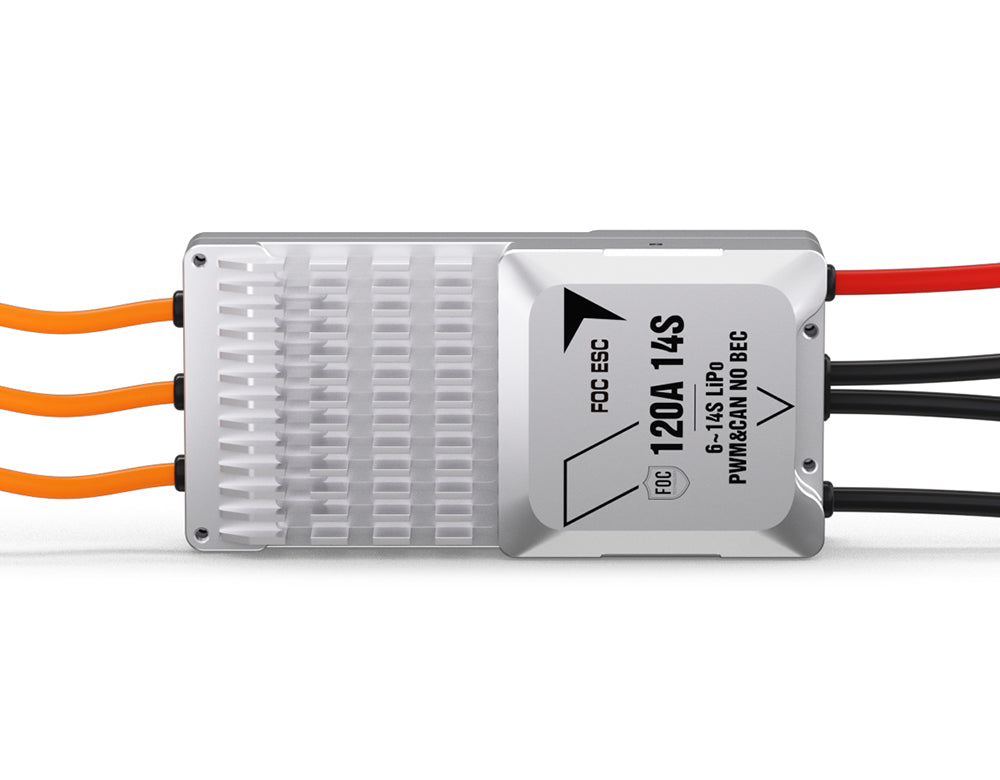

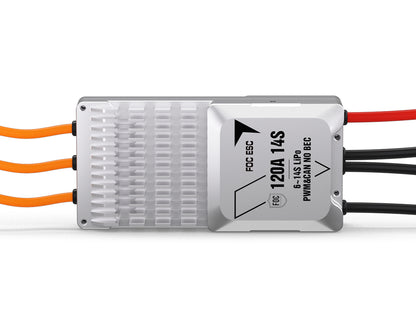

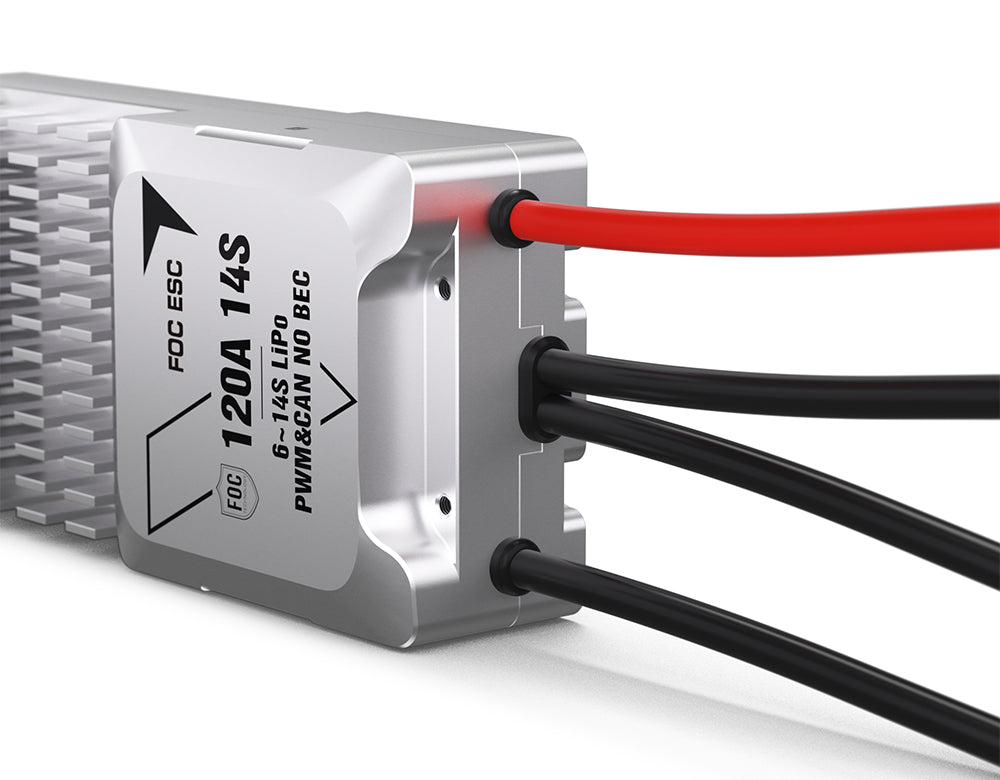

The T-MOTOR V120A 14S is a professional-grade FOC brushless UAV ESC supporting 6–14S LiPo batteries and delivering 60A continuous and 130A peak current output. Featuring PWM/CAN communication, encoder support, telemetry feedback, and efficient thermal management, it is optimized for industrial drones, heavy-lift multirotors, and VTOL aircraft.
Key Features:
- Supports 6S–14S LiPo batteries (18–60V)
- 60A continuous current output
- 130A peak current (3 seconds)
- Advanced FOC motor control
- PWM and CAN communication
- Encoder support via M6 aviation connector
- Telemetry and data feedback capability
- Fast throttle response and precise speed regulation

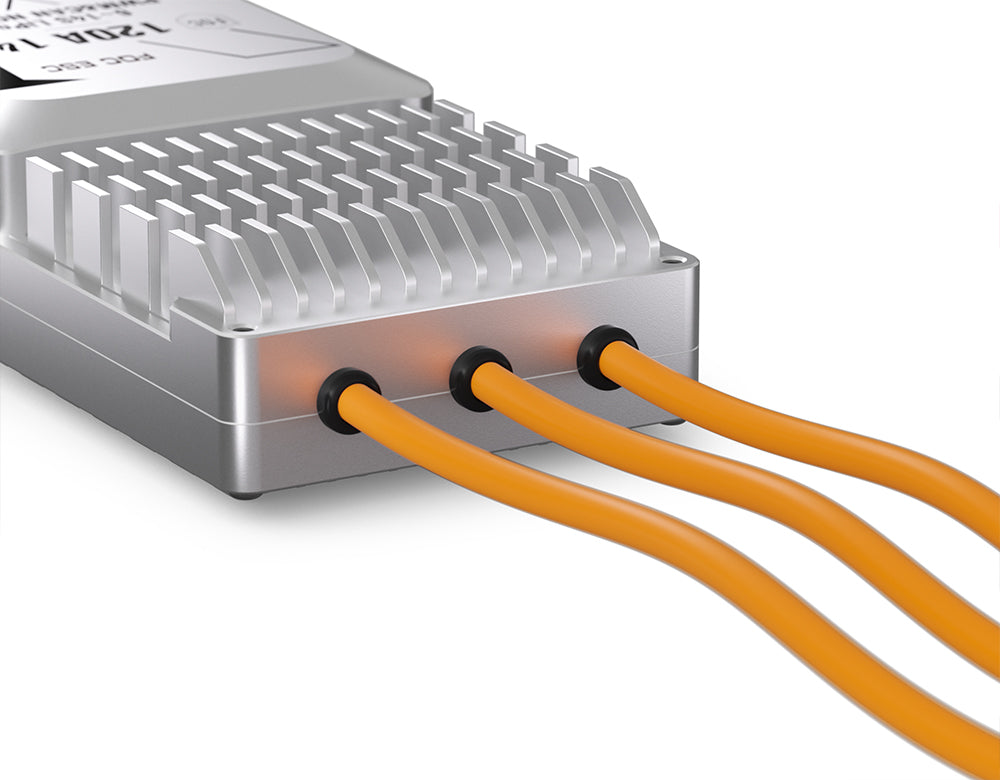

- Optimized thermal management for industrial UAV operation
- Suitable for heavy-lift multirotors, VTOL aircraft, inspection, mapping, and logistics drones.
Packing List Includes:
- 1 x T-Motor V120A 14S UAV ESC
- 1 x Accessories pack
