| Parameter | Specification |
|---|---|
| Model | V120A 24S |
| ESC Type | Industrial BLDC FOC (Field-Oriented Control) UAV ESC |
| Support Voltage | 12S–24S LiPo (Max. 105 V) |
| Continuous Current | 60 A |
| Peak Current | 120 A (<10 s) |
| Control Protocol | PWM / CAN |
| Throttle Range | 1040–1940 μs |
| Throttle Refresh Frequency | 50–500 Hz |
| Throttle Response Speed | 300 ms |
| BEC | No |
| Standby Consumption | ≤50 mA @ 100 V |
| Weight (Without Cables) | 295 g |
| Weight (With Cables) | 430 g |

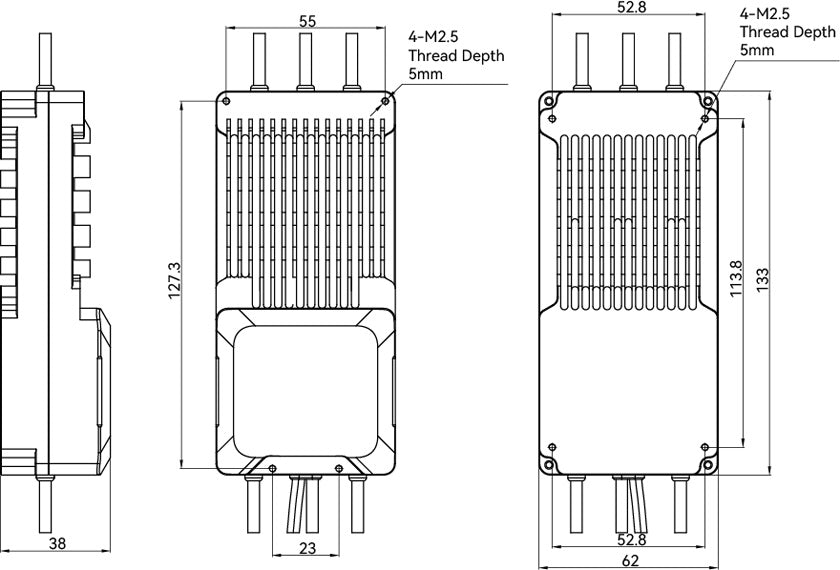

| Dimensions (L × W × H) | 127 × 56 × 33 mm |
| Input Cable | Silicone Wire, 10 AWG |
| Output Cable | Silicone Wire, 10 AWG |
| Encoder Interface | M6 Aviation Connector |
| Application Type | Heavy-Lift UAVs & Industrial Drones |

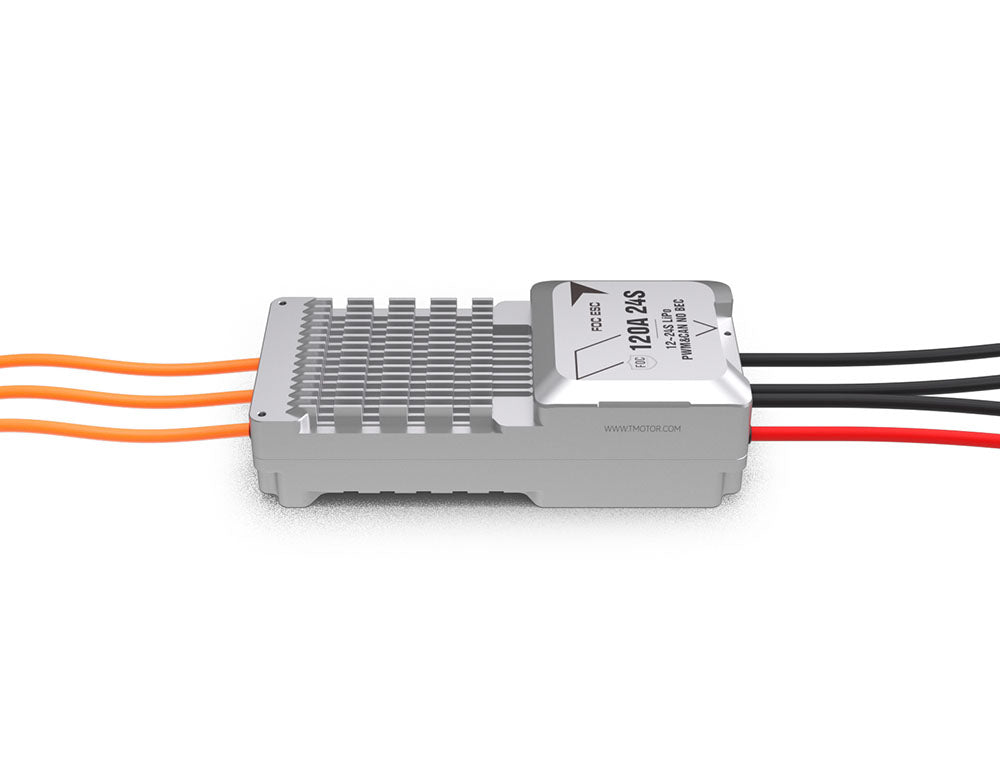

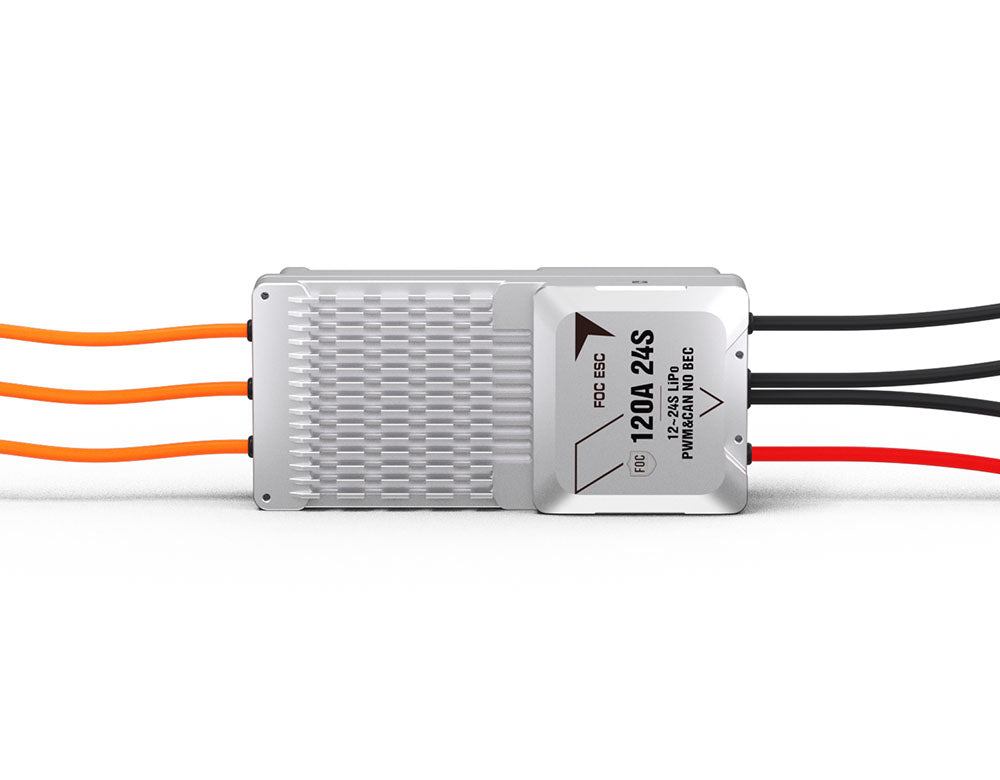

T-MOTOR V120A 24S is a professional high-voltage FOC UAV ESC supporting 12–24S LiPo batteries, delivering 65A continuous and 135A peak current with PWM/CAN communication, encoder feedback, and advanced thermal management for industrial UAV and VTOL applications.
Key Features:
- Supports 12S–24S high-voltage UAV power systems
- 65A continuous and 135A peak current capability
- Advanced FOC motor control for smooth and efficient operation
- PWM and CAN communication support
- Encoder feedback support for accurate closed-loop control
- Low-noise operation and fast response
- Designed for high-power industrial UAV platforms
Packing List Includes:
- 1 x T-Motor V120A 24S UAV ESC
- 1 x Accessories pack
