| Parameter | Specification |
|---|---|
| Model | V13L KV65 |
| KV Rating | 65 KV |
| Motor Type | Brushless Outrunner VTOL UAV Motor |

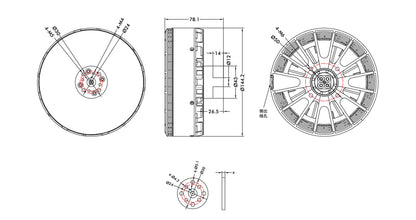

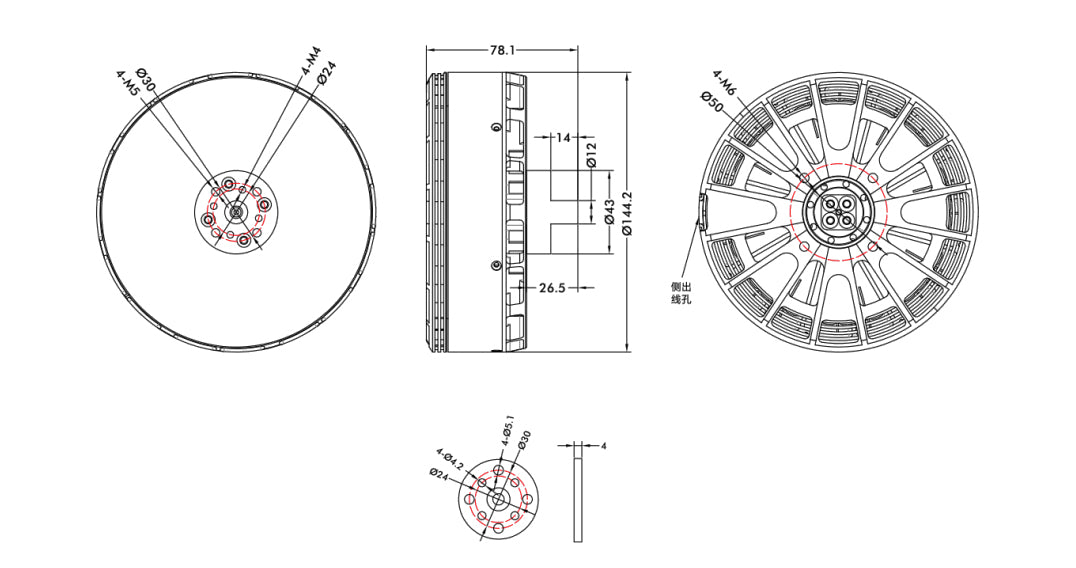

| Motor Size | Φ144.2 × 78.1 mm |
| Configuration | 42N38P |
| Shaft Diameter | IN 20 mm / OUT 12 mm |
| Recommended Battery | 24S LiPo |
| Maximum Voltage | 104 V |
| Idle Current (20 V) | 3 A |
| Peak Current | 190 A (15 seconds) |
| Maximum Continuous Power | 6000–6150 W |
| Internal Resistance | 26 ± 2 mΩ |
| Motor Weight | 1680 g (including cables) |
| Lead Wire | Enameled wire, 150 mm |
| Protection Rating | IPX5 |
| Recommended ESC | Thunder 200A 24S |
| Recommended Propeller | VZ42×16.5" |
| Rated Thrust | 25 kg |
| Maximum Thrust | 55 kg |

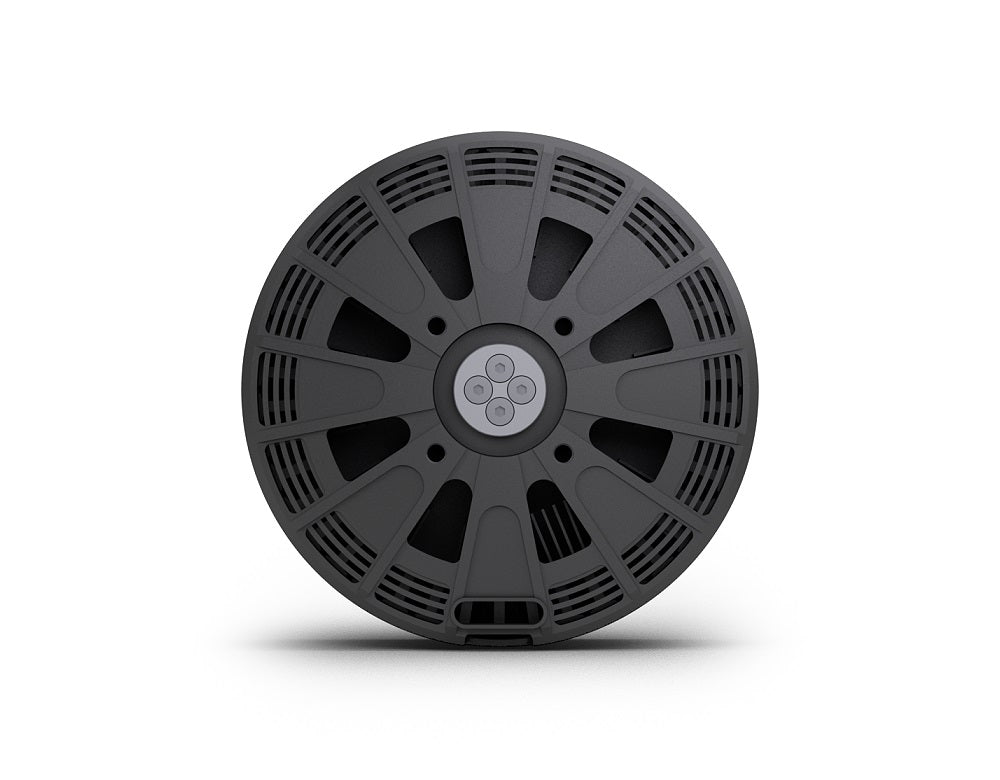

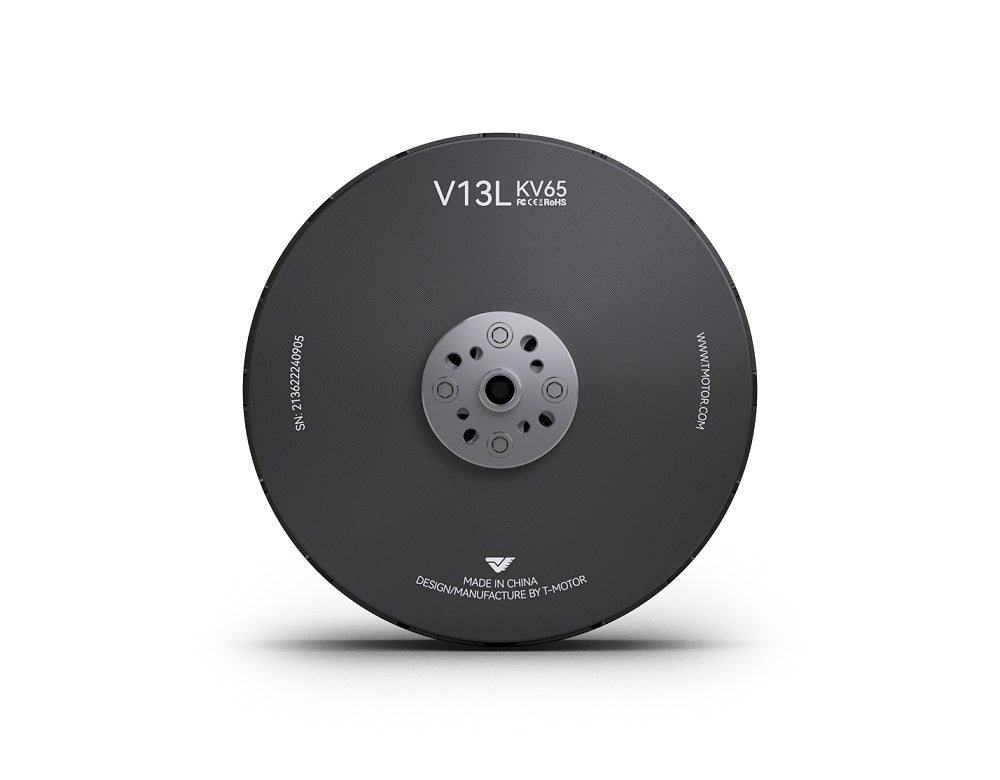

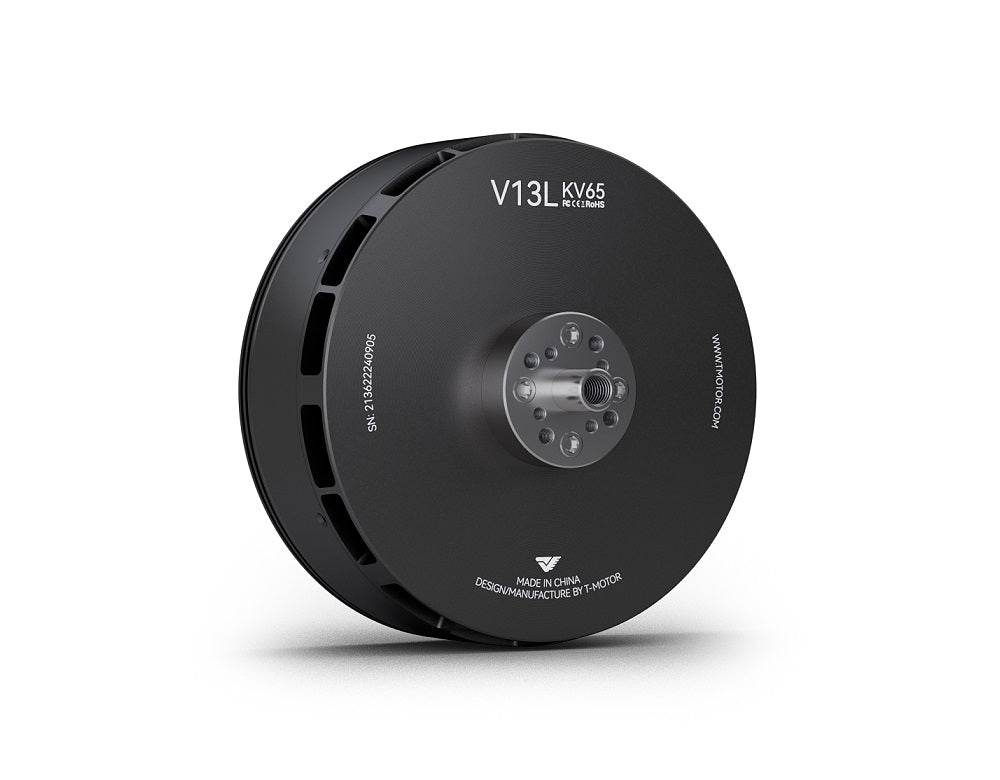

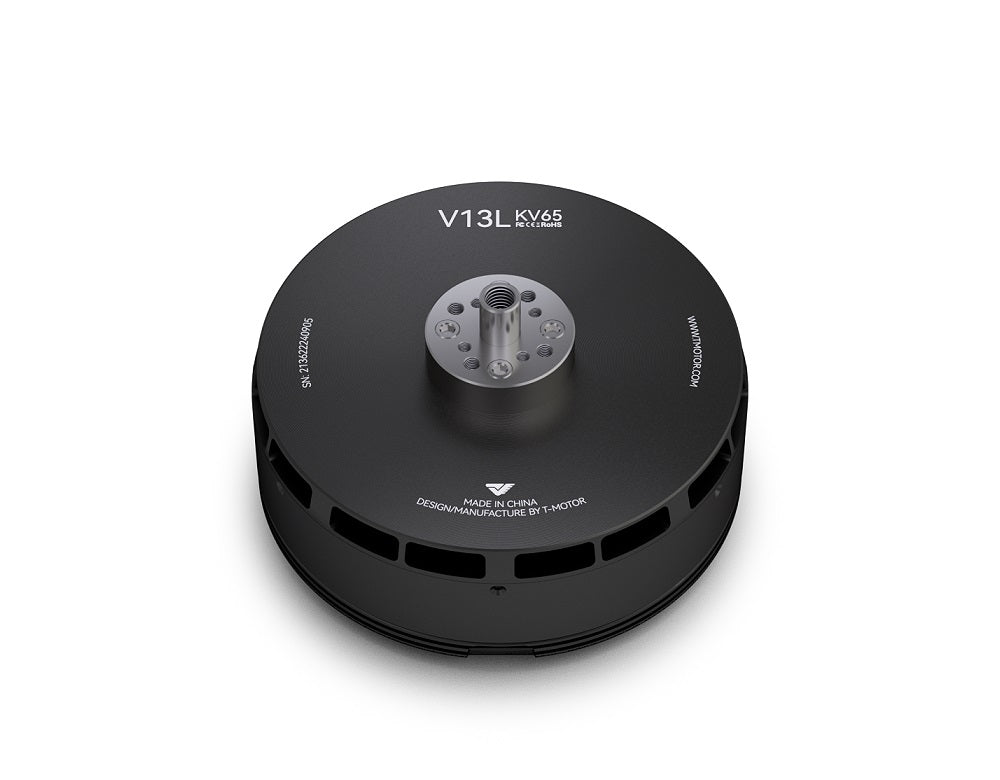

The T-Motor V13L KV65 is an industrial-grade 24S VTOL brushless motor built for heavy-payload UAVs. Delivering up to 55 kg of thrust, supporting voltages up to 104 V, and featuring IPX5 protection, advanced cooling, and a recommended 42-inch propeller system, it is ideal for cargo transport, logistics, emergency response, and large-scale commercial VTOL aircraft.
Key Features:
- Up to 55 kg maximum thrust
- Designed specifically for large-payload VTOL aircraft
- Supports 24S LiPo systems up to 104 V
- High-efficiency 42-inch propulsion system
- Advanced centrifugal cooling structure
- Enhanced overload capability for demanding missions
- High-temperature-resistant magnets and windings
- IPX5-rated environmental protection
- Lightweight design relative to thrust output
- Precision-balanced rotor for smooth operation
Packing List Includes:
- 1 x V13L KV65 24S Vtol Drone Motor

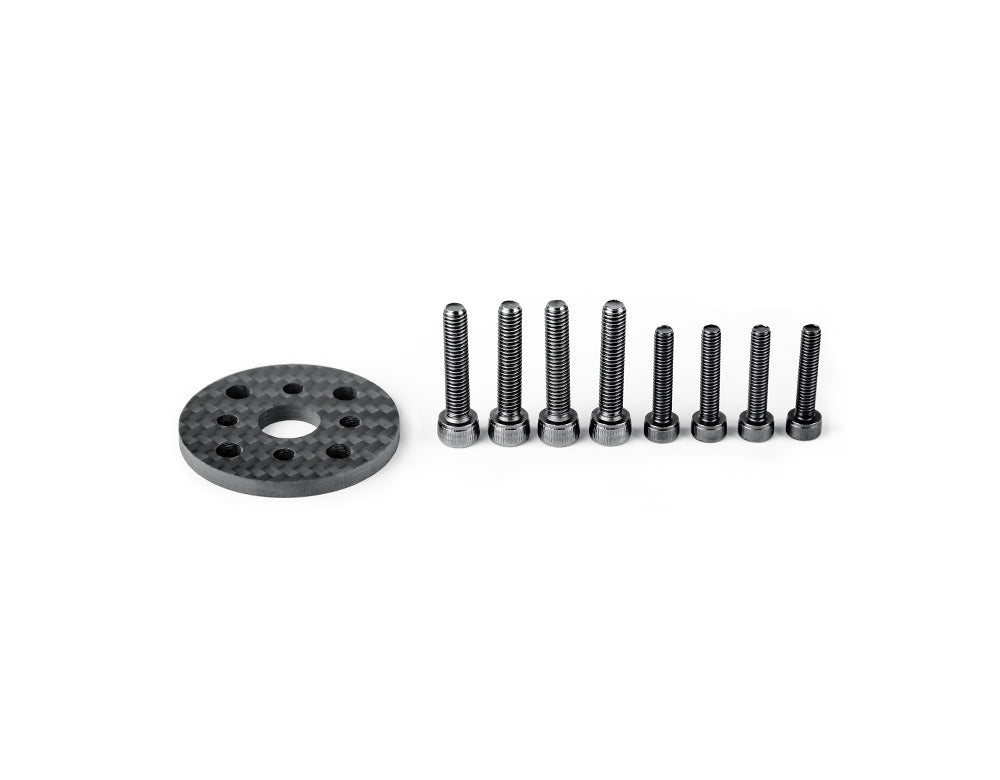

- 1 x Accessories pack
