| Parameter | Specification |
|---|---|
| Model | V200A 14S |
| ESC Type | Industrial BLDC FOC (Field-Oriented Control) UAV ESC |
| Support Voltage | 6S–14S LiPo (18–60 V) |
| Continuous Current | 100 A |
| Peak Current | 200 A (3 seconds) |
| Control Protocol | PWM / CAN |
| Throttle Range | 1040–1940 μs |
| Throttle Refresh Frequency | 50–500 Hz |
| BEC | No |
| Weight (Without Cables) | 243 g |
| Weight (With Cables) | 470 g |

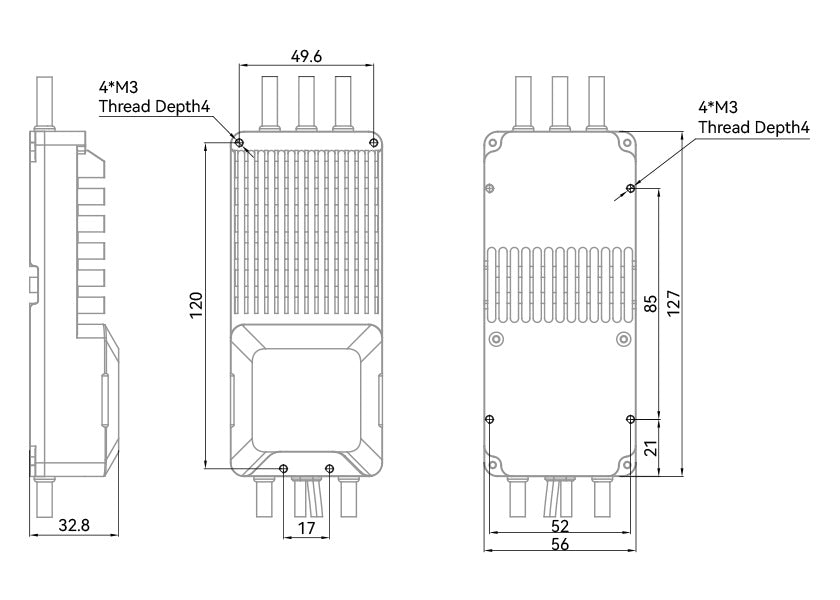

| Dimensions | 127 × 56 × 33 mm |
| Input Cable | 10 AWG Silicone Wire (1140 mm) |
| Output Cable | 10 AWG Silicone Wire (210 mm) |
| Encoder Interface | M6 Aviation Connector |
| Operating Temperature | -20°C to +65°C |
| Application Type | Heavy-Lift UAVs, VTOL Aircraft, Industrial Drones |

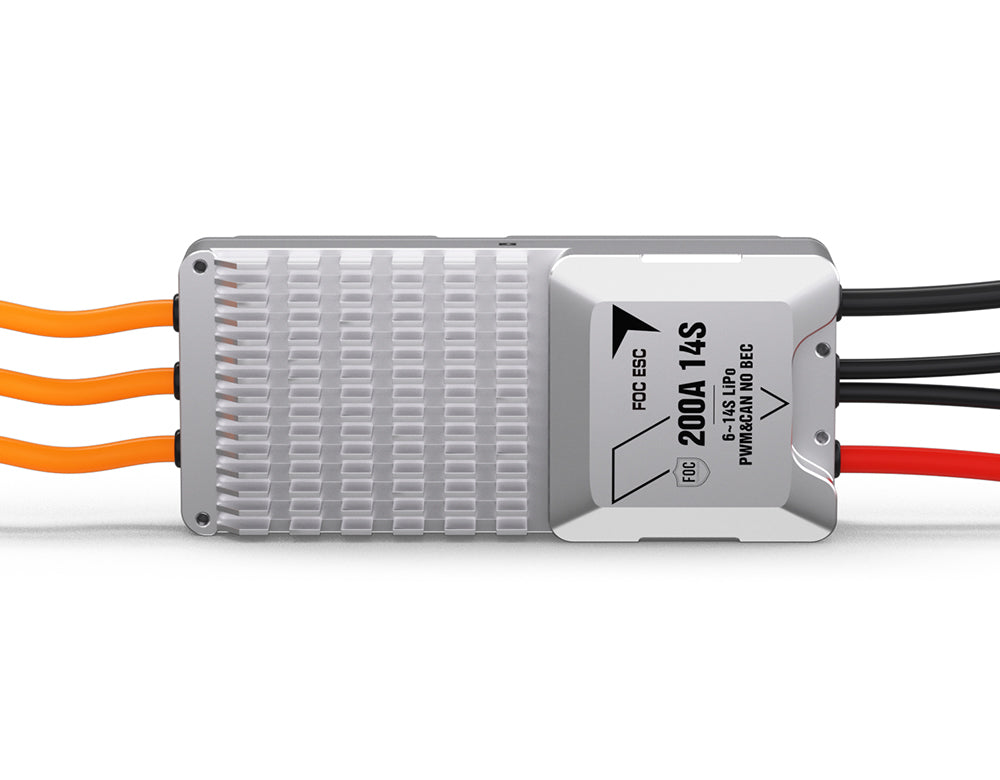

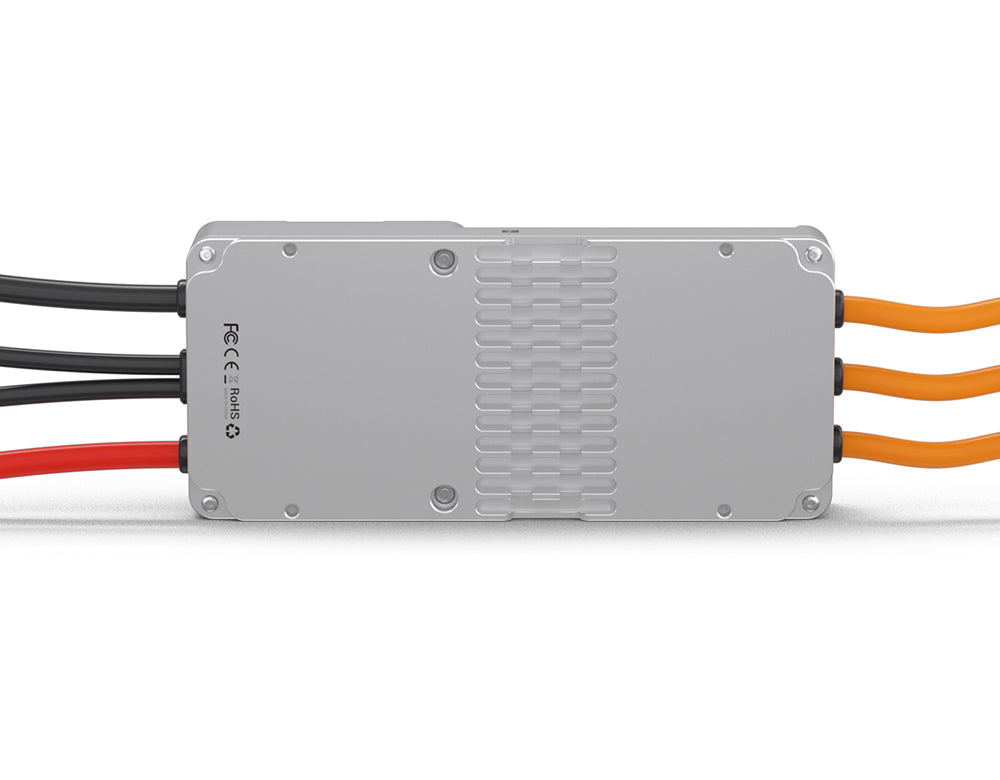

T-MOTOR V200A 14S UAV ESC is a high-performance FOC (Field-Oriented Control) electronic speed controller designed for industrial UAVs, heavy-lift drones, and VTOL platforms. It supports 6–14S battery systems, delivers 100A continuous current and up to 200A peak current, and provides precise, efficient, and low-noise motor control through PWM and CAN communication.
Key Features:
- Supports 6S–14S LiPo batteries (18–60 V)
- Delivers 100 A continuous current
- Handles 200 A peak current (3 seconds)
- Advanced FOC (Field-Oriented Control) technology
- Supports PWM and CAN communication
- Fast throttle response and precise motor control
- Low-noise and smooth operation
- Optimized energy efficiency
Packing List Includes:
- 1 x T-Motor V200A 14S UAV ESC
- 1 x Accessories pack
