| Category | Specification |
|---|---|
| Model | V505 KV260 |
| Motor Type | Brushless VTOL UAV Motor |
| KV Rating | 260KV |
| Recommended Voltage | 12S LiPo (42–52V) |
| Recommended ESC | FLAME 60A 12S |
| Recommended Propellers | P16×5.4 / P17×5.8 |
| Max Continuous Current | 52A (180s) |
| Max Continuous Power | 2500W |
| Max Thrust | ~8.7 kg |
| Idle Current (18V) | 1.5A |

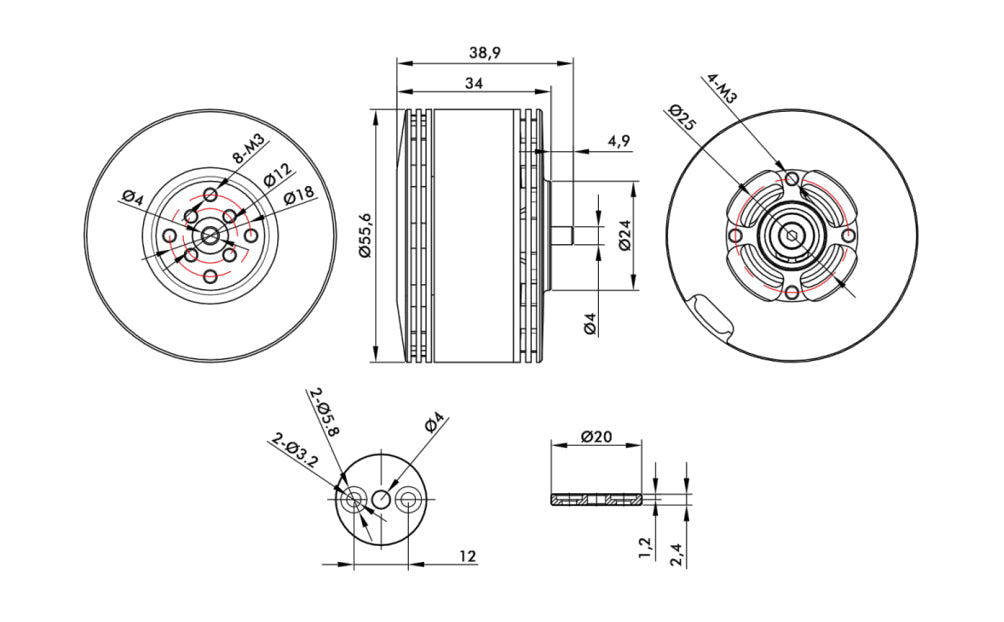

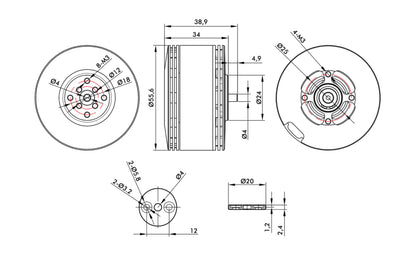

| Motor Size | Φ55.6 × 38.9 mm |
| Configuration | 24N28P |
| Shaft Diameter | IN: 6 mm / OUT: 4 mm |
| Motor Weight | 215 g |
| Weight with Wires | 255 g |
| Wire Specification | 16AWG × 600 mm |
| Internal Resistance | 58 mΩ |
| Bearing Type | Imported 696ZZ |
| Ingress Protection | IP45 |
| Magnet Temperature Rating | 150°C |
| Enamel Wire Rating | 220°C |

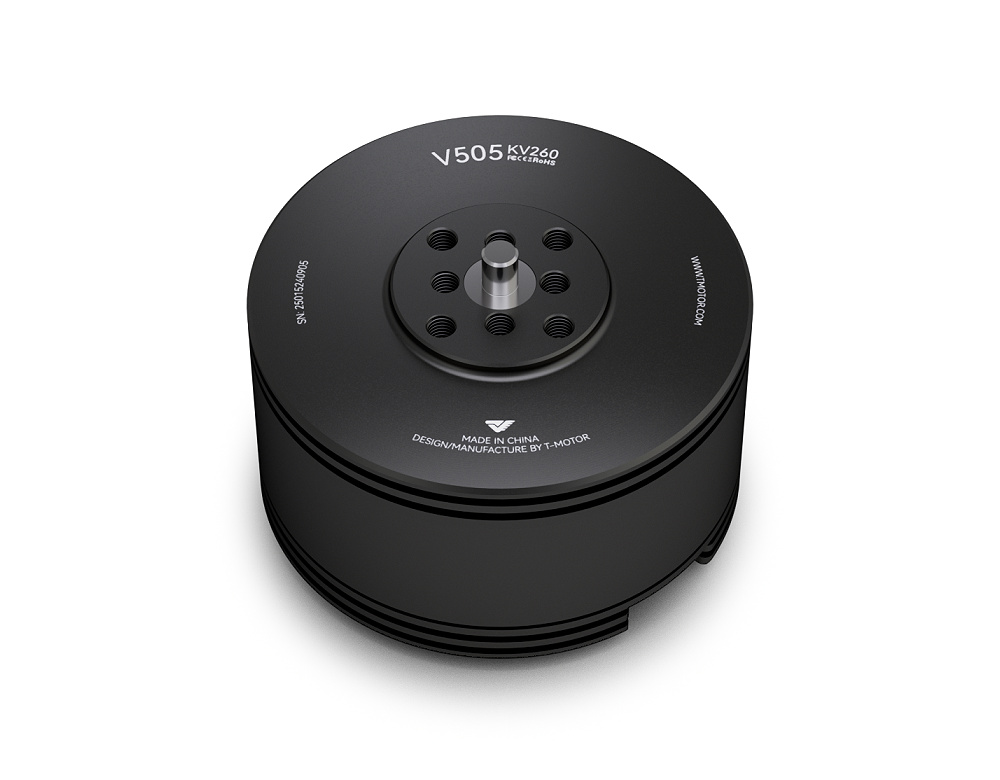

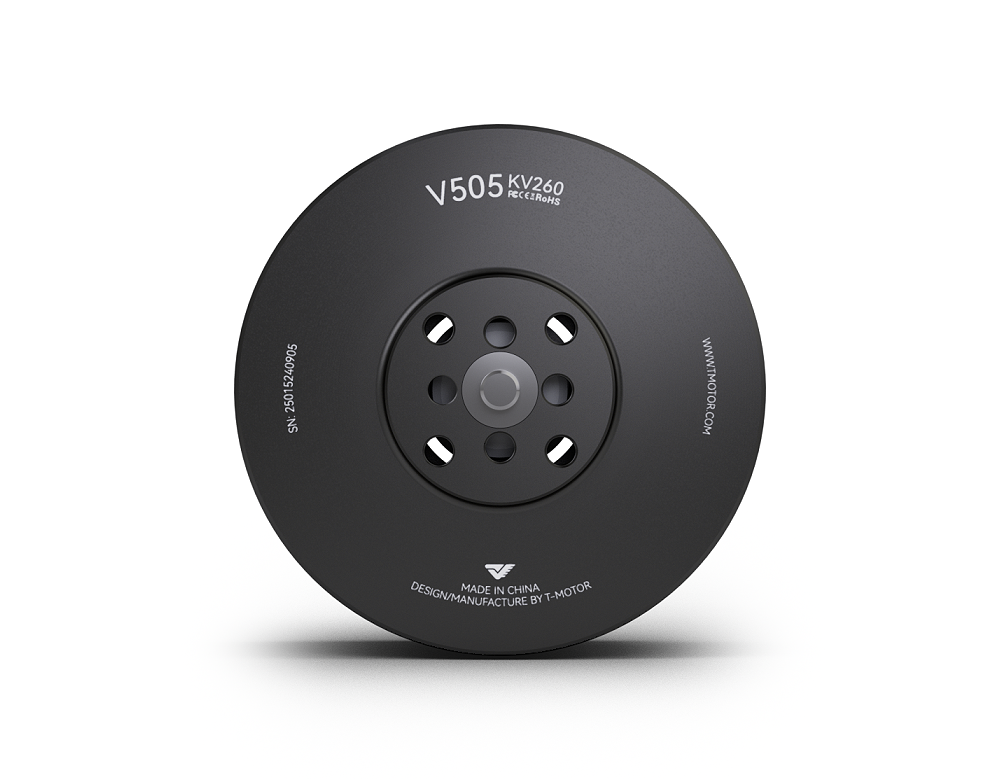

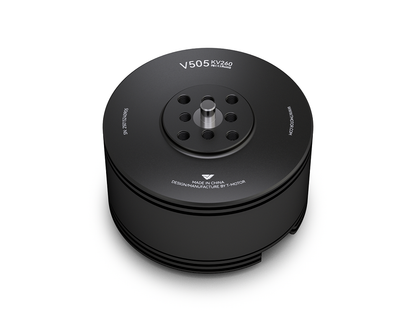

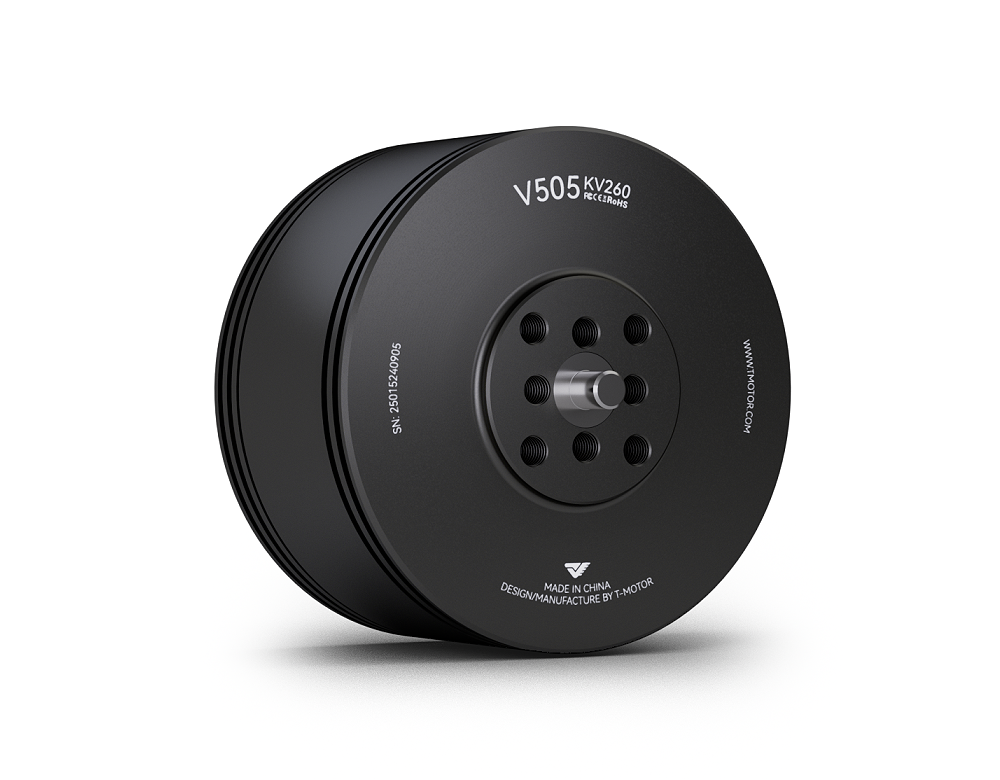

The T‑Motor V505 VTOL Motor is a high-power brushless motor designed specifically for VTOL (Vertical Take-Off and Landing) UAVs.
It is optimized for:
- VTOL fixed-wing aircraft
- Tilt-rotor UAVs
- Hybrid multirotor systems
- Long-endurance industrial drones

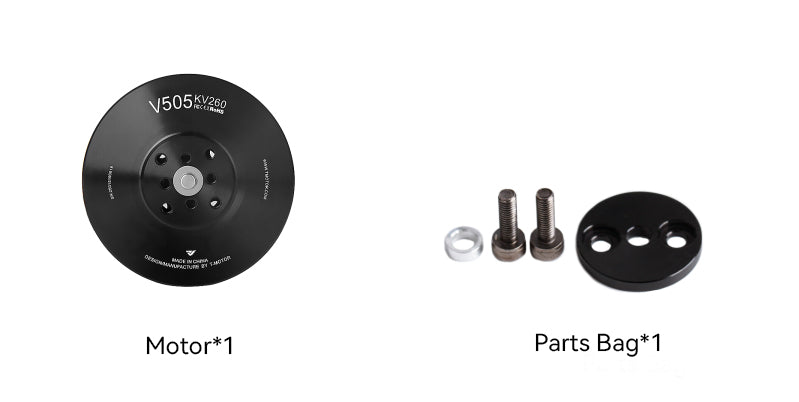

Packing List Includes:
- 1 × V505 KV260 12S Vtol Drone Motor
- 1 x Accessories pack
