| Category | Specification |
|---|---|
| Model | V602 KV180 |
| Motor Type | Brushless VTOL UAV Motor |
| KV Rating | 180KV |
| Recommended Voltage | 12S LiPo (42–52V) |
| Recommended ESC | FLAME 60A 12S |
| Recommended Propeller | V22×7.4 |
| Max Continuous Current | 45A (continuous 180s) |
| Max Continuous Power | 2000W (180s) |
| Max Thrust | ~9.7 kg |
| Idle Current (18V) | 0.9A |

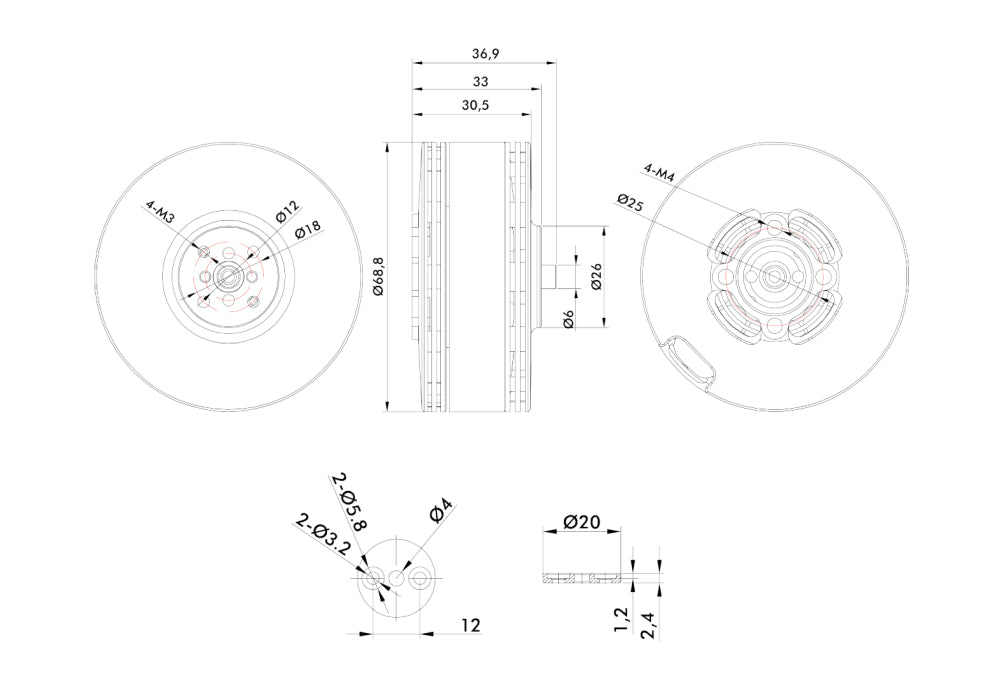

| Motor Size | Φ68.8 × 36.9 mm |
| Configuration | 24N28P |
| Shaft Diameter | IN: 6 mm / OUT: 6 mm |
| Motor Weight | 300 g |
| Weight with Wires | ~345 g |
| Wire Specification | 14AWG × 600 mm |
| Internal Resistance | 88 mΩ |
| Bearing Type | Imported 626ZZ |
| Ingress Protection | IP45 |
| Magnet Temperature Rating | 150°C |
| Enamel Wire Rating | 220°C |

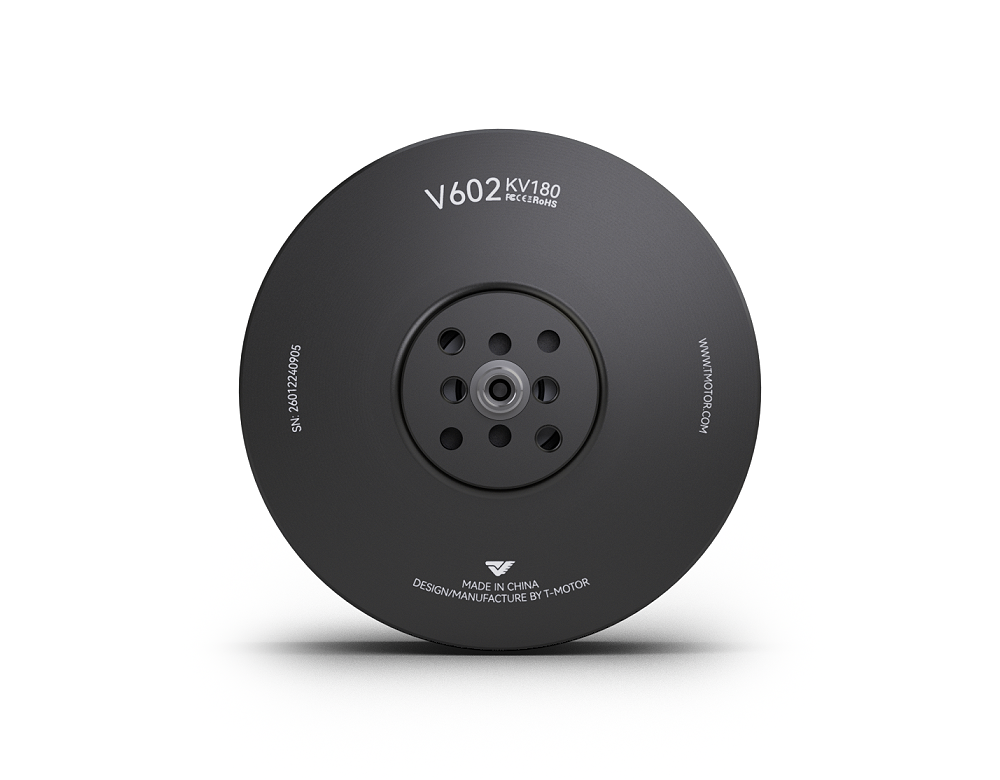

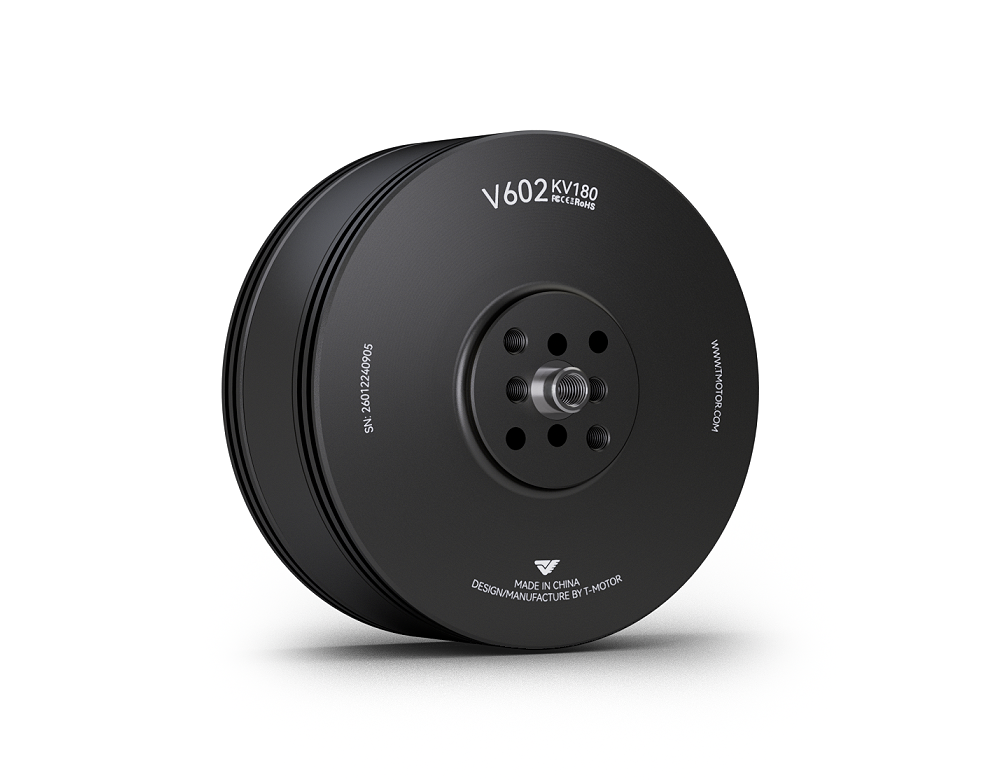

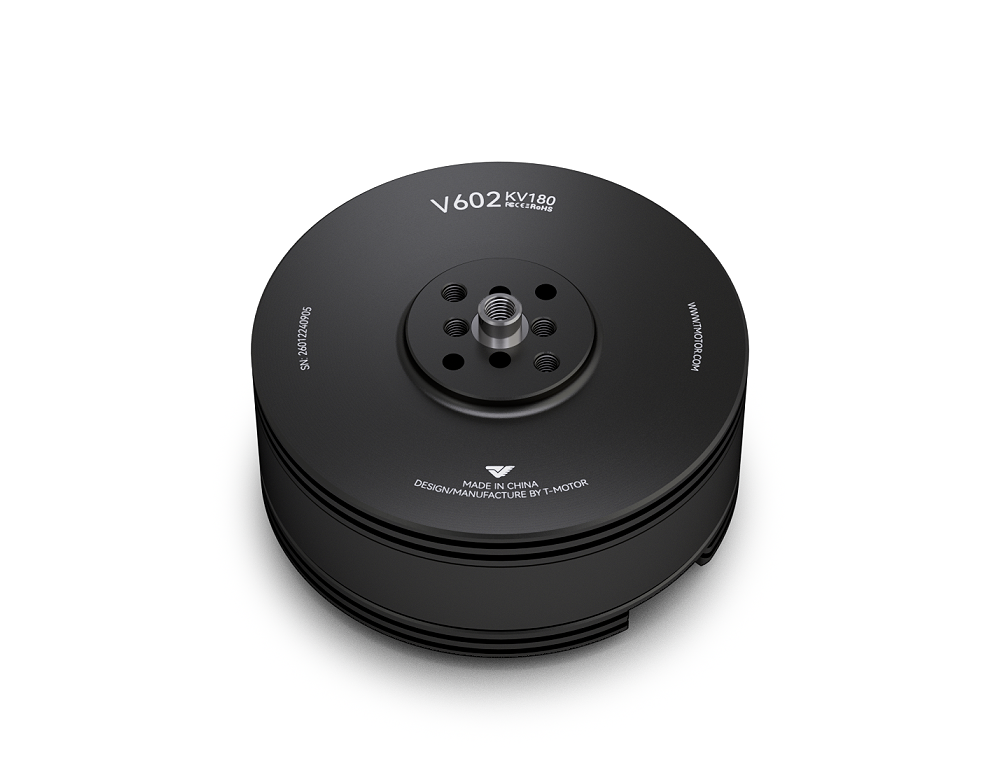

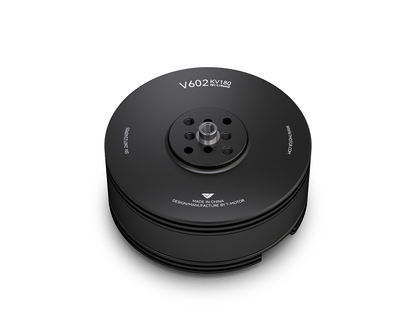

The T‑Motor V602 VTOL Motor is a high-power brushless motor designed specifically for VTOL (Vertical Take-Off and Landing) UAVs.
It is optimized for:
- VTOL fixed-wing aircraft
- Tilt-rotor UAVs
- Hybrid multirotor systems
- Long-endurance industrial drones

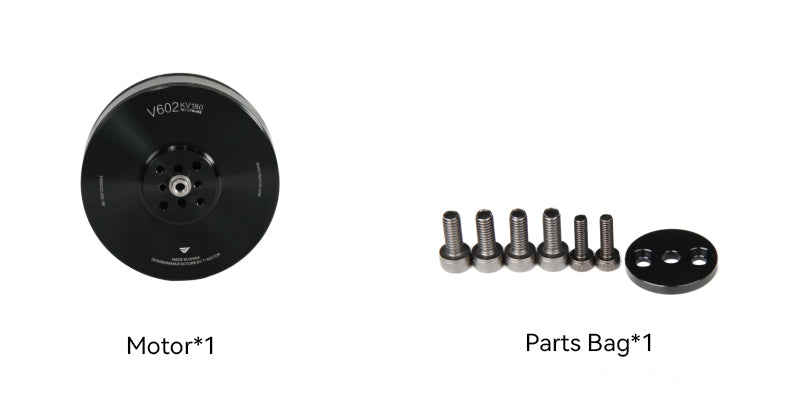

Packing List Includes:
- 1 × V602 KV180 12S Vtol Drone Motor
- 1 x Accessories pack
