| Parameter | Specification |
|---|---|
| Model | V605 KV210 |
| Motor Type | Brushless Outrunner VTOL UAV Motor |
| KV Rating | 210 KV |

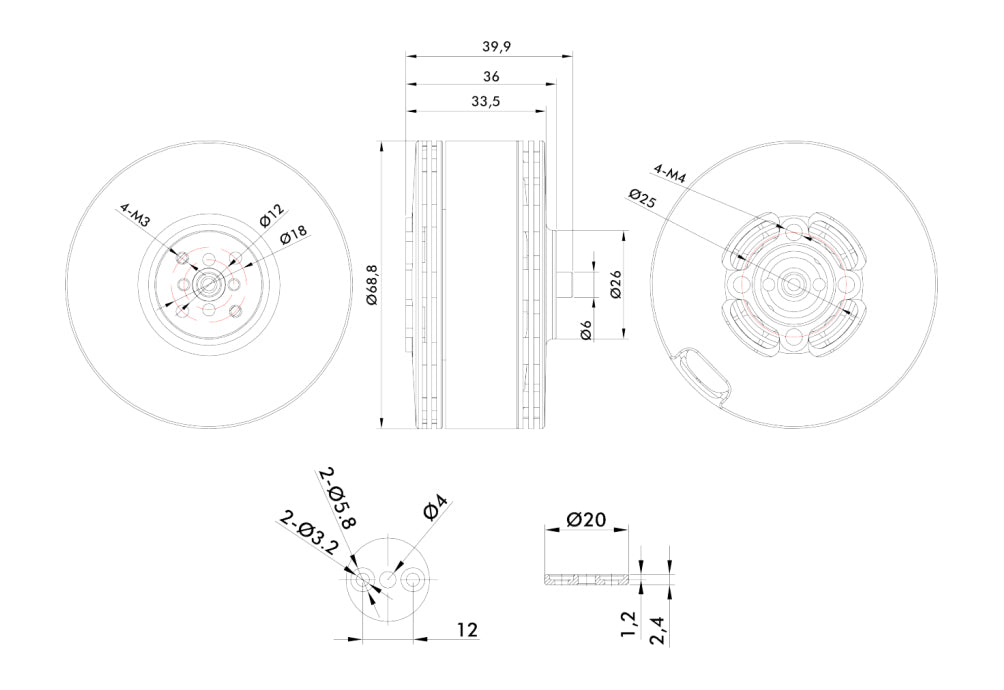

| Motor Size | Φ68.8 × 39.9 mm |
| Configuration | 24N28P |
| Shaft Diameter | IN: 6 mm / OUT: 6 mm |
| Recommended Battery | 12S LiPo |
| Operating Voltage | 42–52 V |
| Idle Current (18V) | 1.6 A |
| Peak Current | 70 A (180 seconds continuous) |
| Maximum Power | 3200 W (180 seconds continuous) |
| Internal Resistance | 48 mΩ |
| Motor Weight | 340 g |
| Weight with Cables | 385 g |
| Lead Wire | 14 AWG × 600 mm |
| Bearing Type | Imported 626ZZ |
| Protection Rating | IP45 |
| Magnet Temperature Rating | Class E (150°C) |
| Enamel Wire Temperature Rating | Class C (220°C) |
| Coil Withstand Voltage | 500 V / 5 s |
| Rotor Dynamic Balance | ≤5 mg |
| Recommended ESC | FLAME 80A 12S V2.0 |
| Recommended Propeller | V22 × 7.4 |
| Recommended Aircraft MTOW | 18–24 kg (Quad VTOL) |

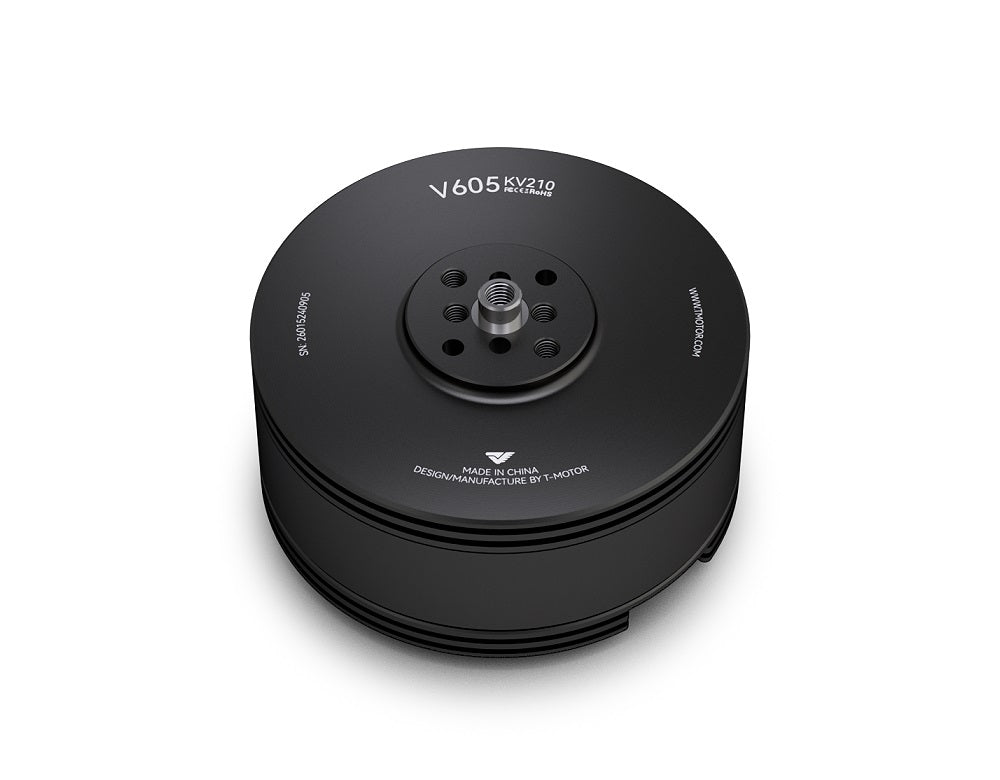

The T-Motor V605 KV210 is a high-efficiency brushless VTOL motor engineered for professional lift-and-cruise UAVs with an 18–24 kg maximum take-off weight. Supporting 12S LiPo batteries, it delivers up to 12.7 kg of thrust, 3200 W continuous power, advanced centrifugal cooling, and reliable performance for demanding industrial and commercial VTOL applications.
Key Features:
- High-performance 210 KV brushless outrunner motor
- Designed for VTOL lift applications
- Supports 12S LiPo batteries (42–52 V)
- Delivers up to 12.7 kg maximum thrust
- Continuous output of 3200 W
- Continuous current rating of 70 A
- Optimized for 18–24 kg MTOW VTOL aircraft
- Centrifugal cooling design for improved heat dissipation
- Anti-rust treated stator with 180°C high-temperature coating
- Class C (220°C) high-temperature windings

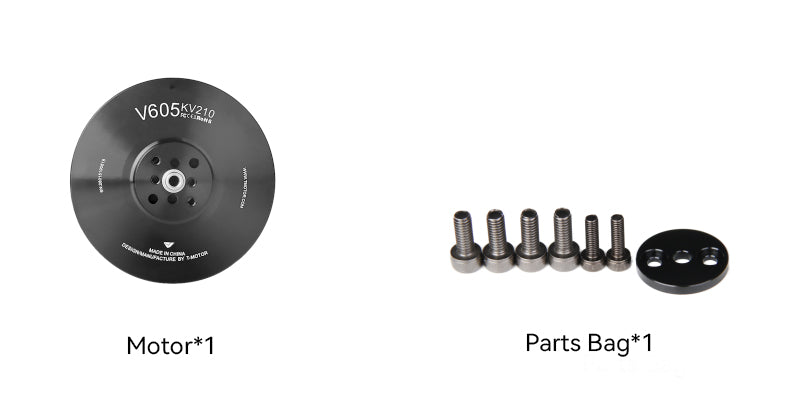

Packing List Includes:
- 1 x V605 KV210 12S Vtol Drone Motor
- 1 x Accessories pack
