| Parameter | Specification |
|---|---|
| Model | V807 KV170 |
| KV Rating | 170 KV |
| Motor Type | Brushless Outrunner UAV Motor |

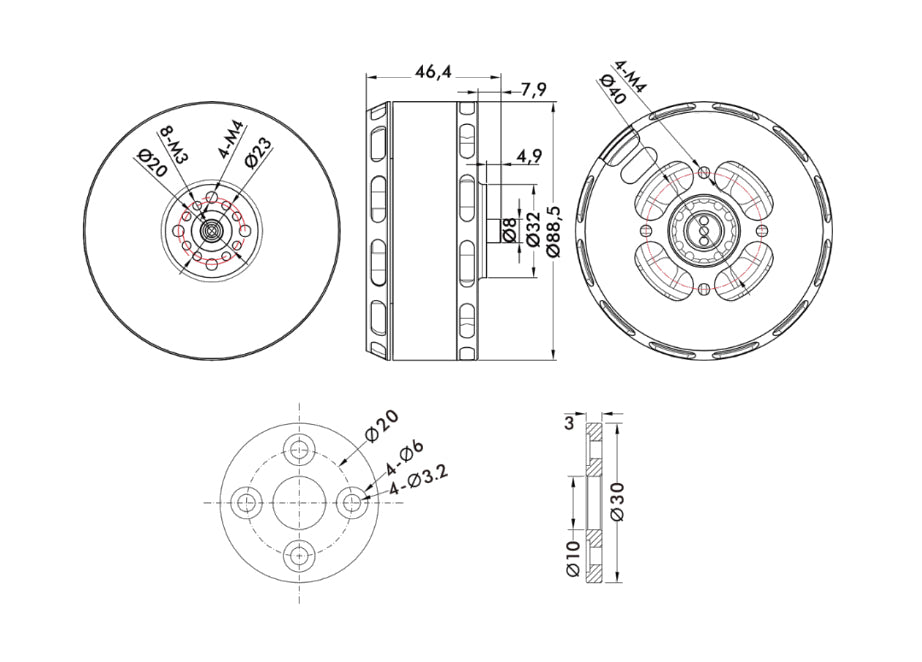

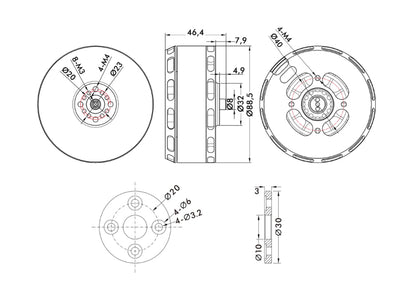

| Motor Size | Φ88.5 × 46.4 mm |
| Configuration | 24N28P |
| Shaft Diameter | IN: 12 mm / OUT: 8 mm |
| Recommended Battery | 12S LiPo (42–52 V) |
| Idle Current (18 V) | 3.0 A |
| Peak Current | 150 A (180 seconds) |
| Maximum Power | 6800 W (180 seconds) |
| Internal Resistance | 40 mΩ |
| Motor Weight | 650 g |
| Weight with Cables | 800 g |
| Lead Wire | 12 AWG × 1000 mm |
| Bearing Type | Imported 6901ZZ |
| IP Rating | IP35 |
| Magnet Temperature Rating | Class E (150°C) |
| Enamel Wire Rating | Class C (220°C) |
| Coil Withstand Voltage | 500 V / 5 s |
| Rotor Balance Standard | ≤ 5 mg |
| Recommended ESC | FLAME 180A 12S V2.0 |
| Recommended Propellers | G27×8.8, G28×9.2, G29×9.5 |
| Maximum Thrust | Approximately 21 kg |
| Stator Treatment | Anti-rust coating, 180°C high-temperature resistant coating |

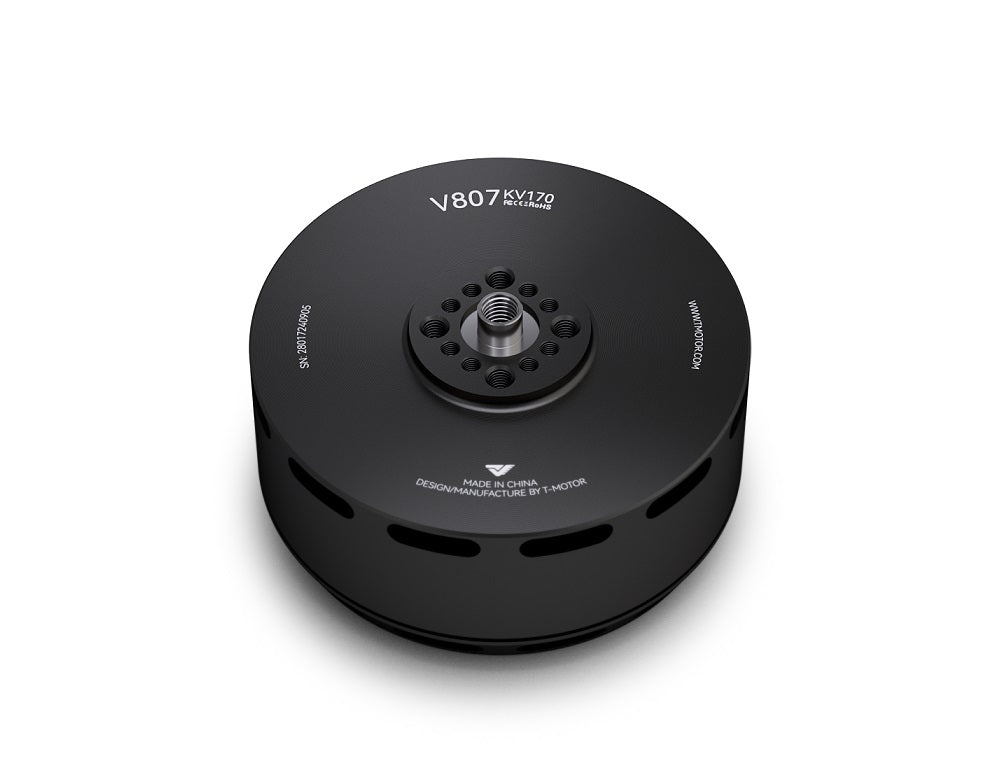

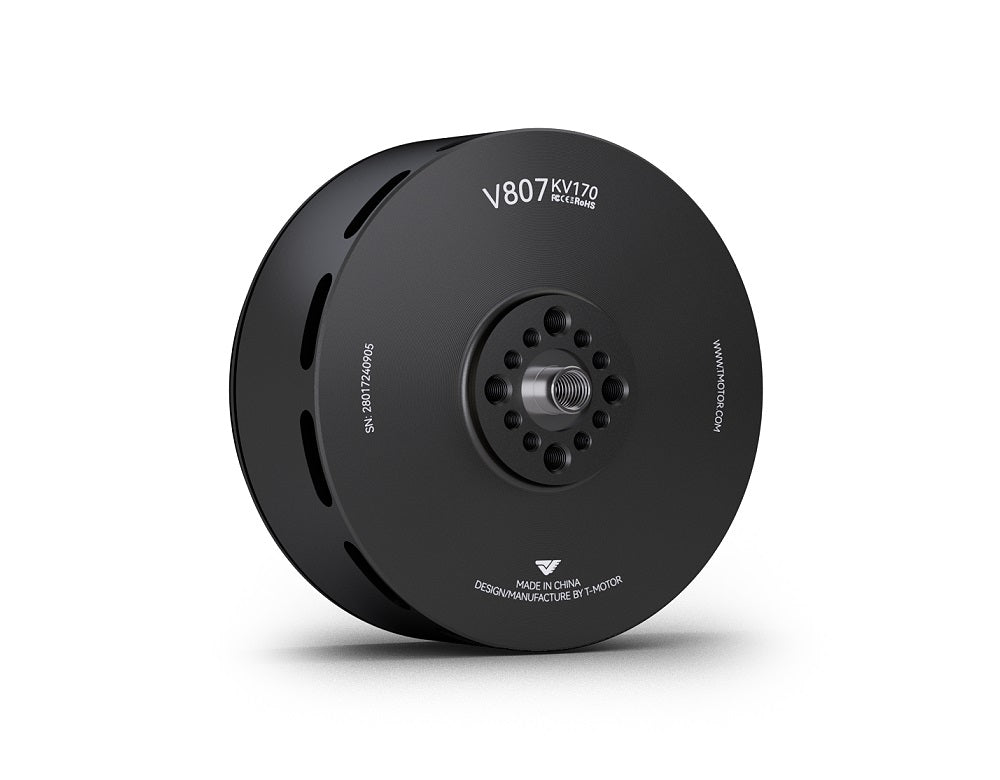

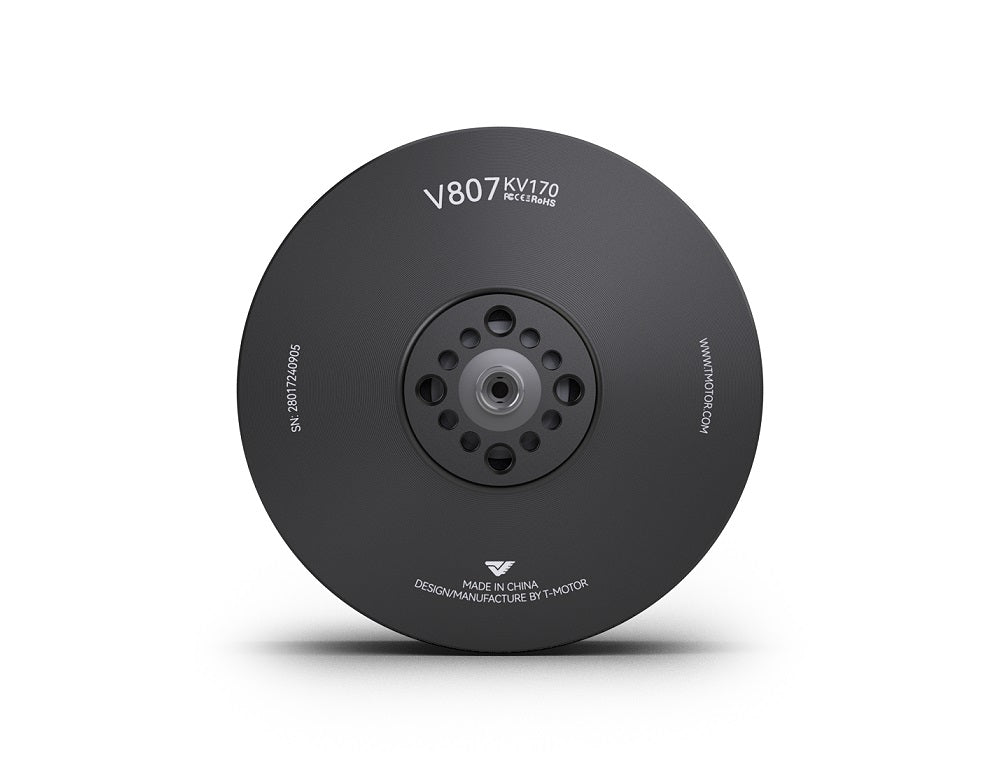

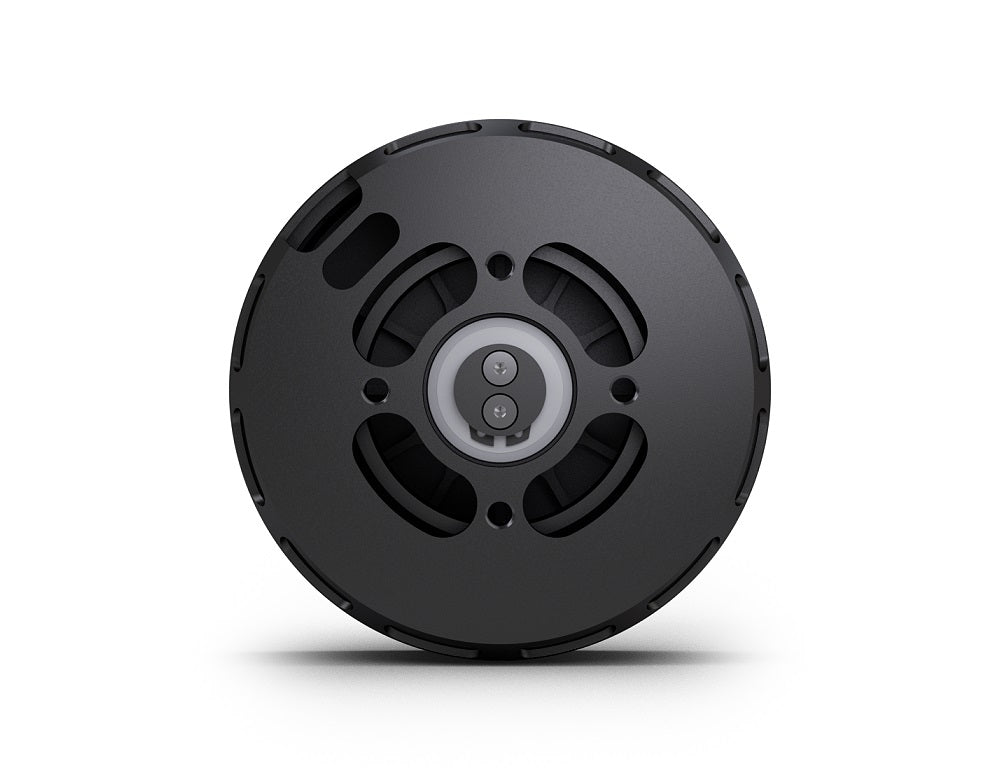

The T-Motor V807 KV170 is a premium heavy-lift brushless VTOL motor designed for professional UAV and eVTOL applications. Supporting 12S LiPo batteries, it delivers up to 21 kg of thrust and 6800 W of continuous power. With centrifugal cooling, high-temperature-resistant materials, and industrial-grade construction, the V807 provides exceptional reliability and efficiency for demanding aerial missions.
Key Features:
- Maximum thrust up to 21 kg
- High power output of 6800 W
- Designed for 12S LiPo operation
- Strong thrust-to-weight ratio
- Excellent overload capability
- Centrifugal fan for active cooling
- High-temperature resistant magnets (150°C)
- Class C (220°C) enamel winding insulation
- Anti-rust stator treatment

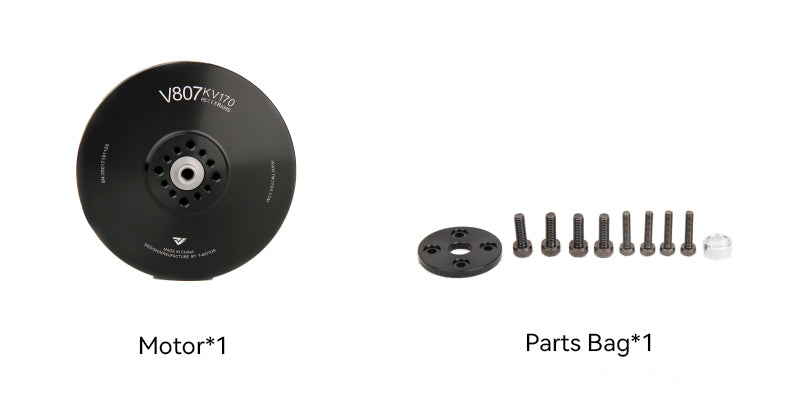

Packing List Includes:
- 1 x V807 KV2170 12S Vtol Drone Motor
- 1 x Accessories pack
