T-Motor VZ16*6.5 Carbon Fiber Propellers- 2PCS/PAIR

T-Motor VZ16*6.5 Carbon Fiber Propellers- 2PCS/PAIR

Availability: Pre-order – Shipped within 10-15 days
₹ 9,878.50 (Inc.GST)
₹ 9,878.50 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360246

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model VZ16×6.5
Propeller Type VTOL Carbon Fiber Propeller
Diameter 16 in (381 mm)
Pitch 6.5 in (165.1 mm)
Material Resin-Based Carbon Fiber Composite + PMI Foam Core
Surface Finish Matte
Average Weight (Single Blade) 30 g
Blade Type One-Piece Straight Propeller
Recommended Maximum RPM 10,200 RPM
Limit RPM 11,500 RPM
Recommended Maximum Thrust 8 kg
Limit Thrust 10 kg

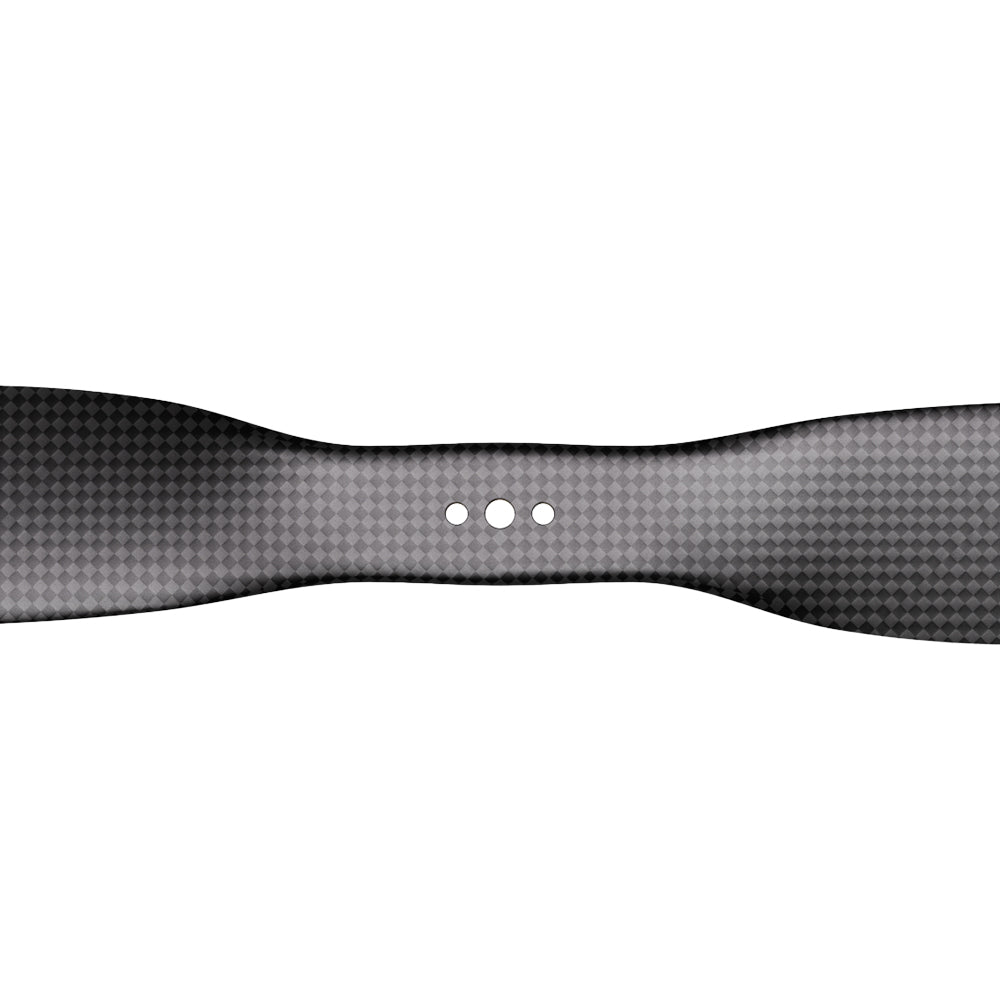

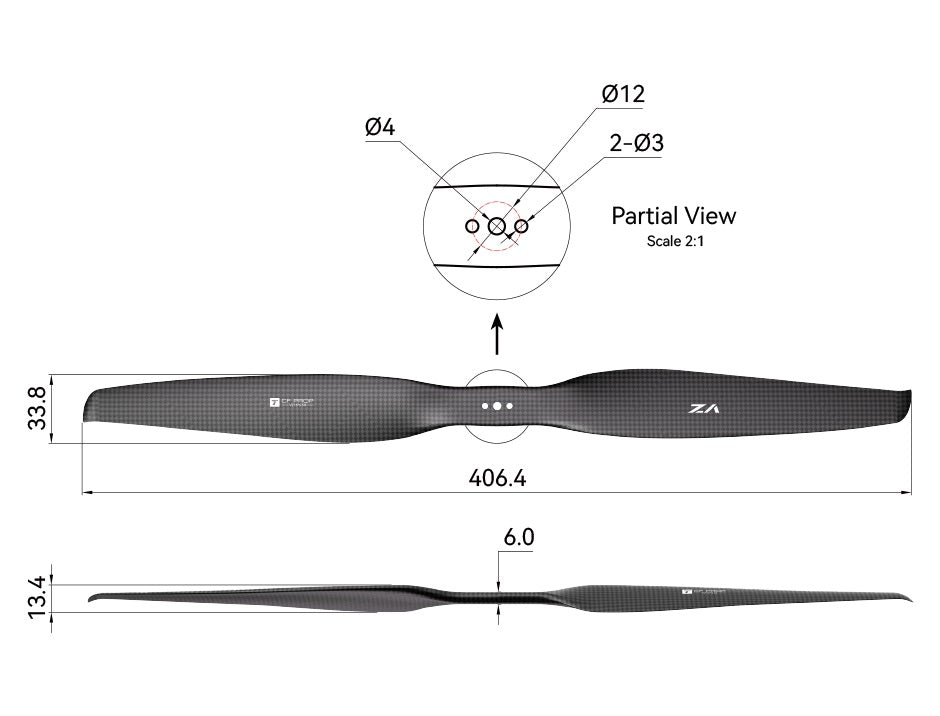

Mounting Type Flange Mount
Center Hole Ø4 mm
Bolt Circle Diameter Ø12 mm
Mounting Holes 2 × Ø3 mm
Application VTOL Fixed-Wing UAVs, Multicopter Mode
Recommended Power System V505 KV260 + FLAME 60A ESC
Operating Temperature -30°C to +60°C
Package Contents 2 Propeller Blades (1 Pair)

The T-Motor VZ16×6.5 is a premium 16-inch carbon-fiber VTOL propeller featuring a PMI foam-core structure, 8 kg recommended thrust capability, and operation up to 10,200 RPM. It is specifically engineered for light-duty VTOL UAVs requiring high thrust, fast response, low drag, and excellent transition-flight stability.

Key Features:

  • Carbon fiber composite construction with PMI foam core
  • High-strength, high-stiffness lightweight design
  • Optimized for VTOL transition flight stability
  • Enhanced bending and torsional resistance
  • Prepreg compression molding process for high consistency
  • Low moment of inertia for rapid thrust response
  • Designed for vertical takeoff and landing operations
  • Reduced aerodynamic drag during cruise flight
  • Improved flutter resistance under unsteady airflow conditions
  • Suitable for inspection, mapping, surveillance, and light-duty VTOL UAVs.

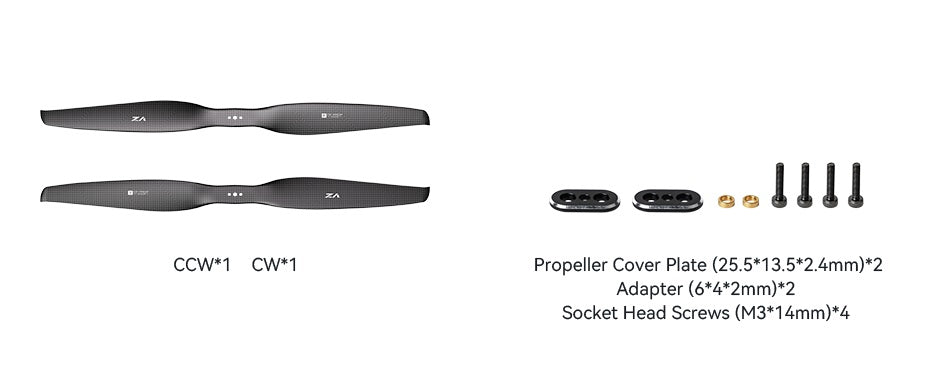

Packing List Includes:

  • 1 x VZ16×6.5 carbon-fiber VTOL propeller
  • 1 x Accessories pack(CW/CCW)

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
