T-Motor VZ18*7 Carbon Fiber Propellers- 2PCS/PAIR

T-Motor VZ18*7 Carbon Fiber Propellers- 2PCS/PAIR

Availability: Pre-order – Shipped within 10-15 days
₹ 10,338.50 (Inc.GST)
₹ 10,338.50 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360247

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model VZ18×7
Propeller Type VTOL Carbon Fiber Propeller
Diameter 18 in (457.2 mm)
Pitch 7 in (177.8 mm)
Material Resin-Based Carbon Fiber Composite + PMI Foam Core
Surface Finish Matte
Average Weight (Single Blade) 31 g
Blade Type One-Piece Straight Propeller
Recommended Maximum RPM 8,800 RPM
Limit RPM 10,000 RPM
Recommended Maximum Thrust 9.6 kg
Limit Thrust 12 kg

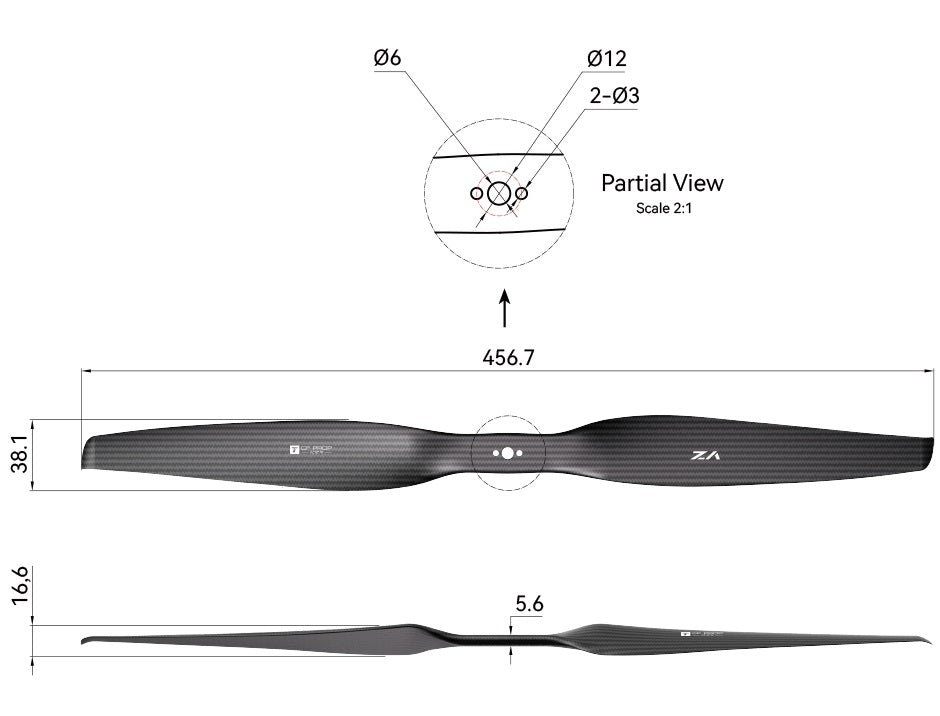

Mounting Type Flange Mount
Center Hole Ø6 mm
Bolt Circle Diameter Ø12 mm
Mounting Holes 2 × Ø3 mm
Application VTOL Fixed-Wing UAVs, Multicopter Mode
Operating Temperature -30°C to +60°C
Package Contents 2 Propeller Blades (1 Pair)

The T-Motor VZ18×7 is a professional 18-inch carbon-fiber VTOL propeller featuring a PMI foam-core structure, 9.6 kg recommended thrust, 12 kg limit thrust, and operation up to 8,800 RPM continuous. It is engineered for light and medium VTOL UAV platforms requiring high lift, low weight, excellent transition stability, and efficient cruise performance.

Key Features:

  • Carbon fiber composite construction with PMI foam-core reinforcement
  • High thrust-to-weight ratio for VTOL operations
  • Enhanced bending and torsional stiffness
  • Lightweight design for rapid thrust response
  • Optimized blade-tip geometry to reduce vortex losses
  • Low-drag profile for improved cruise efficiency
  • Excellent flutter resistance during VTOL transition flight
  • Prepreg compression molding process for high consistency
  • Suitable for mapping, surveying, inspection, and surveillance UAVs
  • Designed specifically for VTOL fixed-wing aircraft and multi copter lift systems.

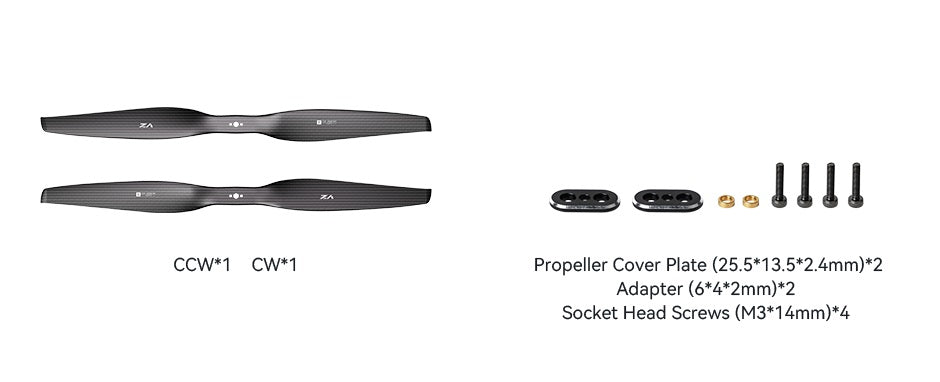

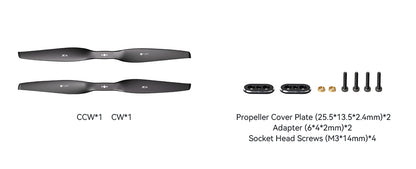

Packing List Includes:

  • 1 x VZ18×7 carbon-fiber VTOL propeller
  • 1 x Accessories pack(CW/CCW)

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
