T-Motor VZ20*8.2 Carbon Fiber Propellers- 2PCS/PAIR

T-Motor VZ20*8.2 Carbon Fiber Propellers- 2PCS/PAIR

Availability: Pre-order – Shipped within 10-15 days
₹ 12,638.50 (Inc.GST)
₹ 12,638.50 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360248

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model VZ20×8.2
Propeller Type VTOL Carbon Fiber Propeller
Diameter 20 in (508 mm)
Pitch 8.2 in (208.3 mm)
Material Resin-Based Carbon Fiber Composite + PMI Foam Core
Surface Finish Matte
Average Weight (Single Blade) 38 g
Blade Type One-Piece Straight Propeller
Recommended Maximum RPM 7,300 RPM
Limit RPM 8,000 RPM
Recommended Maximum Thrust 11.2 kg
Limit Thrust 14 kg

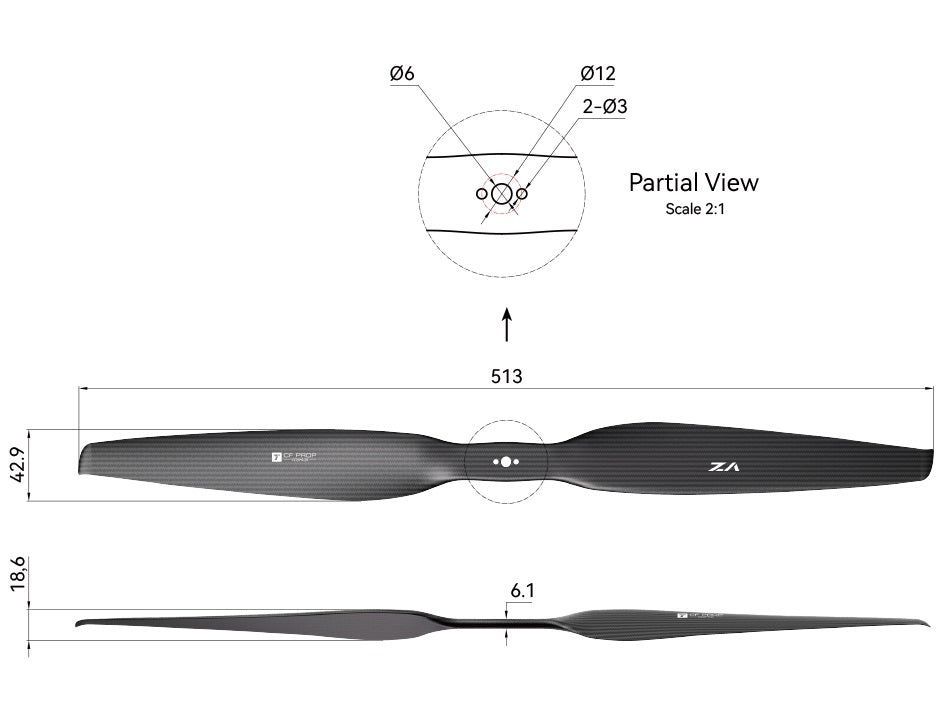

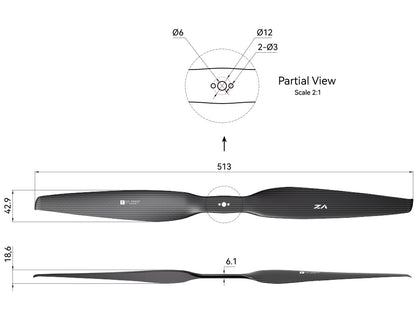

Mounting Type Flange Mount
Center Hole Ø6 mm
Bolt Circle Diameter Ø12 mm
Mounting Holes 2 × Ø3 mm
Application VTOL Fixed-Wing UAVs, Multicopter Mode
Operating Temperature -30°C to +60°C
Package Contents 2 Propeller Blades (1 Pair)

The T-Motor VZ20×8.2 is a professional 20-inch carbon-fiber VTOL propeller featuring a PMI foam-core structure, 11.2 kg recommended thrust, 14 kg maximum thrust, and operation up to 7,300 RPM continuous. It is optimized for medium-sized VTOL and agricultural UAV platforms requiring high lift, structural rigidity, fast response, and efficient transition-flight performance.

Key Features:

  • Carbon fiber composite construction with PMI foam-core reinforcement
  • High-strength and high-stiffness blade structure
  • Lightweight design for rapid thrust response
  • Optimized aerodynamic profile for VTOL operations
  • Enhanced resistance to bending and torsional deformation
  • Low-drag blade shape for improved cruise efficiency
  • Specialized blade-tip design to reduce vortex losses
  • Prepreg compression molding with porosity below 1%
  • Designed for stable VTOL transition flight
  • Suitable for medium-size agricultural and industrial VTOL UAVs.

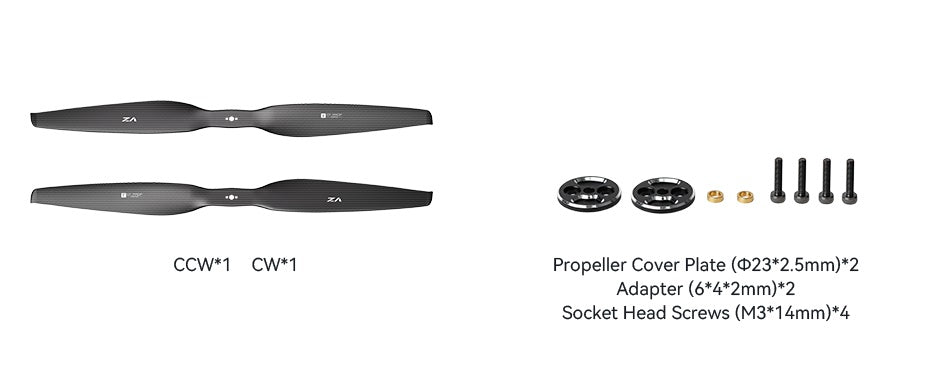

Packing List Includes:

  • 1 x VZ20×8.2 carbon-fiber VTOL propeller
  • 1 x Accessories pack(CW/CCW)

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
