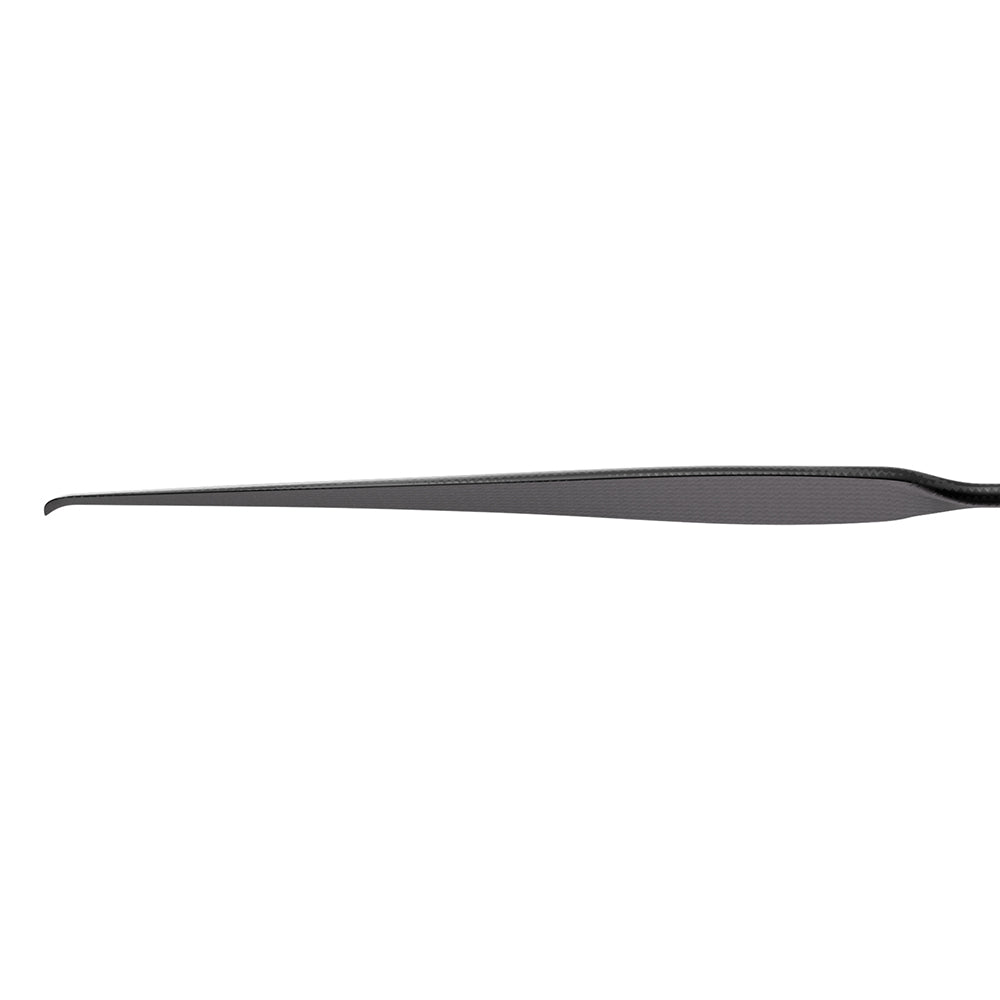

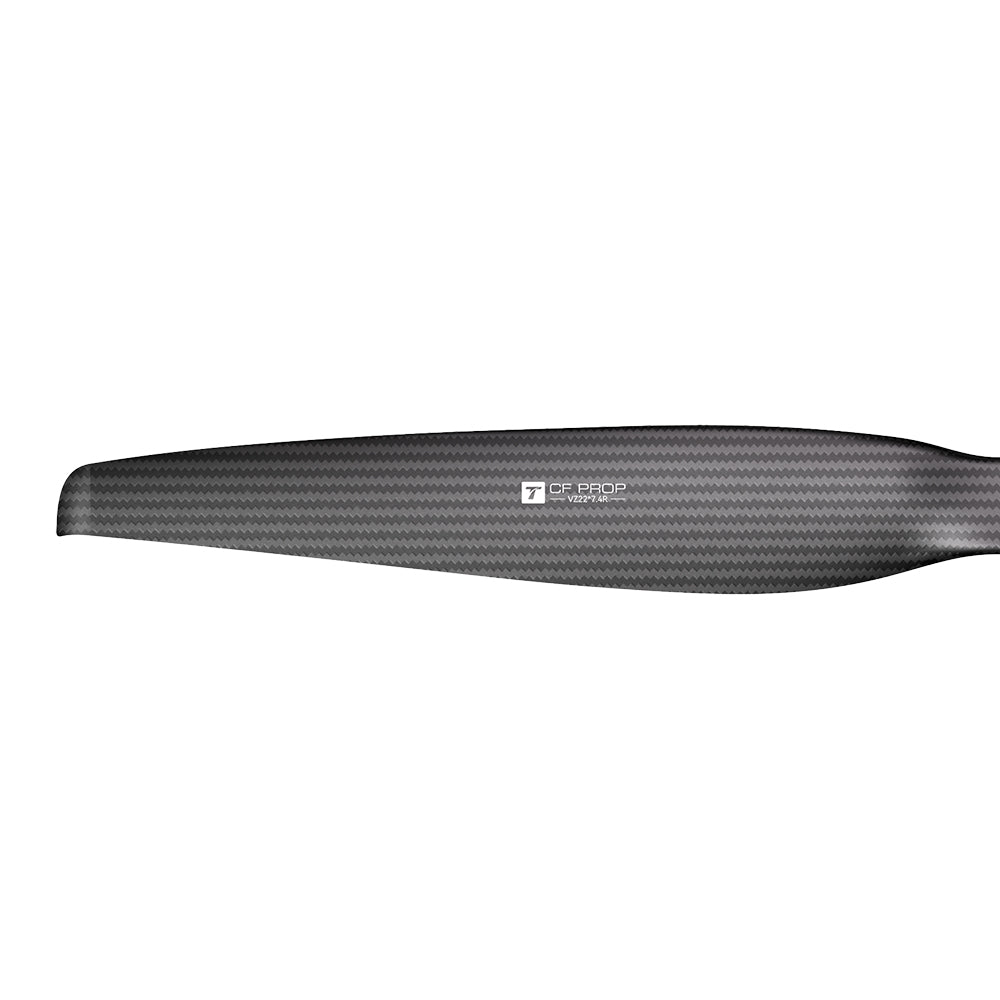

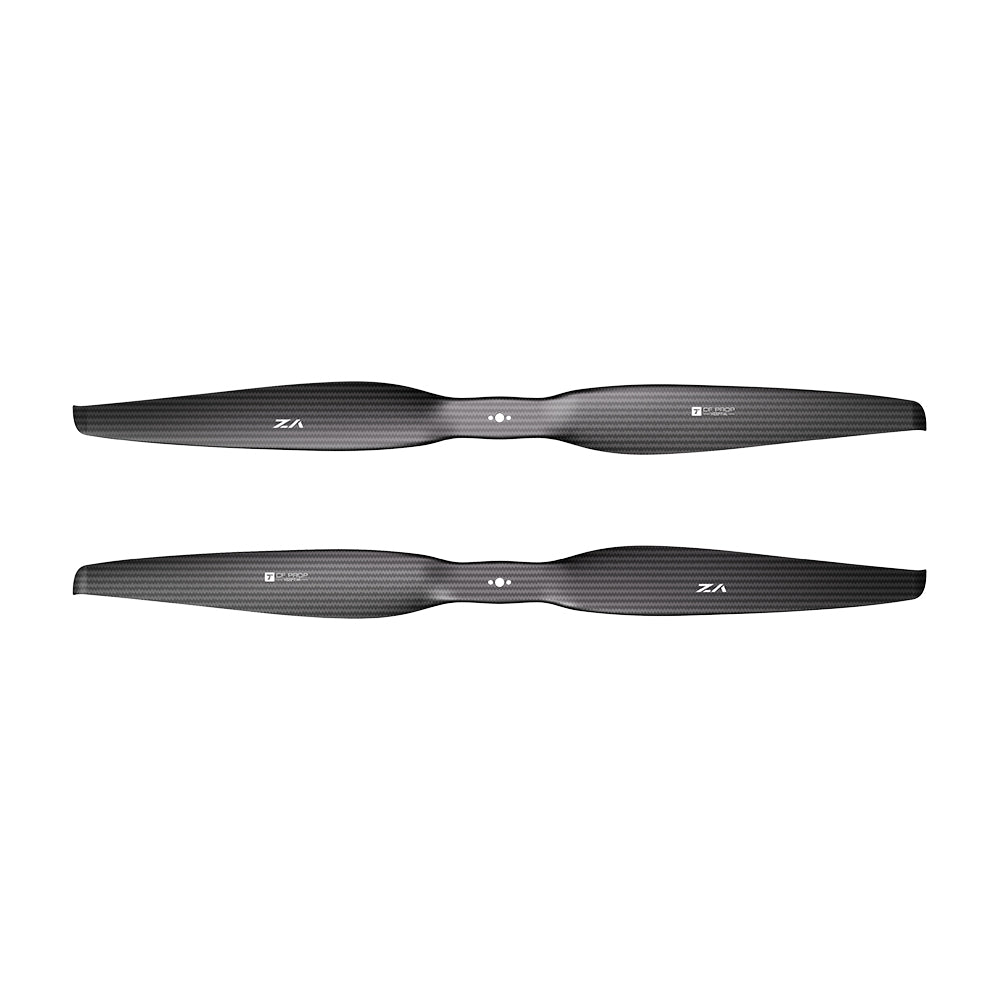

T-Motor VZ22*7.4 Carbon Fiber Propellers- 2PCS/PAIR

T-Motor VZ22*7.4 Carbon Fiber Propellers- 2PCS/PAIR

Availability: Pre-order – Shipped within 10-15 days
₹ 18,388.50 (Inc.GST)
₹ 18,388.50 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360249

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model VZ22×7.4
Propeller Type VTOL Carbon Fiber Propeller
Diameter 22 in (558.8 mm)
Pitch 7.4 in (188.0 mm)
Material Resin-Based Carbon Fiber Composite + PMI Foam Core
Surface Finish Matte
Average Weight (Single Blade) 43 g
Blade Type One-Piece Straight Propeller
Recommended Maximum RPM 7,350 RPM
Limit RPM 8,200 RPM
Recommended Maximum Thrust 14.4 kg
Limit Thrust 18 kg

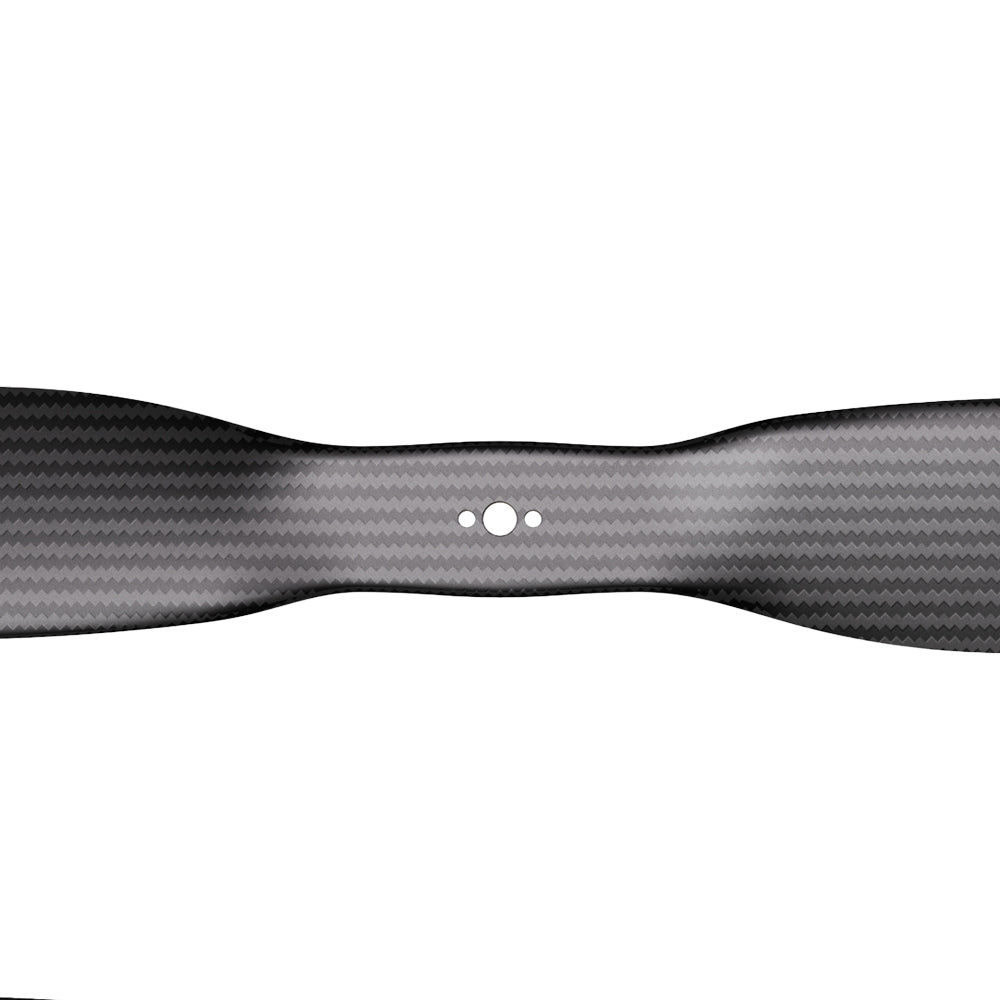

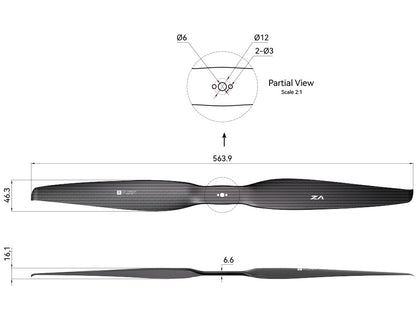

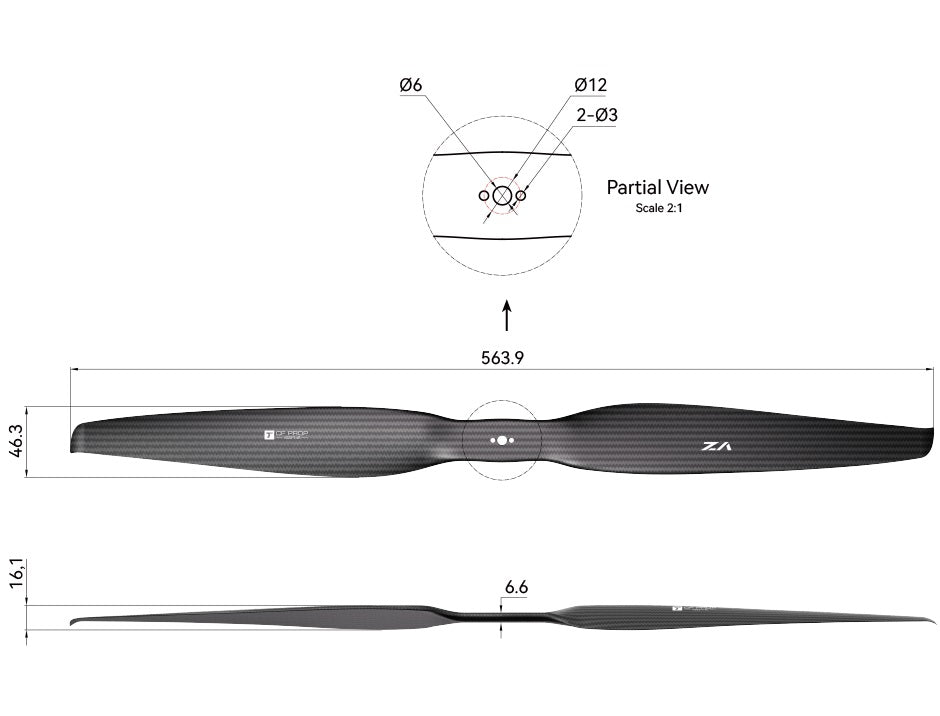

Mounting Type Flange Mount
Center Hole Ø6 mm
Bolt Circle Diameter Ø12 mm
Mounting Holes 2 × Ø3 mm
Application VTOL Fixed-Wing UAVs, Multicopter Mode
Operating Temperature -30°C to +60°C
Package Contents 2 Propeller Blades (1 Pair)

The T-Motor VZ22×7.4 is a professional-grade 22-inch carbon-fiber VTOL propeller featuring PMI foam-core construction, 14.4 kg recommended thrust, 18 kg maximum thrust, and operation up to 7,350 RPM continuous. Designed for medium and heavy-lift VTOL UAVs, it offers high efficiency, excellent structural rigidity, and stable performance during vertical takeoff, transition, and cruise flight.

Key Features:

  • Carbon fiber composite structure with PMI foam-core reinforcement
  • High thrust capability for VTOL lift systems
  • Lightweight design for fast throttle response
  • Enhanced bending and torsional stiffness
  • Optimized aerodynamic profile for vertical takeoff and landing
  • Reduced drag during fixed-wing cruise flight
  • Excellent resistance to flutter in transition flight
  • Prepreg compression molding process with low porosity
  • High durability and impact resistance
  • Designed for medium and heavy-duty VTOL UAV platforms.

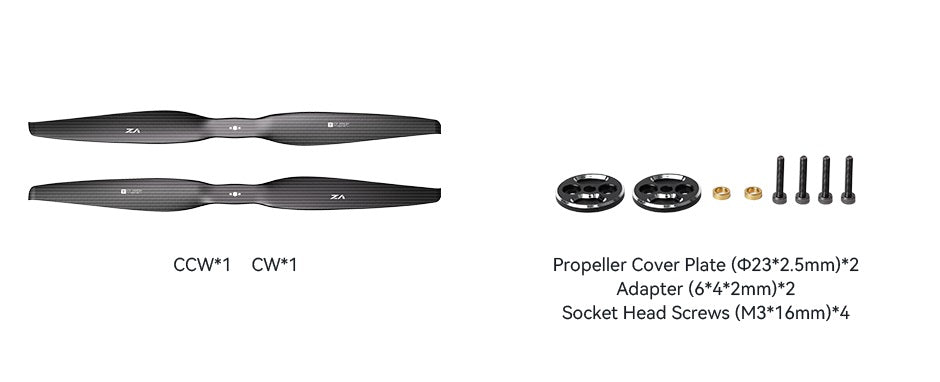

Packing List Includes:

  • 1 x VZ22×7.4 carbon-fiber VTOL propeller
  • 1 x Accessories pack(CW/CCW)

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
