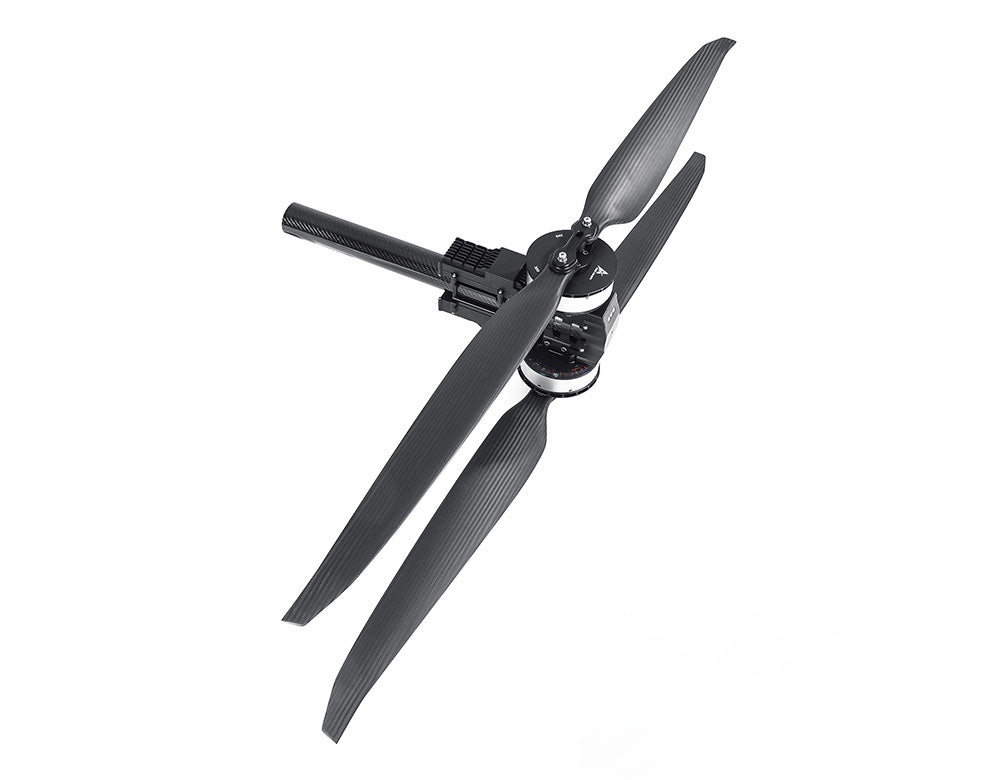

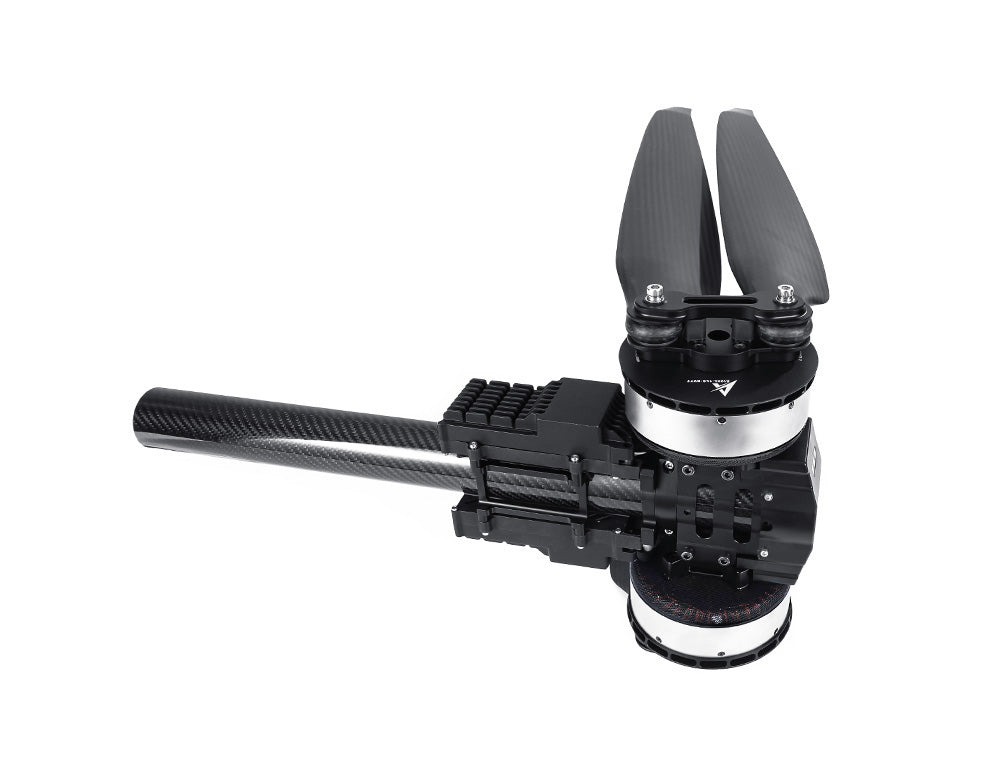

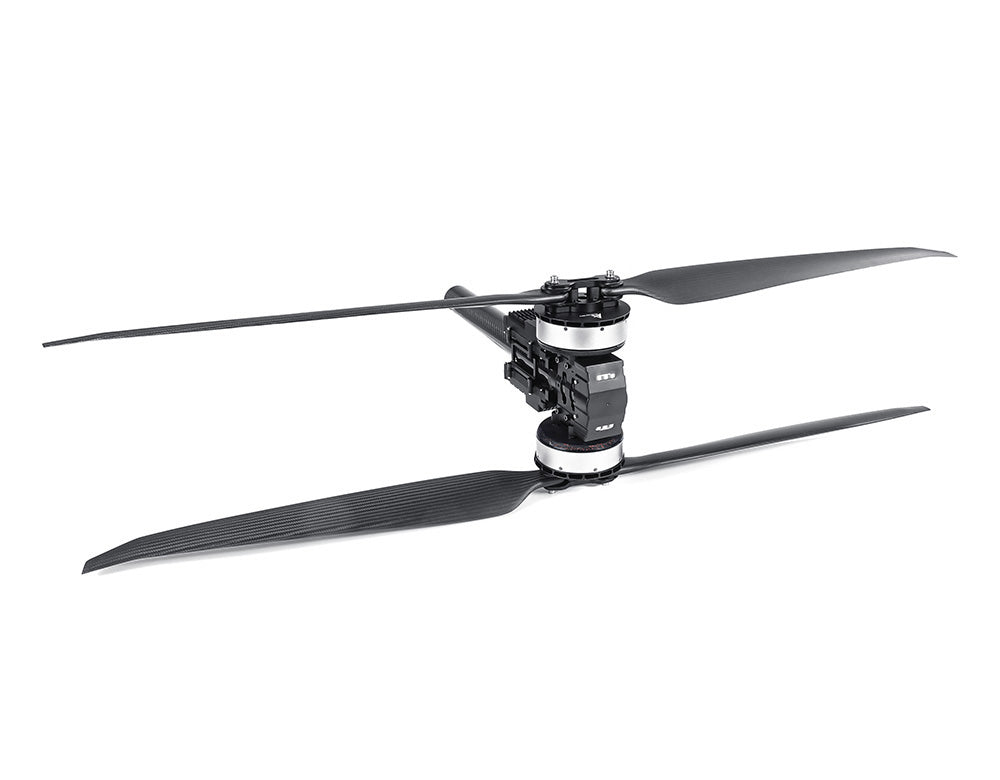

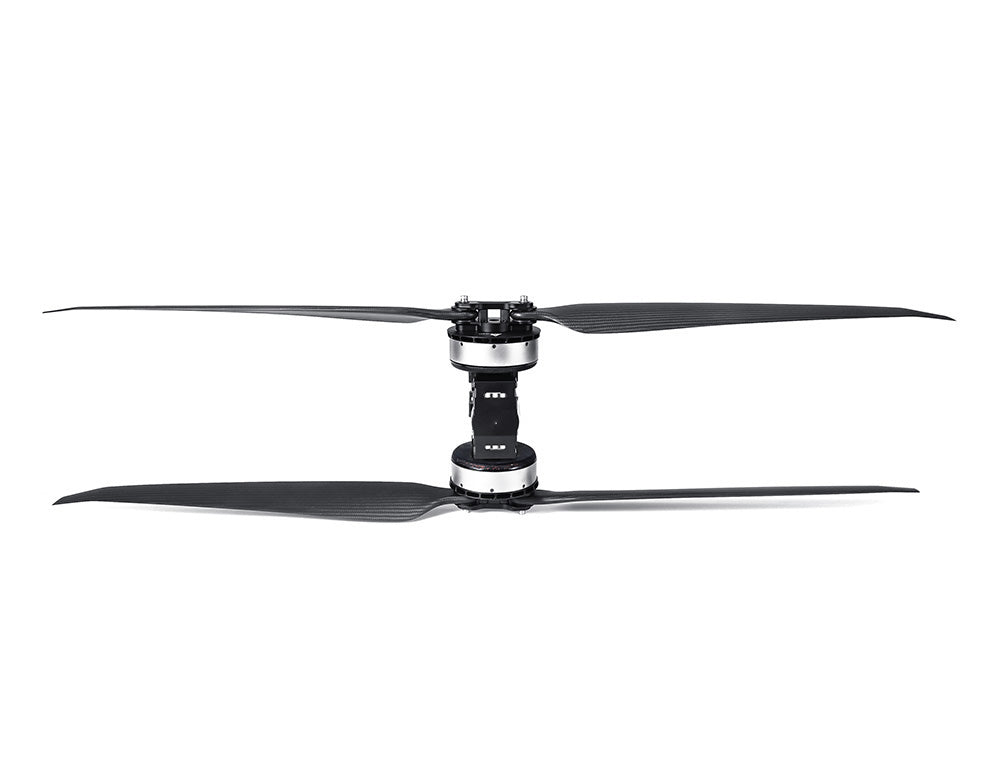

T-Motor X-A12XL-14S Coaxial modular propulsion for Agricultural Drone

T-Motor X-A12XL-14S Coaxial modular propulsion for Agricultural Drone

Availability: Pre-order – Shipped within 10-15 days
₹ 118,900.00 (Inc.GST)
₹ 118,900.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360034

Short Description:
  • 80–100 kg MTOW coaxial quadcopters
  • Up to 180 kg MTOW hexacopters
  • 40L–50L spraying drones
  • High-capacity fertilizer / pesticide systems



  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Category Specification
Model X-A12XL KV77
System Type Coaxial Modular Propulsion (dual motor per arm)
Configuration Motor ×2 + 14S FOC 200A ESC + PFZ4918P Prop
Recommended Battery 12–14S LiPo
Rated Thrust (per arm) 30–35 kg
Max Thrust (per arm) ~69–75 kg

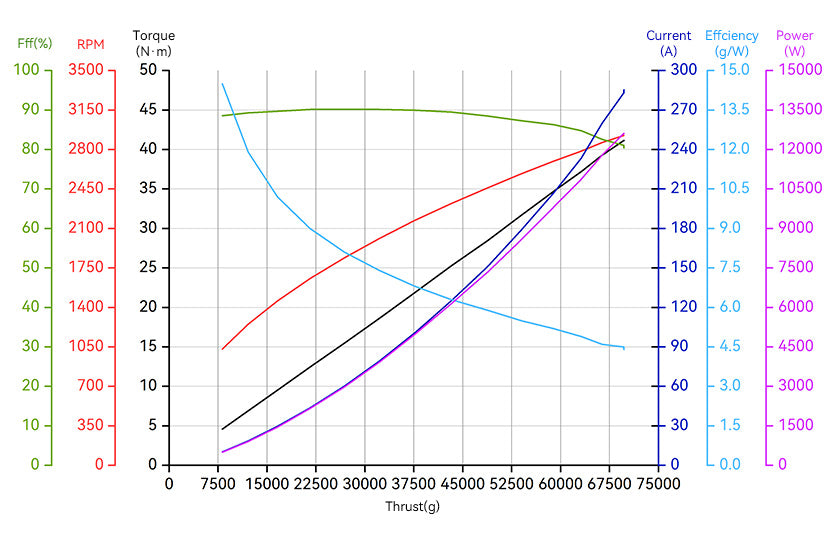

Efficiency ~7.4–7.7 g/W (at ~32 kg thrust)
Weight (system) ~5170 g
Tube Size 50 mm
Wire Length ~1700 mm
Ingress Protection IPX6
Operating Temperature -20°C to 55°C

The X-A12XL-14S is a heavy-lift coaxial propulsion system designed for large industrial drones.

It is specifically recommended for:

  • 120 kg quadcopters
  • 180 kg hexacopters

Key Features:

  • Coaxial design (dual motor per arm) → double thrust in same footprint
  • ~69.7 kg max thrust per arm → extremely high lift capability
  • Compact heavy-lift solution → fewer arms needed
  • FOC ESC (200A) → smooth, efficient control
  • IPX6 rating → resistant to rain, dust, agriculture chemicals
  • CAN support → compatible with advanced flight controllers

Packing List Includes:

  • 1 × X-A12XL-14S Coaxial modular propulsion Dual Arm (Motor + ESC + Propeller)

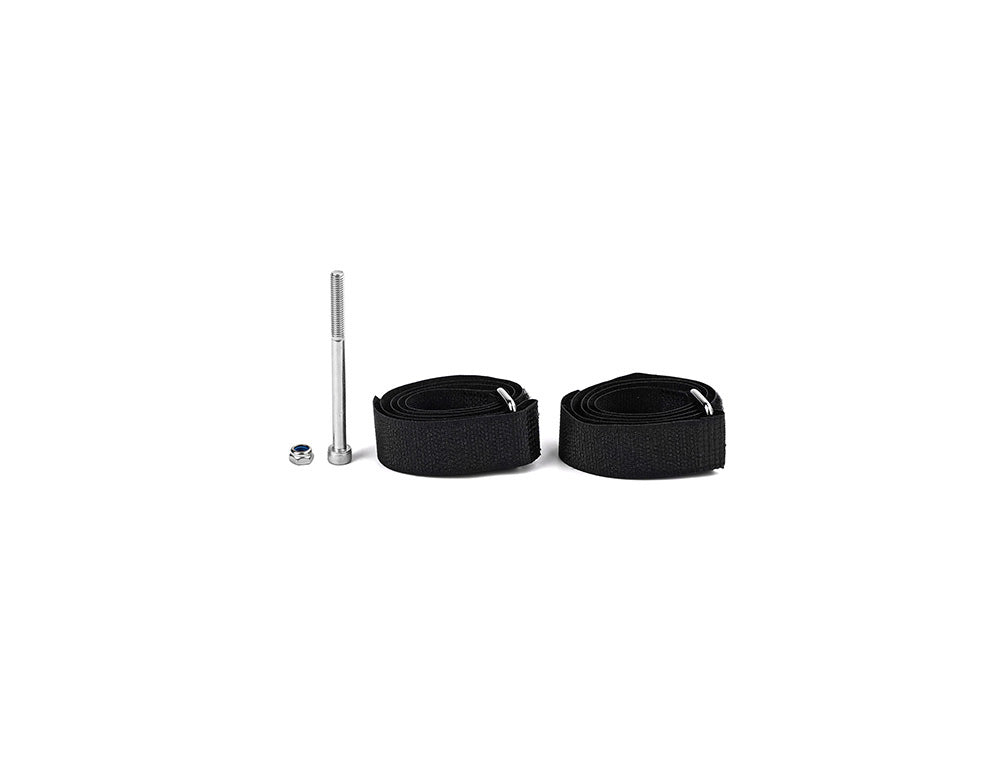

  • 1 x Accessories pack

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
