T-Motor X-A12XL II-24S Coaxial modular Propulsion for Agricultural Drone

T-Motor X-A12XL II-24S Coaxial modular Propulsion for Agricultural Drone

Availability: Pre-order – Shipped within 10-15 days
₹ 129,420.00 (Inc.GST)
₹ 129,420.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360166

Short Description:
  • 100–120 kg MTOW coaxial quadcopters
  • Up to 180 kg MTOW hexacopters
  • 40L–50L spraying drones
  • High-capacity fertilizer / pesticide systems
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model X-A12XL II-24S
System Type Modular Coaxial UAV Propulsion System
Motor Model X-A12XL II-24S KV47
ESC Model 24S FOC 120A ESC
Propeller Model PFZ4918P Folding Carbon Fiber Propeller
Recommended Battery 20–24S LiPo
Nominal Voltage 88.8 V (24S LiPo)
Maximum ESC Voltage 100 V
Rated Thrust 28–34 kg
Maximum Thrust 75.4 kg
Rated Efficiency 7.6 g/W (at 33 kg thrust)
Complete System Weight 4980 ±2% g (including wires and propeller)
Compatible Arm Tube Size 50 mm
Protection Rating IPX6
Operating Temperature -20°C to +55°C
Wire Length 1695 ±10 mm
Control Interface PWM / CAN
Communication Protocol DRONE CAN / UAV CAN / CUBE CAN
Throttle Range 1100–1940 μs

The T-Motor X-A12XL II-24S is a high-efficiency 24S coaxial modular propulsion system designed for agricultural spraying drones, heavy-lift multirotors, and industrial UAV platforms. It integrates the X-A12XL II-24S KV47 motor, 24S FOC 120A ESC, and PFZ4918P folding carbon-fiber propeller into a matched propulsion module. It is optimized for 120 kg class quadcopters and 180 kg class hexacopters.

Key Features:

High-Voltage 24S Architecture

  • Lower current operation compared with 12S agricultural systems.
  • Higher efficiency for large UAV platforms.
  • Reduced cable and power-loss requirements.

Integrated Modular Propulsion

  • Motor, ESC, and propeller are factory matched.
  • Simplifies UAV assembly and maintenance.
  • Reduces propulsion system tuning effort.

Intelligent FOC Control

  • Smooth startup.
  • Improved efficiency.
  • Reduced vibration.
  • Supports professional CAN communication.

Industrial Protection

  • IPX6 water resistance.
  • Suitable for agricultural spraying environments.
  • Designed for continuous outdoor operation.

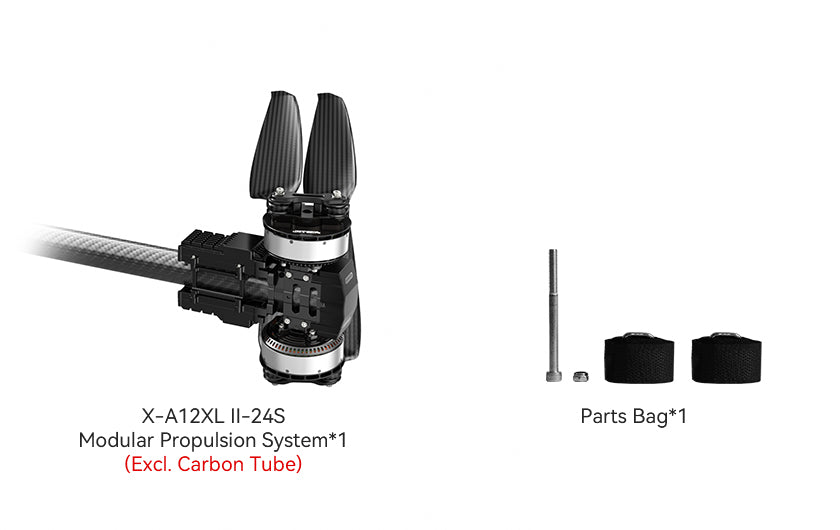

Packing List Includes:

  • 1 x X-A12XL II-24S Modular Propulsion Arm (Motor + ESC + Propeller)
  • 1 x Accessories pack

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
