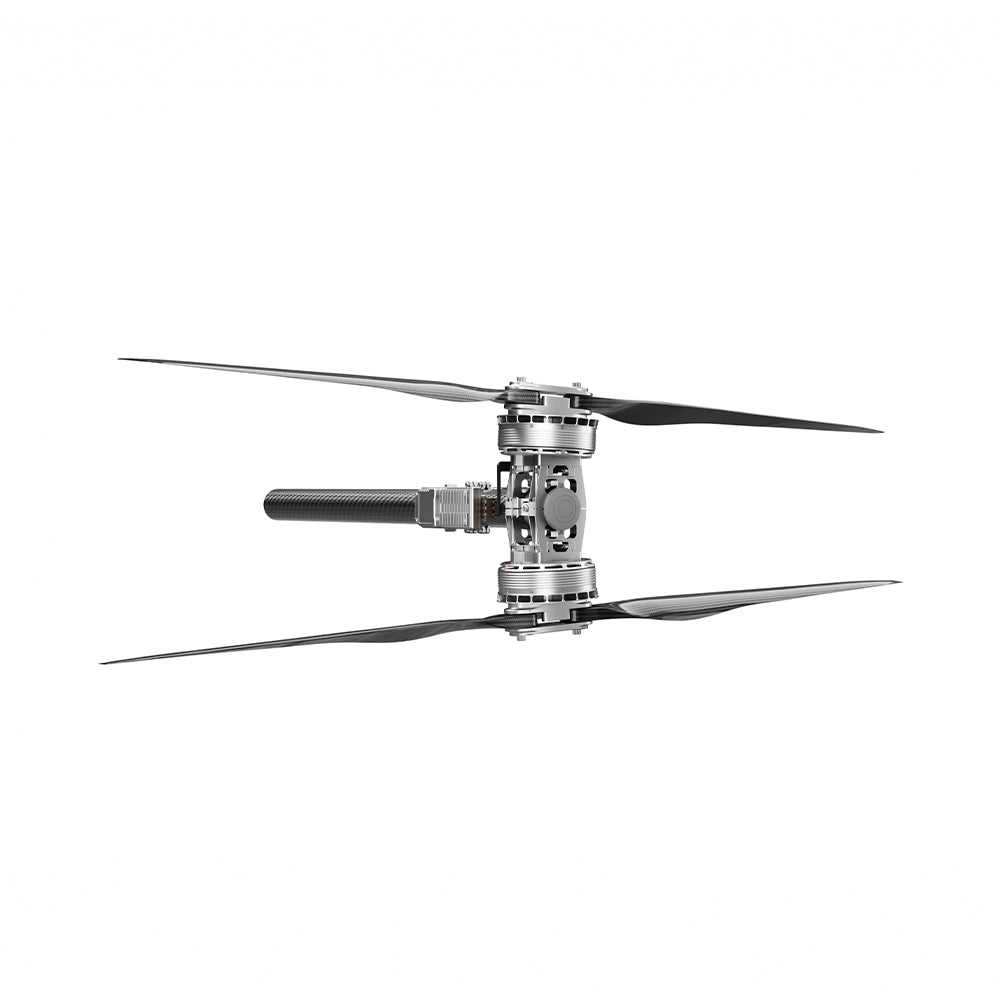

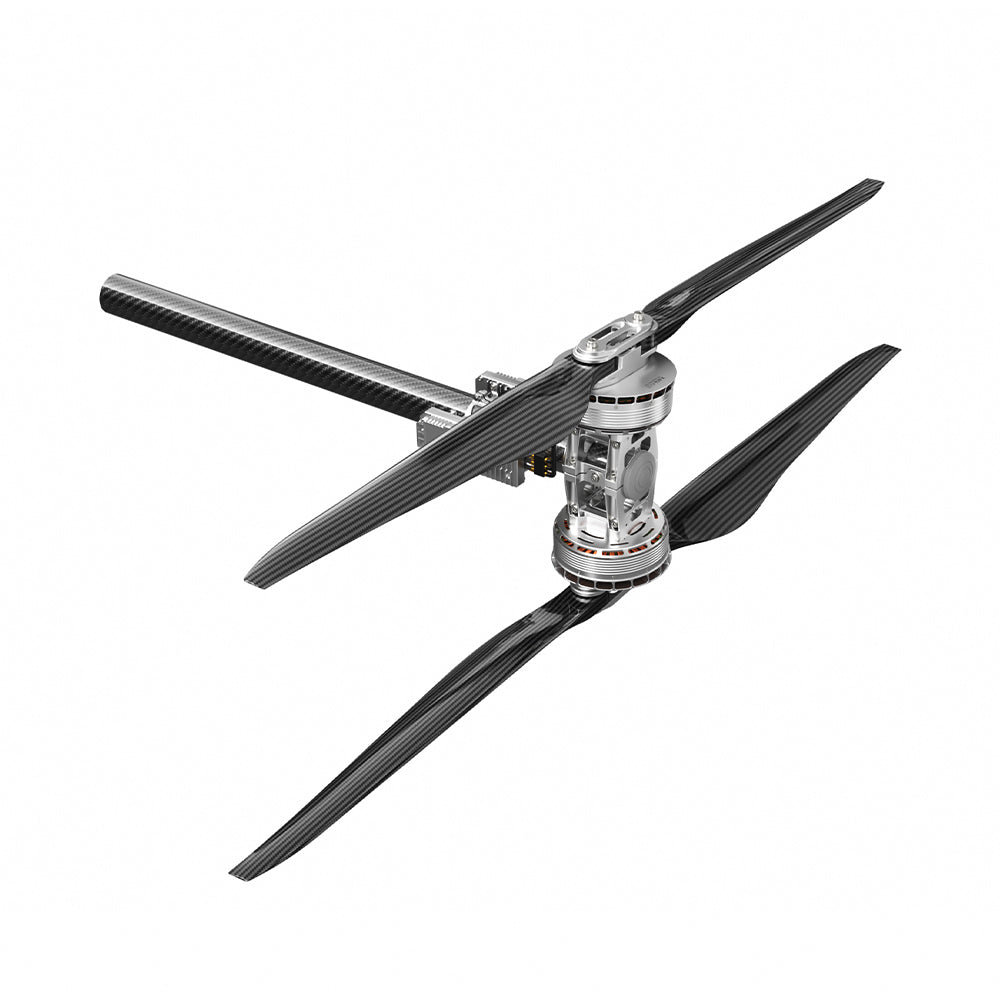

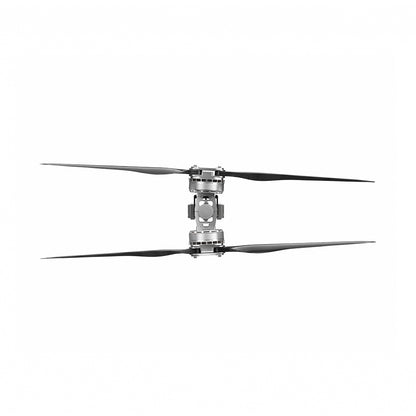

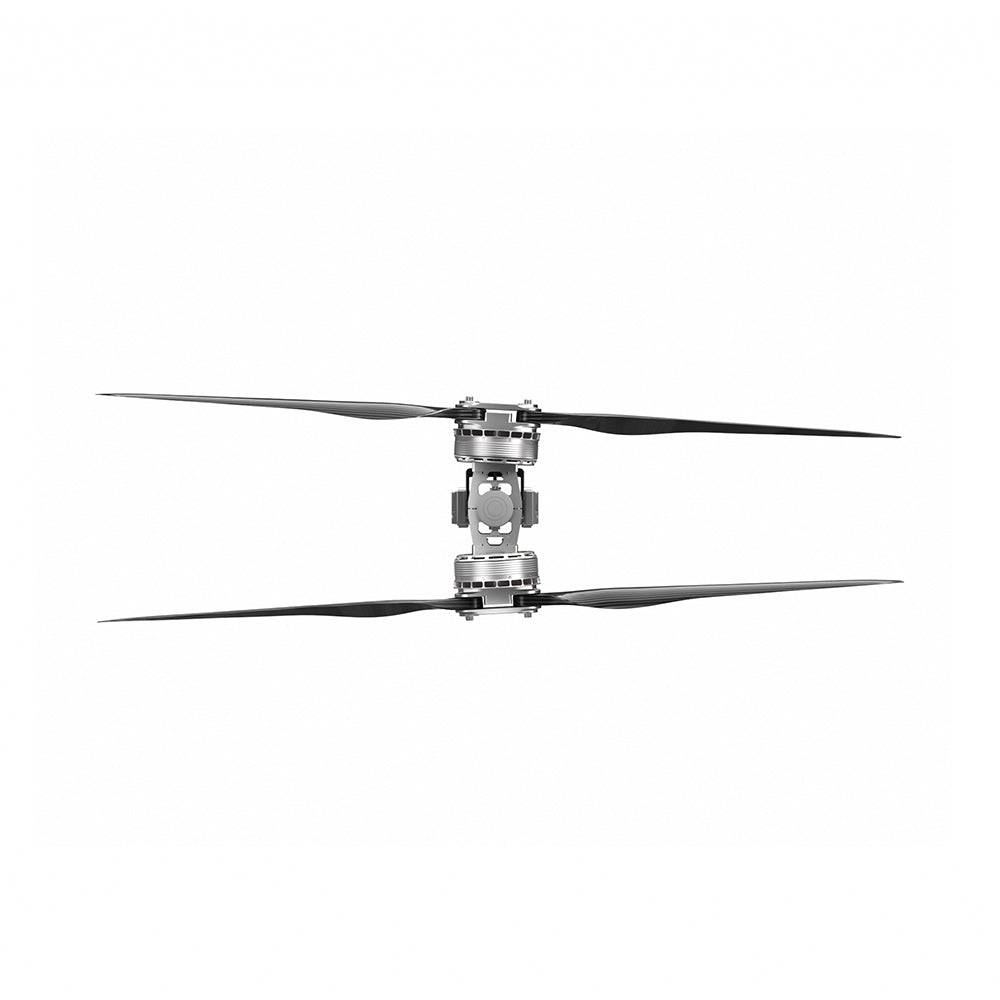

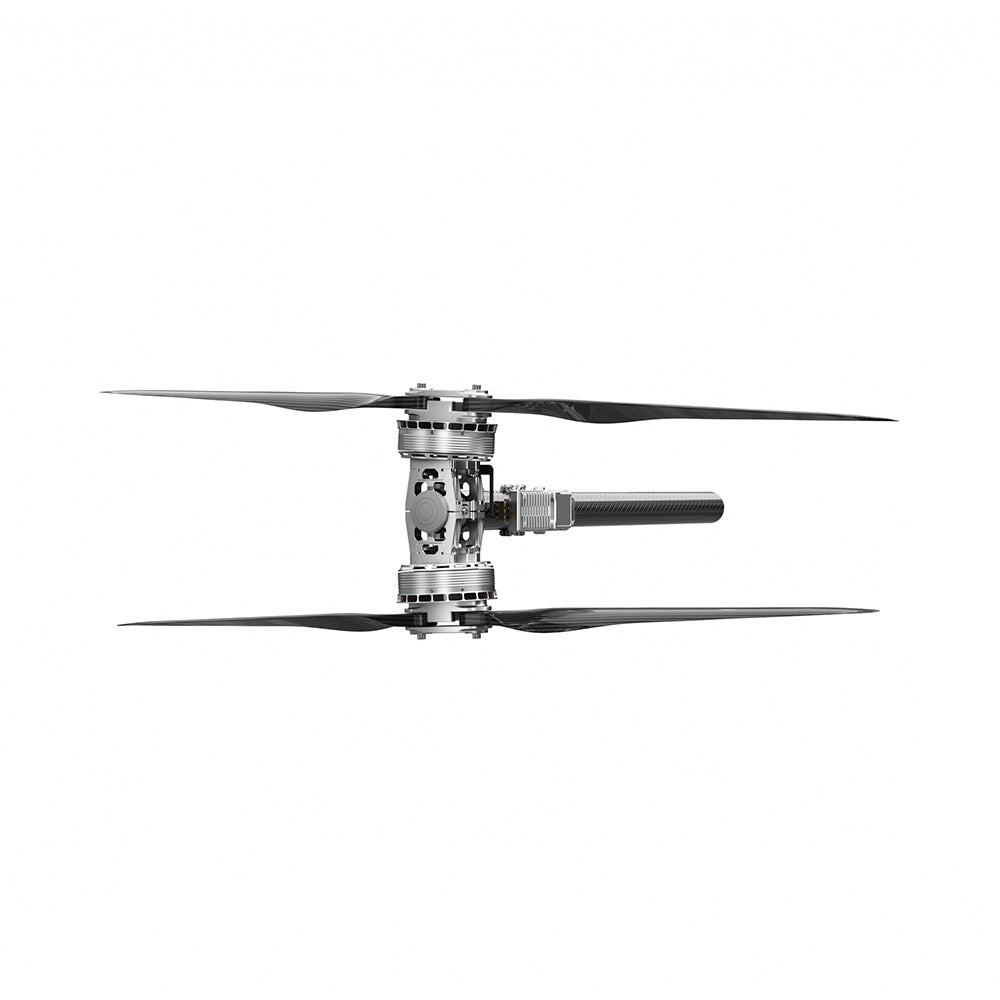

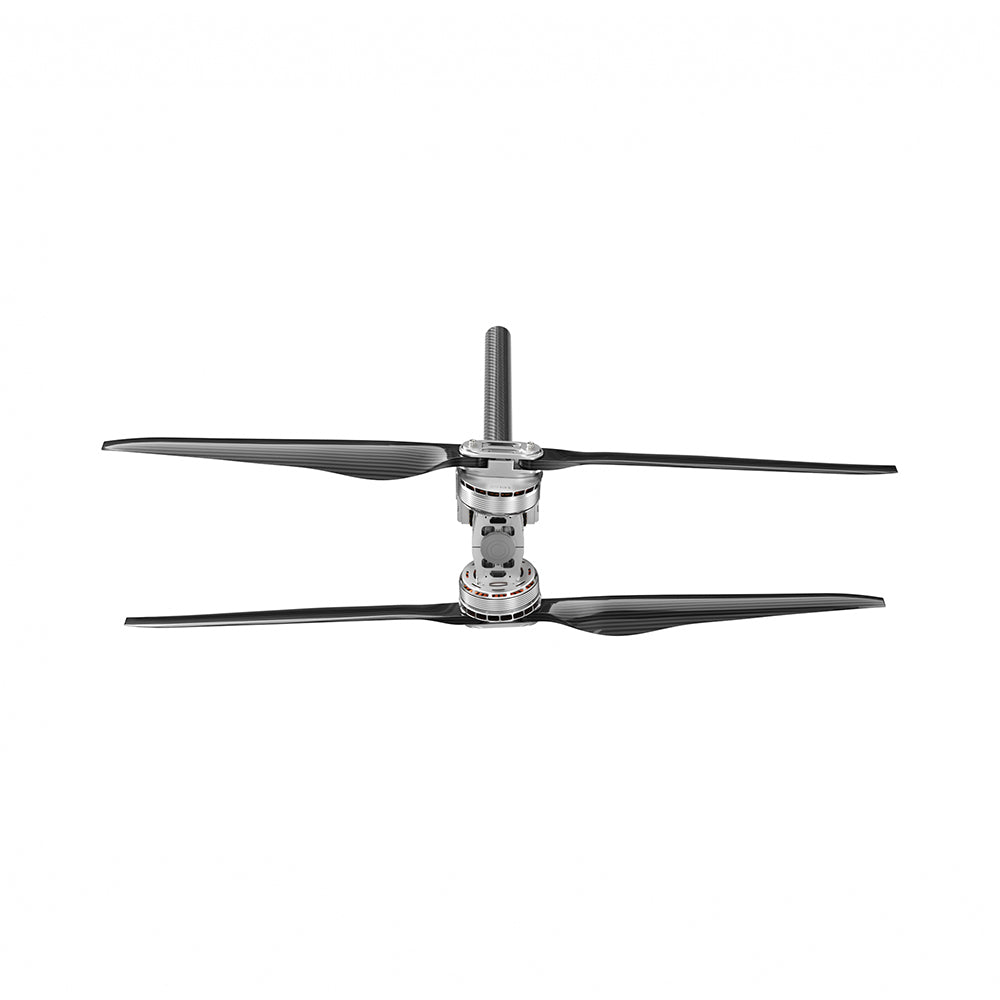

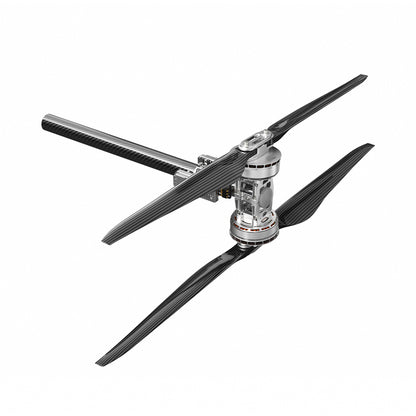

T-Motor X-A14-18S KV49.6 Coaxial Modular Propulsion System for Agricultural Drone

T-Motor X-A14-18S KV49.6 Coaxial Modular Propulsion System for Agricultural Drone

Availability: Pre-order – Shipped within 10-15 days
₹ 164,322.00 (Inc.GST)
₹ 164,322.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360165

Short Description:
  • 180–200 kg MTOW coaxial quadcopters
  • Up to 300 kg MTOW hexacopters
  • 80L–100L spraying drones
  • High-capacity Logistic Drone
  • Tested for High Altitude performance up to 5000mtr AMSL
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model X-A14-18S
System Type Modular UAV Propulsion System
Motor Model A14-18S KV49.6
ESC Model 18S FOC 200A ESC
Propeller Model MF5720P Folding Propeller
Recommended Battery 18S LiPo
Nominal Voltage 66.6 V (18S LiPo)
Maximum ESC Voltage 75 V
Rated Thrust 45–50 kg
Maximum Thrust ~105 kg
Rated Efficiency ~7.4 g/W at 45 kg thrust
Complete System Weight ~9.8 kg (motor + ESC + propeller + wiring)

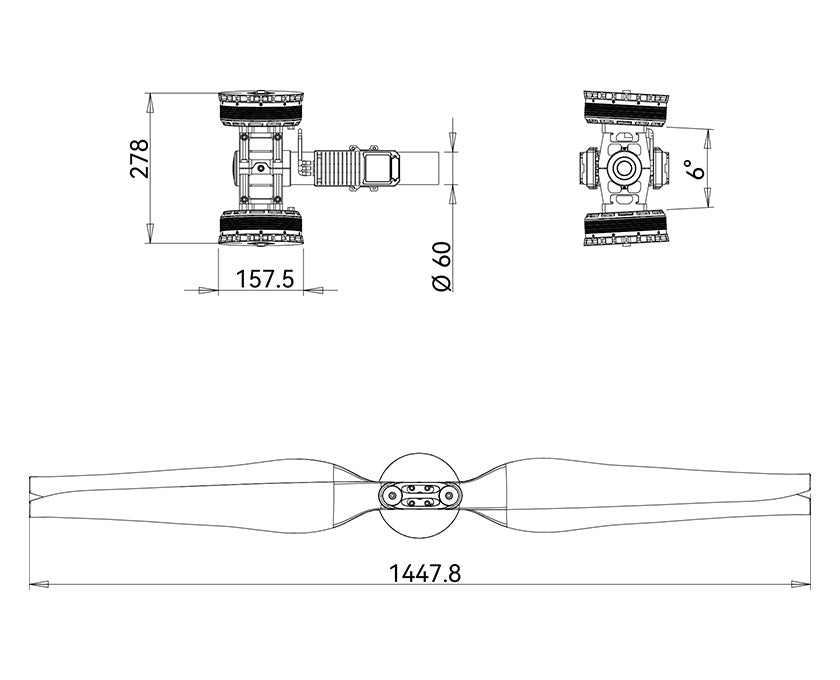

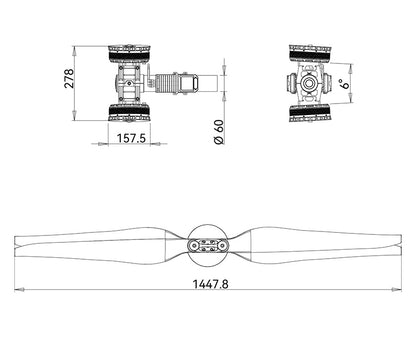

Compatible Arm Tube Size 60 mm
Protection Rating IPX5
Operating Temperature -20°C to +50°C
Control Interface PWM / CAN
Communication Protocol DRONE CAN / UAV CAN / CUBE CAN
Throttle Range 1100–1940 μs
Cable Length ~1550 mm

The T-Motor X-A14-18S is a high-power modular propulsion system designed for agricultural spraying drones, heavy-lift multirotors, and industrial UAV platforms. It integrates the A14-18S KV49.6 motor, 18S FOC 200A ESC, and MF5720P folding propeller as a matched propulsion unit. The system is optimized for 50L agricultural quadcopters, 60L hexacopters, and 270–300 kg class UAV platforms.

Key Features:

High-Voltage 18S Architecture

  • Lower current compared with traditional 12S agricultural systems.
  • Improved efficiency for large UAV platforms.
  • Suitable for long-duration spraying operations.

Integrated Modular Design

  • Motor, ESC, and propeller are matched as one propulsion package.
  • Faster UAV assembly and easier maintenance.
  • Reduced propulsion tuning requirements.

FOC Intelligent Control

  • Smooth startup.
  • Improved motor efficiency.
  • Reduced vibration and noise.
  • Supports professional CAN communication.

Industrial Protection

  • IPX5 waterproof protection.
  • Suitable for agricultural field environments.
  • Designed for continuous heavy-load operation.

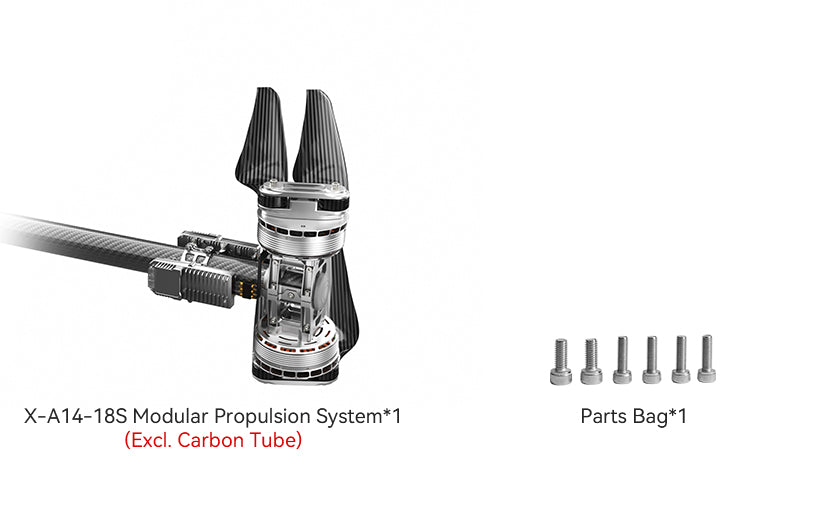

Packing List Includes:

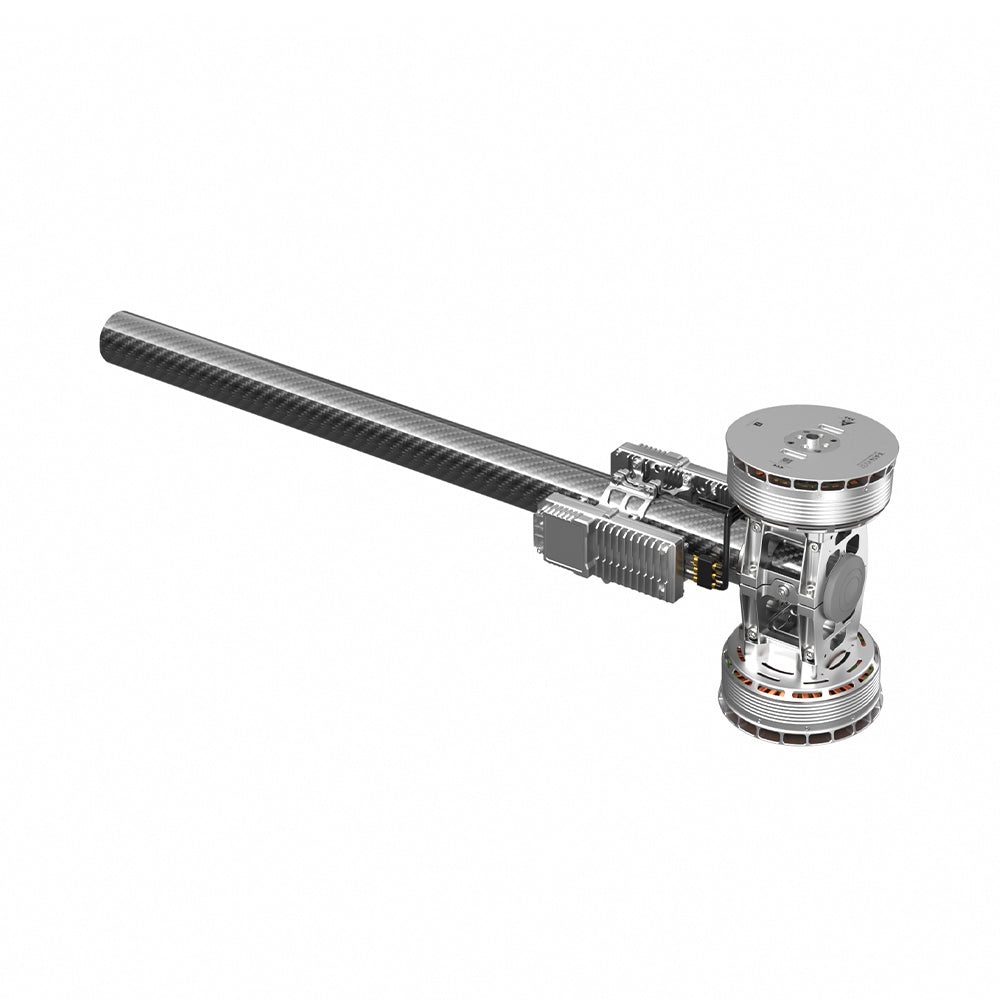

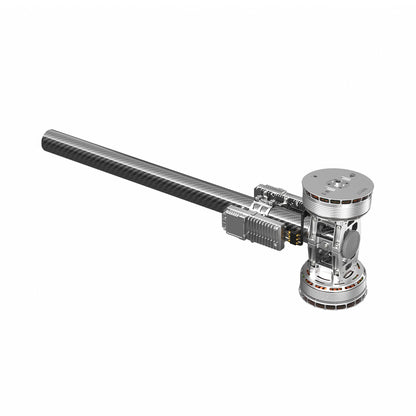

  • 1 x X-A14-18S Modular Propulsion Arm (Motor + ESC + Propeller)
  • 1 x Accessories pack

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
