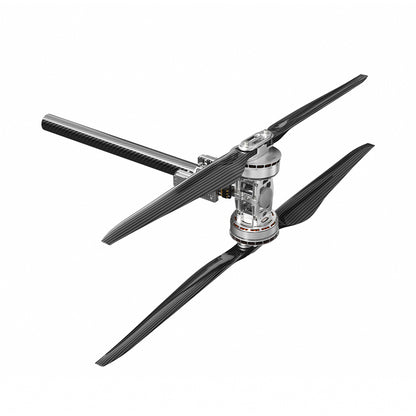

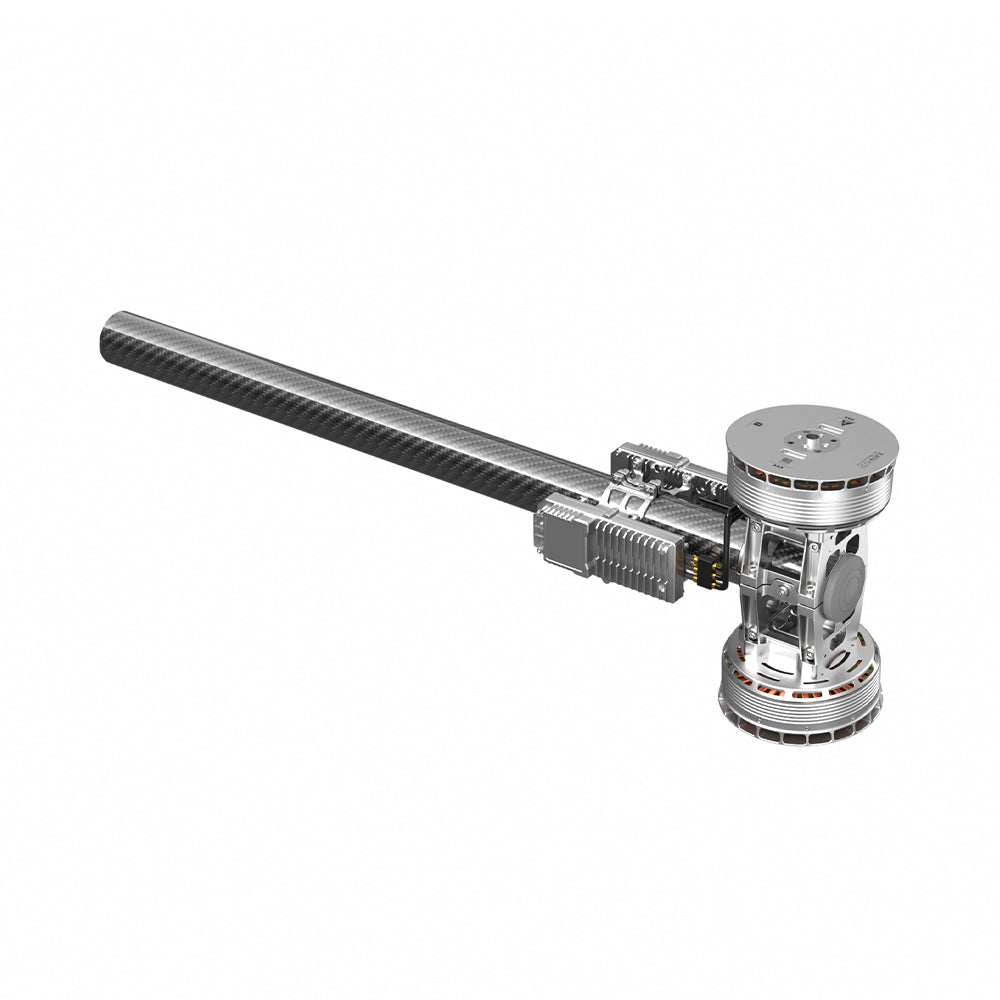

T-Motor X-A14-24S KV37 Coaxial modular propulsion for Agricultural Drone

T-Motor X-A14-24S KV37 Coaxial modular propulsion for Agricultural Drone

Availability: Pre-order – Shipped within 10-15 days
₹ 164,322.00 (Inc.GST)
₹ 164,322.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360164

Short Description:
  • 140–160 kg MTOW coaxial quadcopters
  • Up to 240 kg MTOW hexacopters
  • 50L–70L spraying drones
  • High-capacity fertilizer / pesticide systems
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model X-A14-24S
System Type Modular Coaxial UAV Propulsion System
Motor Model A14-24S KV37
ESC Model 24S FOC 150A ESC
Propeller Model EFZ5720 Folding Carbon Fiber
Recommended Battery 24–28S LiPo
Nominal Voltage 88.8 V (24S LiPo)
Maximum ESC Voltage 120 V
Rated Thrust 45–50 kg
Maximum Thrust 113 kg
Rated Efficiency 7.4 g/W @ 45 kg thrust
Complete System Weight Approx. 9.7 kg (motor + ESC + propeller + wiring)
Carbon Tube Compatibility 60 mm
Protection Rating IPX5
Operating Temperature -20°C to +55°C
Control Interface PWM / CAN
Communication Protocol DRONE CAN / UAV CAN / CUBE CAN
Throttle Range 1100–1940 μs
Cable Length 1500 ± 5 mm

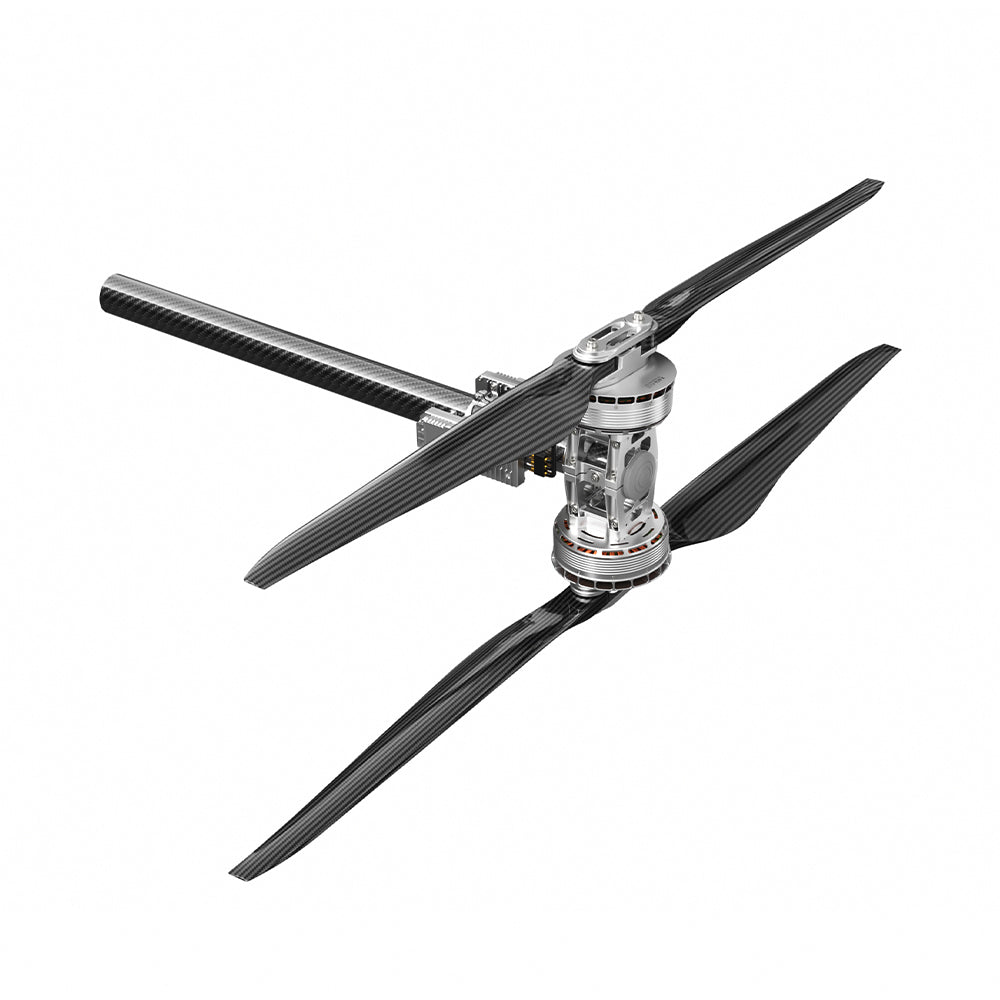

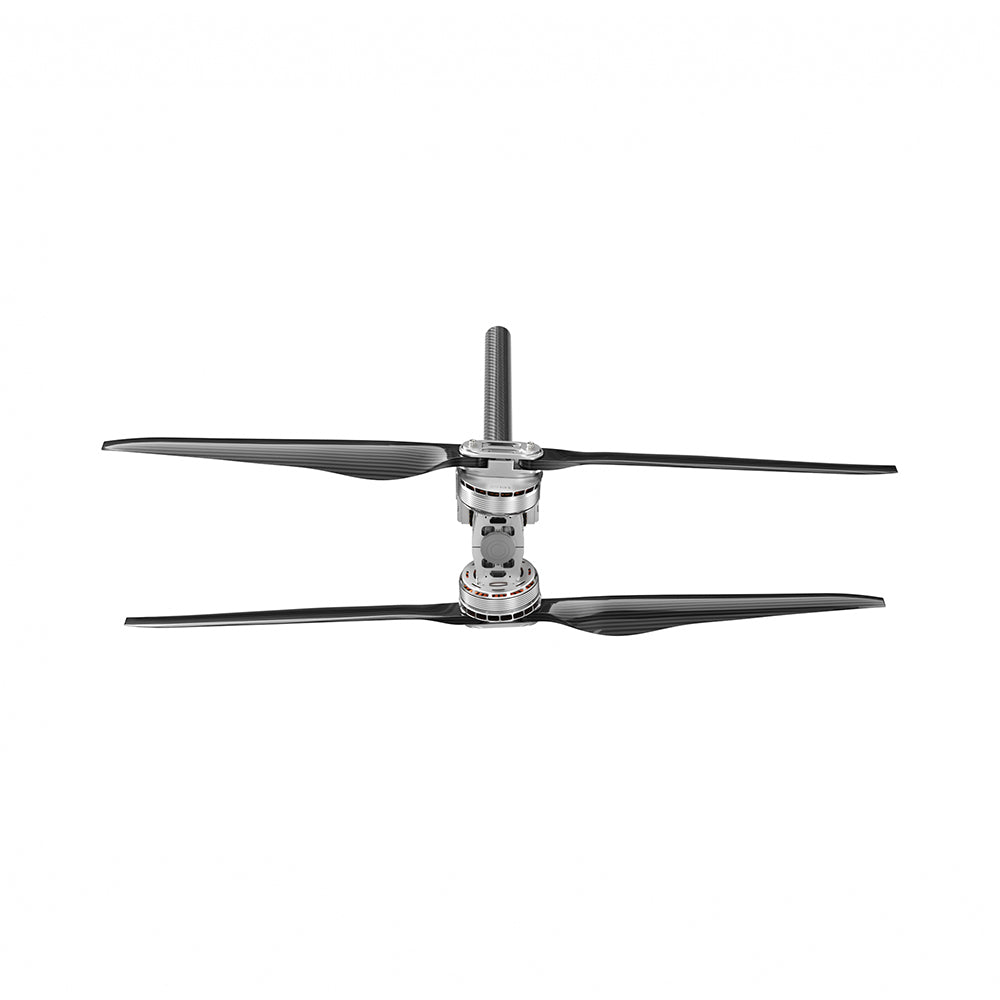

The T-Motor X-A14-24S is a heavy-lift coaxial modular propulsion system designed for agricultural spraying drones, industrial multirotors, and commercial UAV platforms. It combines the A14-24S KV37 motor, 24S FOC 150A ESC, and EFZ57 folding carbon-fiber propeller into a matched propulsion package. It is optimized for 140–160 kg class coaxial UAVs and high-efficiency agricultural operations

Key Features:

High-Voltage 24S Architecture

  • Reduces current compared with 12S propulsion systems.
  • Improves efficiency for large agricultural UAVs.
  • Suitable for long-duration spraying missions.

Integrated Modular System

  • Motor, ESC, and propeller are factory matched.
  • Simplifies UAV integration and maintenance.
  • Reduces propulsion tuning requirements.

FOC Intelligent Control

  • Smooth motor startup.
  • Improved efficiency.
  • Lower vibration.
  • Supports CAN communication with professional flight controllers.

Industrial Protection

  • IPX5 environmental protection.
  • Suitable for outdoor agricultural environments.
  • Designed for continuous heavy-load operation.

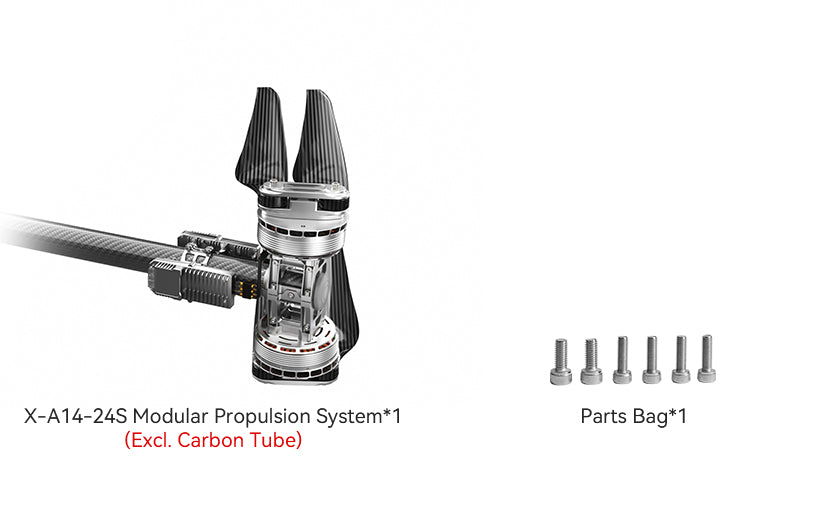

Packing List Includes:

  • 1 x X-A14-24S Modular Propulsion Arm (Motor + ESC + Propeller)
  • 1 x Accessories pack

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
