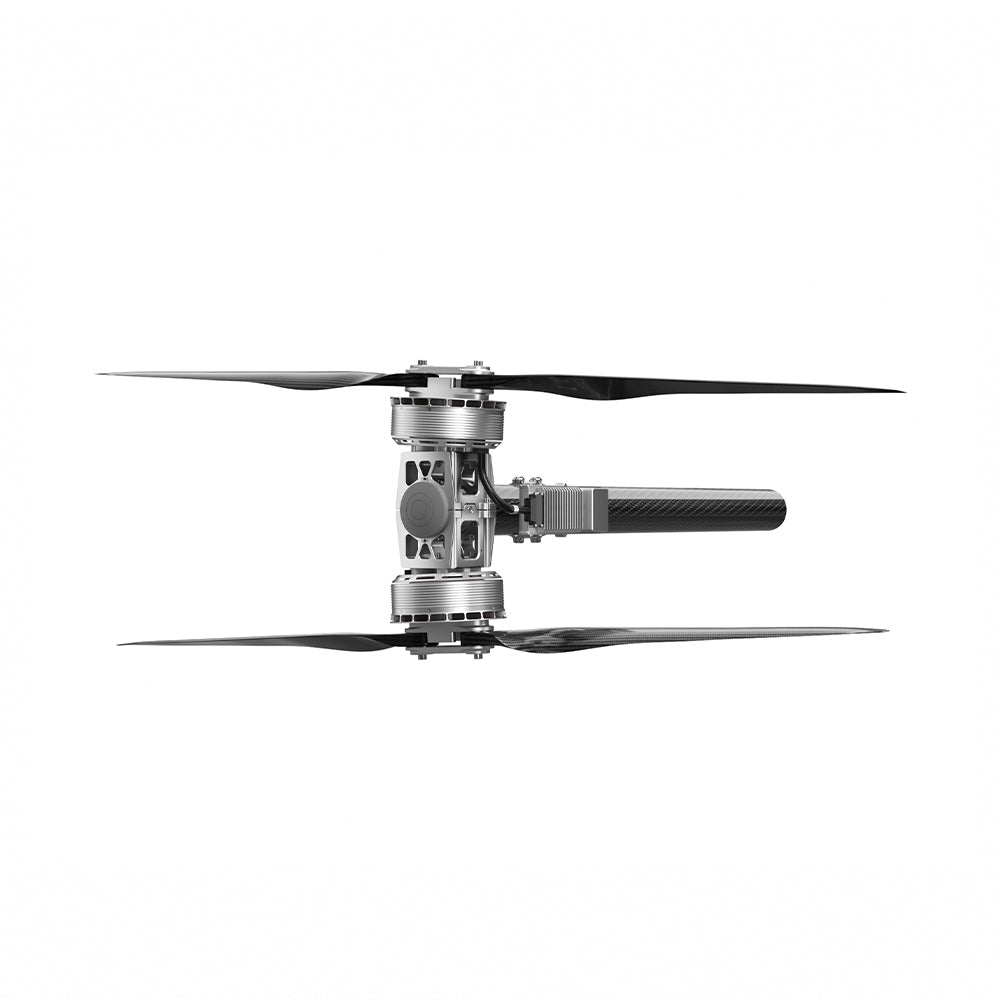

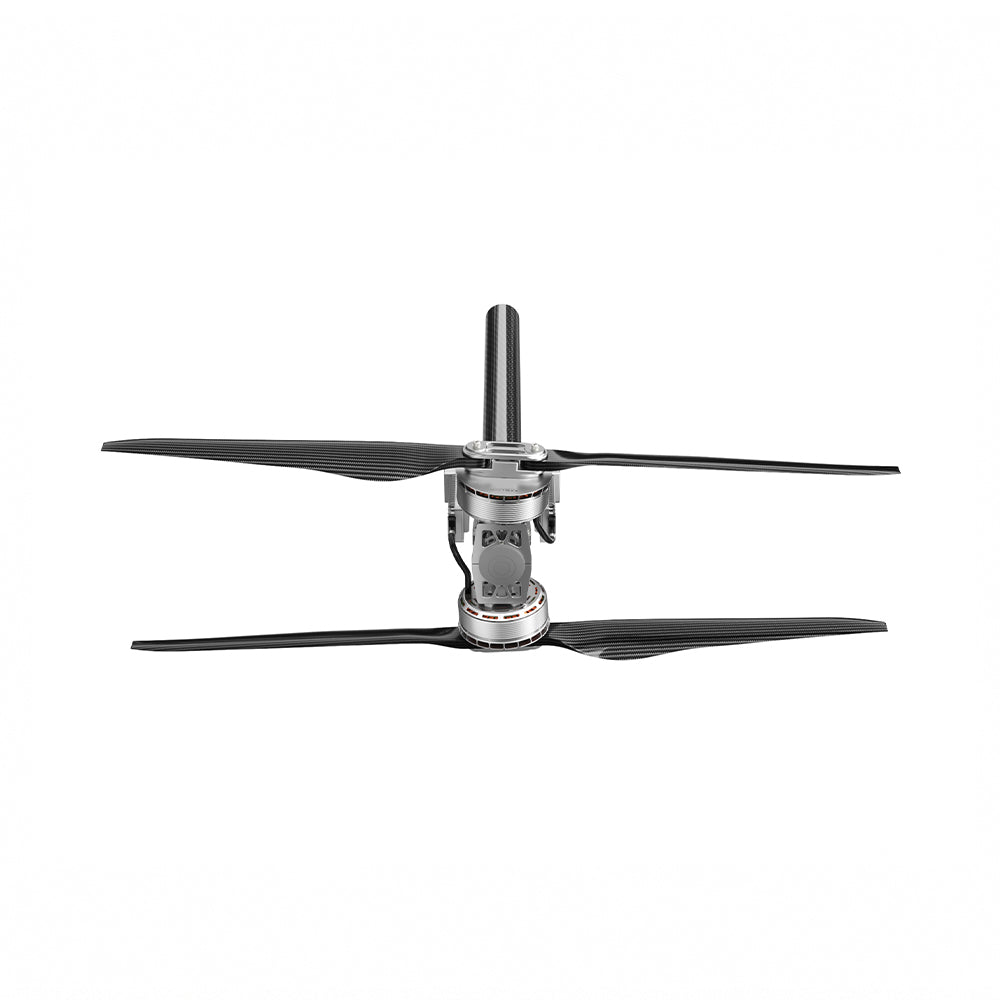

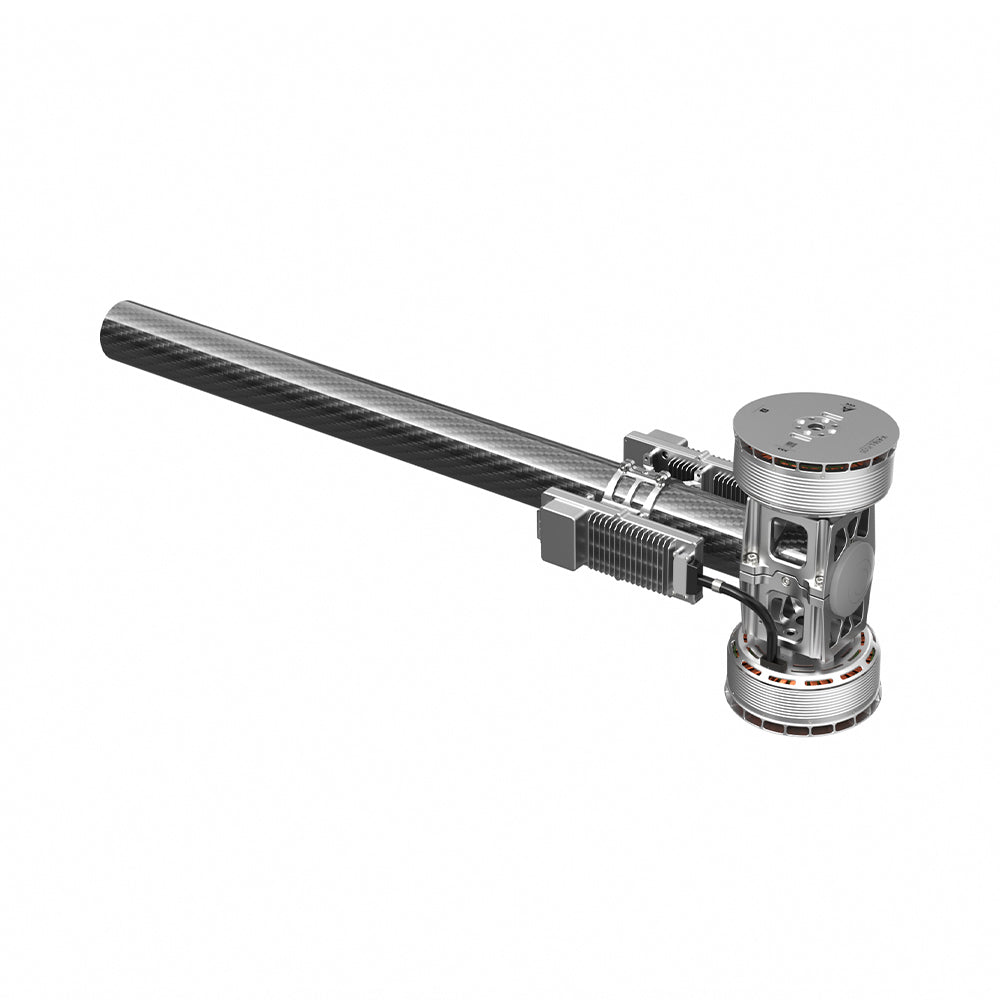

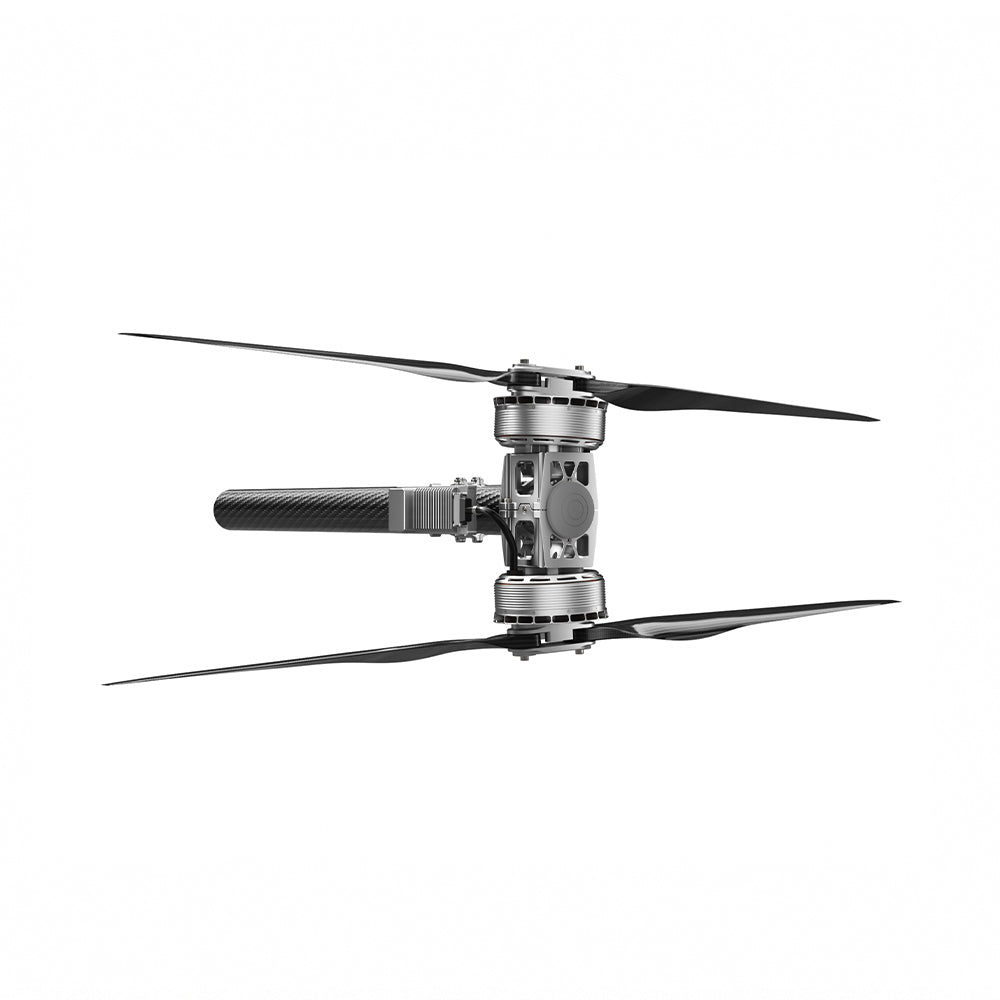

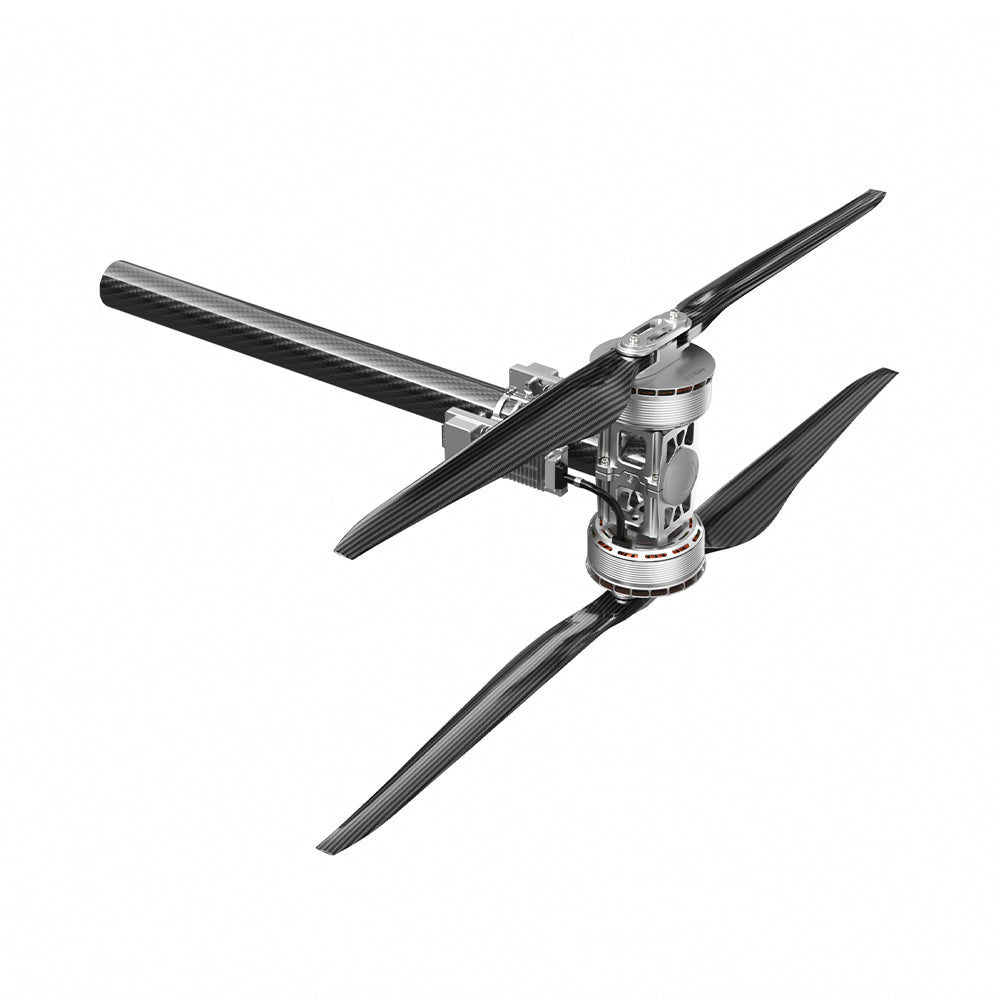

T-Motor X-A16L-24S KV35 Coaxial Modular Propulsion System for Agricultural Drone

T-Motor X-A16L-24S KV35 Coaxial Modular Propulsion System for Agricultural Drone

Availability: Pre-order – Shipped within 10-15 days
₹ 253,800.00 (Inc.GST)
₹ 253,800.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

9360162

Short Description:
  • 140–160 kg MTOW coaxial quadcopters
  • Up to 360 kg MTOW hexacopters
  • 80L–100L spraying drones
  • High-capacity fertilizer / pesticide systems
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 1 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Attachments
  • Questions
  • Other Information
Parameter Specification
Model X-A16L-24S
System Type Modular Coaxial UAV Propulsion System
Motor Model A16L-24S KV35
ESC Model 24S FOC 260A ESC
Propeller Model EFZ6324 Folding Carbon Fiber Propeller
Recommended Battery 24–28S LiPo
Rated Voltage 24S LiPo (88.8 V nominal)
Maximum Voltage 120 V
Rated Thrust 45–50 kg per propulsion unit
Maximum Thrust ~101 kg
Recommended UAV Class 280–300 kg coaxial multirotor
System Weight (Motor + ESC + Prop + Wiring) 15.2 kg
Carbon Tube Size 80 mm
Protection Rating IPX5
Operating Temperature -20°C to +55°C
Control Interface PWM / CAN
Communication Protocol DRONE CAN / UAV CAN / CUBE CAN
Throttle Range 1100–1940 μs
Cable Length Approx. 2000 mm

The T-Motor X-A16L-24S is an ultra-heavy-lift coaxial modular propulsion system designed for large agricultural drones, cargo UAVs, and industrial multirotor platforms. It integrates a high-torque A16L-24S motor, 24S FOC 260A ESC, and EFZ63 folding carbon-fiber propeller into a complete propulsion module. It is designed for 280–300 kg class coaxial UAV platforms and large agricultural spraying drones requiring very high thrust and reliability.

Key Features:

  • Extreme heavy-lift capability
  • 45–50 kg rated thrust per propulsion unit.
  • Up to approximately 100 kg maximum test thrust.
  • 24S high-voltage architecture
  • Reduces current compared with lower-voltage systems.
  • Improves efficiency for large UAVs.
  • Integrated modular design
  • Motor + ESC + propeller supplied as a matched system.
  • Simplifies UAV development and maintenance.
  • FOC intelligent control
  • Smooth startup.
  • Improved efficiency.
  • Lower vibration and noise.
  • Industrial-grade protection
  • IPX5 environmental protection.
  • Designed for agricultural and outdoor operations.

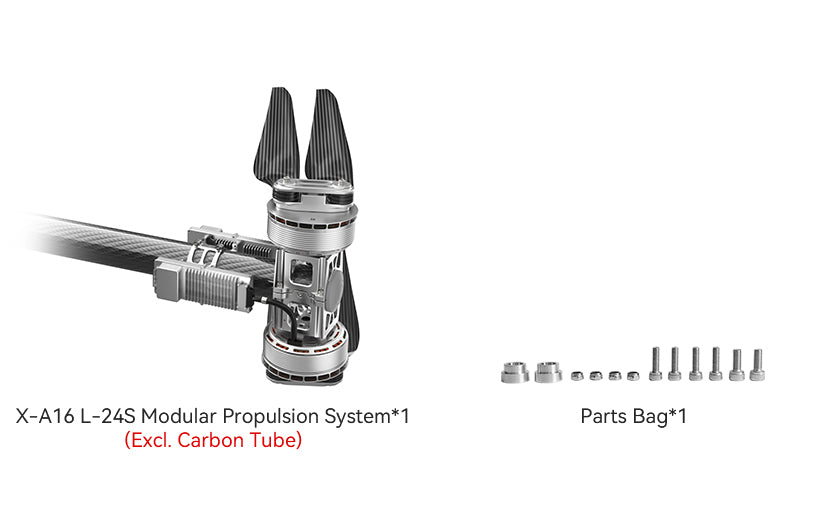

Packing List Includes:

  • 1 x X-A16L-24S Modular Propulsion Arm (Motor + ESC + Propeller)
  • 1 x Accessories pack

The product has a warranty for 1 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
