| Category | Specification |
|---|---|
| Model | XU8-X Standard |
| System Type | Integrated Modular Propulsion System |
| Configuration | Motor + FOC ESC + Propeller + Integrated Arm |
| Supported Voltage | 6S LiPo |
| Motor KV Options | KV85 |
| ESC Type | ALPHA 60A FOC ESC |
| ESC Voltage Versions | 6S 60A |
| Recommended Propeller | MF2815 Folding Propeller |
| Optional Propeller | G28×9.2 Carbon Fiber Prop |
| Arm Dimensions | 134.6 × 87.1 × 70.5 mm |
| Weight | ~490 g (arm + wires) |
| Motor Shaft Diameter | 8 mm |
| Wire Length | ~600 mm exposed wires |
| Cooling System | Centrifugal Air Cooling |
| Communication / Control | Intelligent FOC Control |
| LED System | Hall-sensor magnetic LED switching |

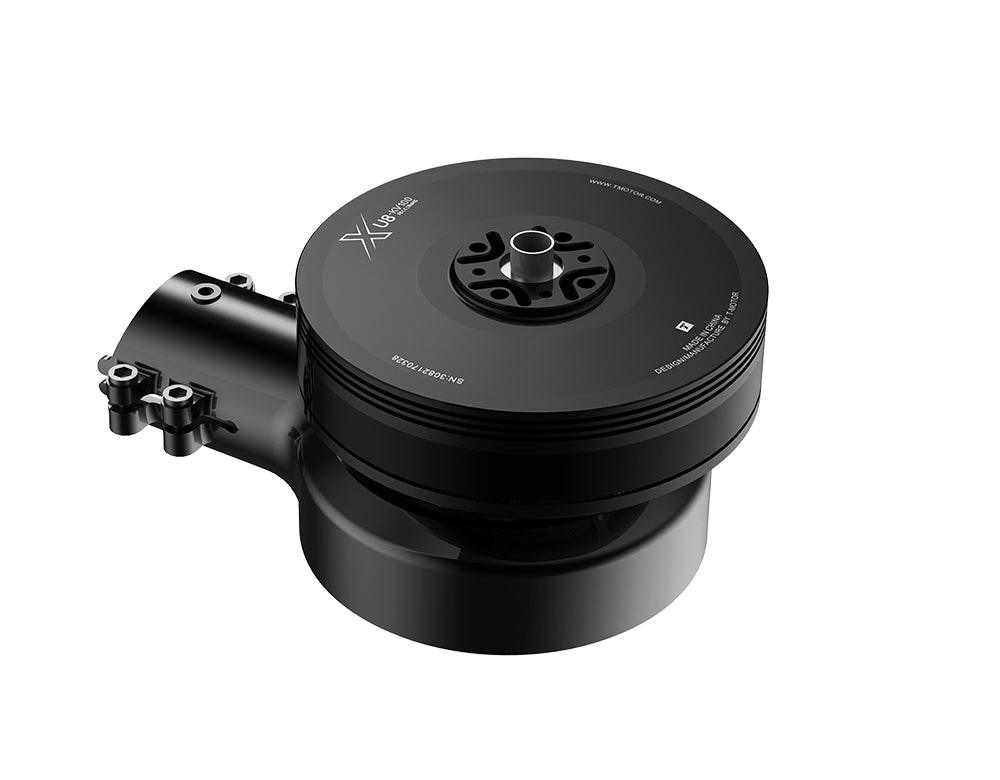

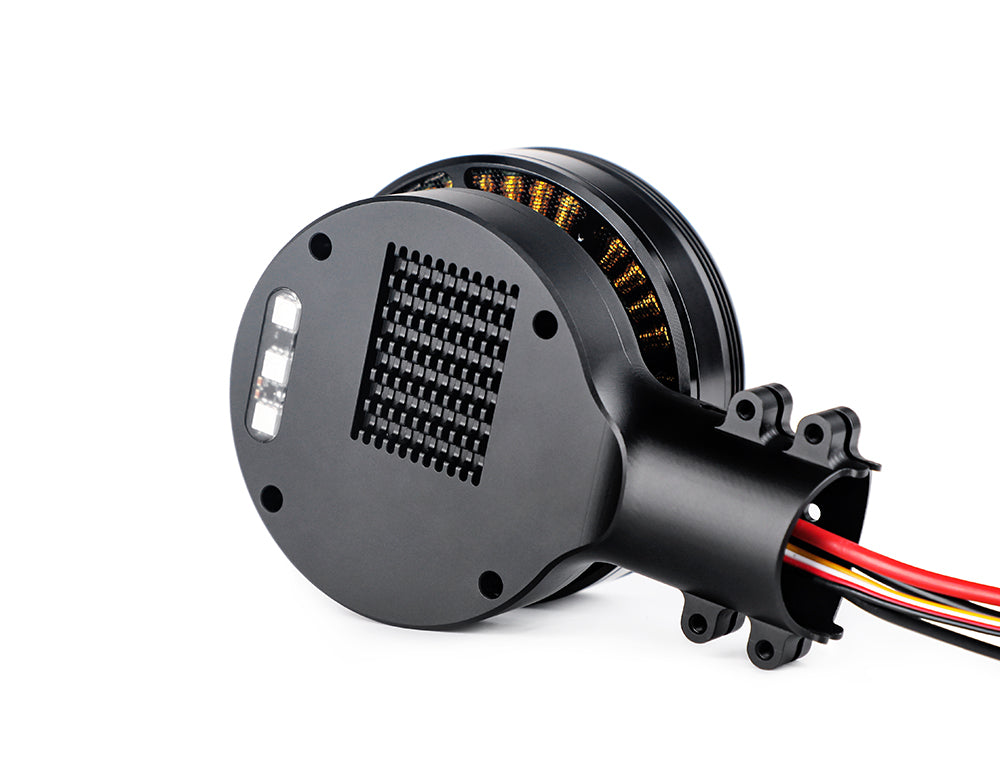

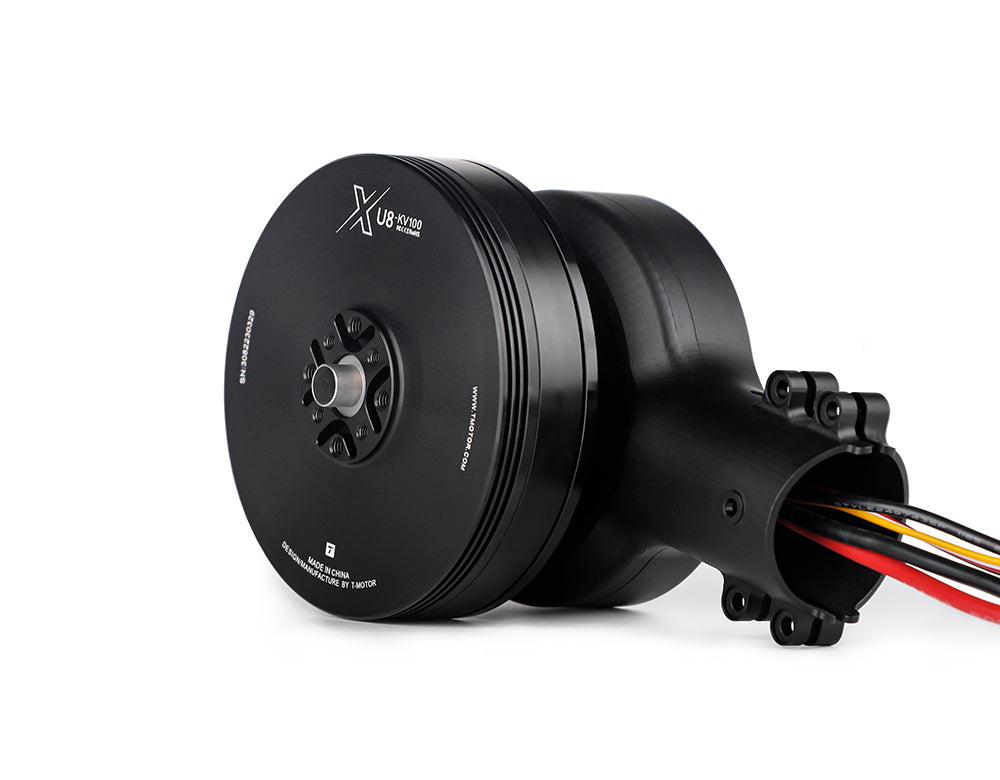

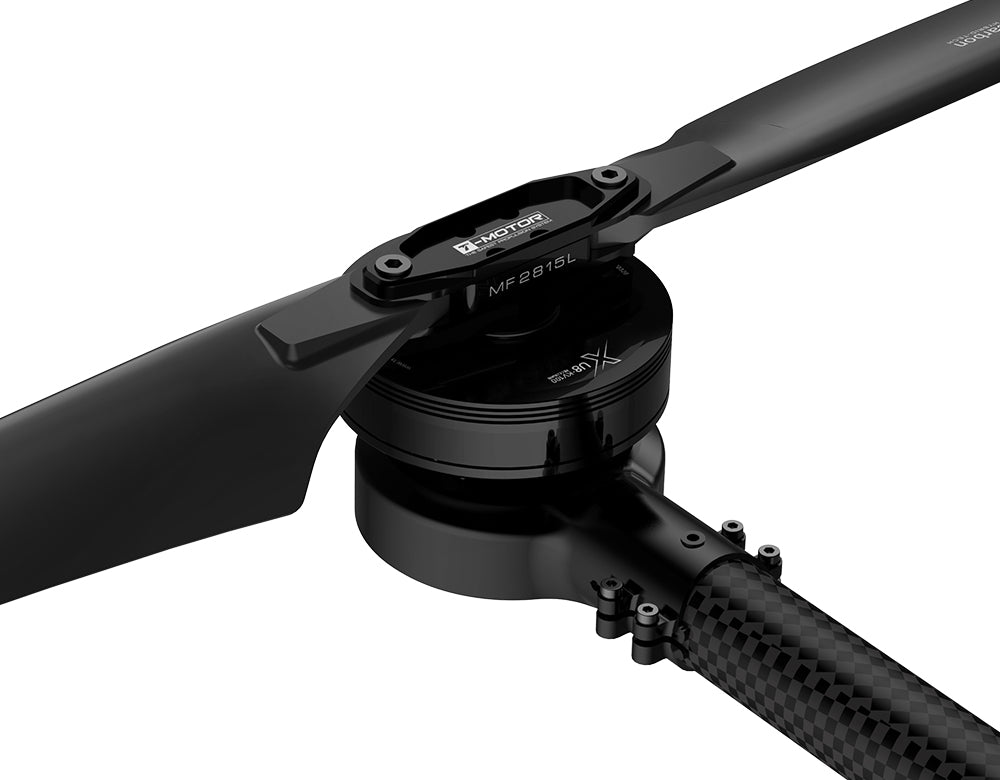

The T-Motor XU8-X Standard Integrated Propulsion System is a professional modular UAV propulsion platform designed for industrial multirotor drones.
Packing List Includes:
- 1 × XU8-X Combo Pack 6S (Motor + ESC + Propeller)
- 1 x Accessories pack
