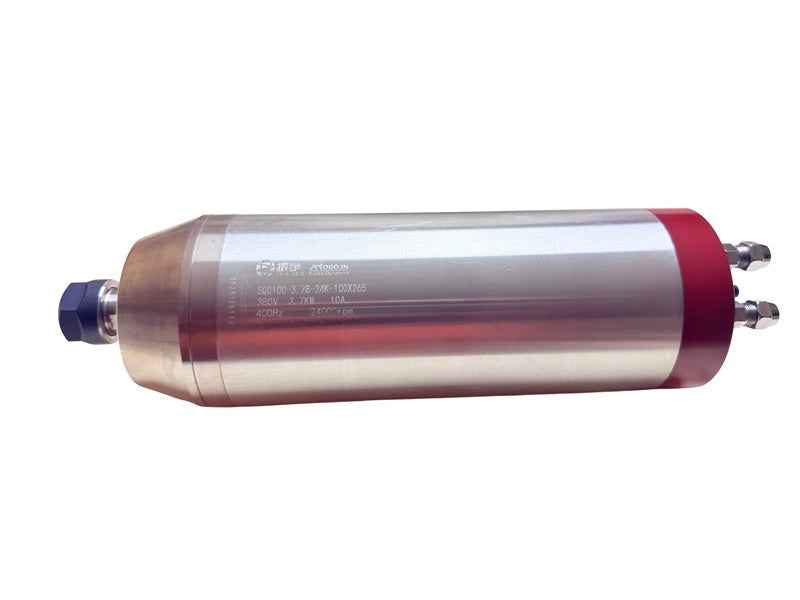

Water Cooled Spindle 3.7kW ER20 380V 24000RPM - 100mm

Water Cooled Spindle 3.7kW ER20 380V 24000RPM - 100mm

Availability: Pre-order – Shipped within 30 days
₹ 36,200.00 (Inc.GST)
₹ 36,200.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

2970084

Short Description:
  • Power : 3.7kw
  • RPM : 24000
  • Collect Size : ER20
  • Spindle Dia : 100mm
  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 6 Months Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information



Parameter

Specification

Spindle Type

Water-cooled CNC Spindle (Round body)

Power

3.7 kW

Rated Speed

24000 RPM

Rated Frequency

400 Hz

Rated Voltage

380V

Rated Current

10.0 A (typ.)

Collet

ER20

Body Diameter

100 mm

Bearings

7005/7006 ceramic pair (front), 7005 (rear)

Runout

<= 0.01 mm

Cooling

Water-cooled

Torque (calc.)

1.273 Nm

Mounting

Clamp mount with bracket; horizontal/vertical

Applications

CNC routing, engraving, milling (wood, plastics, soft metals)

The Xrobo.in Water Cooled Spindle Motor 3.2kW ER20 380V 24000RPM is a precision CNC spindle optimized for routing, engraving, and light milling across wood, plastics, and non‑ferrous metals. Driven by a matched VFD, it maintains stable torque across the operating range with low runout thanks to high‑precision ceramic bearings.

Key Features :

  • 3.7 KW input power for strong cutting performance
  • High speed operation up to 24,000 RPM
  • ER20 collet for versatile tool holding
  • Standard 100 mm body diameter for easy mounting
  • Low noise and smooth rotation even under load

Packing List Includes:

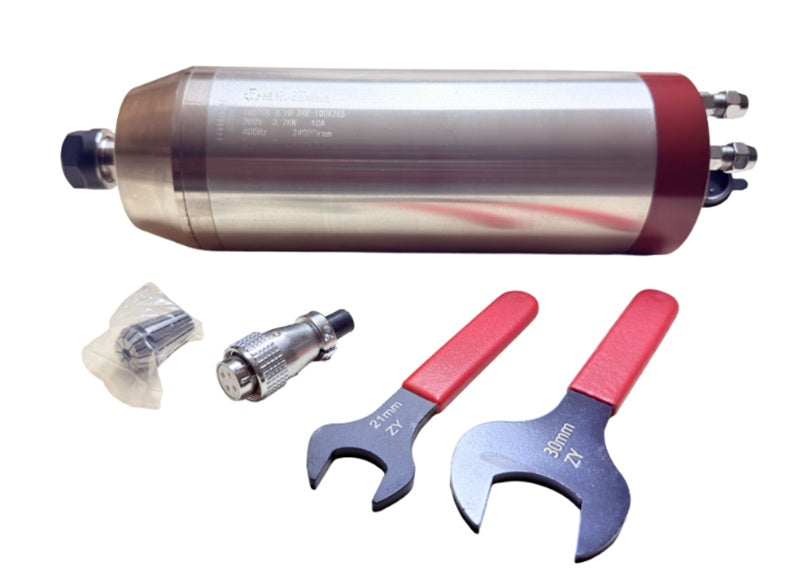

1 x Water Cooled Spindle 3.7kW ER20 380V 24000RPM - 100mm

The product has a warranty for 6 months against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
