| Parameter | Specification |
|---|---|
| Model | XRD980 |
| Driver Type | Digital 2-Phase Stepper Motor Driver |
| Compatible Motors | NEMA 34 & Nema42 2-Phase Stepper Motors |
| Supply Voltage | AC 20–110 V or DC 20–160 V |
| Output Current | 2.2–8.2 A Peak (Adjustable via DIP Switch) |
| Compatible Motor Current | Up to 6.0 A RMS |

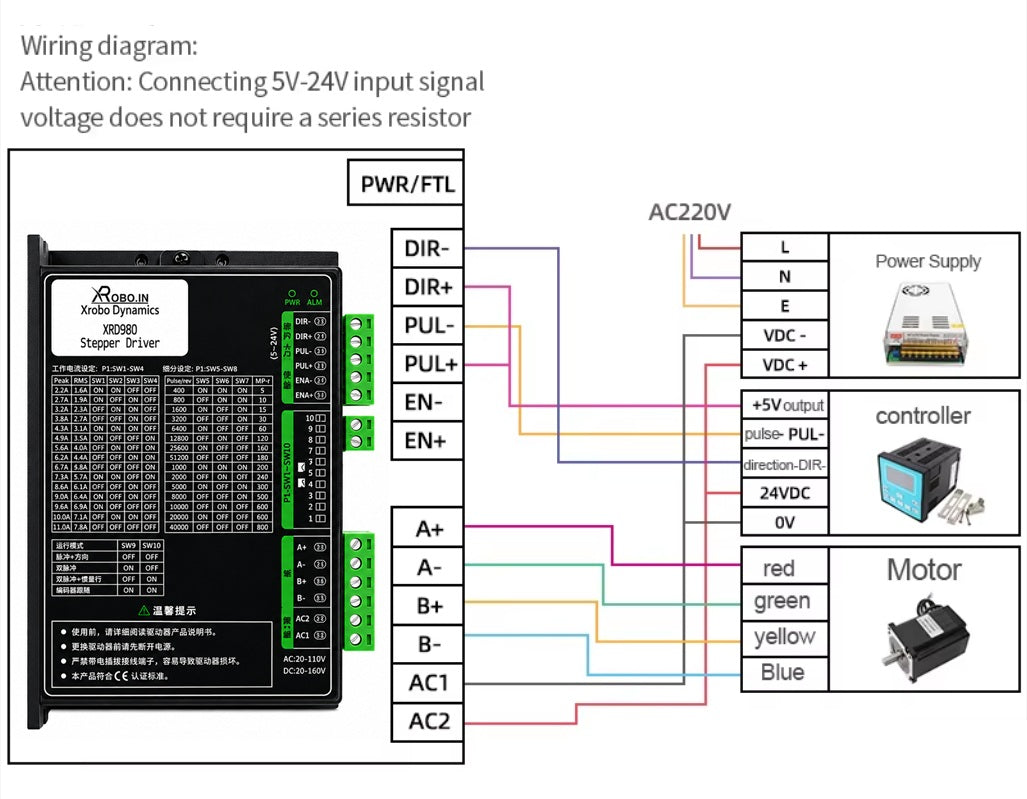

| Control Signal | Pulse (PUL), Direction (DIR), Enable (ENA) |
| Logic Input Voltage | 5–24 VDC Opto-Isolated |
| Microstep Resolution | 400–40,000 Pulses/Rev (16 selectable settings) |
| Current Settings | 16 Adjustable Current Levels |
| Protection Features | Over-current, Over-voltage, Over-temperature, Short-circuit Protection |
| Indicators | Power LED, Alarm LED |

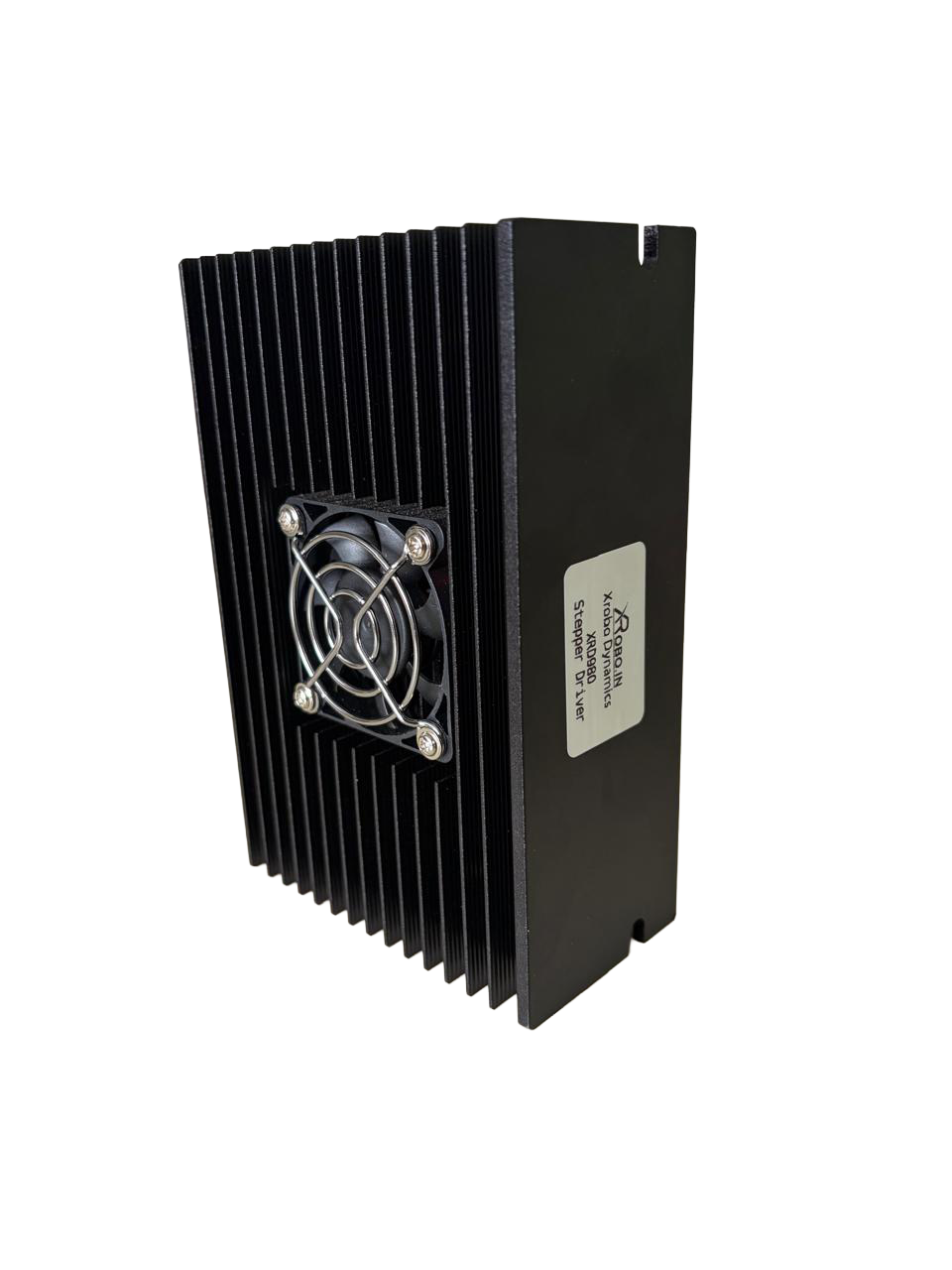

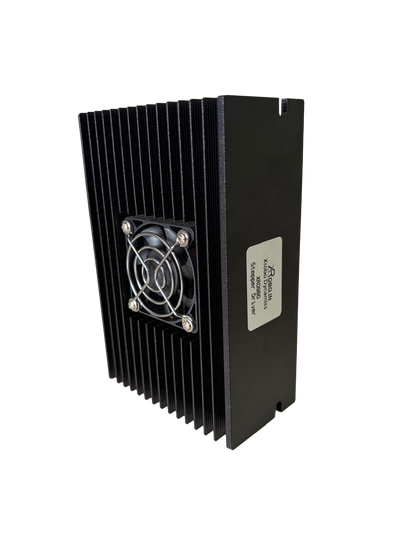

| Cooling Method | Aluminum Heat Sink (Fan-assisted on some variants) |

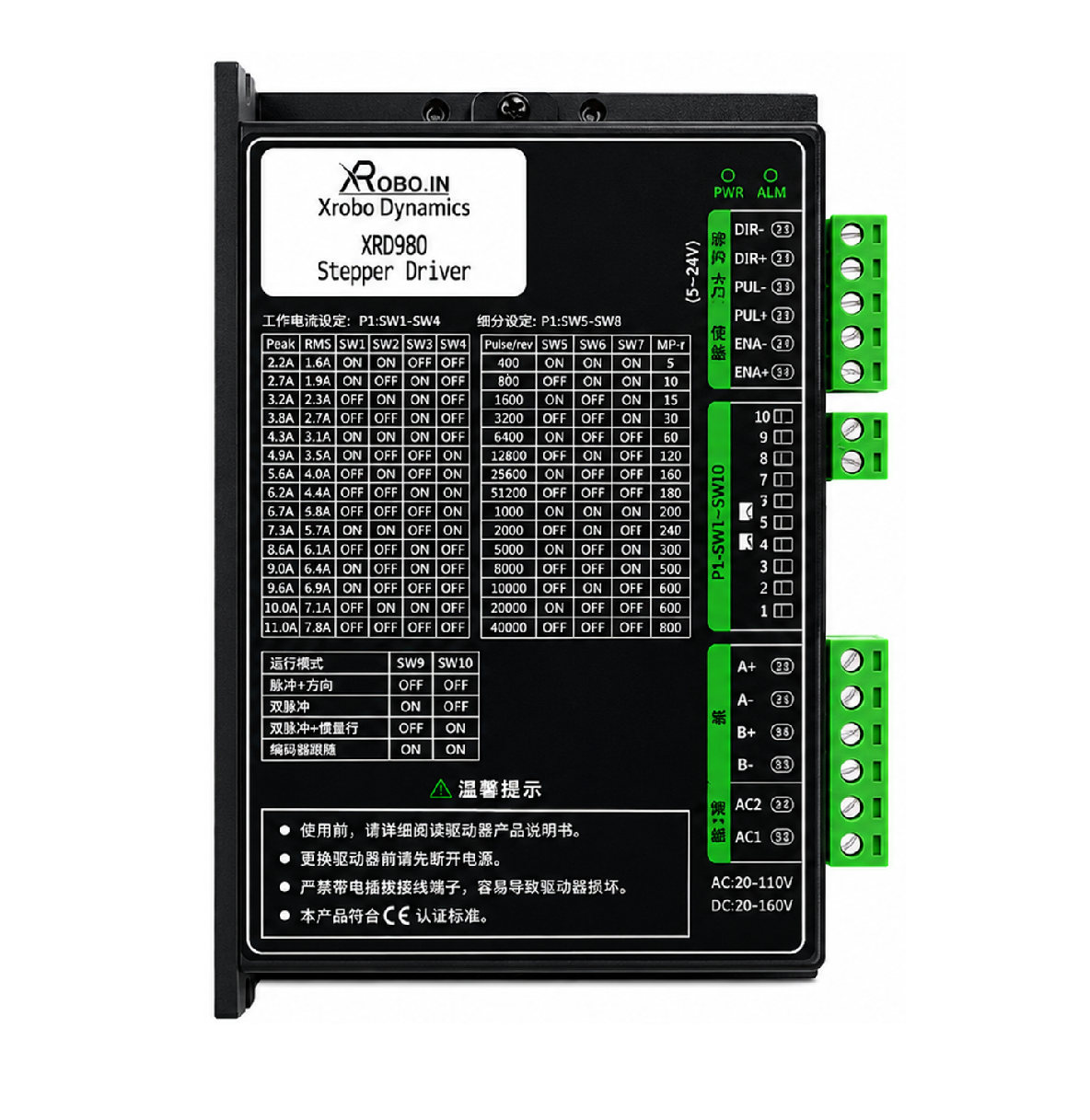

| Configuration | 10 DIP Switches |
| Operating Temperature | 0°C to +50°C (Recommended) |
| Storage Temperature | -20°C to +70°C |
| Mounting | Panel Mount |
| Applications | CNC Machines, CNC Routers, CNC Plasma Cutters, Milling Machines, Laser Cutting Machines, Packaging Equipment, Textile Machinery, Pick & Place Systems, Automation Equipment, Industrial Robotics, Woodworking Machines, Printing Machines |

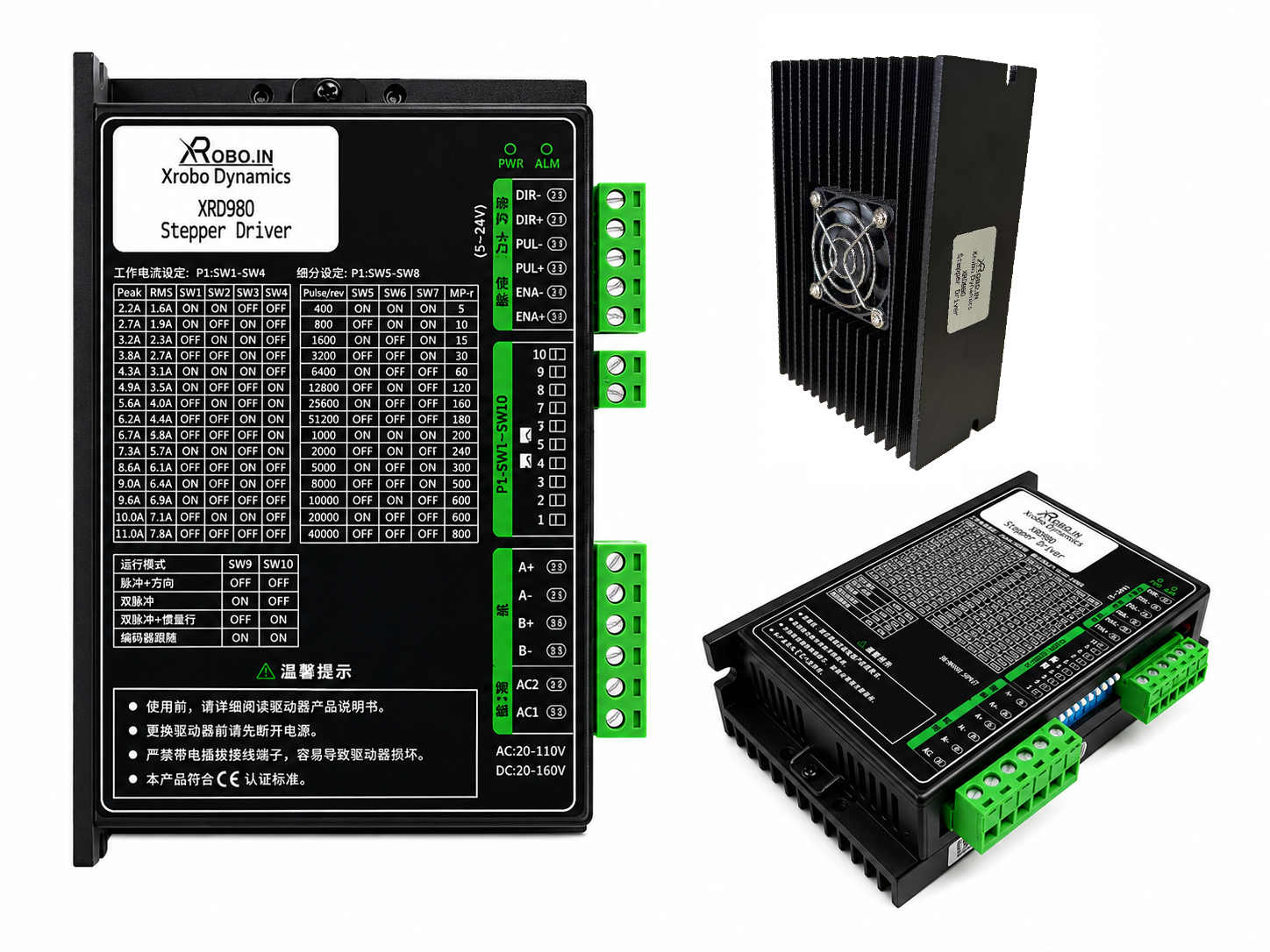

The link is for the XRD980, a 2-phase closed-loop stepper driver designed for NEMA 34 and NEMA 42 motors. It is intended for CNC machines, 3D printers, laser engravers, and other automation equipment.
Note : Equivalent to performance of Original Lead shine & Yako Stepper Driver
Application Areas:
- CNC routers and milling machines
- Laser cutting and engraving machines
- Industrial automation systems
- Robotics and motion control
- Pick-and-place machines
- 3D printers and positioning systems
Packing List Includes:
- 1 x XRD980 Stepper Motor Driver
