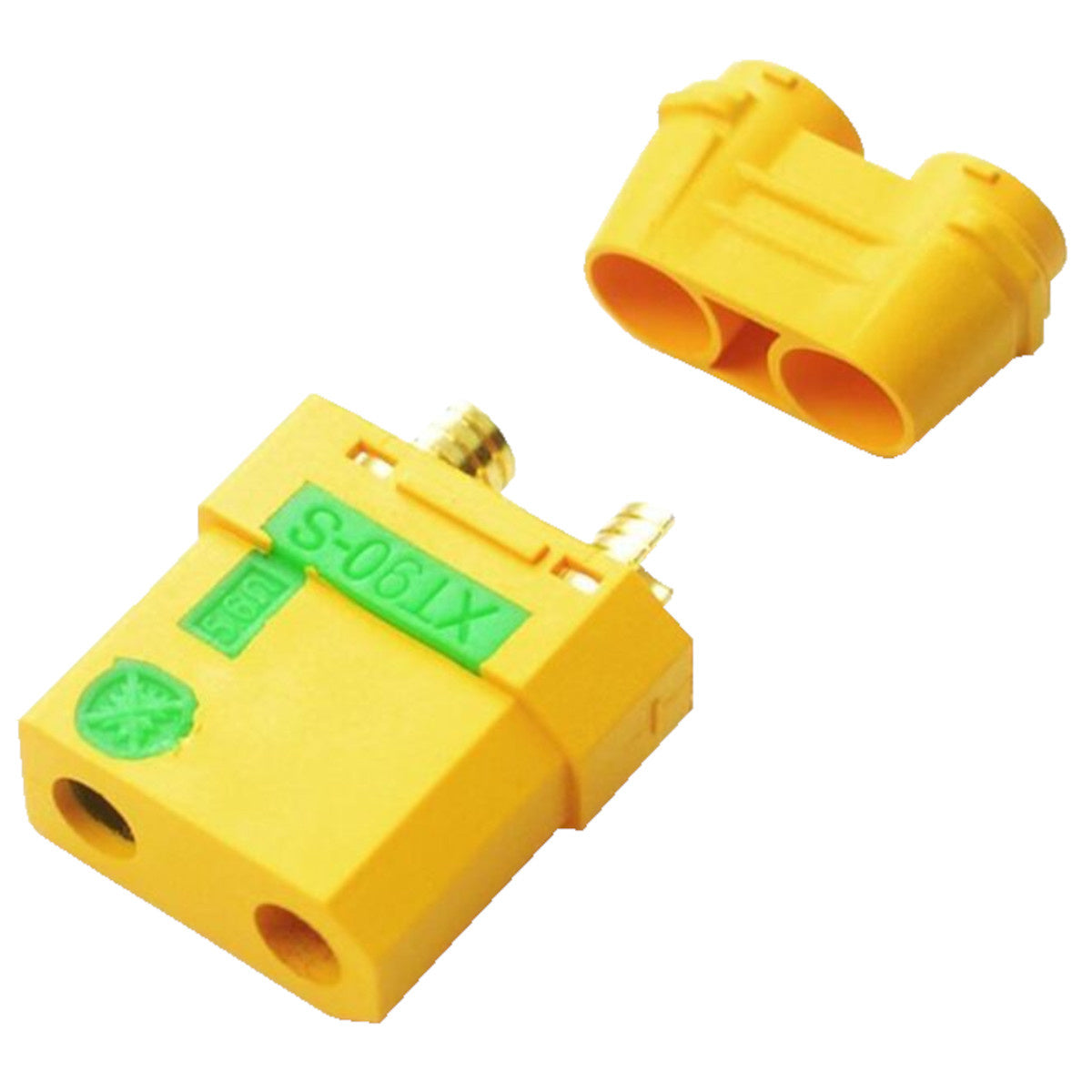

XT90-S Female connector anti-sparking

XT90-S Female connector anti-sparking

Availability: In stock
₹ 178.00 (Inc.GST)
₹ 178.00 (Inc.GST)
Sale Sold out
Shipping calculated at checkout.

6570091

  • Need Support?
    Click Here
  • Have a Bulk Order?
    Click Here
  • Free Delivery
    above ₹699
  • 15 Days Warranty
View full details
  • Description
  • Specification
  • Warranty
  • Questions
  • Other Information
Parameter Specification
Product Name XT90-S Female Anti-Spark Connector
Connector Type XT90-S Female Anti-Spark DC Power Connector
Number of Pins 2 Pins
Rated Current 90 A Continuous
Peak Current Up to 120 A
Rated Voltage Up to 500 V DC
Anti-Spark Feature Integrated Pre-Charge Resistor
Contact Material Gold-Plated Brass/Copper
Housing Material High-Temperature Nylon (PA)
Contact Resistance ≤ 0.5 mΩ
Recommended Wire Size 8–10 AWG
Connection Type Solder Terminal
Mounting Style Cable Mount
Mechanical Durability Up to 1,000 Mating Cycles
Operating Temperature -20°C to +120°C
Color Yellow

The XT90-S Female Anti-Spark Connector is a high-current DC power connector featuring an integrated anti-spark circuit that minimizes arcing during battery connection. Rated for 90 A continuous current, with gold-plated contacts, a high-temperature nylon housing, and support for 8–10 AWG wires, it is ideal for high-power LiPo battery packs, UAVs, RC vehicles, electric mobility, and industrial power applications.

Key Features:

  • Built-in anti-spark design reduces connection arcing
  • Rated for 90 A continuous current
  • Handles up to 120 A peak current
  • Integrated pre-charge resistor protects connectors and electronics
  • Gold-plated contacts for low resistance and excellent conductivity
  • High-temperature, flame-retardant nylon housing
  • Compatible with 8–10 AWG silicone wires
  • Secure and vibration-resistant connection
  • Easy solder installation
  • Durable and reusable with long service life

Packing List Includes:

  • 1 x XT90-S Female Anti-Spark Connector

The product has a warranty for 15 Days against manufacturing defects only.

However if the product is not used appropriately and is subject to tampering, accident, water damage, fire damage, chemical application & wires soldered or altered in any way the warranty will be void.
